YQKCEIIHT-235Infant Monitoring System (Sensor)

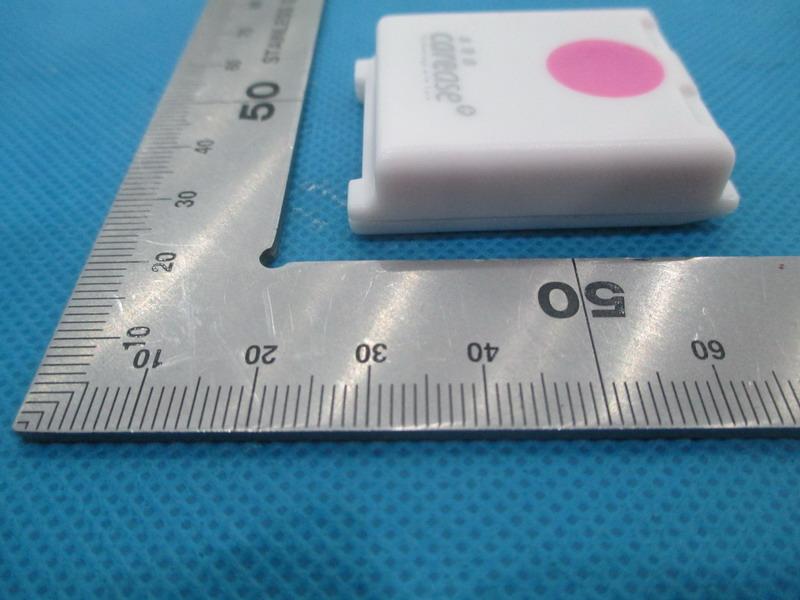

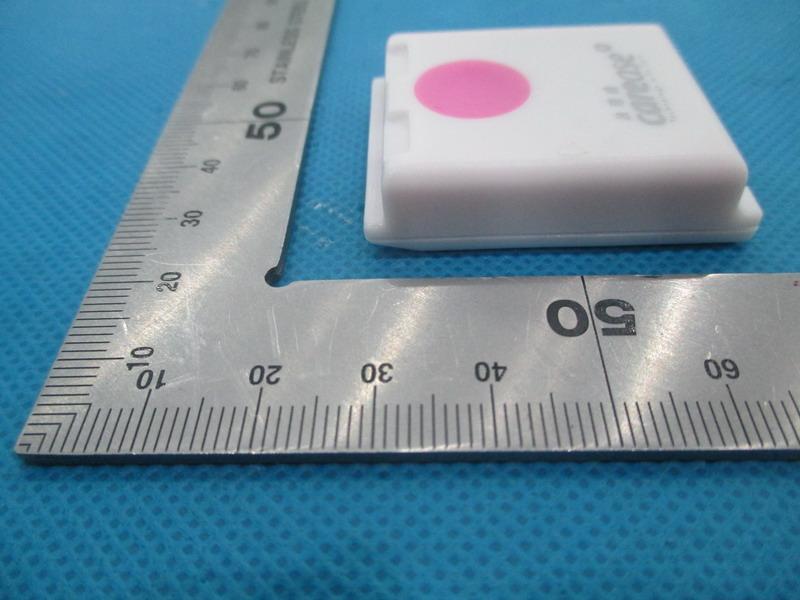

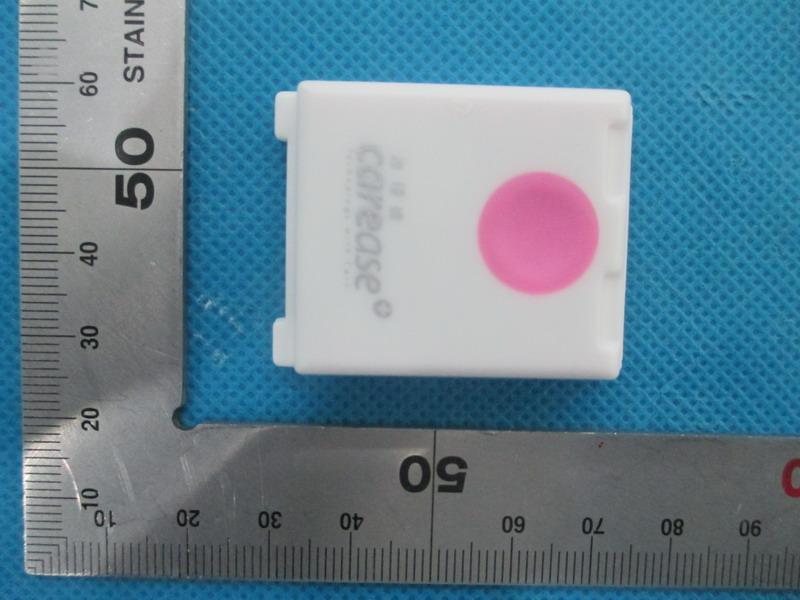

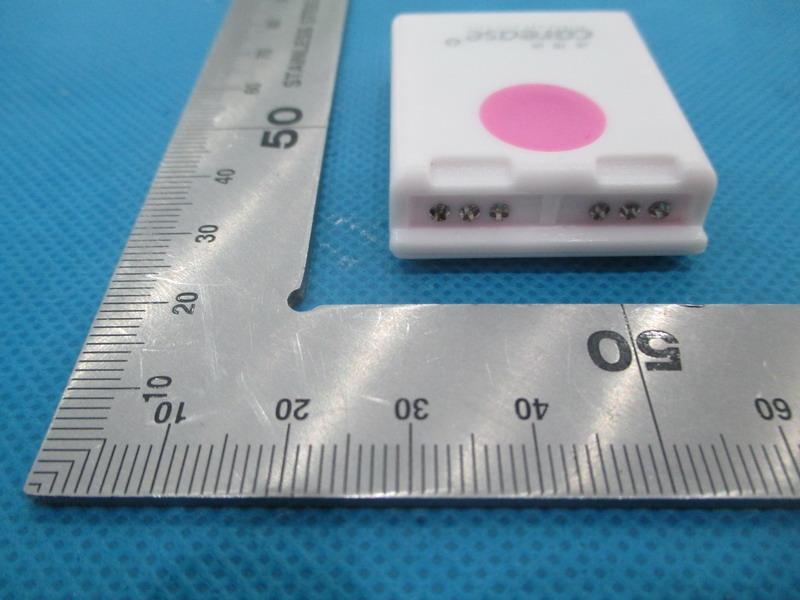

Appendix B Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

Label Location

Appendix C Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.: T-235 Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

Date: 2015-02-24 Report No.: 60.870.15.002.01S Model No.:T-235 Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] ” 3.0 The maximum tune-up limit power is 0.414mW @ 2.402GHz For the head and body SAR, use 50mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] = 0.0053 ” 3.0 So standalone SAR measurements are not required for both head and body

TEST REPORT Date: 2015-02-24 Report No.: 60.870.15.002.01F Page 1 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Ckicom Technology Limited Flat F, 4/F, Universal Industrial Centre, 19-21 Shan Mei Street, Fo Tan, Shatin, N.T., Hong Kong Description of Samples: Model name: Infant Monitoring System (Sensor) Model no.: T-235 FCCID:YQKCEIIHT-235 Date Samples Received: 2015-01-09 Date Tested: 2015-01-12 to 2015-02-03 Investigation Requested: FCC Part 15 Subpart C, Section 15.249 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerManager Wireless & Telecom departmentWireless & Telecom department ReportNo.: 60.870.15.002.01F Page 2 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 19 Content Page 2 of 19 1.0General Details 1.1Test Laboratory Page 3 of 19 1.2Applicant Details Page 3 of 19 1.3Equipment Under Test [EUT] Page 4 of 19 1.4 Equipment Modification Page 4 of 19 1.5 Related Submittal(s) Grants Page 4 of 19 2.0Technical Details 2.1Investigations Requested Page 5 of 19 2.2Test Standards and Results Summary Page 5 of 19 3.0Test Methodology 3.1Radiated Emission Page 6 of 19 3.2Field Strength Calculation Page 6 of 19 3.3Conducted Emission Page 6 of 19 4.0Test Results 4.1Field Strength of Fundamental and Harmonics Page 7-9 of 19 4.2Spurious Radiated Emission Page 10-12 of 19 4.3Out of Band Emissions Page 13-14 of 19 4.4Bandwidth Measurement Page 15-17 of 19 4.5Conducted Emission Page 18 of 19 5.0List of Measurement Equipments Page 19 of 19 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.15.002.01F Page 3 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory TUV SUD Certification and Testing (China) Co., Ltd Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, 518052 China Registration Number: 502708 Tested by: John Zhi 1.2Applicant Details Applicant Ckicom Technology Limited Flat F, 4/F, Universal Industrial Centre, 19-21 Shan Mei Street, Fo Tan, Shatin, N.T., Hong Kong Manufacturer Suga Electronic Dongguan Company Limited Suga High Tech Industrial Park, No.8 Fulong Road, Sanzhong, Qingxi Town, Dongguan, Guangdong, China ReportNo.: 60.870.15.002.01F Page 4 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Model Name:Infant Monitoring System (Sensor) Model No:T-235 FCC ID: YQKCEIIHT-235 Rating: DC 3V (CR2032 Lithium battery) Antenna Type:PCB Antenna Antenna Gain:0 dBi Operated Frequency:2402 MHz to 2424 MHz Modulation:FSK No. of Channel:23 Channel Separation:1 MHz Channel List:2402; 2403; 2404; 2405; 2406; 2407; 2408; 2409; 2410; 2411; 2412; 2413; 2414; 2415; 2416; 2417; 2418; 2419; 2420; 2421; 2422; 2423; 2424 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a Sensor of Infant Monitoring System. 1.4Equipment Modification No modification was made to the tested unit by TÜV SÜD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. ReportNo.: 60.870.15.002.01F Page 5 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC TestTest Result RequirementPassFailedN/A Field Strength of Fundamental and Harmonics Part 15.249 (a),(e) Spurious Radiated Emission Part 15.249 (d) Part 15.209 Part 15.205 Out of Band EmissionsPart 15.249 (d) Bandwidth MeasurementPart 15.215 (c) Conducted EmissionPart 15.207 Note: N/A - Not Applicable ReportNo.: 60.870.15.002.01F Page 6 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connec…

Text truncated - open the document above for the full version.

Appendix A Date: 2015-02-24 Report No.: 60.870.15.002.01F Model No.:T-235 Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Radiated Emission
