YQKCEIIPT210Wetness Sensor

- 1 - CAREase II Professional package CE- IIP User Manual - 2 - CONTENT Introduction 1 Notice 2 Parts 3 Product introduction 6 Function introduction 7 Installation instructions 16 Specification 19 Abnormality & Troubleshooting 20 Maintenance 21 - 1 - Introduction Thanks for buying and using the CKICOM CAREase System. Easier for you to secure the proper use of this product, be sure to read manual before using. Please keep this manual for future reference. Product Introduction This product includes the following items: Wetness Alarm Receiver/Indicator Wetness Sensor/Transmitter Wetness Sensing Adult Diaper(Sold separately) One power transformer 4AA size batteries - 2 - Installation instructions l Wetness Alarm Receiver/Indicator: Open the bottom, put the four AA size batteries in accordance with the positive and negative direction of the internal insert shown in the battery compartment, close the lid; or take a power transformer. l Wetness Sensor/Transmitter & Wetness Sensing Adult Diaper: Wetness Sensor/Transmitter devices required the induction of the Wetness Sensing Adult Diaper with the use of sensors need to clip the sensor line in diapers belts to achieve wet wet signal detection and wireless transmission. Assembly method is shown below. Assembly method - 3 - l Checking mode: The Wetness Alarm Receiver/Indicator device installed or connected properly when the power is placed in a secure and easy to observe and operate location; Pairing the Wetness Sensor / Transmitter device and the Wetness Alarm Receiver/Indicator device, the specific pairing method refer to the Sensor matching function; If the Wetness Sensor / Transmitter and Wetness Sensing Adult Diaper assembly is completed correctly, the Wetness Alarm Receiver/Indicator device will appear on the diaper-shaped pattern, then the system installation is complete, you can normally use. As shown below. Assembly completed display - 4 - Notice: u including this product, use of radio frequency devices, may cause interference on a number of shielding bad medical devices, such as hearing aids and heart pacemakers, etc., before use this product you should consult the instructions of the medical equipment or your doctor. u where flammable, explosive materials or gas production or storage sites, should pay close attention to the use of limited radio frequency devices. If required, you should keep away this product. . u The product uses radio frequency devices transmit signals, in use, please do not put magnetic objects nearby, such as television, telephones, induction cooker, microwave oven and radios and other electrical equipment because it may cause interference to the product, thus affecting the performance of this product. u Do not place the product in strong sunlight or near heat sources, to avoid the heat and water, and pay attention in use. - 5 - Parts Wetness Sensing Adult Diaper Wetness Sensor/Transmitter - 6 - Wetness Alarm Receiver/Indicator Screen of Wetness Alarm Receiver/Indicator - 7 - Function introduction This product can achieve the following functions: Monitoring functions Record Time function Display settings feature Buzzer setting function Sensor matching function - 8 - 1 main menu interface The boot interface of Wetness Alarm Receiver/Indicator device is the main menu interface. In the main menu interface, press function key to switch to other options, the setting key to enter setup interface. Within other function interface, press function key to exit back to the main menu interface directly. The figure below shows the main menu interface. Main menu interface - 9 - 2 Monitoring functions After the CKICOM CAREase system correct installation is complete, the The Wetness Alarm Receiver/Indicator displays; wet occurs, the The Wetness Alarm Receiver/Indicator displays, and displays the duration of wet, dome light remain bright red; until the nurses remove the diaper, urine pants pattern disappeared. The figure below shows an example for the wet. Wet display - 10 - 3 Record This product has the record function, can produce correct records in the wet condition, and also can query and display correctly. Press the function button to switch to record, the The Wetness Alarm Receiver/Indicator displays and detailed records.Set key can be used to select the sort type, and use up key and down key to view records. The following diagram shows an example of the Wetness Alarm Receiver/Indicator detail record sort by date. Detail record sort by date - 11 - 4 Time function This product has the calendar function, can display the date and time correctly between 01-01-2010 to 31-12-2099, and can set the date, time, time display type(12/24 hour display). Press the function button to switch to time, then the Wetness Alarm Receiver/Indicator displays. With the need to change the settings, press set key to select the time and date, then use up and down key to set. The following diagram shows an example of the time and date. Time and date - 12 - 5 Display setting function This product has the time and date display setting function, able to choose whether to display time or date. Press the function key to switch to the display settings, the wet film show / reception displays, use the set key to switch to the display settings, and use up key and down key to set the next turn. If there is nearby means this item don't display; The following figure shows an example of display settings; also available at the main interface state long press the down key (2 seconds), fast opening / closing date and time display. Display setting - 13 - 6 Buzzer setting function This product has a buzzer setting function to choose whether to alarm. Press the function button to switch to the buzzer setting, The Wetness Alarm Receiver/Indicator displays, use the set key to select to change the settings, the up and down key to set the next turn. displayed if the order is not alarm, the case of the ring is . The following diagram shows the ring set interface; can state the mai…

Text truncated - open the document above for the full version.

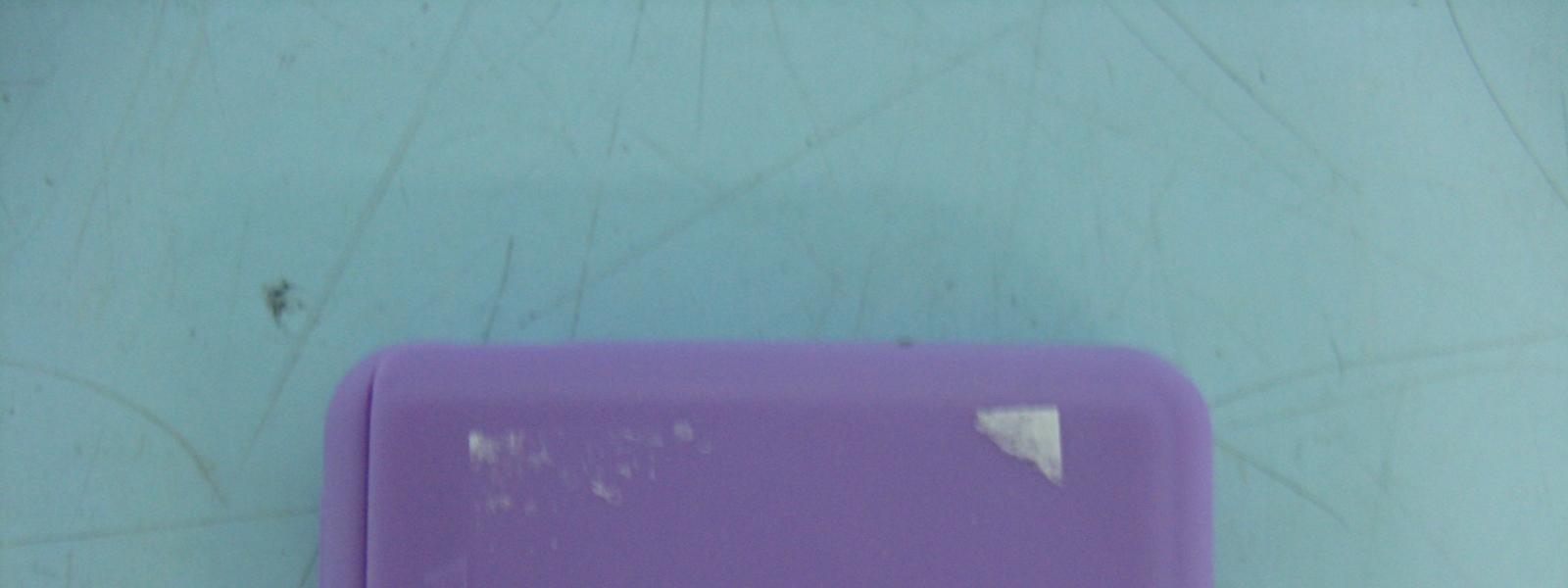

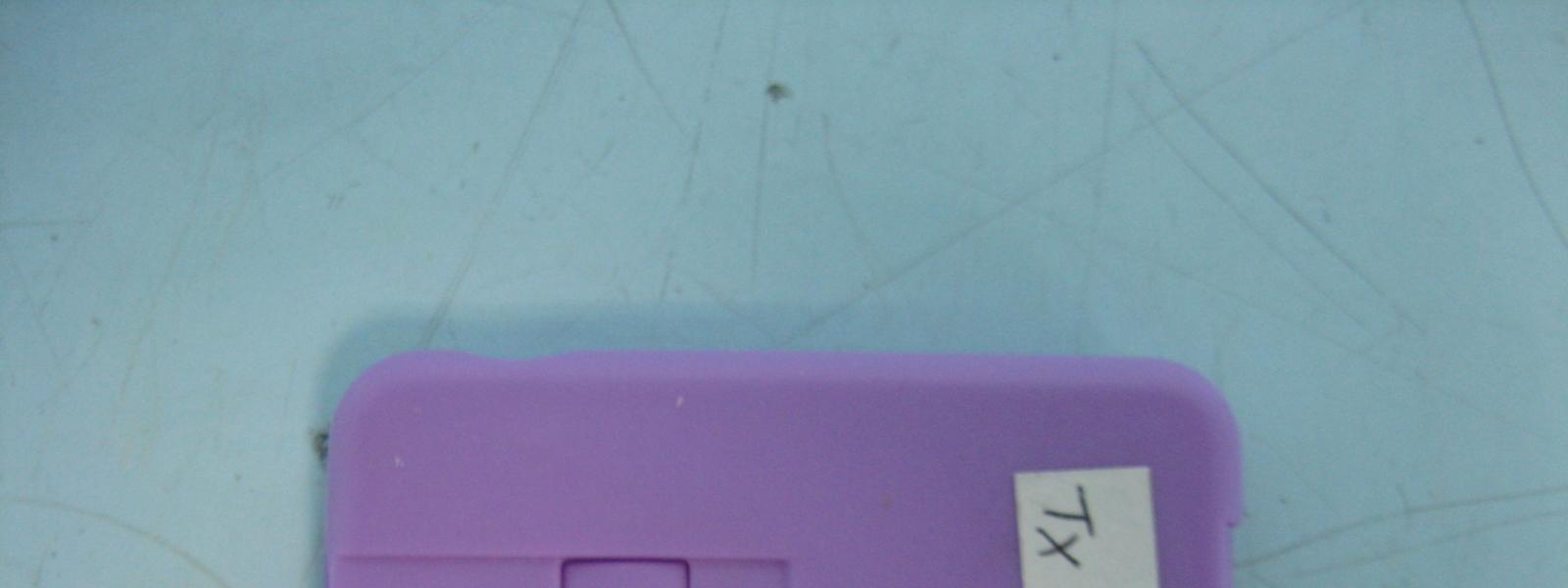

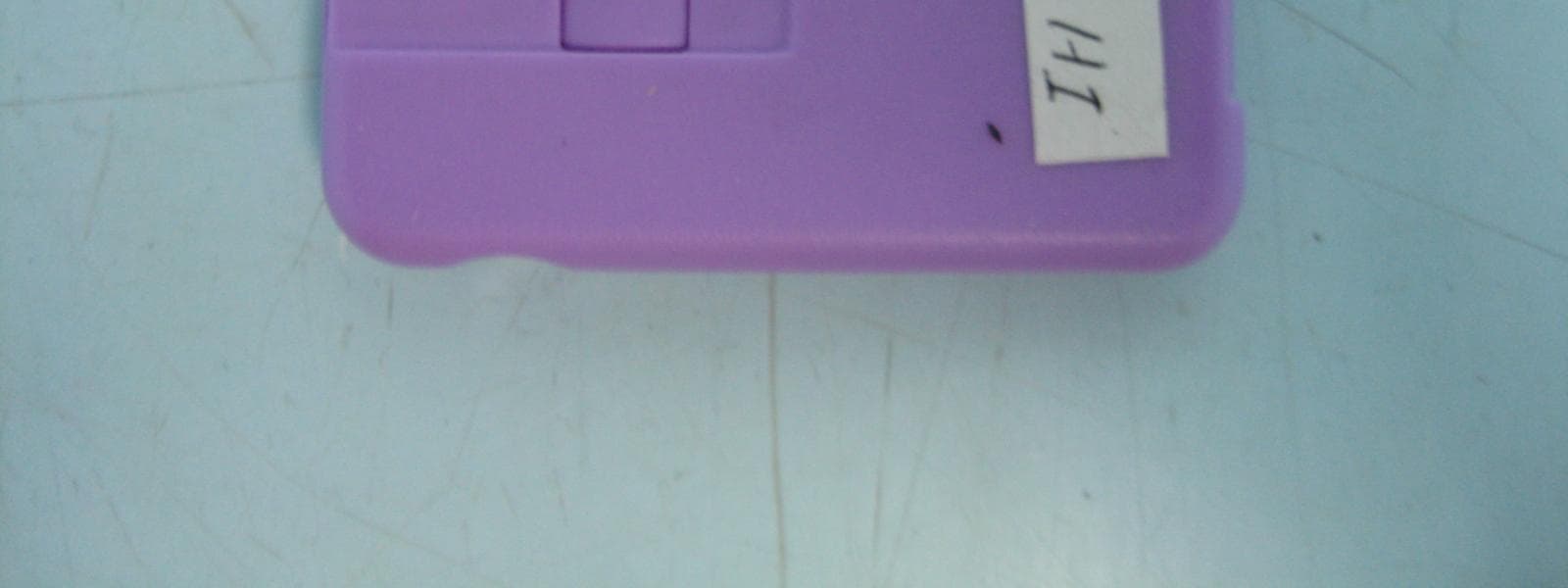

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: YQKCEIIPT210 Circuit Description EUT is a Wetness Sensor/Transmitter (T-210) that sends alarms to the separate Wetness Alarm Receiver/Indicator (R-110). The 315 MHz crystal oscillator drives the base of Q1 the final amplifier. The modulation provided by U1 . Antenna, Ground and Power Source The antenna consists of a 10 cm long PCB antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“CR2032” size battery x 1) primary battery Operation Descriptions The transmitter is a Wetness sensor operating in 315 MHz band. The transmitter is powered by a 3V battery (“CR2032” size battery x 1) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form amplitude modulating signal on the 315 MHz carrier frequency. Remarks: By pressing the button [§15.231(a) – manually activated transmitter] the EUT will be paired with the Wetness Alarm Receiver. This transmission always stops 3 seconds after activating. When the EUT achieves wet detection , the transmitter will periodically (every 52 sec) [§15.231 (e) – periodic operation] send a signal (535 ms long) to the receiver unit. The transmission signal modulated by IC ; and the type is amplitude modulation.

Bill Of Materials Model:T-210 TX Board Date : 9 Sep 2010 ItemDescriptionPackageLocationQuantity 1DOUBLE SIDE PCB43.5mm X 26.5mm X 0.8mmTX Board1 Model : T-210 TX BOARD V01 DATE 20100713 2TM57PE11 8 Bit Microcontroller8-pin SOP (150mil)U11 3KFC-22 TACT SWITCH 12V / 0.1A6.0mm X 6.0mmSW11 4CR2032 3V Lithium Manganese Dioxide BatteryDiameter 20.0mm Height 3.20mmBT11 5HR315 F-11 315MHz 4pins SAW Resonator 11mm X 4.5mm X 3.2 mm TX11 6SMD INDUCTANCE COIL 33UH0603L11 0603 SMD CAPACITOR 10V, ±20% 72PF0603C81 86P8F0603C61 912PF0603C71 102200PF0603C91 11100NF0603C2,C4,C5,C10,C115 121UF0603C1,C32 SMD RESISTOR 1/10W ,±1% ,50V 1327 Ohm0603R111 14220 Ohm0603R81 151K Ohm0603R51 1633K Ohm0603R41 1768K Ohm0603R31 18100K Ohm0603R71 19330K Ohm0603R91 203M3 Ohm0603R1,R2,R6,R104 213904 NPN TRANSISTORSNPN_SOT-23Q21 222SC3356 NPN TRANSISTORSNPN_SOT-23Q11 230603 SMD RED COLOUR LED0603LED11

STC Test Report Date : 2010-10-05 Page 1 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (CKT001): CKICOM TECHNOLOGY LTD. Unit 220, 2/F, Enterprise Place, No. 5 Science Park, West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong. Manufacturer: CKICOM TECHNOLOGY LTD. Unit 220, 2/F, Enterprise Place, No. 5 Science Park, West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong. Description of Sample(s): Submitted sample(s) said to be Product: CAREase II Brand Name: CAREase Model Number: T210 FCC ID: YQKCEIIPT210 Date Sample(s) Received: 2010-08-17, 2010-09-10 Date Tested: 2010-08-27 to 2010-09-17 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-10-05 Page 2 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 34 Content Page 2-3 of 34 1.0 General Details 1.1 Test Laboratory Page 4 of 34 1.2 Applicant Details Page 4 of 34 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 34 Description of EUT operation 1.4 Date of Order Page 5 of 34 1.5 Submitted Sample(s) Page 5 of 34 1.6 Test Duration Page 5 of 34 1.7 Country of Origin Page 5 of 34 2.0 Technical Details 2.1 Investigations Requested Page 6 of 34 2.2 Test Standards and Results Summary Page 6 of 34 3.0 Test Results 3.1 Emission Page 7-13 of 34 3.2 Bandwidth Measurement Page 14-17 of 34 STC Test Report Date : 2010-10-05 Page 3 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 18 of 34 Appendix B Duty Cycle Correction During 100 msec Page 19-31 of 34 Appendix C Periodic Operation Page 32 of 34 Appendix D Photographs Page 33-34 of 34 STC Test Report Date : 2010-10-05 Page 4 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant CKICOM TECHNOLOGY LTD. Unit 220, 2/F, Enterprise Place, No. 5 Science Park, West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong. Manufacturer CKICOM TECHNOLOGY LTD. Unit 220, 2/F, Enterprise Place, No. 5 Science Park, West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong. STC Test Report Date : 2010-10-05 Page 5 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: CAREase II Manufacturer: CKICOM TECHNOLOGY LTD. Brand Name: CAREase Model Number: T210 Rating: 3Vd.c. (“CR2032” button cell x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a CKICOM TECHNOLOGY LTD., CAREase II. The EUT consist both periodic and manual operated transmitter function. By pressing the button [§15.231(a) – manually activated transmitter] the EUT will be paired with the wetness alarm receiver. This transmission always stops 3 seconds after activating. When the EUT achieves wet detection, the transmitter will periodically (every 52 sec) send a signal (535ms long) to the receiver unit [§15.231(e) – periodic operation]. The transmission signal modulation by IC; and the type is amplitude modulation. 1.4 Date of Order 2010-08-17, 2010-09-10 1.5 Submitted Sample(s): 2 Sample(s) 1.6 Test Duration 2010-08-27 to 2010-09-17 1.7 Country of Origin China STC Test Report Date : 2010-10-05 Page 6 of 34 No. : HM165640 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate,…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
