YQKCEIIPR-138ZNetworking Device

24/4/2012 R-138z Networking device Functions - Connect the computer with the network - Act as a repeater in the network Specifications Power supply AC adapter 5V DC Battery LC 18650 3.7V Lithium battery Power consumption Max 100mA Low battery indication 3.4V – acknowledge, 3.2V – power off Installation Wall-hanging Number of users Max 3 users Communication 433.92MHz, FSK, 57.6K bit rate Address length 16 bit USB USB 1.0 Operating temperature range 0 – 60 °C Instructions of use 1. Connect the computer with the network - Connecting R-138z to a computer does not require external power. - Install the PL-2303 USB driver, downloadable on http://www.prolific.com.tw/eng/downloads.asp?ID=31. - When using the Wetness Care system, select the appropriate COM port. This can be viewed in the Windows Device Manager. 2. Act as a repeater - Please use 5V power supply or battery. 3. Network test To send a test signal to Wetness Care system, press the button. The network status LED will be on, meaning that the connection is normal. 4. Power control and Battery replacement - The power indicator LED is on when the power is on. - Low battery: When the battery voltage is lower than 3.4V, the low battery indicator LED blinks. When it is lower than 3.2V, R-135c will be powered off. - Power off R-135c before replacing the battery. The device will enter stand-by mode and save the last status. The last status can be restored after battery replacement. - To turn R-135c on/off, press the “Power” button for 2 seconds. Power Network Test Network Status FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible could void the user’s authority to operate this device.

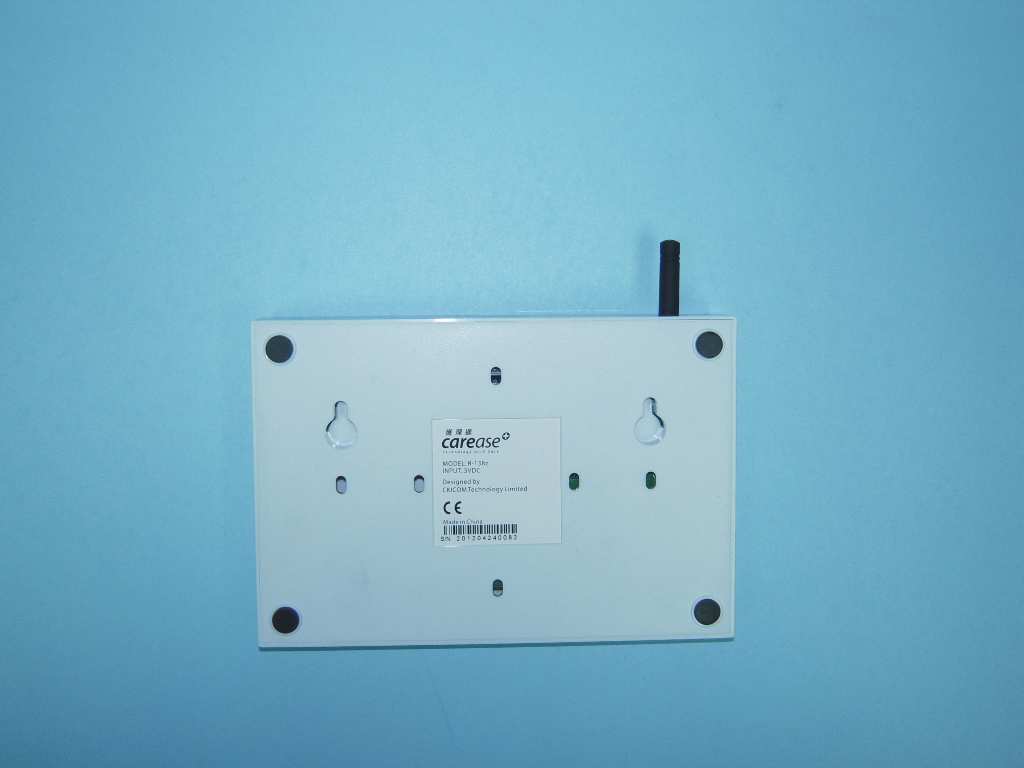

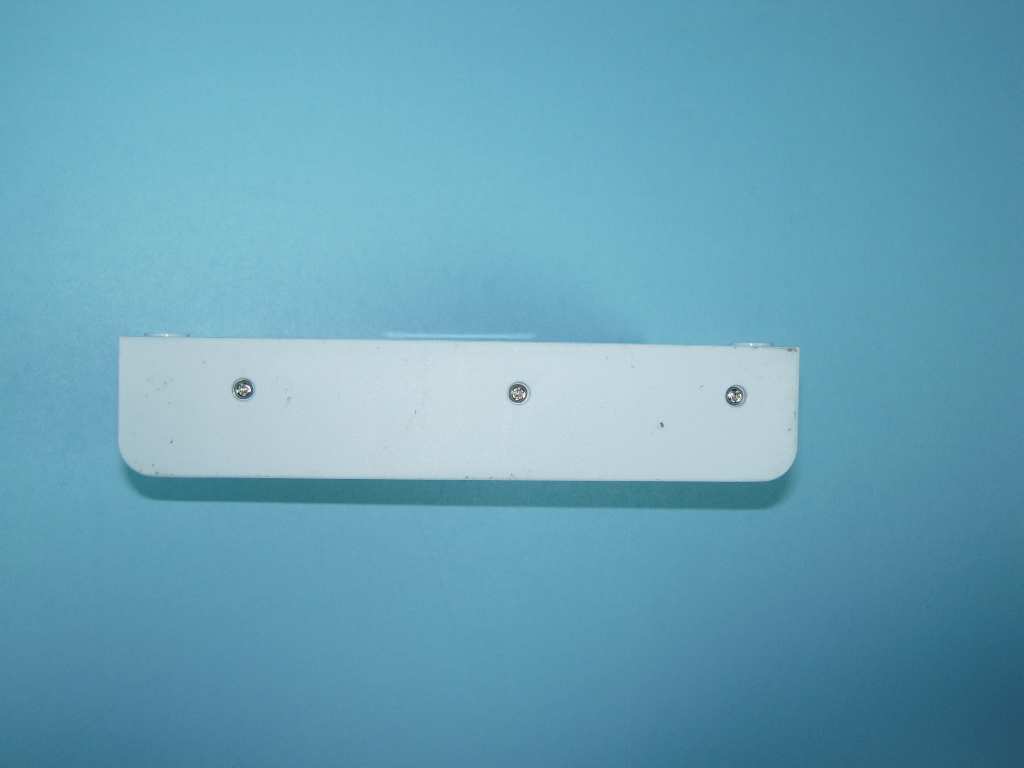

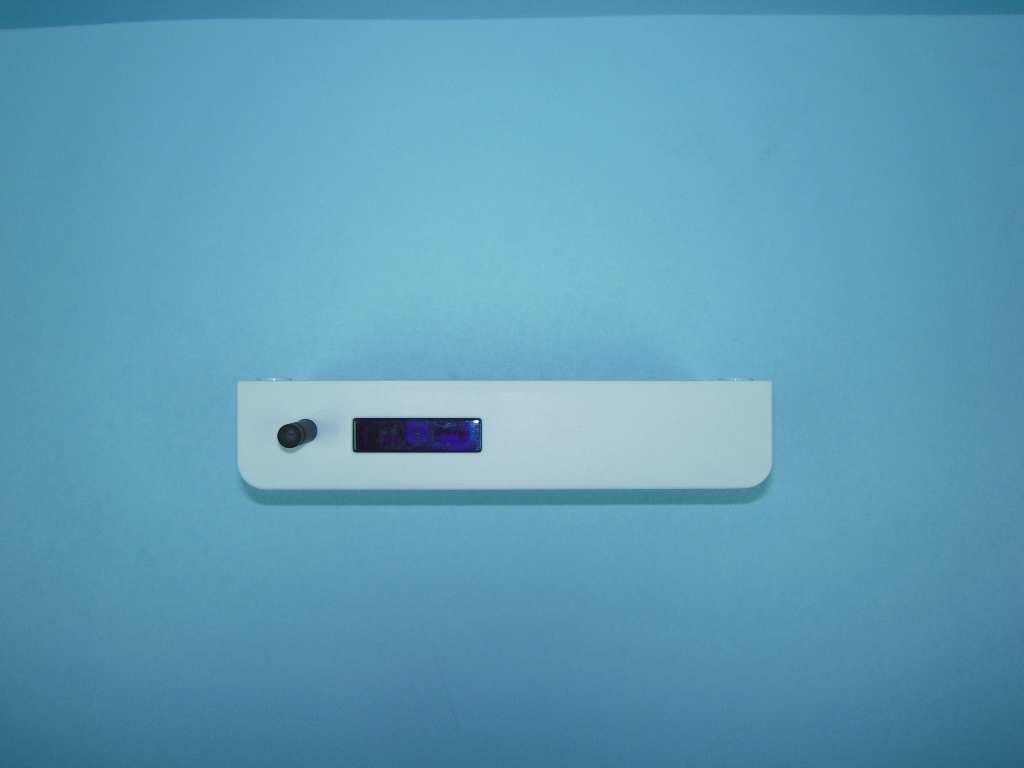

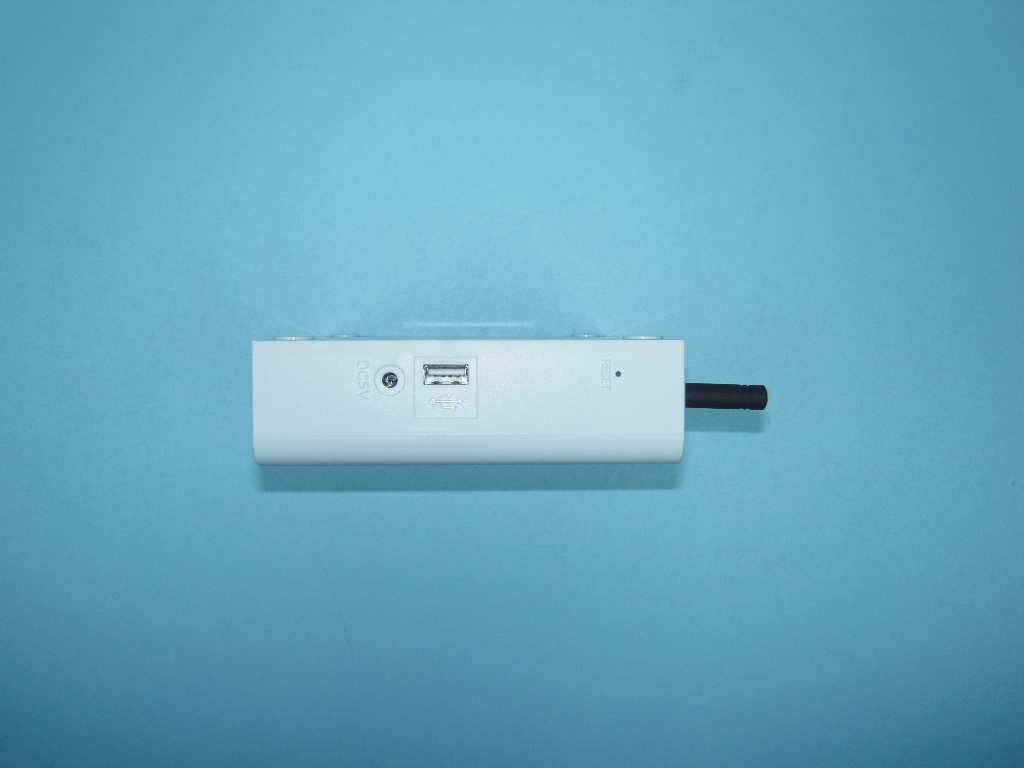

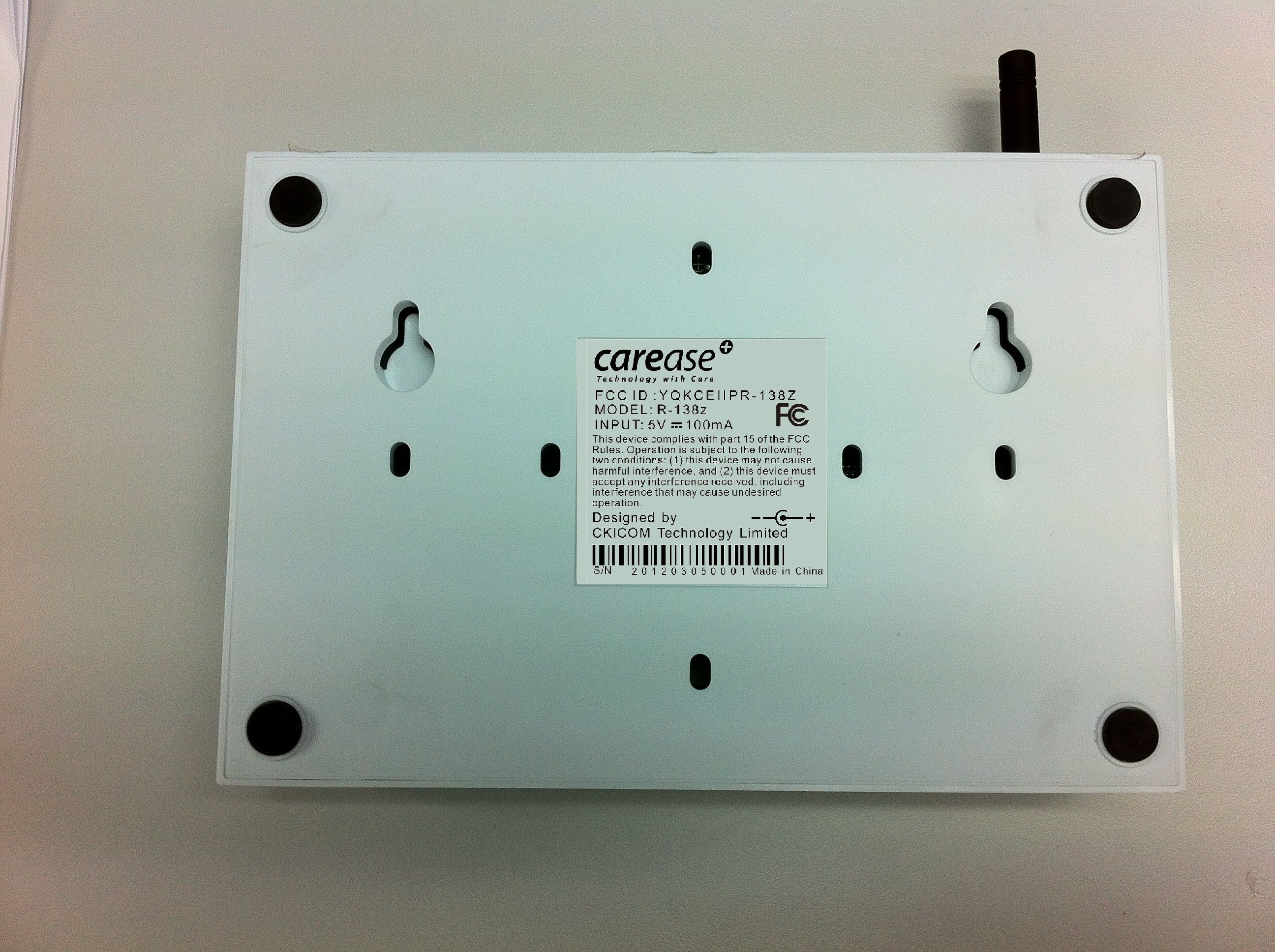

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2012-09-13 Page 1 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (CKT001): CKICOM TECHNOLOGY LTD. Flat F 4/F Universal Ind. Ctr. 19-21 Shan Mei St, Fotan, Hong Kong. Manufacturer: CKICOM TECHNOLOGY LTD. Flat F 4/F Universal Ind. Ctr. 19-21 Shan Mei St, Fotan, Hong Kong. Description of Sample(s): Submitted sample(s) said to be Product: Networking Device Brand Name: Carease Model Number: R-138z FCC ID: YQKCEIIPR-138Z Date Sample(s) Received: 2012-08-16 Date Tested: 2012-08-28 to 2012-09-03 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2011 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2012-09-13 Page 2 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 25 Content Page 2-3 of 25 1.0 General Details 1.1 Test Laboratory Page 4 of 25 1.2 Applicant Details Page 4 of 25 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 25 Description of EUT operation 1.4 Date of Order Page 5 of 25 1.5 Submitted Sample(s) Page 5 of 25 1.6 Test Duration Page 5 of 25 1.7 Country of Origin Page 5 of 25 2.0 Technical Details 2.1 Investigations Requested Page 6 of 25 2.2 Test Standards and Results Summary Page 6 of 25 3.0 Test Results 3.1 Emission Page 7-16 of 25 3.2 Bandwidth Measurement Page 17-18 of 25 STC Test Report Date : 2012-09-13 Page 3 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 19 of 25 Ancillary Equipment Appendix B Duty Cycle Correction During 100 msec Page 20 of 25 Appendix C Manual Operation Page 21 of 25 Appendix D Photographs Page 22-25 of 25 STC Test Report Date : 2012-09-13 Page 4 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant CKICOM TECHNOLOGY LTD. Flat F 4/F Universal Ind. Ctr. 19-21 Shan Mei St, Fotan, Hong Kong. Manufacturer CKICOM TECHNOLOGY LTD. Flat F 4/F Universal Ind. Ctr. 19-21 Shan Mei St, Fotan, Hong Kong. STC Test Report Date : 2012-09-13 Page 5 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: Networking Device Manufacturer: CKICOM TECHNOLOGY LTD. Flat F 4/F Universal Ind. Ctr. 19-21 Shan Mei St, Fotan, Hong Kong. Brand Name: Carease Model Number: R-138z Rating: 117Va.c. The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Two pins (Live / Neutral) only adaptor, Model Number: ALT-0500720U01-F, Input: 100-240Va.c. 50/60Hz 5.5W, Output: 5Vd.c. 720mA max. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a CKICOM TECHNOLOGY LTD., Networking Device. The EUT is a 433MHz transmitter, the EUT will transmit a set of RF signal when the button is pressed, the transmission is also able to be controlled by PC through a USB cable. 1.4 Date of Order 2012-08-16 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2012-08-28 to 2012-09-03 1.7 Country of Origin Hong Kong STC Test Report Date : 2012-09-13 Page 6 of 25 No. : HM167829 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 188…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
