YR7SKR3000P8SKR 3000

EN 33 3 Contents Introduction � � � � � � � � � � � � � � � � 5 Introduction                              6 USA only                               7 EU member states only                    7 Summary of usability specifications (for IEC/EN 60601-1-6, IEC/EN 62366)        8 Disclaimer                              9 Trademark                              9 Name correspondence table               10 Term description                         11 Chapter 1 Chapter 1 Safety Precautions & Warnings � � � � � � � � � � � � � � � � 13 11 Symbols relating to safety            14 111 Safety alert symbol               14 112 Warning notice (signal words)           14 113 Description of graphic symbols          14 12 Warning labels                     15 121 DR Detector                     15 122 AeroDR Generator Interface Unit2   16 123 AeroDR Battery Charger           16 124 AeroDR Battery Charger2          16 13 Safety precautions                  17 131 Precautions before usage          17 132 Precautions for usage             17 133 Precautions regarding electromagnetic waves            22 134 Precautions regarding wireless communication                   27 135 Precautions for installing, moving, and storing                      29 136 Precautions regarding maintenance    30 137 Precautions on service life          30 Chapter 2 Chapter 2 Product Overview � � � � � � � � 31 21 Overview of this device               32 211 Functions                       32 2.1.2 System configuration and connection examples             33 22 Component names and functions       41 221 AeroDR Detector                 41 222 AeroDR 2 Detector               42 223 AeroDR 3 Detector               43 224 AeroDR Interface Unit             44 225 AeroDR Interface Unit2            45 226 Detector Interface Unit             46 227 Detector Interface Unit 2           47 228 Power Supply Unit                48 229 AeroDR Generator Interface Unit    49 2210 AeroDR Generator Interface Unit2   50 2211 Generator Interface Unit 3          51 2212 AeroDR Battery Charger           52 2213 AeroDR Battery Charger2          53 2214 AeroDR Access Point             54 2215 I/F Cable                       55 2216 AeroDR UF Cable                55 Chapter 3 Chapter 3 General Operations � � � � � � � 57 31 Startup and shutdown                58 311 Startup of this device              58 312 Shutdown of this device            61 32 Operation of DR Detector             65 321 Exposure with basic connection or Aero Sync connection             65 322 Exposure under the S-SRM connection example              65 323 Exposure using Aero Storage       66 324 Serial exposure                  69 325 DR Detector orientation            69 326 Precautions for exposure           70 33 Charging of DR Detector             76 331 Charging with AeroDR Battery Charger   76 332 Charging with AeroDR Battery Charger2                       77 333 Charging with the wired cable       78 334 Charging time guide               79 335 DR Detector battery level display      80 34 Registration and selection of the DR Detector                          81 341 Registration with AeroDR Battery Charger                        81 342 Registration with AeroDR Battery Charger2                       82 343 Registration with the wired cable      82 344 Selection of the DR Detector        83 345 Manual selection of the DR Detector     83 35 Calibration                        84 36 Position to affix DR Detector identification label and AeroDR Grip sheet            85 3.6.1 Position to affix DR Detector identification label                85 362 AeroDR Grip sheet               85 4 Contents Chapter 4 Chapter 4 Status (LED) Display � � � � � � 87 41 LED display of respective devices      88 411 AeroDR Detector                 89 412 AeroDR 2 Detector               90 413 AeroDR 3 Detector               91 414 AeroDR Interface Unit             94 415 AeroDR Interface Unit2            95 416 Detector Interface Unit/Detector Interface Unit 2                  96 417 Power Supply Unit                96 418 AeroDR Generator Interface Unit    97 419 AeroDR Generator Interface Unit2   97 4110 Generator Interface Unit 3          98 4111 AeroDR Battery Charger           98 4112 AeroDR Battery Charger2          99 4113 AeroDR Access Point            100 Chapter 5 Chapter 5 Troubleshooting � � � � � � � � � 101 5.1 Support flow during trouble           102 52 Various problems and countermeasures   104 521 DR Detector                    104 522 AeroDR Interface Unit            108 523 AeroDR Interface Unit2           109 524 Detector Interface Unit            109 525 Detector Interfac…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 7 8 9 10 11 12 Operation of DR Detector 73 Exposure time for Aero Sync mode of the AeroDR 3 Detector IMPORTANT • If the conditions are not met, X-rays may not be detected or streaks may occur in the image • The minimum exposure time applies to the time when X- ray is exposed onto the center of the DR Detector If X-ray cannot be exposed onto the center, contact Konica Minolta technical representatives • The cycle time will be extended by setting the longer maxi- mum exposure time It is recommended that the optimal maximum exposure time be set • Set the maximum exposure time according to the sensitivity button setting of the image processing controller The available values for the maximum exposure time are as follows Maximum exposure time Extra Large LargeMed 08 seconds Can be set Can be set Can be set 18 seconds Can be set Cannot be set Cannot be set 40 seconds Can be set Cannot be set Cannot be set • When using Aero Sync mode, set the minimum exposure time as follows: DR Detector Minimum exposure time AeroDR 3 Detector1 millisecond HINT • When using ImagePilot as the image processing controller, it is not possible to change the maximum exposure time Identify the DR Detector that users can use in Aero Sync mode IMPORTANT • The AeroDR 1012HQ, AeroDR 2 Detector, and AeroDR 3 Detector can use the Aero Sync mode • Users can not use Aero Sync Mode in the DR Detector if it is AeroDR 1417S • Users cannot use Aero Sync mode in the DR Detector if the first four digits of its SerialNumber are shown in the follow- ing table in the AeroDR 1417HQ or AeroDR 1717HQ DR Detector SerialNumber that can- not be used AeroDR 1417HQA45Y AeroDR 1717HQA54T • Confirm that if the following identification is in the DR Detector that users can use in Aero Sync mode AeroDR P-11 1417HQ () Identification DR DetectorIdentification AeroDR 1417HQ1417HQ AeroDR 1717HQ1717HQ Exposure with the Aero Sync mode •To confirm X-ray detection, make sure the following conditions are met —For the AeroDR 1417HQ, AeroDR 1717HQ and AeroDR 1012HQ: Perform exposure by following the survey results of the installation For details, contact Konica Mi- nolta technical representatives —For the AeroDR 2 Detector: Perform X-ray exposure at a range of 10 cm square or more at the center of the DR Detector —For the AeroDR 3 Detector: Perform X-ray exposure at a range of 10 cm square or more at the center of the DR Detector You can select the maximum exposure time from 08 seconds or shorter, 18 seconds or shorter and 40 seconds or shorter in the Extra Large mode 74 Operation of DR Detector • The conditions of the S value corresponding to the maximum exposure time and the DR Detectors cor- responding to them are as follows maximum exposure time S value DR Detector AeroDR 2 Detector AeroDR 3 Detector 08 seconds or less 2000 or less Can be set Can be set 18 seconds or less 800 or less Cannot be set Can be set 40 seconds or less 400 or less Cannot be set Can be set • To use a grid in Aero Sync mode, align the orienta- tion of the triangular mark of the DR Detector with the grid bar as shown in the following figure. DR DetectorGrid Grid bar Triangular mark • If the DR Detector is used in an orientation where the grid bars are turned 90 degrees with respect to the triangle mark on the DR Detector, observe the following conditions: DR DetectorGrid density AeroDR 1417HQ, AeroDR 1717HQ, AeroDR 1012HQ, AeroDR 2 Detector 34 lp/cm: Angular error must be 17° or less 40 lp/cm: Angular error must be 10° or less AeroDR 3 Detector 34 lp/cm: Angular error must be 17° or less 40 lp/cm: Angular error must be 10° or less 60 lp/cm: Angular error must be 10° or less • Do not use additional filters for exposure dose re- duction • When another system performs X-ray expo- sure in the exposure room where the DR Detec- tor is placed, the DR Detector may incorrectly sense the X-ray exposure and transfer images Do not use the image processing controller to make the DR Detector ready for exposure Aero Sync mode exposure when radioactive substances remain • If there are any radioactive substances remaining in the patient's body after nuclear medicine testing or some other reason, the AeroDR 2 Detector and AeroDR 3 Detector may recognize that X-rays were emitted and start image transfer When the image is transferred, change the X-ray sensitive setting of the image processing controller to "Large" before per- forming exposure • If you change the X-ray sensitivity to "Large" in AeroDR 2 Detector, make sure that all of the follow- ing conditions are met before performing exposure If you perform exposure under other conditions, you may not be able to get an image —On the DR Detector, set up an area (2 cm x 2 cm or larger) on which the X-rays are emitted directly —Emit the X-rays onto the entire DR Detector —Emit the X-rays by using a tube current of 140 mA or higher or a tube voltage of 90 kV or higher • If you change the X-ray sensitivity to "Large" or "Med" in AeroDR 3 Detector, make sure that all of the following conditions are met before performing exposure If you perform exposure under other con- ditions, you may not be able to get an image —Emit the X-rays onto the entire DR Detector —Emit the X-rays by using a tube current of 140 mA or higher or a tube voltage of 90 kV or higher S-SRM connection IMPORTANT • If you restart the image processing controller, also restart the AeroDR Interface Unit or AeroDR Interface Unit2 • When S-SRM connection is adopted, make sure to perform exposure using the hand switch connected to the AeroDR Interface Unit2, AeroDR Generator In- terface Unit and AeroDR Generator Interface Unit2 • If exposure is performed using the hand switch on the operation panel of the X-ray device, exposure synchronized to the this device is not possible AED (Automated External Defibrillator) •When an AED (Automated External Defibrillator) is used, move the DR Detector away from the patient High voltage and high c…

Text truncated - open the document above for the full version.

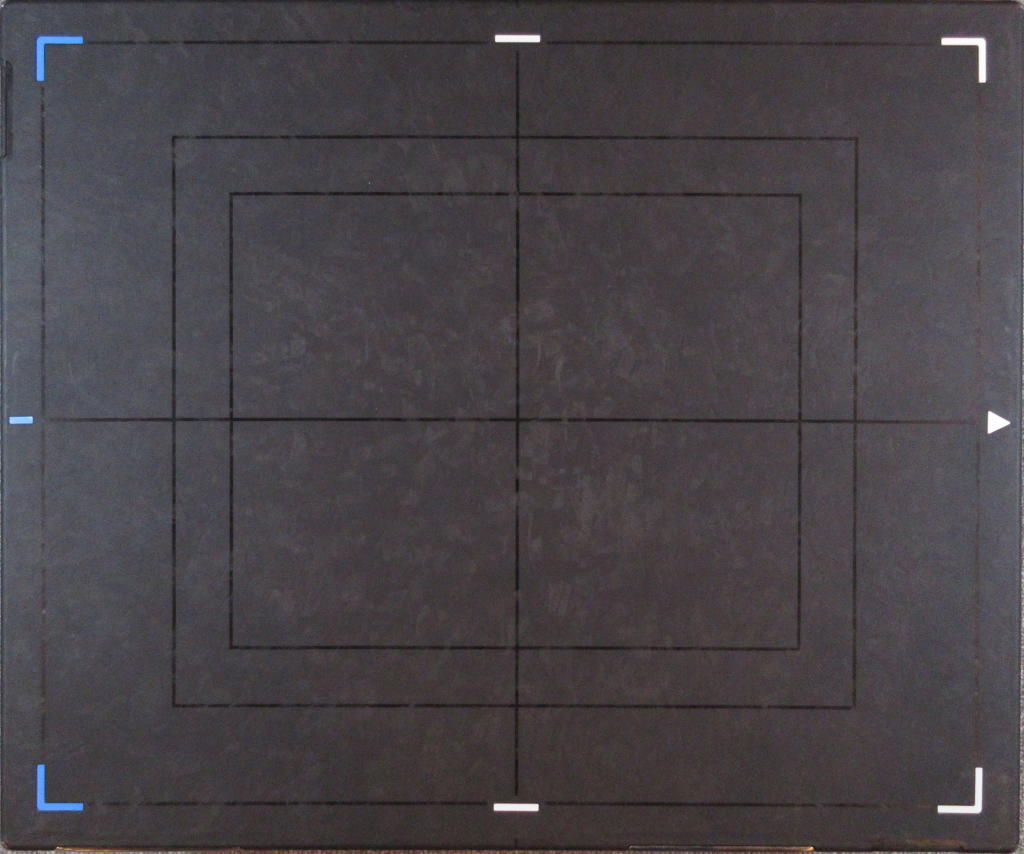

Exterior Photo(P-82) 460mm 384mm 15mm Exterior Photo(P-85) 460mm 384mm 15mm

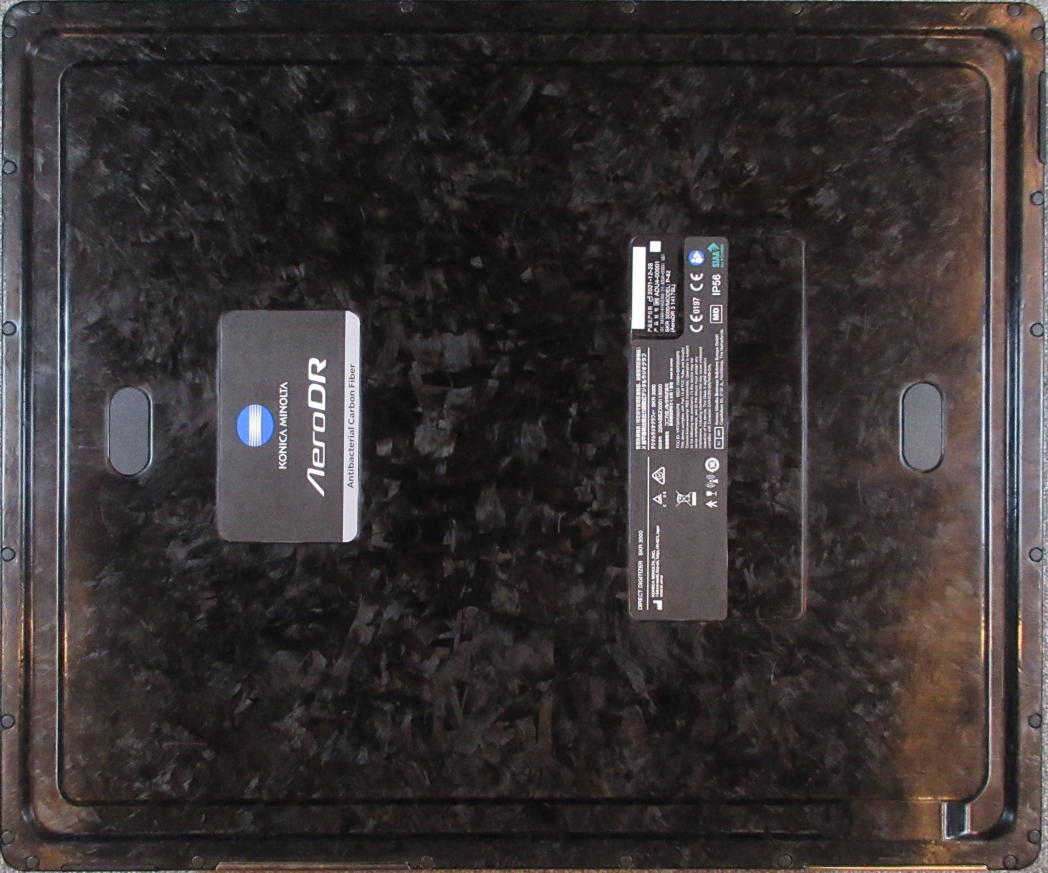

Units of measure: [mm] Notation dimensions (FCC ID / ISED No.) P-82 Label information Label A Label B Label A Label B Label Location (Back side)

Units of measure: [mm] Notation dimensions (FCC ID / ISED No. ) P-85 Label information Label A Label B Label A Label B Label Location (Back side)

P-82 internal photo (Back side) RF Board Main Antenna Sub Antenna P-85 internal photo (Back side) RF Board Main Antenna Sub Antenna RF BOARD RF Module RF Module

Test report No. : 13994987S-A-R1 Page : 1 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 CERTIFICATE 1266.03 SAR TEST REPORT Test Report No.: 13994987S-A-R1 Applicant : KONICA MINOLTA, INC. Type of EUT : SKR 3000 Model Number of EUT : P-82 FCC ID : YR7SKR3000P8 Test Standard : FCC 47CFR §2.1093 Test Result : Complied (Refer to Section 3) High est Reported SAR [W/kg] Remarks (DTS band ) Remarks (UNII band) DTS band U-NII band SAR type Limit Frequency [MHz] Mode Output power (average) [dBm] Frequency [MHz] Mode Output power (average) [dBm] Measured Max. Measured Max 0.71 (Antenna 1) 1.16 (Antenna 1) Body-touch 1g 1.6 2412 IEEE 802.11b 13.60 15 5670 IEEE 802.11n(40HT) 8.97 10 *. Highest reported SAR(1g) value for partial body-touch RF exposure conditions is 0.71 W/kg in DTS band and 1.16 W/kg in U-NII band. *. The SAR value of simultaneous transmission is  0.04 of SPLSR (Refer to Section 6) (*. distance between antennas: approx.. 500 mm (design base)) 1 . This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2 . The results in this report apply only to the sample tested. 3 . This sample tested is in compliance with the limits of the above regulation. 4 . The test results in this test report are traceable to the national or international standards. 5 . This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6 . This test repo rt covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7 . The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab. 8 . The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9 . The information provided from the customer for this report is identified in SECTION 1. 10 . This report (-R1) is a revised version of 13994987S-A. 13994987S-A report is replaced with this report. Date of test: October 19~27, 2021 Test engineer: Hiroshi Naka (Engineer) Approved by: Toyokazu Imamura (Leader) The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". (Revision Date:2021/10/4) Report Cover Page - 13-EM-F0429 Issue # 19.0 Test report No. : 13994987S-A-R1 Page : 2 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 REVISION HISTORY Revision Test report No. Date Page revised Contents Original 13994987S-A December 1, 2021 - - -R1 13994987S-A-R1 February 15, 2022 p4, 5, 7, 9, 12, 15, 16 (p4, 5, 7, 9) Corrected operating frequency of U-NII-2C (no exception). (5500~5700) MHz (new) (p5) Corrected ch.11 frequency to 2462 MHz for 11g, 11n20. (p7)(3.5, table) Corrected frequency range of WLAN (DTS) to (2412~2462) MHz (p9)(4.1, table) Corrected frequency range of DTS to (2412~2462) MHz (p9)(4.1, table) Added lower power comment to 5190 MHz (11n40). (p12) Deleted the CommNet of “*. xx.xx yellow highlight is shown the maximum measured output power in each mode.” (p15, 16) Corrected data rate of 11a mode. “a (1Mbps)” (was) -> “a (6Mbps)” (new) *. By issue of new revision report, the report of an old revision becomes invalid. Reference : Abbreviations (Including words undescribed in this report) (radio_r0v03_200214) A2LA The American Association for Laboratory Accreditation IF Intermediate Frequency AC Alternating Current ILAC International Laboratory Accreditation Conference AFH Adaptive Frequency Hopping ISED Innovation, Science and Economic Development Canada AM Amplitude Modulation ISO International Organization for Standardization Amp, AMP Amplifier JAB Japan Accreditation Board ANSI American National Standards Institute LAN Local Area Network Ant, ANT Antenna LIMS Laboratory Information Management System AP Access Point MCS Modulation and Coding Scheme ASK Amplitude Shift Keying MRA Mutual Recognition Arrangement Atten., ATT Attenuator N/A Not Applicable AV Average NIST National Institute of Standards and Technology BPSK Binary Phase-Shift Keying NS No signal detect. BR Bluetooth Basic Rate NSA Normalized Site Attenuation BT Bluetooth NVLAP National Voluntary Laboratory Accreditation Program BT LE Bluetooth Low Energy OBW Occupied Band Width BW BandWidth OFDM Orthogonal Frequency Division Multiplexing Cal Int Calibration Interval P/M Power meter CCK Complementary Code Keying PCB Printed Circuit Board Ch., CH Channel PER Packet Error Rate CISPR Comite International Special des Perturbations Radioelectriques PHY Physical Layer CW Continuous Wave PK Peak DBPSK Differential BPSK PN Pseudo random Noise DC Direct Current PRBS Pseudo-Random Bit Sequence D-factor Distance factor PSD Power Spectral Density DFS Dynamic Frequency Selection QAM Quadrature Amplitude Modulation DQPSK Differential QPSK QP Quasi-Peak DSSS Direct Sequence Spread Spectrum QPSK Quadrature Phase Shift Keying DUT Device Under Test RBW Resolution Band Width EDR Enhanced Data Rate RDS Radio Data System EIRP, e.i.r.p. Equivalent Isotropically Radiated Power RE Radio Equipment EMC ElectroMagnetic Compatibility RF Radio Frequency EMI ElectroMagnetic Interference RMS Root Mean Square EN European Norm RSS Radio Standards Specifications ERP, e.r.p. Effective Radiated Power Rx Receiving EU European Union SA, S/A Spectrum Analyzer EUT Equipment Under Test SAR Specific Absorption Rate Fac. Factor SG Signal Generator FCC Federal Communications Commission SVSWR Site-Voltage Standing Wave Ratio FHSS Frequency Hopping Spread Spectrum TR Test Receiver FM Frequency Modulation Tx Transmitting Freq.…

Text truncated - open the document above for the full version.

Test report No. : 13994987S-A-R1 Page : 69 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) Test report No. : 13994987S-A-R1 Page : 70 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 71 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 72 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 73 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 74 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 75 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 76 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 77 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 78 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 13994987S-A-R1 Page : 79 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) Test report No. : 13994987S-A-R1 Page : 80 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 81 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 82 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 83 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 84 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 85 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 86 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 13994987S-A-R1 Page : 87 of 99 Issued date : December 1, 2021 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimil…

Text truncated - open the document above for the full version.

Test report No. : 13994987S-D-R1 Page : 1 of 99 Issued date : February 15, 2022 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 CERTIFICATE 1266.03 SAR TEST REPORT Test Report No.: 13994987S-D-R1 Applicant : KONICA MINOLTA, INC. Type of EUT : SKR 3000 Model Number of EUT : P-85 FCC ID : YR7SKR3000P8 Test Standard : FCC 47CFR §2.1093 Test Result : Complied (Refer to Section 3) High est Reported SAR [W/kg] Remarks (DTS band ) Remarks (UNII band) DTS band U-NII band SAR type Limit Frequency [MHz] Mode Output power (average) [dBm] Frequency [MHz] Mode Output power (average) [dBm] Measured Max. Measured Max 0.72 (Antenna 1) 1.15 (Antenna 1) Body-touch 1g 1.6 2412 IEEE 802.11b 13.87 15 5220 IEEE 802.11a 9.26 10 *. Highest reported SAR(1g) value for partial body-touch RF exposure conditions is 0.72 W/kg in DTS band and 1.15 W/kg in U-NII band. *. The SAR value of simultaneous transmission is  0.04 of SPLSR (Refer to Section 6) (*. distance between antennas: approx.. 500 mm (design base)) 1 . This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2 . The results in this report apply only to the sample tested. 3 . This sample tested is in compliance with the limits of the above regulation. 4 . The test results in this test report are traceable to the national or international standards. 5 . This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6 . This test repo rt covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7 . The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab. 8 . The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9 . The information provided from the customer for this report is identified in SECTION 1. 10 . This report (-R1) is a revised version of 13994987S-D. 13994987S-D report is replaced with this report. Date of test: October 28 ~ November 2, 2021 Test engineer: Hiroshi Naka (Engineer) Approved by: Toyokazu Imamura (Leader) The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". (Revision Date:2021/10/4) Report Cover Page - 13-EM-F0429 Issue # 19.0 Test report No. : 13994987S-D-R1 Page : 2 of 99 Issued date : February 15, 2022 FCC ID : YR7SKR3000P8 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 REVISION HISTORY Revision Test report No. Date Page revised Contents Original 13994987S-D December 1, 2021 - - -R1 13994987S-D-R1 February 15, 2022 p4, 5, 7, 9, 11, 12, 15, 16 (p4, 5, 7, 9) Corrected operating frequency of U-NII-2C. (5500~5700) MHz (new) (p5) Corrected ch.11 frequency to 2462 MHz for 11g, 11n20. (p7)(3.5, table) Corrected frequency range of WLAN (DTS) to (2412~2462) MHz (p9)(4.1, table) Corrected frequency range of DTS to (2412~2462) MHz (p9)(4.1, table) Added lower power comment to 5190 MHz (11n40). (p11, 12) Corrected a mistake in order to the number in the table on 5200 MHz and 5280 MHz of 11a, 11n20-SISO, 11n20-MIMO. (p12) Deleted the comment of “*. xx.xx yellow highlight is shown the maximum measured output power in each mode.” (p15, 16) Corrected data rate of 11a mode. “a (1Mbps)” (was) -> “a (6Mbps)” (new) *. By issue of new revision report, the report of an old revision becomes invalid. Reference : Abbreviations (Including words undescribed in this report) (radio_r0v03_200214) A2LA The American Association for Laboratory Accreditation IF Intermediate Frequency AC Alternating Current ILAC International Laboratory Accreditation Conference AFH Adaptive Frequency Hopping ISED Innovation, Science and Economic Development Canada AM Amplitude Modulation ISO International Organization for Standardization Amp, AMP Amplifier JAB Japan Accreditation Board ANSI American National Standards Institute LAN Local Area Network Ant, ANT Antenna LIMS Laboratory Information Management System AP Access Point MCS Modulation and Coding Scheme ASK Amplitude Shift Keying MRA Mutual Recognition Arrangement Atten., ATT Attenuator N/A Not Applicable AV Average NIST National Institute of Standards and Technology BPSK Binary Phase-Shift Keying NS No signal detect. BR Bluetooth Basic Rate NSA Normalized Site Attenuation BT Bluetooth NVLAP National Voluntary Laboratory Accreditation Program BT LE Bluetooth Low Energy OBW Occupied Band Width BW BandWidth OFDM Orthogonal Frequency Division Multiplexing Cal Int Calibration Interval P/M Power meter CCK Complementary Code Keying PCB Printed Circuit Board Ch., CH Channel PER Packet Error Rate CISPR Comite International Special des Perturbations Radioelectriques PHY Physical Layer CW Continuous Wave PK Peak DBPSK Differential BPSK PN Pseudo random Noise DC Direct Current PRBS Pseudo-Random Bit Sequence D-factor Distance factor PSD Power Spectral Density DFS Dynamic Frequency Selection QAM Quadrature Amplitude Modulation DQPSK Differential QPSK QP Quasi-Peak DSSS Direct Sequence Spread Spectrum QPSK Quadrature Phase Shift Keying DUT Device Under Test RBW Resolution Band …

Text truncated - open the document above for the full version.
