YTT-C8B5Trail Camera

Invisible Infrared Digital Cellular Scouting Camera User’s Manual Model # c8b5 Includes USB Cable 2 - Bungee Cords User Manual Flextime Player Software Camera UnitAntenna NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players page 1 RESOLUTION FLASH FLASH RANGE SENSOR SENSOR RANGE IMAGE FORMAT MEMORY USB IMAGE RESOLUTION POWER SUPPLY AUXILIARY POWER ONBOARD POWER HOUSING MOUNTING CELLULAR TYPE SIM CARD MAX: 8 MP 60 High Intensity Invisible IR LED’s up to 70 feet Passive Infrared Sensor (PIR) Motion and Heat up to 60 feet JPEG - Digital Still / AVI - Digital Video up to 32GB SD Card (not included and required) Class 4 and above recommended 5-PIN Mini USB style - included High (8MP) Medium (6MP) Low (4MP) 4 D batteries (not included and required) Alkaline recommended External power port Capacitor to retain Time and Settings Weather resistant with rubber gaskets 2 Bungee cords - included 2G(GSM) and 3G(WCDMA), CDMA and CDMA2000 not supported Mini-SIM (2FF) required Note: Battery life will vary depending on camera settings as well as environ- mental conditions. Camera settings such as shorter delay periods or even using Flextime mode are examples of settings that can reduce overall battery life. Environmental conditions such as extreme cold can also influence battery life. page 2 Features Setup With the camera facing up, open the battery compartment at the bottom of the camera by turning them to the left. 1. With the bottom of the camera towards you, load 2 D batteries with the positive ends towards you in each chamber. 2. Close battery compartment cover by turning them to the right. 3. Open the door at the bottom of the camera by unlatching the locking tabs. 4. page 3 NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargable (ni-cad, ni-mh, etc.) batteries. + + + + - - - - To attach the antenna, place the bottom of the antenna into the screw hole at the top of the camera. Then turn the antenna clockwise until it is secure. Do not over tighten. 5. Load SD memory card (up to 32GB not included) into the SD card slot with the connectors facing down. 6. Load Mini-SIM (2FF) card into the SIM card slot with the connectors facing down. 7. IMPORTANT: Make sure the camera is powered off before removing or installing an SD card. If you are using an SD card from other cameras, please make sure to format the SD card in your computer prior to use in your camera. New cards are ok to use straight from the package. page 4 Power On 1. Check the battery level icon to ensure the batteries just installed contain the proper charge level. If so, you are ok to proceed with camera use. Note: When Powered on or Woken up, the camera takes 5-10 seconds to check SIM card and/or Network settings. The buttons are locked during this period. 2. To turn the unit ON, press and release the power button. page 5 Test Mode PIR LED Status Light: During the first 2 minutes of Ready Mode, the red light will illuminate when a PIR event is triggered. The red light will blink for 2-3 seconds when photo is taken during this first 2 minutes. After 2 minutes all indicator lights will turn off until a button is pressed. 1. LCD Ready Mode: The camera will automatically enter Ready Mode if a button is not pressed for greater than 30 seconds. The status lights will illuminate for a total of 2 minutes. 2. UP OK L R DN UP OK L R DN Power Save Date/Time 1. To change Date & Time, enter MENU and press the UP,DN,L or R buttons to navigate to the DATE & TIME icon and press OK. 2. Press the UP or DN navigation button to go up or down in sequence. Press L or R to move to the next digit. 3. When the Time & Date are set, press OK to save and press OK again to go back to the MENU. page 6 After 30 seconds without any buttons being pushed, the LCD will turn off and camera enters into Power Save or Ready Mode. 1. The LCD screen can be awakened by pressing the Power button briefly. Note: The LCD will not “wake up” when camera is writing to memory. 2. UP OK L R DN UP OK L R DN ACTIVE TIME LOCATIONTRIGGER DELAY PIR SENSITIVITY FLEXTIME + ™ + DATE & TIME 30 PLAY BACK IMAGE TYPE VIEW ASSIST DATE & TIME 30 UP OK L R DN __:__ __/__/__ TIME/DATE AM MONTHDAYYEAR PM BACK 1 11 01 12 200 UP OK L R DN __:__ __/__/__ TIME/DATE AM MONTHDAYYEAR PM BACK 1 11 01 12 200 page 7 Location 1. To change Location, enter MENU and press the UP,DN,L or R buttons to navigate to the LOCA- TION icon and press OK. 2. Press the UP or DN navigation button to go up or down in sequence. Press L or R to move to the next digit. 3. When the Location is set, press OK to save and press OK again to go back to the MENU. UP OK L R DN BACK ACTIVE TIME LOCATIONTRIGGER DELAY PIR SENSITIVITY FLEXTIME + ™ + DATE & TIME 30 PLAY BACK IMAGE TYPE VIEW ASSIST LOCATION UP OK L R DN BACK LOCATION ________ AB UP OK L R DN BACK LOCATION ________ ABCD Image Type:Still 1. To change Image Type, enter MENU and press the UP,DN,L or R buttons to navigate to the Image Type icon and press OK. 2. Press the L, R button to select STILL and press OK. Then select the Resolu- tion and press OK. Select the Exposure and press OK. Then select the aspect and press OK. 3. When the Image Type is set, press OK to save and press OK again to go back to the MENU. UP OK L R DN BACK ACTIVE TIME LOCATIONTRIGGER DELAY PIR SENSITIVITY FLEXTIME +™ + DATE & TIME 30 PLAY BACK IMAGE TYPE VIEW ASSIST IMAGE TYPE UP OK L R DN BACK STILLVIDEO HIMEDLOW REGULARWIDE ANGLE RESOLUTION HIMEDLOWEXP CONTROL IMAGE TYPE Save the location of the area the camera was installed. This is for your reference and is optional. If you do not wish to name your location skip to the next step. UP OK L R DN BACK STILLVIDEO HIMEDLOW REGULARWIDE ANGLE RESOLUTION HIMEDLOWEXP CONTROL IMAGE TYPE Trigger page 8 TRIGGER: PIR MODE: Takes a photo or video only when the PIR sensor is triggered. FLEXTIME (Time Lapse): Takes time lapse images at set intervals during the key movement periods of the d…

Text truncated - open the document above for the full version.

WGI Innovations, Ltd. 602 Fountain Parkway, Grand Prairie, Texas 75050, United States Date: May 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia MD 21046 SUBJECT: FCC Application for FCC ID: YTT-C8B5 To Whom It May Concern, We, WGI Innovations, Ltd., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours,

WGI Innovations, Ltd. 602 Fountain Parkway, Grand Prairie, Texas 75050, United States Date: May 20, 2014 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: YTT-C8B5 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.
Schematic Diagram
Block Diagram
Parts List
Tune-up Procedure
Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards,

WGI Innovations, Ltd. 602 Fountain Parkway, Grand Prairie, Texas 75050, United States Date: May 20, 2014 Power of Attorney To whom it may concern, Please be notified that I, Shane Cross, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YTT-C8B5 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours,

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 130826N026 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 130826N026

Label Location FCC ID: YTT-C8B5 Back of the Device – Label Location

C8B5 C8B5 4 D

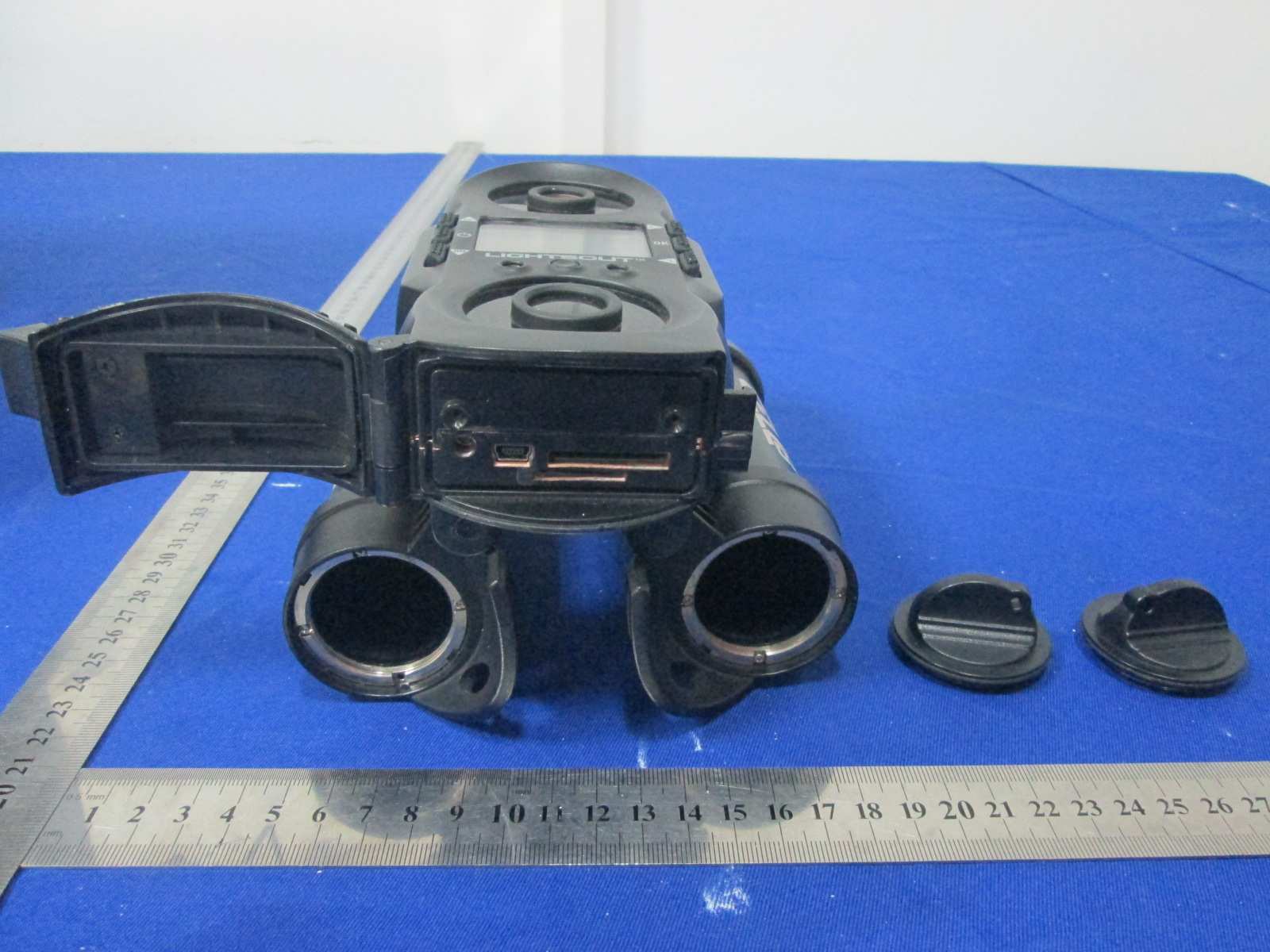

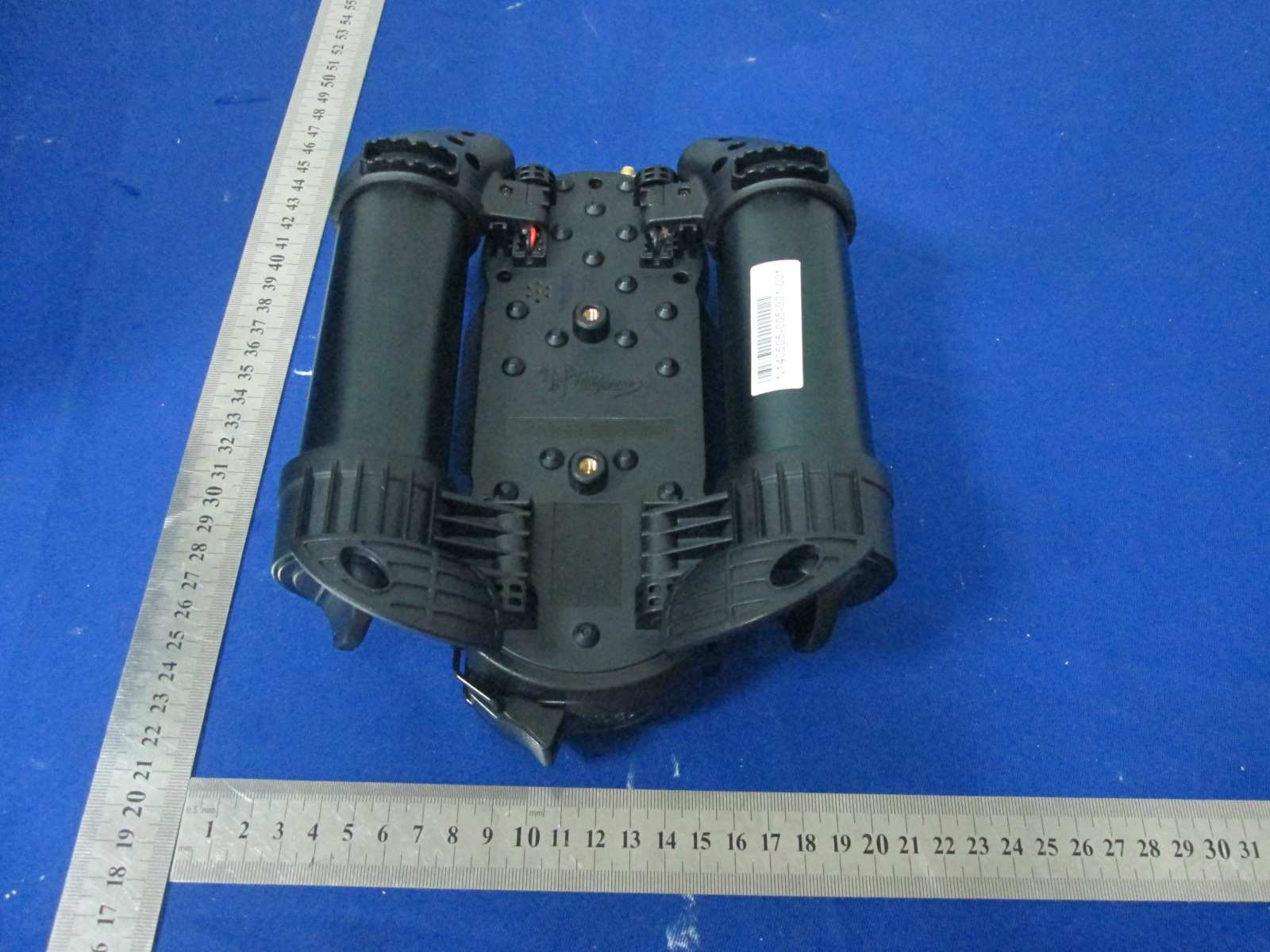

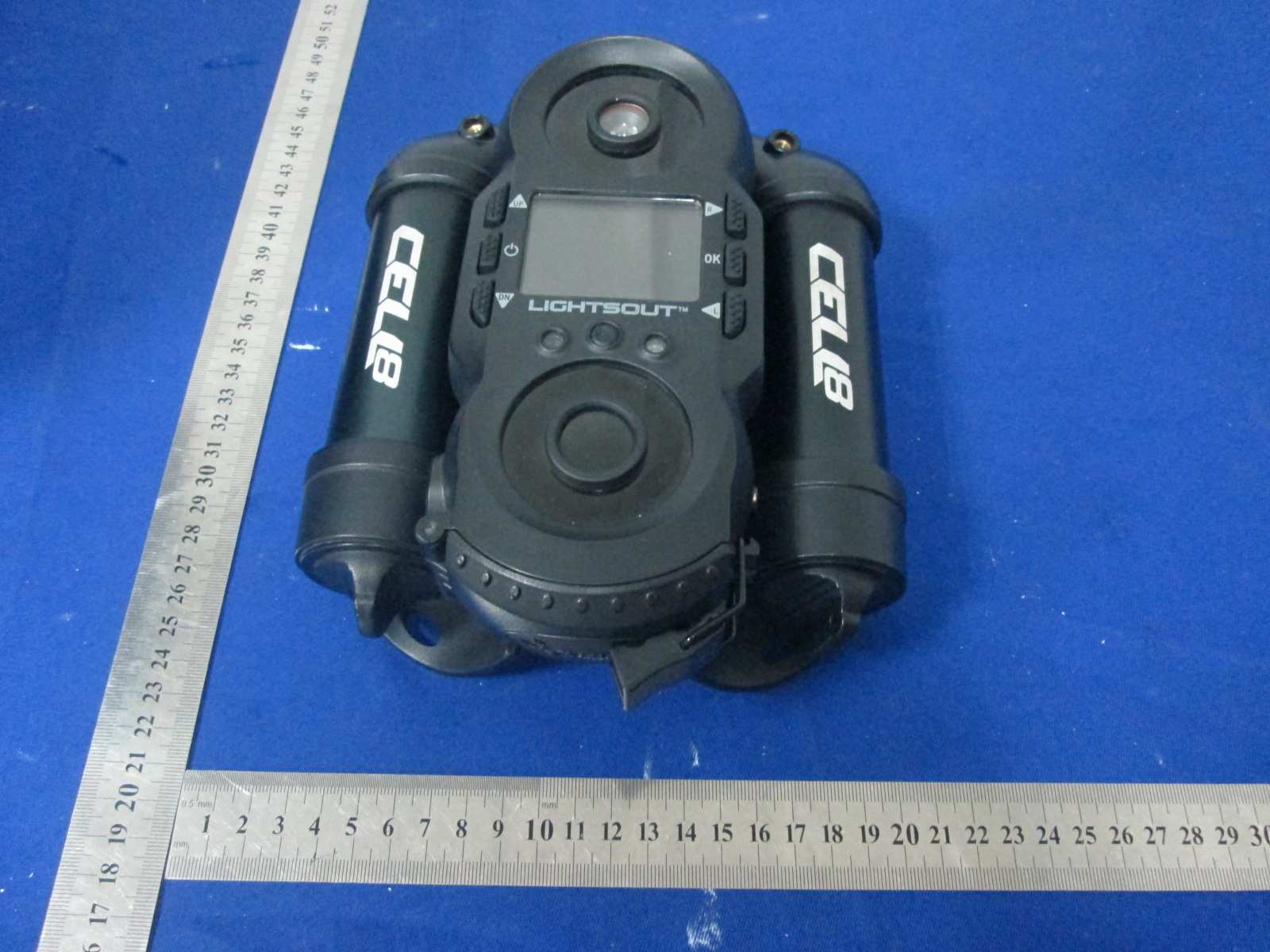

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 7 Report Version 1 Reference No.: 130826N026 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 7 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 7 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 7 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 7 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 7 Report Version 1 Reference No.: 130826N026 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 7 of 7 Report Version 1 Reference No.: 130826N026

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 22 Report No. : SA130826C27 Issued Date : Apr. 30, 2014 FCC SAR Test Report Report No. : SA130826C27 Applicant : WGI Innovations, Ltd. Address : 602 Fountain Parkway, Grand Prairie, Texas United States 75050 Product : Trail Camera FCC ID : YTT-C8B5 Brand : Wildgame Innovations Model No. : C8B5 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 / IEEE 1528a-2005 FCC OET Bulletin 65 Supplement C (Edition 01-01) / KDB 865664 D01 v01r01 KDB 447498 D01 v05r01 / KDB 941225 D01 v02 / KDB 941225 D03 v01 Date of Testing : Apr. 12, 2014 ~ Apr. 13, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., China Branch - Dongguan Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. No: 2951.01 Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 22 Report No. : SA130826C27 Issued Date : Apr. 30, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot .................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ..................................................................................................................................................... 9 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 10 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 14 3.4.2 Volume Scan Procedure ................................................................................................................................... 14 3.4.3 Power Drift Monitoring ...................................................................................................................................... 15 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 15 3.4.5 S…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 32 Report Version 1 Test Report No.: RF130826N026 FCC TEST REPORT (PART 22) REPORT NO.: RF130826N026 MODEL NO.: C8B5 FCC ID: YTT-C8B5 RECEIVED: Aug. 26,2013 TESTED: Aug. 26,2013 ~ Sep. 09,2013 ISSUED: Sep. 10,2013 APPLICANT: WGI Innovations, Ltd. ADDRESS: 602 Fountain Parkway,Grand Prairie,Texas United States 75050 ISSUED BY: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch LAB ADDRESS: No. 34, Chenwulu Section, Guantai Road, Houjie Town, Dongguan City, Guangdong 523942, China TEST LOCATION: No. 34, Chenwulu Section, Guantai Road, Houjie Town, Dongguan City, Guangdong 523942, China This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by A2LA or any government agencies. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 32 Report Version 1 Test Report No.: RF130826N026 TABLE OF CONTENTS RELEASE CONTROL RECORD.................................................................................................................. 3 1 CERTIFICATION ..................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS............................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ...................................................................................................... 5 3 GENERAL INFORMATION..................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT................................................................................................. 7 3.3 DESCRIPTION OF SUPPORT UNITS ............................................................................................... 7 3.4 TEST ITEM AND TEST CONFIGURATION ........................................................................................ 8 3.5 EUT OPERATING CONDITIONS........................................................................................................ 9 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................................................. 9 4 TEST TYPES AND RESULTS................................................................................................................. 10 4.1 OUTPUT POWER MEASUREMENT ........................................................................................... 10 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT .......................................................................... 10 4.1.2 TEST PROCEDURES ................................................................................................................ 10 4.1.3 TEST SETUP.............................................................................................................................. 11 4.1.4 TEST RESULTS....................................................................................................................... 12 4.2 FREQUENCY STABILITY MEASUREMENT .................................................................................... 14 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................................... 14 4.2.2 TEST PROCEDURE................................................................................................................... 14 4.2.3 TEST SETUP ........................................................................................................................... 14 4.2.4 TEST RESULTS....................................................................................................................... 15 4.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................................... 16 4.3.1 TEST PROCEDURES ................................................................................................................ 16 4.3.2 EST SETUP................................................................................................................................ 16 4.3.3 TEST RESULTS ......................................................................................................................... 17 4.4 BAND EDGE MEASUREMENT ................................................................…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 37 Report Version 1 Test Report No.: RF130826N026-1 FCC TEST REPORT (PART 24) REPORT NO.: RF130826N026-1 MODEL NO.: C8B5 FCC ID: YTT-C8B5 RECEIVED: Aug. 26,2013 TESTED: Aug. 26,2013 ~ Sep. 09,2013 ISSUED: Sep. 10,2013 APPLICANT: WGI Innovations, Ltd. ADDRESS: 602 Fountain Parkway,Grand Prairie,Texas United States 75050 ISSUED BY: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch LAB ADDRESS: No. 34, Chenwulu Section, Guantai Road, Houjie Town, Dongguan City, Guangdong 523942, China TEST LOCATION: No. 34, Chenwulu Section, Guantai Road, Houjie Town, Dongguan City, Guangdong 523942, China This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by A2LA or any government agencies. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 37 Report Version 1 Test Report No.: RF130826N026-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 CERTIFICATION ............................................................................................................................... 5 2 SUMMARY OF TEST RESULTS....................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 6 3 GENERAL INFORMATION ............................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 8 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................ 8 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................ 8 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................................ 9 3.5 EUT OPERATING CONDITIONS.............................................................................................. 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 10 4 TEST TYPES AND RESULTS..........................................................................................................11 4.1 OUTPUT POWER MEASUREMENT .........................................................................................11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...............................................................11 4.1.2 TEST PROCEDURES .........................................................................................................11 4.1.3 TEST SETUP...................................................................................................................... 12 4.1.4 TEST RESULTS ................................................................................................................. 13 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................................ 15 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ................................................. 15 4.2.2 TEST PROCEDURE........................................................................................................... 15 4.2.3 TEST SETUP...................................................................................................................... 15 4.2.4 TEST RESULTS ...........................................................................................................…

Text truncated - open the document above for the full version.
