YTT-I6Game Trail Camera

Model # I6 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” , “Redux” and “Flextime” are TM trademarks of WGI Innovations, LTD. User’s Manual Infrared Digital Scouting Camera IncludesFeatures USB Cable2 - Bungee Cords User Manual Camera UnitFlextime Player Software RESOLUTION FLASH FLASH RANGE SENSOR SENSOR RANGE IMAGE FORMAT MEMORY USB IMAGE RESOLUTION POWER SUPPLY AUXILIARY POWER BATTERY LIFE ONBOARD POWER HOUSING MOUNTING REDUX MAX: 6 MP Still 18 High Intensity Infrared LED’s up to 55 feet Passive Infrared Sensor (PIR) Motion and Heat up to 60 feet JPEG - Digital Stills/ AVI-Digital Video up to 32GB SD Card (not included and required) Class 4 and above recommended 5-PIN Mini USB style - included 6 MP 4 C-Cell batteries (not included and required) Alkaline recommended External power port Estimated up to 1 year or 40,000 photos Built in battery to retain Date and Time Weather resistant with rubber gaskets 2 Bungee cords - included Technology to reduce motion blur during transition time page 1page 2 NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players. Note: Battery life will vary depending on camera settings as well as environ- mental conditions. Camera settings such as shorter delay periods or even using Flextime mode are examples of settings that can reduce overall battery life. Environmental conditions such as extreme cold can also inuence battery life. IncludesFeatures USB Cable2 - Bungee Cords User Manual Camera UnitFlextime Player Software RESOLUTION FLASH FLASH RANGE SENSOR SENSOR RANGE IMAGE FORMAT MEMORY USB IMAGE RESOLUTION POWER SUPPLY AUXILIARY POWER BATTERY LIFE ONBOARD POWER HOUSING MOUNTING REDUX MAX: 6 MP Still 18 High Intensity Infrared LED’s up to 55 feet Passive Infrared Sensor (PIR) Motion and Heat up to 60 feet JPEG - Digital Stills/ AVI-Digital Video up to 32GB SD Card (not included and required) Class 4 and above recommended 5-PIN Mini USB style - included 6 MP 4 C-Cell batteries (not included and required) Alkaline recommended External power port Estimated up to 1 year or 40,000 photos Built in battery to retain Date and Time Weather resistant with rubber gaskets 2 Bungee cords - included Technology to reduce motion blur during transition time page 1page 2 NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players. Note: Battery life will vary depending on camera settings as well as environ- mental conditions. Camera settings such as shorter delay periods or even using Flextime mode are examples of settings that can reduce overall battery life. Environmental conditions such as extreme cold can also inuence battery life. Installing Batteries Open the door at the bottom of the camera by unlatching the locking tab. 1. With the camera facing up, open the battery compartment cover by sliding the latch to the left. 2. With the bottom of the camera towards you, load two C-cell batteries with the positive ends towards you in the left battery chamber and load two C-cell batteries with the negative ends towards you in the right battery chamber. 3. Close battery compartment cover. To latch the cover simply pull the latch slightly to the left as you close the battery compartment cover. 4. Load SD memory card (up to 32GB not included) into the SD card slot with the connectors facing up. 5. + - NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargable (ni-cad, ni-mh, etc) batteries. TIPS: Make sure the SD Card is unlocked (small switch on the side of the SD Card) or the camera LCD will read “LOCK”. IMPORTANT: Make sure the camera is powered off before removing or installing an SD card. If you are using an SD card from other cameras, please make sure to format the SD card in your computer prior to use in your camera. New cards are ok to use straight from the package. page 3page 4 Installing Batteries Open the door at the bottom of the camera by unlatching the locking tab. 1. With the camera facing up, open the battery compartment cover by sliding the latch to the left. 2. With the bottom of the camera towards you, load two C-cell batteries with the positive ends towards you in the left battery chamber and load two C-cell batteries with the negative ends towards you in the right battery chamber. 3. Close battery compartment cover. To latch the cover simply pull the latch slightly to the left as you close the battery compartment cover. 4. Load SD memory card (up to 32GB not included) into the SD card slot with the connectors facing up. 5. + - NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargable (ni-cad, ni-mh, etc) batteries. TIPS: Make sure the SD Card is unlocked (small switch on the side of the SD Card) or the camera LCD will read “LOCK”. IMPORTANT: Make sure the camera is powered off before removing or installing an SD card. If you are using an SD card from other cameras, please make sure to format the SD card in your computer prior to use in your camera. New cards are ok to use straight from the package. page 3page 4 Ready Time/Date Location Trigger Flextime PIR Mode PIR Active Delay PIR Mode Flextime Both P1 P2 Interval Still Video 24Hr Day Night 30sec 1min 2min 5min Ready Time/Date Location Trigger Flextime PIR Mode PIR Active Delay PIR Mode Flextime Both P1 P2 Interval Still Video 24Hr Day Night 30sec 1min 2min 5min Power SavePower On Setting TimeTest Mode 1. Check the battery level icon to ensure the batteries just installed contain the proper charge level. If so, you are ok to proceed with camera use. 2. To turn the unit ON, press and release the power button. 1. To change date and time, start by pressing and release the center navigation button to set the hour. 2. Press the left or right navigation button to go up or down in sequence. 3. When the hour is set, repeat steps 1…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 WGI Innovations, Ltd. _________________________________ November 23, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: YTT-I6 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Jin Tan Name : Jin Tan, Title: Director of Quality Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1-972-352-6600 ext. 129

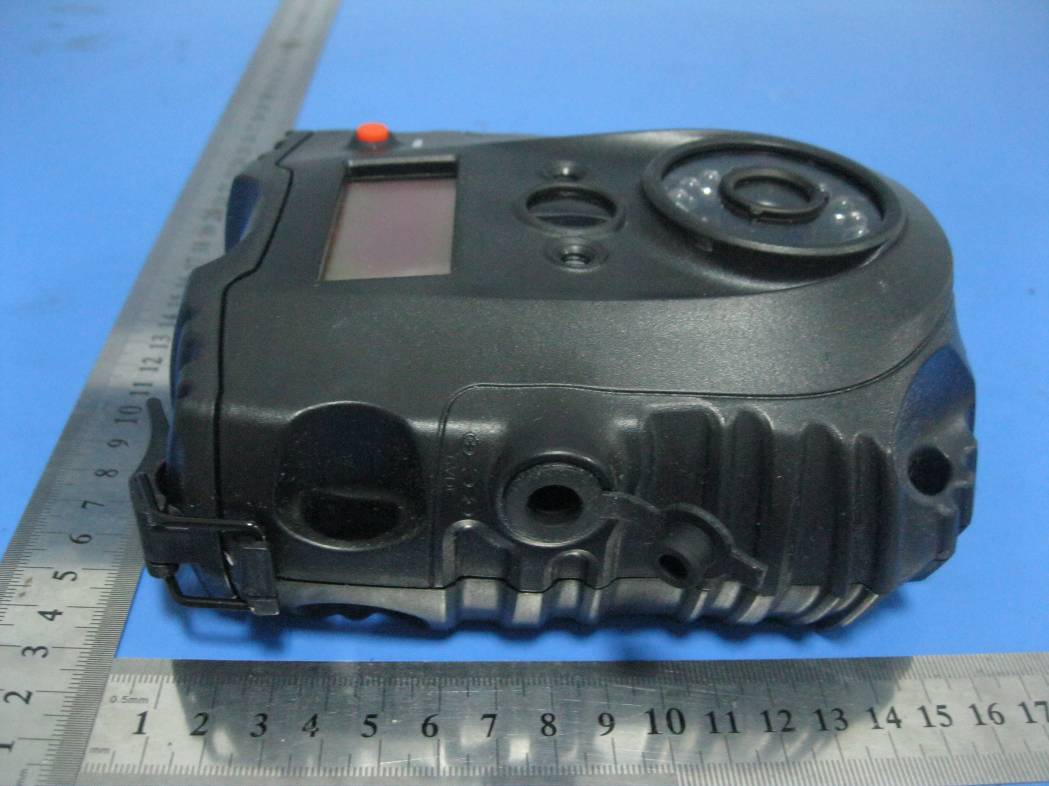

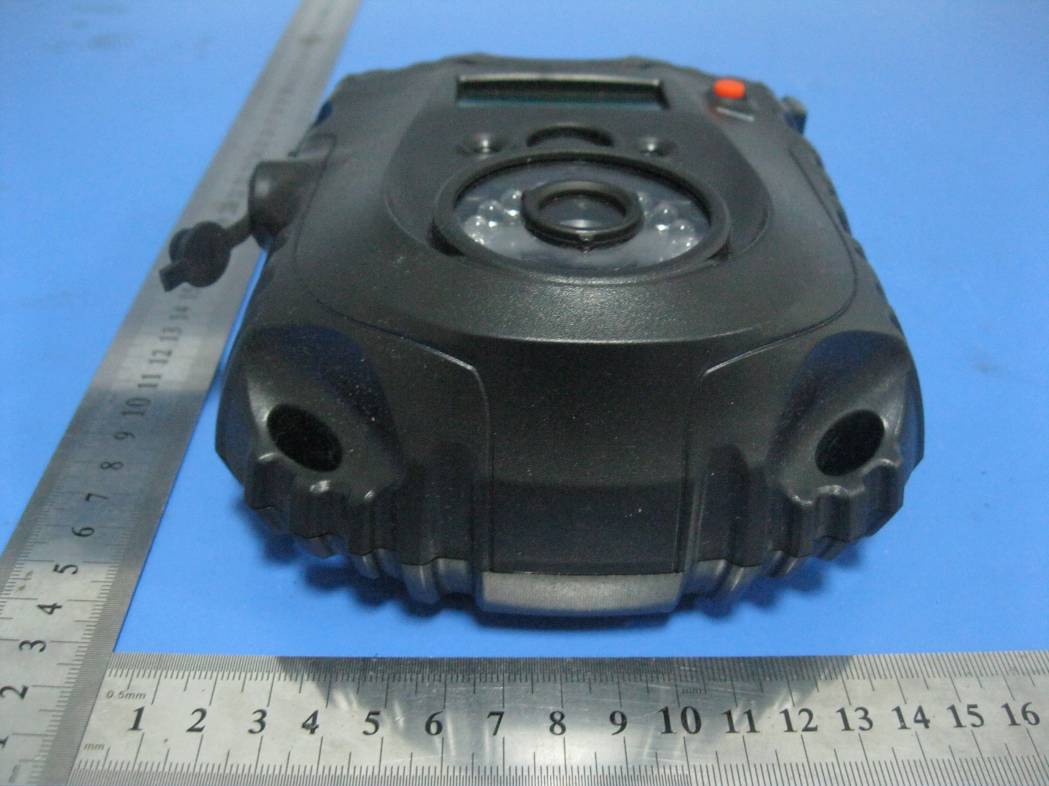

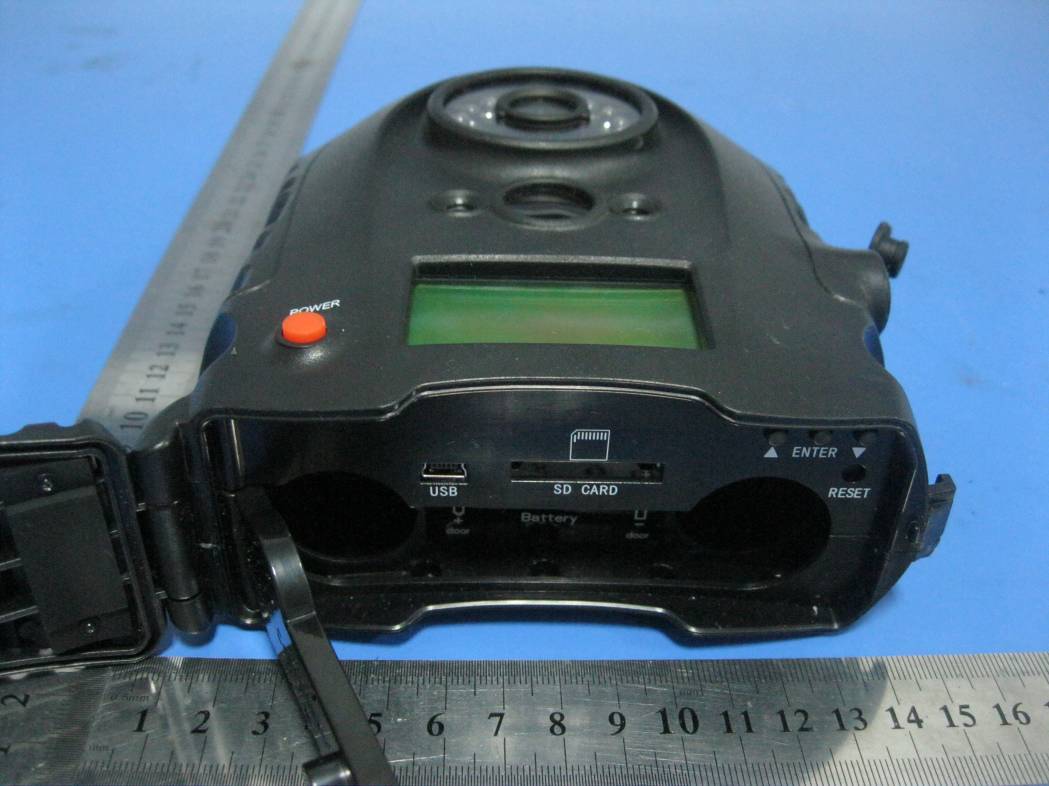

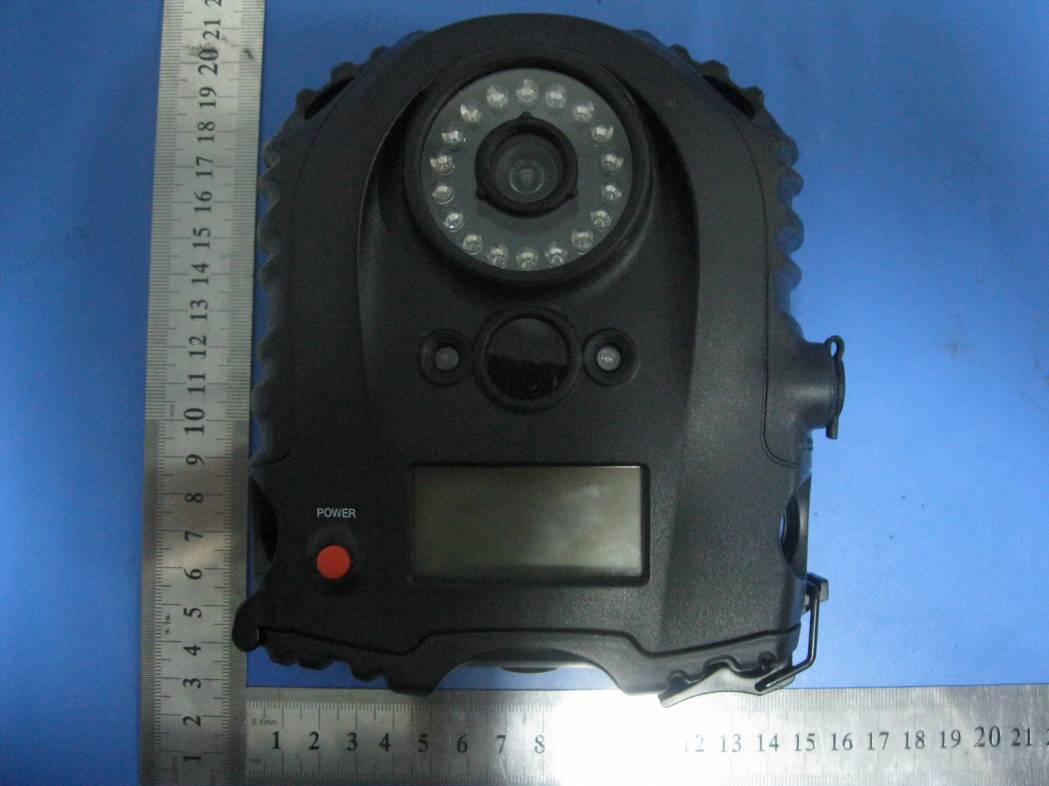

Annex B. EUT External Photo EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

FCC ID: YTT-I6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Annex B. EUT Internal Photo EUT – Uncover View 1 EUT – Uncover View 2 EUT – Uncover View 3 EUT – Main PCB Board View 1 EUT – Main PCB Board View 2 EUT – Main PCB Board View 3 LCD - Top View LCD - Bottom View

WGI Innovations, Ltd. Game Trail Camera Main Model: I6 Serial Model: I4 November 21, 2012 Report No.: 12020599-FCC-E1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Game Trail Camera Main Model: I6 Serial Model: I4 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020599-FCC-E1 Issue Date: November 21, 2012 Page: 2 of 24 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom This test report may be reproduced in full only. All test result in this report is applied specifically to presented test sample only. Title: EMC Test Report for Game Trail Camera Main Model: I6 Serial Model: I4 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020599-FCC-E1 Issue Date: November 21, 2012 Page: 3 of 24 www.siemic.com This page has been left blank intentionally. Title: EMC Test Report for Game Trail Camera Main Model: I6 Serial Model: I4 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020599-FCC-E1 Issue Date: November 21, 2012 Page: 4 of 24 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS..........................................................................................................................................6 3 MODIFICATION .....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS...................................................................9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES .............................................................14 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................18 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................19 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................23 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................24 Title: EMC Test Report for Game Trail Camera Main Model: I6 Serial Model: I4 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020599-FCC-E1 Issue Date: November 21, 2012 Page: 5 of 24 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the WGI Innovations, Ltd., Game Trail Camera and Model: I6 against the current Stipulated Standards. The Game Trail Camera has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2012, ANSI C63.4:2009. EUT Information EUT Description : Game Trail Camera Main Model : I6 Serial Model I4 Input Power : Rating：DC 6V x 300mA=1.8W Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2012, ANSI C63.4:2009 Note: I4 have the same PCB layout and function as I6. The only differences are the packages and enclosure coatings. Title: EMC Test Report for Game Trail Camera Main Model: I6 Serial Model: I4 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020599-FCC-E1 Issue Date: November 21, 2012 Page: 6 of 24 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Game Trail Camera with stipulated standards Applicant / Client WGI Innovations, Ltd. 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Manufacturer Dongguan Southstar Electronics Ltd. F Building, 3 Chengtian Rd, Mintian, Shatian Town, Dongguan, Guangdong, China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1, Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020599-FCC-E1 Date EUT received July 18, 2012 Standard applied FCC Part 15 Subpart B Class B: 2012, ANSI C63.4:2009 Dates of test (from – to) July 20, 2012 No of Units #1 Equipment Category IT…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Setup Front View Conducted Emissions Setup Side View Radiated Emissions Setup Front View Radiated Emissions Setup Rear View
