YTT-FLX500E-Game Call

User’s Manual Model # FLX500 HD GAME CALL INCLUDED PARTS 1) Dog soldier FLX500 electronic game call unit with remote – (2 pieces) 2) Product Information Guide – (1) 3) Shoulder Strap - (1) PAGE 1 User’s Manual Model # FLX500 HD GAME CALL INSTALLING BATTERIES IN UNIT PAGE 2 3 To close put battery chamber back inside cavity while aligning the arrows and rotate to the right till you can’t turn it any further. 1 Turn the call on it’s side and rotate battery door to the left. You will hear and feel a click. 2 Next, pull out the battery chamber, confirm that the positive (+) and negative (-) terminals are oriented correctly and insert ten (10) AA batteries. PAGE 3 3 To close, slide the cover up. INSTALLING BATTERIES IN REMOTE 2 Next, confirm that the positive (+) and negative (-) terminals are oriented correctly and insert the batteries. 1 To install three (3) AA batteries for the remote, slide the cover down to open. TURNING SPEAKER UNIT ON Press and hold the power button until LCD is illuminated and then release. Unit is now on. Note: The LCD will enter sleep mode in approximately 1 minute of inactivity. The Speaker unit will auto turn off after 30 minutes of inactivity. PAGE 4 CHOOSING PRELOADED INDIVIDUAL CALLS ON SPEAKER UNIT 1 First, press the play/enter button while CALLS is on display. 2 Next, press either the up or down button to choose Preloaded. Press the play/enter button when the desired option is highlighted. 3 Scroll through calls by pressing the up or down button. Press the play/enter button when the desired option is highlighted. MENU BACK VOL + - MENU BACK VOL + - MENU BACK VOL + - This will activate the audible call. To maximize the effectiveness of the Electronic Game Call, point the call in the directions you want the sound to go. Note: Call will loop repeatedly until call is deactivated. CHOOSING SD CARD 2 Next, press the play/enter button while SD CARD is on display. NOTE: This option will only show up if an SD card was inserted. 3 Scroll through calls by pressing the up or down button. Press the play/enter button when the desired option is highlighted. MENU BACK MENU BACK This will activate the audible call. To maximize the effectiveness of the Electronic Game Call, point the call in the directions you want the sound to go. Note: Call will loop repeatedly until call is deactivated. VOL + - VOL + - 1 First, insert SD card. SD USB LINE-OUT LINE-IN CHOOSING DOWNLOADED INDIVIDUAL CALLS ON SPEAKER UNIT 1 First, press the play/enter button while CALLS is on display. 2 Next, press either the up or down button to choose Downloaded. Press the play/enter button when the desired option is highlighted. 3 Scroll through calls by pressing the up or down button. Press the play/enter button when the desired option is highlighted. MENU BACK VOL + - MENU BACK VOL + - MENU BACK VOL + - This will activate the audible call. To maximize the effectiveness of the Electronic Game Call, point the call in the directions you want the sound to go. Note: Call will loop repeatedly until call is deactivated. PAGE 5 To adjust volume, press the volume + or -- buttons. VOLUME CONTROL MENU BACK VOL + - PAGE 6 SETTINGS 1 First, press the play/enter button while SETTING is on display. MENU BACK VOL + - 2 Scroll through the options by pressing the up or down button. Press the play/enter button when the desired option is highlighted. Sound Settings: You can switch to All, Side Speakers or Center Speakers Display Settings: Backlight timer can be adjusted to 10 sec, 20 sec, 30 sec or Always On. Factory Settings: Restore to factory settings. About: Information about the unit. MENU BACK VOL + - DOWNLOAD CALLS FROM PC ONTO SPEAKER UNIT 1 First, connect a USB cable from the PC to the Speaker Unit. USB LINE-OUT 2 The computer will auto detect it as a mass storage drive. 3 Then, copy your calls into this drive. 4 Unplug and disconnect the USB cable once you copied the calls into the drive. LINE-IN The Flextone Electronic-game calls also support Line-in from external audio player. You must first connect the audio cable from external audio player into the Line-in port. After that, go to the settings menu, you will be able to see Line-in setting which you can turn it on or off. USB LINE-OUT LINE-IN NOTE: Line-in function is only available on the Speaker Unit. NOTE: MP3 and .WAV file types can be played. PAGE 7 The Flextone Electronic-game calls also support audio out to external speaker. You must first connect the audio cable from external speaker into the Line-Out port. LINE-OUT USB LINE-OUT NOTE: Line-out function is only available on the Speaker Unit. TURN SPEAKER UNIT OFF Press and hold the power button until LCD is illuminated and then release. Unit is now off. Note: The LCD will enter sleep mode in approximately 1 minute of inactivity. The unit will turn off in 30 minutes of inactivity. PAGE 8 TURNING REMOTE ON Press and hold the power button until LCD is illuminated and then release. Unit is now on. Note: The remote LCD will go into sleep mode in approximately 1 minute of inactivity. It will power off in 30 minutes of inactivity. FAV1FAV2 MUTE MENU BACK DISPLAY PLAY SELECT VOL VOL CHOOSING PRELOADED CALLS 1 First, press the play/select button while Preloaded is highlighted. 2 Next, select desired call category by pressing the play/select button. Category name will show in the top left corner. PLAY SELECT VOL VOL PLAY SELECT VOL VOL FLX500 PRELOADED DOWNLOADED SD CARD SETTINGS 11 PRELOADED Bear Bird Bobcat Cougar Coyote Crows Elk Fox Hog Mouse 11 Owl Prairie Dog Rabbit l PAGE 9 3 Scroll through the call list by using the up or down arrow buttons to the desired call, press the play/select button for the call to begin playing. This will activate the audible call. Note: Call will loop repeatedly until call is deactivated. 4 Press the play/select button to stop the call from continuing. PLAY SELECT VOL VOL BEAR BEAR 4 MONTH DIS BEAR ADULT DISTR <BACK> <HOME> 11 CHOOSING DOWNLOADED CALLS 1 From the main menu, press the…

Text truncated - open the document above for the full version.

WGI Innovations Ltd. Agent Authorization Letter July 17, 2015 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize STC(Dongguan) Company Limited to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name：Shane Cross Title: Product Compliance Manager Signature:

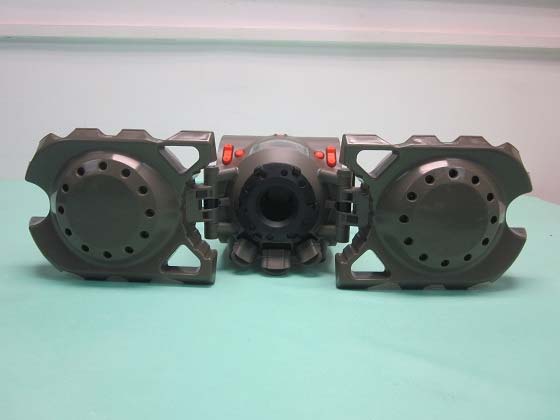

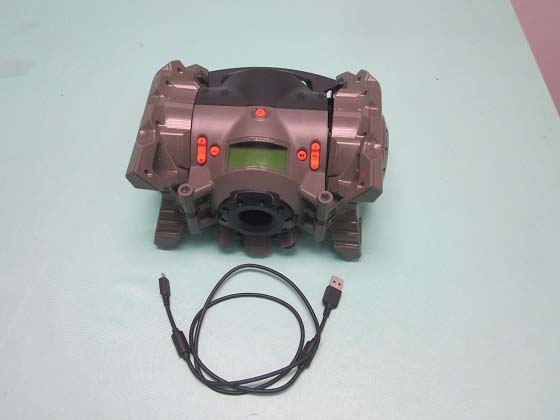

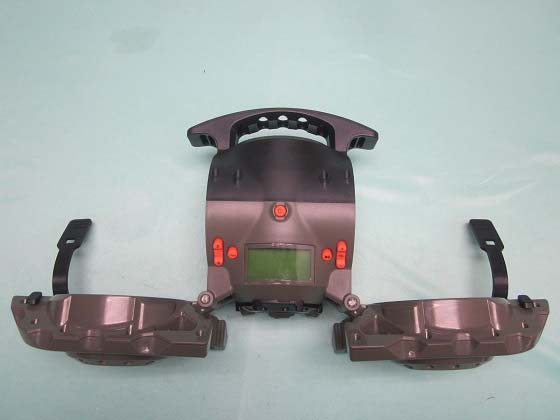

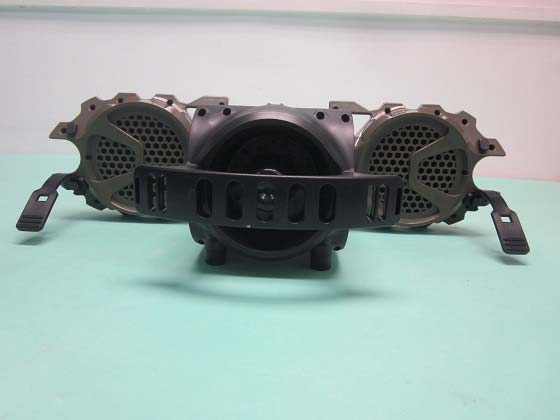

1 External Photo FCC ID: YTT-FLX500 Front View of The Product Rear View of The Product 2 Top View of The Product Bottom View of The Product 3 Left View of The Product Right View of The Product 4 Global View of The Product Global View of The Product

Trade Name: FLEXTONE Model# FLX500 FCC ID: YTT-FLX500 SW: V1.00 Power Source: 10pcs. of AA-Cell Alkaline Batteries This device complies with Part 15 of the FCC Rules. Operation is subject to the foll- owing two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: responsible for compliance could void the user’s authority to operate the equipment. Made in China Changes or modifications to this unit not expressly approved by the party 602 Fountain Parkway, Grand Prairie, TX 75050. (800) 847 - 8269

1 Internal Photo FCC ID: YTT-FLX500 Inside View of The Product Inner Circuit Top View 2 Inner Circuit Bottom View Inner Circuit Top View 3 Inner Circuit Bottom View Inner Circuit Top View 4 Inner Circuit Bottom View Inner Circuit Top View 5 Inner Circuit Bottom View

www.myantenna.com.cn Specification for Approval Customer: Synergy Project: FLX500 Part No.: M15.0024-R0A Product: 915MHz Antenna Dimensions: 51.45*Ø5.0 Sample: Mold kind Version: A Sample Delivery Date: 2015-06-18 Sample Confirmed Date: Customer Supplier Design & Development Audit Approval R & D Structure Approval Approval Date： Approval Date：2015-06-18 www.myantenna.com.cn Contents 1.Cover .......................................................................................................... 1 2.Contents ......................................................................................................2 3.Engineering Drawing....................................................................................3 4.Testing & Processing ..............................................................................4 4.1 Matching Circuit.............................................................................4 4.2 Antenna Performance Testing .....................................................5 5. Inspection Report................................................................................. 6 6.ROHS Report.......................................................................................... 7 www.myantenna.com.cn 3. Engineering drawing www.myantenna.com.cn 4. Testing & Processing 4.1 Matching Circuit Matching Network Values Z1: short Z2: open Z3: short Z4: open www.myantenna.com.cn 4.2 Antenna Performance Testing VSWR Parameters Frequency MHz VSWR 915 1.22 www.myantenna.com.cn 5. Inspection Report Project FLX500 Antenna Type 915MHz Antenna Inspection Date 2015-06-18 Appearance Standard 1. No abnormalities on the antenna surface. Dimension Standard 2. Within the required tolerances based on the drawing. No. Inspection type Standard Inspection MethodInspection Quantity Result Remark 1 Appearance As Above Visually 6PCS OK 2 Dimension As Below ChartVernier Caliper 6PCS OK No. Inspection type Dimension Tool Test Results (Recorded six groups of testing data includes the highest & lowest values ) 1 2 3 4 5 6 1 Dimension 54.26±0.5 Caliper 54.26 54.26 54.26 54.26 54.26 54.26 2 ∮5.0±0.2 5.1 5.95 5.1 5.95 5.1 5.1 3 4 5 Remarks Supervisor：Sam Audit：Ivan Inspector：Bill www.myantenna.com.cn 6. ROHS Report Project Part No. Tested Material Testing Institution Date of Testing Test Report No. Test Results Remarks FLX500 M15.0024-R0A Spring Wire SGS 2015-01-09 CANEC1500118102 OK Recorder ： EC Audit ： Ivan Date ： 2015-06-18 Stamp ：

STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-06-17 Page 1 of 19 No.: DM119790 Applicant: WGI Innovations, Ltd. 602 Fountain Parkway, Grand Prairie, TX 75050 Manufacturer: WGI Innovations, Ltd. 602 Fountain Parkway, Grand Prairie, TX 75050 Description of Sample(s): Submitted sample(s) said to be Product: E-Game Call Brand Name: FLEXTONE Model Number: FLX500 FCC ID: YTT-FLX500 Date Sample(s) Received: 2015-06-05 Date Tested: 2015-06-09 to 2015-06-17 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, please page 3. LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-06-17 Page 2 of 19 No.: DM119790 CONTENT: Cover Page 1 of 19 Content Page 2 of 19 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 19 1.2 Description of EUT Operation Page 3 of 19 1.3 Date of Order Page 3 of 19 1.4 Submitted Sample Page 3 of 19 1.5 Test Duration Page 3 of 19 1.6 Country of Origin Page 3 of 19 2.0 Technical Details 2.1 Investigations Requested Page 4 of 19 2.2 Test Standards and Results Summary Page 4 of 19 3.0 Test Results 3.1 Emission Page 5-8 of 19 3.2 Bandwidth Measurement Page 9-13 of 19 Appendix A List of Measurement Equipment Page 14 of 19 Appendix B Photographs Page 15-19 of 19 STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-06-17 Page 3 of 19 No.: DM119790 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: E-Game Call Manufacturer: WGI Innovations, Ltd. Brand Name: FLEXTONE Model Number: FLX500 Additional Model Number: FLX1000 Rating: 15Vd.c. (“AA” battery×10) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a remote control audio player. It is a transceiver operating at 915MHz and the RF signal was modulated by IC, the type of modulation used was FSK. 1.3 Date of Order 2015-06-05 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-06-09 to 2015-06-17 1.6 Country of Origin China STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-06-17 Page 4 of 19 No.: DM119790 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249ANSI C63.4: 2009 N/A Radiated Emissions FCC 47CFR 15.209ANSI C63.4: 2009 N/A Note: N/A - Not Applicable STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-06-17 Page 5 of 19 No.: DM119790 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 & FCC 47CFR 15.209 Test Method: ANSI C63.4: 2009 Test Date: 2015-06-11 to 2015-06-17 Mode of Operation: Communication mode Test Method: The sample was placed 0.8m above the ground plane of semi-anechoic Chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: Semi-anechoic chamber located on the STC (Dongguan) Company Ltd. 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, PRC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rul…

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: YTT-FLX500 Measurement of Radiated Emission Test Set Up Measurement of Radiated Emission Test Set Up 2 Measurement of Radiated Emission Test Set Up
