User Manual（For FCC Certification） Product Serial Num： Product Name： LO5 File Serial Num： edition： Compiled by JNan Lao Apr 6 th ,2012 Reviewed by Stephen Apr 6 th , 2012 Page 1/ Total 4 Summary The picture below is LO5 real product photo. There is a battery compartment in both sides, in which you can put batteries after screwing up the cover at the bottom. All the batteries should be put with positive pole in the outside. Open the SD card holder, you can see a reset key, a mini USB and a SD cart slot. LO5 real product photo Battery compartment filled with batteries SD card slot User Manual（For FCC Certification） Product Serial Num： Product Name： LO5 File Serial Num： edition： Compiled by JNan Lao Apr 6 th ,2012 Reviewed by Stephen Apr 6 th , 2012 Page 2/ Total 4 UI mode Long press the POWER button to boot up, and go to the interface above. Press the UP/DOWN button to make the option PIR MODE flashed, then press OK to the setting mode. You can press LEFT/RIGHT button to make the option STILL(take photos) or VIDEO(take videos) flashed. Then press OK to save the setting and go to next setting. You can set other options in the same way. Introductions for setting the options The table below shows the options which can be set by users. The options with ■ are the default settings after reset the machine. Settings Options and default settings notes Time ■ 12:00 AM 12-hour clock Date ■ 01/01/2012 Month/day/year The range of calendar is from 12:00 AM 01/01/2010 to 11:59 PM 12/31/2030 Location ■ _ _ _ _ _ _ _ _ ( 8 blanks ) You can set from “A” to “Z”, “0” to “9” and a blank” “. After reset ,it will be 8 blanks. A blank is showed as “_” on LCD, but nothing on the photos. Trigger ■ PIR Mode □ Flextime □ Both Choose the trigger pattern. It can be PIR Flextime ,or both of them. Flextime □ P1 □ P2 User Manual（For FCC Certification） Product Serial Num： Product Name： LO5 File Serial Num： edition： Compiled by JNan Lao Apr 6 th ,2012 Reviewed by Stephen Apr 6 th , 2012 Page 3/ Total 4 □ Interval PIR Mode ■ Still □ Video PIR Active ■ 24Hr □ Day □ Night PIR Sense □ Hi ■ Med □ Lo PIR sensitivity. Picture ■ Regular □ Wide The length-width ratio of the photos to be taken. Regular is 4:3; Wide is 16:9. Still Res ■ Hi □ Med □ Lo The resolution ratio of the photos： When set the Picture to be Regular: Hi --- 5M (2592*1944) Med --- 4M (2272*1704) Low --- 2M (1600*1200) When set the Picture to be Wide: Hi --- 5M (2944*1656) Med --- 4M (2560*1440) Low --- 2M (1920*1080) Video Res □ HD ■ Regular HD represent 720P@30fps，Regular represent 640*480@30fps(both without sound) Video ■ 5s □ 10s □ 15s □ 30s □ 1m □ 2m The length of the video。S means second, m means minute. Delay ■15s □ 30s □ 1m □ 2m □ 5m □ 10m Attention： PIR and Flextime use the same Delays setting. When use Flextime function, the shortest time of this setting should be 1m. still/video mode If no key pressed in a continuous 30 seconds in UI mode, the LCD of LO5 will be turned off, and then go to the idle mode. Trigger the infrared sensor, the camera will take photos or videos as you set in the UI mode. Tip: Pressing the RESET button to reset the camera , it will take photos after going to the standby mode . You can take videos if only change the PIR Mode to Video. Attention: User Manual（For FCC Certification） Product Serial Num： Product Name： LO5 File Serial Num： edition： Compiled by JNan Lao Apr 6 th ,2012 Reviewed by Stephen Apr 6 th , 2012 Page 4/ Total 4 1. You should plug in the SD card before taking photos or videos. 2. The red LED will flash if you trigger the infrared sensor in the first 1.5 minutes of this mode. After 1.5 minute, the function will be off. USB mode In this mode ,you can read the files in the SD card. The ways to go into this mode: 1. When the machine is turned off, connect the camera to PC with USB cable, and then long press the POWER button to turn on the camera. 2. In UI mode, connect the camera to PC with USB cable. FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# LO5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o_ and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 WGI Innovations, Ltd. May 11, 2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, WGI Innovations, Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Game Scouting Camera Model name: LO5/ LO5CA/ LO7 We affirm that between SIEMIC and WGI Innovations, Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name : Jin Tan, Title: Director of Quality Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1-972-352-6600 ext. 129

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Operational Description Schematics Block Diagram SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 WGI Innovations, Ltd. May 11, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: YTT-LO5LO7 We hereby request confidential treatment of information accompanying this application as outlined below: - - - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name : Jin Tan, Title: Director of Quality Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1-972-352-6600 ext. 129 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 (Client's Company Letterhead / Logo) (Current Date) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: XXXXXXXXXX To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. User Manual Insert - etc. - etc. - etc. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : XXXXXXXX Client’s name / title : XXXXXXXX Contact information / address : XXXXXXXX

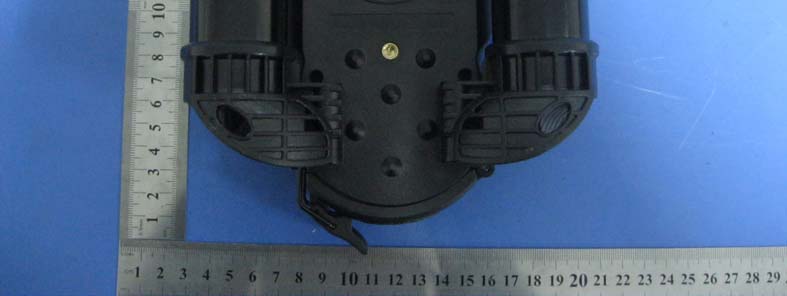

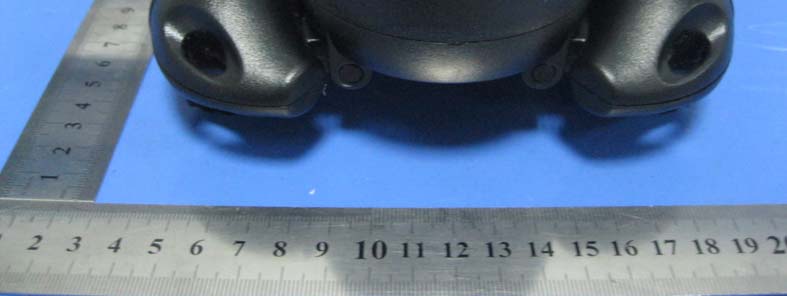

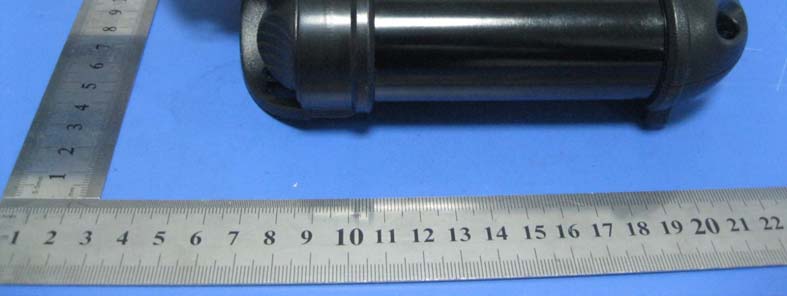

Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 19 of 32 www.siemic.com Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 20 of 32 www.siemic.com EUT – Top View EUT - Bottom View Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 21 of 32 www.siemic.com EUT – Left Side View EUT – Right Side View

Made in China Trade Name: Wildgame Innovations Model# LO5 Power Source: 12Pcs. of AA-Cell Alkaline Batteries FCC ID: YTT-LO5LO7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Annex B. EUT Internal Photo EUT – Uncover View 1 EUT – Uncover View 2 EUT – Uncover View 3 EUT – Uncover View 4 EUT – Main PCB Board View 1 EUT – Main PCB Board View 2 EUT – Main PCB Board View 3

WGI Innovations, Ltd. Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 April 10, 2012 Report No.: 12020290-FCC-E1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 2 of 33 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 3 of 33 www.siemic.com This page has been left blank intentionally. Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 4 of 33 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS..........................................................................................................................................6 3 MODIFICATION .....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS...................................................................9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES .............................................................15 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................19 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................28 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................32 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................33 Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 5 of 33 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the WGI Innovations, Ltd., Game Scouting Camera and Model: LO5 against the current Stipulated Standards. The Game Scouting Camera has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2012. EUT Information EUT Description : Game Scouting Camera Main Model : LO5 Serial Model LO5CA, LO7 (Note) Input Power : Rating：DC 6V x 300mA=1.8W Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2012 Note: LO5CA and LO7 have the same design as LO5. The only differences are the packages and enclosure coatings. Title: EMC Test Report for Game Scouting Camera Main Model: LO5 Serial Model: LO5CA, LO7 To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12020290-FCC-E1 Issue Date: April 10, 2012 Page: 6 of 33 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Game Scouting Camera with stipulated standards Applicant / Client WGI Innovations, Ltd. 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Manufacturer Dongguan Southstar Electronics Ltd. F Building, 3 Chengtian Rd, Mintian, Shatian Town, Dongguan, Guangdong, China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1, Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020290-FCC-E1 Date EUT received March 31, 2012 Standard applied FCC Part 15 Subpart B Class B: 2012 Dates of test (from – to) April 06, 2012 No of Units #1 Equipment Category ITE Trade Name Wildgame Innovations Highest Operated Frequency (ies) N/A Port/Connectors USB FCC ID YTT-LO5L…
