YTT-N4EGame Scouting Camera

Model # N4E 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” , “Redux” and “Flextime” are TM trademarks of WGI Innovations, LTD. User’s Manual Infrared Digital Scouting Camera IncludesFeatures USB Cable 2 - Bungee Cords User Manual Camera UnitFlextime Player Software RESOLUTION FLASH FLASH RANGE SENSOR SENSOR RANGE IMAGE FORMAT MEMORY USB IMAGE RESOLUTION POWER SUPPLY AUXILIARY POWER BATTERY LIFE ONBOARD POWER HOUSING MOUNTING REDUX 4 MP 18 High Intensity Infrared LED’s up to 55 feet Passive Infrared Sensor (PIR) Motion and Heat up to 60 feet JPEG - Digital Still / AVI - Digital Video up to 32GB SD Card (not included) 5-PIN Mini USB style - included 4 MP 4 C-Cell batteries (not included) External power port Estimated up to 3 months (in PIR mode) Battery life may be reduced in Flextime mode (depending on Flextime settings) Built in battery to retain Time and Settings Weather resistant with rubber gaskets 2 Bungee cords - included Technology to reduce motion blur during transition time page 1page 2 NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players. IncludesFeatures USB Cable 2 - Bungee Cords User Manual Camera UnitFlextime Player Software RESOLUTION FLASH FLASH RANGE SENSOR SENSOR RANGE IMAGE FORMAT MEMORY USB IMAGE RESOLUTION POWER SUPPLY AUXILIARY POWER BATTERY LIFE ONBOARD POWER HOUSING MOUNTING REDUX 4 MP 18 High Intensity Infrared LED’s up to 55 feet Passive Infrared Sensor (PIR) Motion and Heat up to 60 feet JPEG - Digital Still / AVI - Digital Video up to 32GB SD Card (not included) 5-PIN Mini USB style - included 4 MP 4 C-Cell batteries (not included) External power port Estimated up to 3 months (in PIR mode) Battery life may be reduced in Flextime mode (depending on Flextime settings) Built in battery to retain Time and Settings Weather resistant with rubber gaskets 2 Bungee cords - included Technology to reduce motion blur during transition time page 1page 2 NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players. Installing Batteries Open the door at the bottom of the camera by unlatching the locking tabs. 1. With the camera facing open, open the battery compartment cover by sliding the latch to the left. (Illustration A and B) 2. With the bottom of the camera towards you, load two C-cell batteries with the positive ends towards you in the left battery chamber and load two C-cell batteries with the negative ends towards you in the right battery chamber. 3. Close battery compartment cover. To latch the cover simply pull the latch slightly to the left as you close the battery compartment cover. 4. Load SD memory card (up to 32GB not included) into the SD card slot with the connectors facing up. 5. Illustration A Illustration B POWER TIPS: Make sure the SD Card is unlocked (small switch on the side of the SD Card) or the camera LCD will read “LOCK”. page 3page 4 Installing Batteries Open the door at the bottom of the camera by unlatching the locking tabs. 1. With the camera facing open, open the battery compartment cover by sliding the latch to the left. (Illustration A and B) 2. With the bottom of the camera towards you, load two C-cell batteries with the positive ends towards you in the left battery chamber and load two C-cell batteries with the negative ends towards you in the right battery chamber. 3. Close battery compartment cover. To latch the cover simply pull the latch slightly to the left as you close the battery compartment cover. 4. Load SD memory card (up to 32GB not included) into the SD card slot with the connectors facing up. 5. Illustration A Illustration B POWER TIPS: Make sure the SD Card is unlocked (small switch on the side of the SD Card) or the camera LCD will read “LOCK”. page 3page 4 Power On Setting Time 1. Check the battery level icon to ensure the batteries just installed contain the proper charge level. If so, you are ok to proceed with camera use. 2. To turn the unit ON press and release the power button. 1. To change date and time, start by pressing and release the center navigation button to set the hour. 2. Press the left or right navigation button to go up or down in sequence. 3. When the hour is set, repeat steps 1 and 2 to set the minutes. POWER POWER POWER POWER page 5page 6 NOTE: LCD cycle through camera information. PIR picture number > Flextime number > Remaining pictures > Time Test Mode POWER PIR LED Status Light: During the first 2 minutes of Ready Mode, the red light will illuminate when a PIR event is triggered. The red light will blink for 2-3 seconds when photo is taken during this first 2 minutes. After 2 minutes all indicator lights will turn off until a button is pressed. 1. LCD Ready Mode: The camera will automatically enter Ready Mode if a button is not pressed for greater than 30 seconds. The status lights will illuminate for a total of 2 minutes. 2. Power Save After 30 seconds without any buttons being pushed, the LCD will turn off and camera enters into Power Save or Ready Mode. 1. The LCD screen can be awakened by pressing the Power button briefly. Note: The LCD will not “wake up” when camera is writing to memory. 2. Power On Setting Time 1. Check the battery level icon to ensure the batteries just installed contain the proper charge level. If so, you are ok to proceed with camera use. 2. To turn the unit ON press and release the power button. 1. To change date and time, start by pressing and release the center navigation button to set the hour. 2. Press the left or right navigation button to go up or down in sequence. 3. When the hour is set, repeat steps 1 and 2 to set the minutes. POWER POWER POWER POWER page 5page 6 NOTE: LCD cycle through camera information. PIR picture number > Flextime number > Remaining pictures > Time Test Mode POWER PIR LED Status Light: During the first 2 minutes of Ready Mode, the red…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 WGI Innovations, Ltd. _____________________________________________ April 18, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, WGI Innovations, Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Game Scouting Camera model name:N4E/N2E/N2ECA/N3E/N3ECA/N4ECA/N8DED/N8ECA/ N6EB/N7EG/ N7ER We affirm that between SIEMIC and WGI Innovations, Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name : Jin Tan, Title: Director of Quality Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1- 972-352-6600 ext. 129

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 WGI Innovations, Ltd. ——————————————————————— April 18, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: YTT-N4E We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name : Jin Tan, Title: Director of Quality Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1-972-352-6600 ext. 129

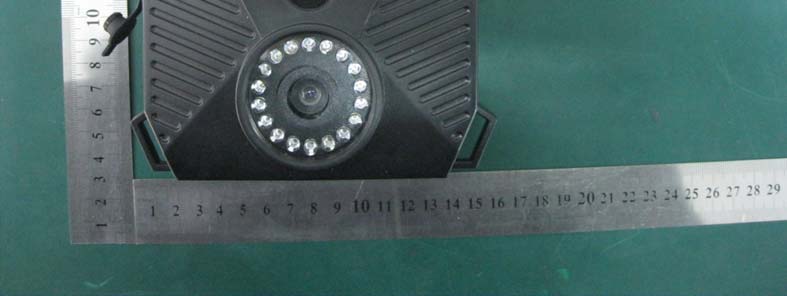

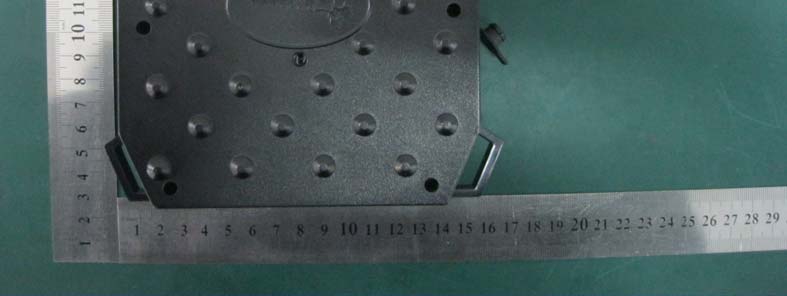

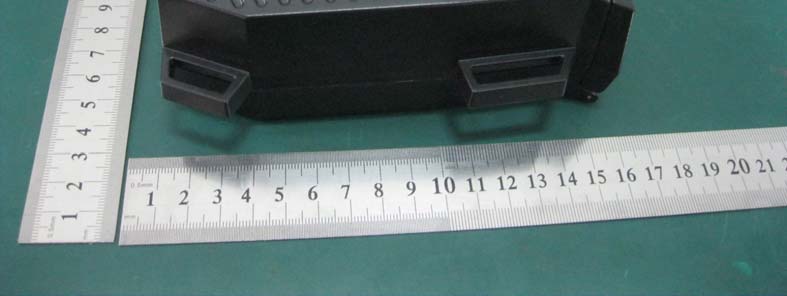

Annex B. EUT External Photo EUT-Front View EUT-Rear View EUT-Left View EUT-Right View

Trade Name: Wildgame Innovations Model# N4E Power Source: 4Pcs. of C-Cell Alkaline Batteries FCC ID: YTT-N4E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Made in China

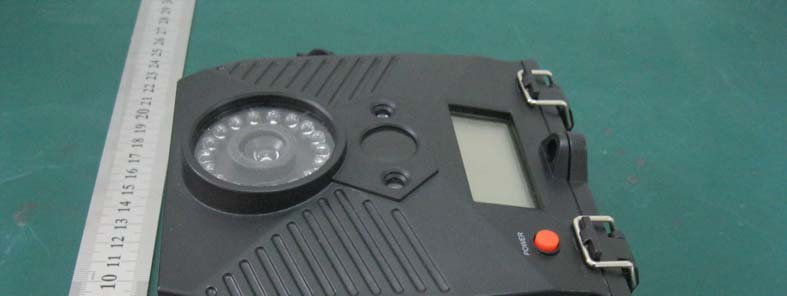

Annex B. EUT Internal Photo EUT-Uncover Front View EUT-Main PCB Board Front View EUT-Main PCB Board Rear View EUT-PCB Board Front View EUT-PCB Board Rear View

WGI Innovations, Ltd. Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER April 18, 2012 Report No.: 12020329-FCC-E1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER To: FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009 Report No.: 12020329-FCC-E1 Issue Date: April 18, 2012 Page: 2 of 24 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one- stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: EMC Test Report for Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER To: FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009 Report No.: 12020329-FCC-E1 Issue Date: April 18, 2012 Page: 3 of 24 www.siemic.com This page has been left blank intentionally. Title: EMC Test Report for Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER To: FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009 Report No.: 12020329-FCC-E1 Issue Date: April 18, 2012 Page: 4 of 24 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS..........................................................................................................................................6 3 MODIFICATION .....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS...................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................14 ANNEX B. EUT PHOTOGRAPHS ..............................................................................................................................18 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................19 ANNEX D. USER MANUAL, BLOCK DIAGRAM, CIRCUIT DIAGRAM ...........................................................23 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................24 Title: EMC Test Report for Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER To: FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009 Report No.: 12020329-FCC-E1 Issue Date: April 18, 2012 Page: 5 of 24 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the WGI Innovations, Ltd., Game Scouting Camera and model N4E against the current Stipulated Standards. The Game Scouting Camera has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009. EUT Information EUT Description : Game Scouting Camera Main Model : N4E Serial Model : N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER Input Power : DC 6V X 300MA=1.8W Classification Per Stipulated Test Standard : FCC Part 15 Subpart B Class B: 2011 Title: EMC Test Report for Game Scouting Camera Main Model: N4E Serial Model: N2E, N2ECA, N3E, N3ECA, N4ECA, N8DED, N8ECA, N6EB, N7EG, N7ER To: FCC Part 15 Subpart B Class B: 2011, ANSI C63.4: 2009 Report No.: 12020329-FCC-E1 Issue Date: April 18, 2012 Page: 6 of 24 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Game Scouting Camera with stipulated standard Applicant / Client WGI Innovations, Ltd. 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Manufacturer Dongguan Southstar Electronics Ltd. F Building, 3 Chengtian Rd, Mintian, Shatian Town, Dongguan, Guangdong, China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020329-FCC-E1…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Emissions Test Setup Below 1GHz - Front View Radiated Emissions Test Setup Below 1GHz - Rear View
