YTT-YN1REMOTEYN1 REMOTE

PAGE 2 INCLUDED PARTS 1) YN1 Module – (1) 2) Remote Control Unit – (1) 3) Product Information Guide – (1) Note: Can only be used with Fieldnet™ WiFi Technology capable cameras. PAGE 3 HOW DOES FIELDNET™ WORK? PAGE 4 DETERMINE CAMERA MODEL YOU ARE INSTALLING ONTO INSTALLING BATTERY IF YOU ARE INSTALLING THE YN1 WIFI MODULE ONTO THE X10 OR X10E CAMERA, OR ANY VARIATION THEREIN, PLEASE CONTINUE TO NEXT PAGE YOU MUST DETERMINE THE MODEL YOU ARE INSTALLING THE YN1 UNIT ON, AS INSTALLATION INSTRUCTIONS ARE DIFFERENT FOR DIFFERENT MODELS. IF YOU ARE INSTALLING THE YN1 WIFI MODULE ONTO THE D10 OR IR10 CAMERA, , OR ANY VARIATIONS THEREIN, PLEASE SKIP TO PAGE 6. REMOVE CAP AND INSERT BATTERY WITH THE POSITIVE END FIRST. REPLACE CAP. THE REMOTE IS REQUIRED FOR YN1 OPERATION. MAKE SURE YOUR CAMERA IS POWERED OFF BEFORE INSTALLING YN1 UNIT. 27A Battery +- 1 Unscrew and remove USB port protective cap from top of camera. (Illustration A) 2 With the YN1 Wifi Module facing forward (mounting tab to back), as illustrated below, securely place onto the top of the camera so that the USB prong fits snugly into the USB insert. (Illustration B) Note: Do not force the USB plug into port. 3 Securely mount the YN1 module to camera by tightening the stabilizer screws on either side of the YN1 module. (Illustration C) PAGE 5 INSTALLATION ONTO X10 CAMERA (Illustration A) (Illustration B) Note: If you unstall the YN1 module, you must replace the USB port protective cap, or damage to the camera will occur. This damage will not be covered by warranty. 1 Unscrew and remove cap from top of camera and store the cap on the inside of the camera in the provided space. (Illustrations D&E) PAGE 6 INSTALLATION ONTO D10 & IR10 CAMERAs Lock Cap Storage Lock Cap Storage (Illustration D) (Illustration E) (Illustration C) PAGE 7 INSTALLATION ONTO D10 & IR10 CAMERAs 2 With the YN1 Wifi Module facing backwards, as illustrated below, place it onto the top of the camera so that the USB prong fits into the USB insert. (Illustration F) Note: Do not force the USB plug into port. 3 Screw the stabilizer screws on either side of the YN1 module into the camera. (Illustration G) Note: If you unstall the YN1 module, you must replace the USB port protective cap, or damage to the camera will occur. This damage will not be covered by warranty. Note: To insure that the YN1 module is installed correctly, power on the camera. Then power on the YN1 module with remote. Make sure the LED on the YN1 module is on. (Illustration G) (Illustration F) PAGE 8 WINDOWS WIFI CONNECT 1 Click on the Connect to a Network icon in the notification area on the bottom right-hand corner of the screen. (Illustration H) Illustration is of Windows 7 default screen. 2 In the window that appears, you can now see the YN1 equipped camera. Here it is named “RTX_100.” Click on the name to connect to the YN1 module. (Illustration I) (Illustration H) (Illustration I) PAGE 9 MAC OSX WIFI CONNECT 1 Click on the “AirPort” icon on the top right-hand corner of the screen. (Illustration J) Illustration is of Windows 7 default screen. 2 In the window that appears, you can now see the YN1 equipped camera. Here it is named “RTX_100.” Click on the name to connect to the YN1 module. (Illustration K) (Illustration K) (Illustration J) PAGE 10 Go to www.wildgameinnovations.com to download the interface and information on how to use your computer with your YN1 equipped camera. If using an iPhone or android phone with YN1, you must go to either iTunes or The Android Market to download the Fieldnet app. If you have trouble locating the app, please visit www. wildgameinnovations.com and go to the download section for more information. Note: Can only be used with Fieldnet™ WiFi Technology capable cameras. Note: If you unstall the YN1 module, you must replace the USB port protective cap, or damage to the camera will occur. This damage will not be covered by warranty. Note: Do not force the USB plug into the port when installing. Note: To insure that the YN1 module is installed correctly, power on camera and make sure the LED on the YN1 module is on. NEXT STEPS IMPORTANT NOTES PAGE 11 DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the Wildgame Innovations™ YN1 WiFi Module. WARRANTY You must register your product warranty on line at www.wildgameinnovations.com. Follow the onscreen directions to complete the process. WGI Innovations, LTD will repair all material or workmanship defects free of charge for ONE (1) YEAR after the date of purchase and thereafter the cost will vary per incident. This warranty DOES NOT COVER damage, expense or injury caused by unauthorized repairs, alterations, improper connection, shipping, abuse, theft, accident, neglect or collateral loss. When returning product for service you MUST obtain a Return Merchandise Authorization (RMA) number from WGI Innovations, LTD. Please include name, UPS address (no P.O. Box), telephone number, RMA number and a complete description of the problem on all enclosed correspondence. When possible pack product carefully in original carton. We are not responsible for damage incurred in returning items for repair. CUSTOMER SERVICE WGI Innovations, LTD stands behind every product we manufacture for a one year product workmanship warranty and a strong commitment to customer service. If you are in need of customer service for missing parts or need assistance with the operation or assembly of your product, we encourage you to call one of our customer service representatives and let us assist you with your Wildgame Innovations™ YN1 WiFi Module. WGI Innovations, LTD reserves the right to make changes to features, functionality and physical design at its sole discretion. As a result, such changes may not be reflected in this version of the manual. DISCLAIMER FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. O…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 WGI Innovations, Ltd. _____________________________________________ September 27, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YTT-YN1REMOTE We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name : Jin Tan, Title: Director of Quality and Supply Development Company Name: WGI Innovations, Ltd. Address: 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Email: [email protected] Telephone: 1-972-352-6600 ext. 129

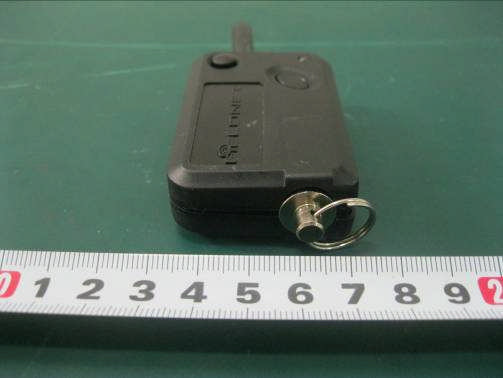

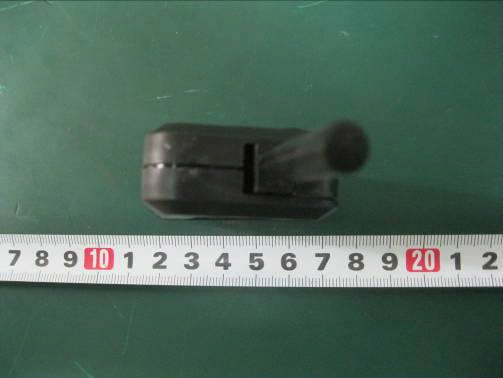

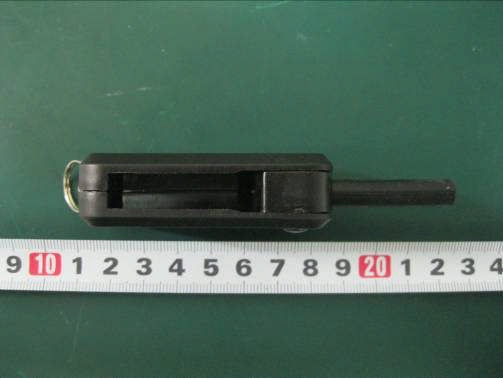

Title: RF Test Report forWi-Fi module Model:YN1 To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:22of34 www.siemic.com.cn Annex B.EUT ANDTESTSETUPPHOTOGRAPHS Annex B.i.Photograph : EUT ExternalPhoto Front View of EUT Rear View of EUT Title: RF Test Report forWi-Fi module Model:YN1 To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:23of34 www.siemic.com.cn Top View of EUT Bottom View of EUT Title: RF Test Report forWi-Fi module Model:YN1 To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:24of34 www.siemic.com.cn Left View of EUT Right View of EUT

Serial Number: Date: Made in China www.wildgameinnovations.com Model # YN1-tx Power Source: 1 Pcs Alkaline 27A 12V battery FCC ID: YTT-YN1REMOTE This device complies with Part 15 of the FCC Operation is subject to the following two criteria: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

Label location

Title: RF Test Report forWi-Fi module Model:YN1 To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:25of34 www.siemic.com.cn Annex B.ii.Photograph : EUTInternalPhoto Front View ofMain PCB Board Rear View of Main PCB Board Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:25of34 www.siemic.com.cn Annex B.ii.Photograph : EUTInternalPhoto Front View ofMain PCB Board Rear View of Main PCB Board

WGIInnovations,Ltd. YN1REMOTE Model:YN1-tx 23August,2011 ReportNo.:11020861-FCCPart15.231 (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Peter Cai ComplianceEngineer Spring Zhou Technical Director This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:2of34 www.siemic.com.cn Laboratory Introduction ATION SIEMIC,headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina,Asia Pacific,North America, European, and internationalcompliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF/Wireless, Telecom TaiwanBSMI , NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF/Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF/Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC, RF , Telecom EUNBEMC & R&TTE Directive Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:3of34 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:4of34 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................18 ANNEX B.EUT AND TEST SETUPPHOTOGRAPHS...........................................................................................................22 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................27 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................31 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................32 Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:5of34 www.siemic.com.cn 1Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of theWGIInnovations,Ltd.,YN1 REMOTE, and model:YN1-txagainst the current Stipulated Standards. TheYN1REMOTEhas demonstrated compliance with theFCC15.231:2010. EUT Information EUT Description YN1REMOTE Model No YN1-tx(Note) Serial No N/A Input Power 12VDC27Abattery Classification Per Stipulated Test Standard DSC Note: SCA1 has the same design as YN1. The only difference is the board, packages and enclosure coatings. Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:6of34 www.siemic.com.cn 2TECHNICAL DETAILS Purpose Compliance testing ofYN1REMOTE with stipulated standard Applicant / Client WGIInnovations,Ltd. 602 Fountain Parkway Grand Prairie, TX 75050, U.S.A. Manufacturer Haojia Electronic (Shenzhen) Ltd. Fangmapu, Gui Hua Village, Guanlan,Baoan,Shenzhen, Guangdong 518110 Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing,China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 11020861-FCCPart15.231 Date EUT received 29July,2011 Standard applied FCC15.231:2010 Dates of test 13August,2011 No of Units: 1 Equipment Category: DSC Trade Name:WildgameInnovations Model :YN1-tx RFOperating Frequency (ies) 433.9MHz Number of Channels : 1 Modulation : FSK FCC ID： YTT-YN1REMOTE Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:7of34 www.siemic.com.cn 3MODIFICATION NONE Title: RF Test Report forYN1 REMOTE Model:YN1-tx To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:8of34 www.siemic.com.cn 4TEST SUMMARY The product was tested in accordance with the following specifications. Alltesting has been performed according to below product classification: Test Results Summary Test StandardDescriptionPass / Fail CFR 47 Part 15.231: 2010 1…

Text truncated - open the document above for the full version.

Title: RF Test Report forWi-Fi module Model:YN1 To:FCC15.231:2010 Serial#:11020861-FCC Part 15.231 Issue Date:23August,2011 Page:26of34 www.siemic.com.cn Annex B.iii.Photograph :TestSetupPhoto Radiated Emission Test Setup Front View Below 1GHz Radiated Emission Test Setup Front View Above 1GHz
