YVAUG1000B902 - 928 MHZ ISM BAND BRIDGE

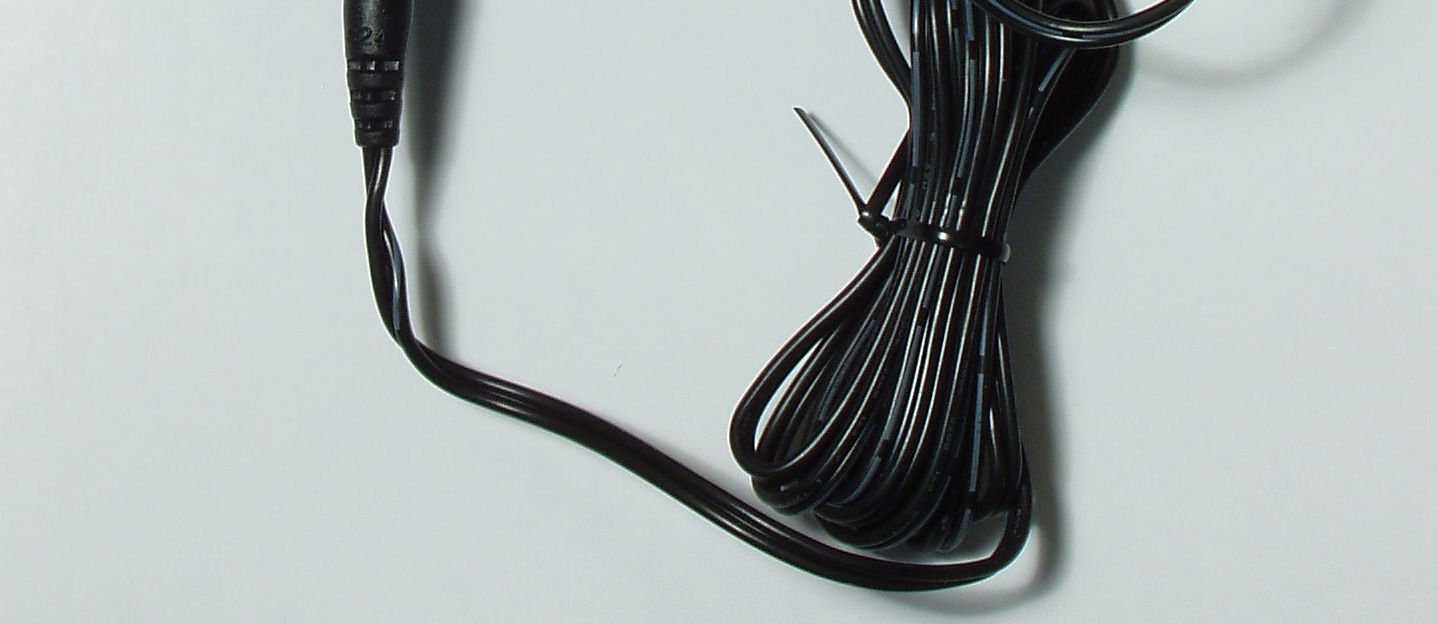

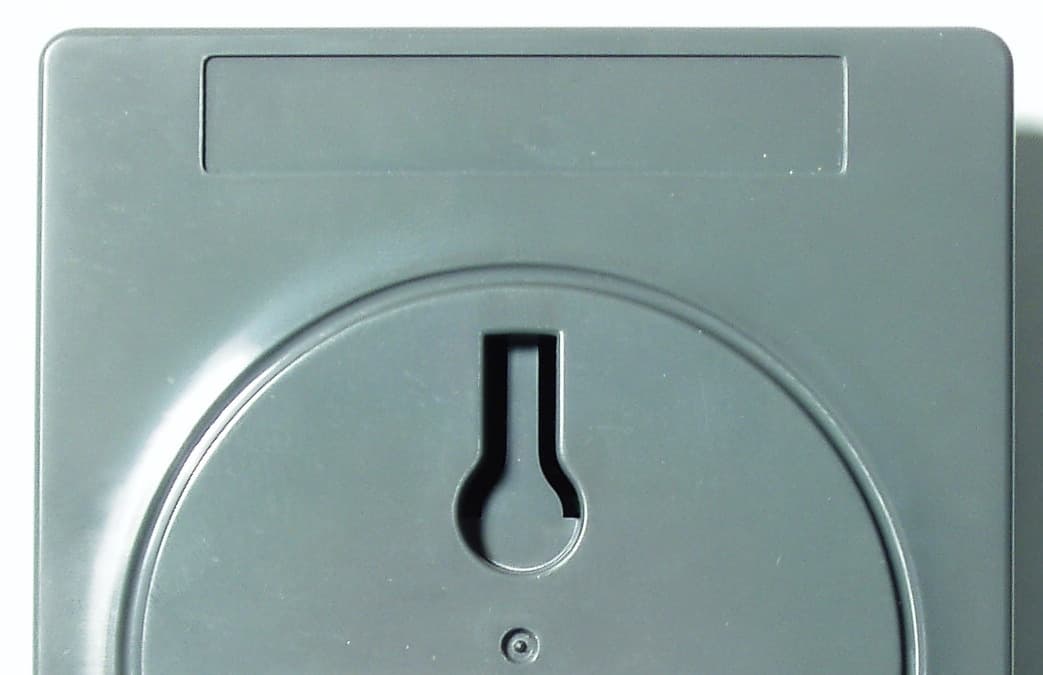

Quick Installation & Start Guide The UgMO UG1000B Bridge is part of the UG1000 family of products. The Bridge is responsible for making the internet connection between the UG1000 system and UgMO Knows. • Remote configuration and alert reporting • Software upgradeable to allow for future feature expansion • Embedded Linux processor provides smart device intelligence UG1000 Internet Bridge The UG1000 Internet Bridge serves as the gateway or avenue by which all network and sensor data is passed to the UgMO Data Base. Each Bridge contains an embedded Linux processor. The bridge also serves as a repeater in any network and can forward data packets toward their final destinations. To install the Bridge, you will need a 110 Volt AC power source that is near a router or other direct Ethernet connection. Using the supplied 5 Volt transformer, insert the barrel connector into correct port located on the bottom of the Bridge and the two- pronged block into the nearest 110 Volt outlet. Next, plug one end of an Ethernet cable into a router using your WAN and the other end into the Ethernet slot located on the bottom of the bridge. Finally, to mount the hardware you can use a screw and the keyhole slot in the back of the bridge or simply hang the Bridge from the supplied plastic stand. Once powered, a red LED on the front of the bridge will aluminate followed by a series of Green LEDs as the bridge searches the area for any existing hardware or networks. The LEDs are very helpful in determining the current state and operation of the bridge. Regulatory Notices FCC ID: YVAUG1000B; IC ID: 10216A-­‐UG1000B This device complied with Part 15 of the FCC Rules and Industry Canada License Exempt RSS Standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. • This device may only be used with the approved internal antenna that is shipped with the unit and installed per installation instructions. The use of any other antennas will invalidate the unit’s FCC Part 15 certification. • To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Operating the device with the supplied antenna will ensure that this requirement is met. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-­‐003. Cet appareil numérique de la classe B est conforme à la norme NMB-­‐003 du Canada.

UgMO Technologies 840 First Avenue, Suite 300 King of Prussia, PA 19406 Phone 484 690 0570 Fax 510 688 2429 Email: [email protected] www.ugmo.com February 7, 2012 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Confidentiality Request Regarding Application for Certification of FCC ID: KVAUG1000B Dear Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Diagram Block Diagram Operating Description Schematic_Diagram.pdf Block_Diagram.pdf Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kathy Sohrabi, Ph.D. Vice President of Engineering UgMO Technologies

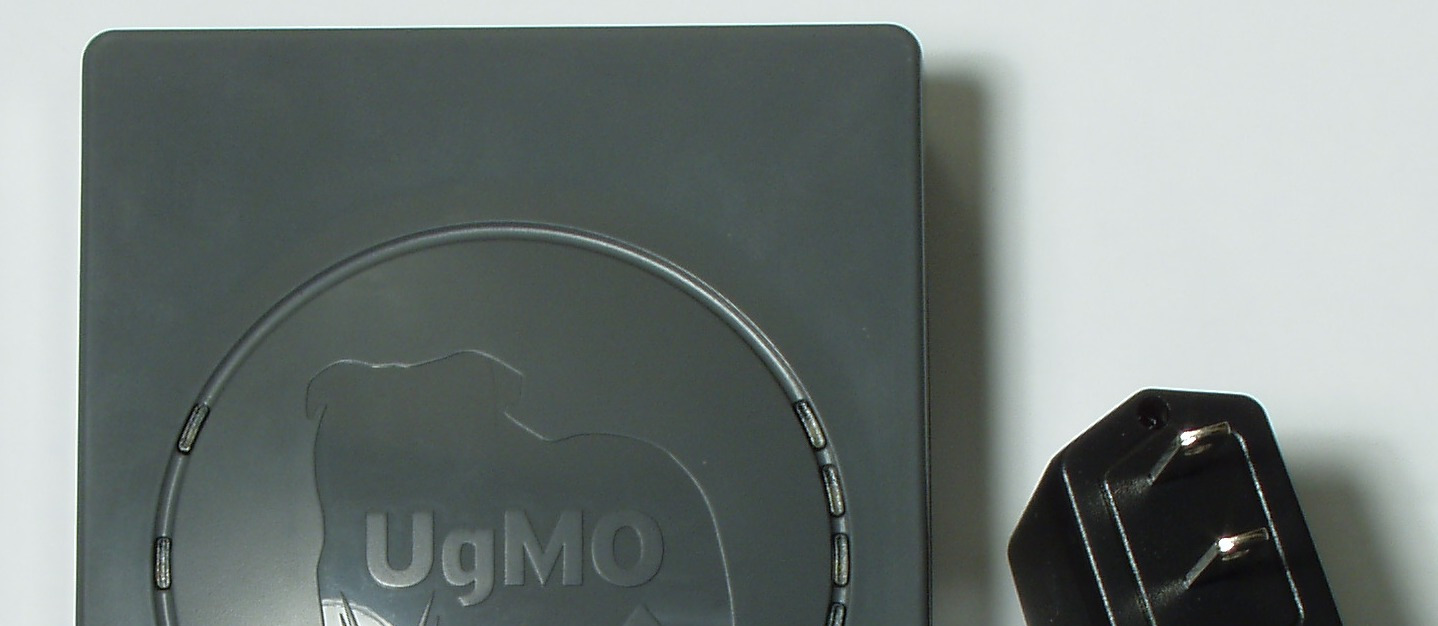

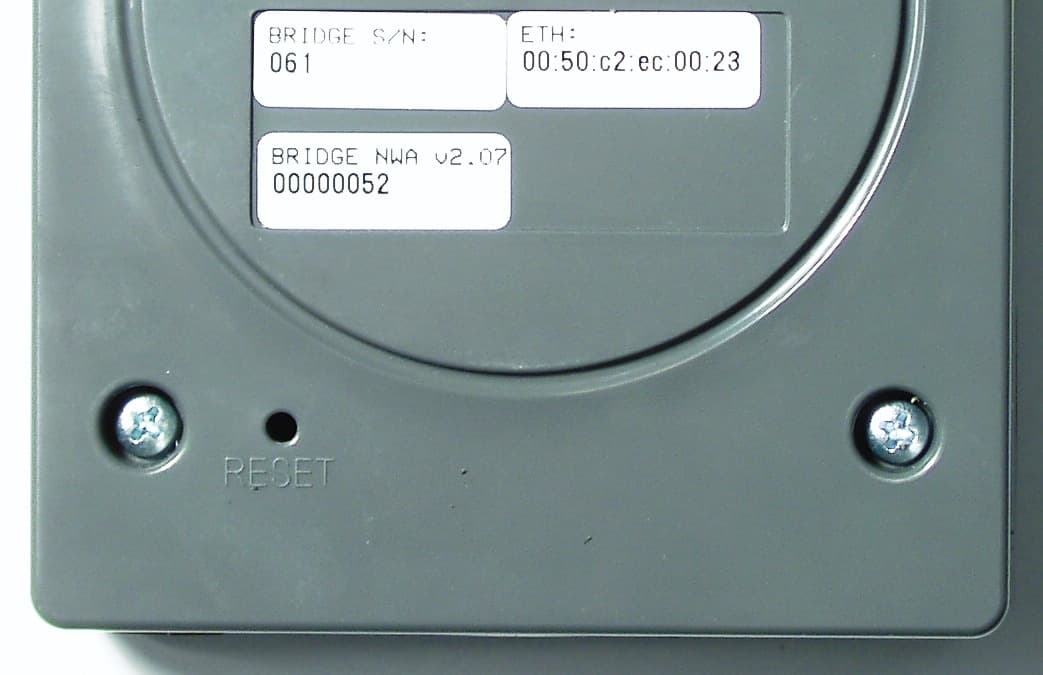

UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 1 of 3 Photo 1 – Front View UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 2 of 3 Photo 2 – Back View UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 3 of 3 Photo 3 – Top Side View Photo 4 – Left Side View Photo 5 – Right Side View Photo 6 – Bottom Side View

UgMO Technologies ID Label Photograph Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 1 of 1 Photo 1 – Sample Label and Location

UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 1 of 5 Photo 1 – Top View of the Radio Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 2 of 5 Photo 2 – Bottom View of the Radio Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 3 of 5 Photo 3 – Top View of the Main Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 4 of 5 Photo 4 – Bottom Top View of the Main Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 5 of 5 Photo 5 – Top View with the Cover Removed

UgMO Technologies Antenna Description Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 1 of 1 The radio board includes an integrated Printed Circuit Board (PCB) trace antenna with a nominal gain of -2.0 dBi. The PCB antenna employs a topology that is compact and supports an omni- directional radiation pattern. Due to the mounting position of the device, the antenna polarization is vertical.

Walshire Labs, LLC 8545 126 th Avenue North Largo, FL 33773 USA Telephone: (727) 530'8637 47 C.F.R. Part 15 FCC Rules, Subpart C & Industry Canada RSS'GEN Issue 3 & RSS'210 Issue 8 Test Results for the Augusta Irrigation Controller Bridge Unit Equipment: Augusta Bridge Unit Client: Jabil Circuit, Inc. on behalf of Green Badge LLC D/B/A UgMO Technologies Address: 10800 Roosevelt Boulevard St. Petersburg, FL 33716 Test Report Number: FCCIR'UGMO'02'08'12B Date: September 7, 2012 Total Number of Pages: 73 NVLAP LAP Code: 20012550 FCC Test Site Registration Number: 830450 Industry Canada Site Number 7868A51 Test Report ID: FCCIR5UGMO502508512B Title: UgMO Augusta Bridge Unit – FCC ID: YVAUG1000B IC: 10216A-UG1000B FCC Part 15 / RSS5210 Test Report Page: 2 of 73 Table of Contents 1 IDENTIFICATION SUMMARY..........................................................................................................................4 1.1 TEST REPORT...............................................................................................................................................4 1.2 TESTING LABORATORY..................................................................................................................................4 1.3 LIMITS AND RESERVATIONS...........................................................................................................................4 1.4 CLIENT INFORMATION....................................................................................................................................5 1.5 DATES..........................................................................................................................................................5 1.6 DEVICE UNDER TEST (DUT)..........................................................................................................................5 2 GENERAL INFORMATION..............................................................................................................................6 2.1 PRODUCT DESCRIPTION................................................................................................................................6 2.2 INTERFACE CABLE DETAILS...........................................................................................................................6 2.3 PERIPHERAL DEVICES...................................................................................................................................6 2.4 TEST METHODOLOGY....................................................................................................................................6 2.5 TEST FACILITY..............................................................................................................................................7 2.6 DEVIATIONS..................................................................................................................................................7 3 SYSTEM TEST CONFIGURATION..................................................................................................................8 3.1 JUSTIFICATION..............................................................................................................................................8 3.2 SPECIAL ACCESSORIES.................................................................................................................................8 3.3 EQUIPMENT MODIFICATIONS..........................................................................................................................9 4 CONDUCTED EMISSIONS DATA.................................................................................................................10 4.1 TEST PROCEDURE......................................................................................................................................11 4.2 MEASURED DATA........................................................................................................................................12 4.3 CONDUCTED EMISSIONS TEST INSTRUMENTATION........................................................................................15 4.4 CONDUCTED EMISSIONS PHOTOGRAPHS......................................................................................................15 5 RADIATED EMISSIONS DATA......................................................................................................................17 5.1 TEST PROCEDURE......................................................................................................................................20 5.2 TEST DATA.................................................................................................................................................21 5.3 TEST INSTRUMENTATION USED, RADIATED MEASUREMENT...........................................................................37 5.4 FIELD STRENGTH CALCULATION..................................................................................................................37 5.5 RADIATED EMISSIONS PHOTOGRAPHS..........................................................................................................38 6 ANTENNA REQUIREMENT...........................................................................................................................41 6.1 TEST PROCEDURE......................................................................................................................................41 6.2 TEST DATA.................................................................................................................................................41 6.3 ANTENNA PHOTOGRAPHS............................................................................................................................42 7 BANDWIDTH DATA.......................................................................................................................................43 7.1 TEST PROCEDURE........................................…

Text truncated - open the document above for the full version.

UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 1 of 5 Photo 1 – Front View of the Radiated Emissions Test Set-up UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 2 of 5 Photo 2 – Rear View of the Radiated Emissions Test Set-up Notes: In this view the bi-log antenna is shown. It was used for measurements in the 30 MHz to 1000 MHz frequency range. For measurements above 1 GHz, the horn antenna was mounted to the antenna mast. UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 3 of 5 Photo 3 – Rear View of the Radiated Emissions Test Set-up with the Loop Antenna UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 4 of 5 Photo 4 – Antenna Port Conducted Test Set-up UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000B IC: 10216A-UG1000B Page 5 of 5 Photo 5 – AC Mains Conducted Emissions Test Set-up
