YVAUG1000R902 - 928 MHz ISM BAND REPEATER

Quick Installation & Start Guide The UgMO UG1000R Repeater is part of the UG1000 family of products. The Repeater extends range and helps form a multihop above ground mesh network between controllers, bridges and other repeaters of the UG1000 product family. • Remote configuration and alert reporting • Software upgradeable to allow for future feature expansion UG1000 Wireless Repeater The UG1000R Wireless Repeater serves as a range extender. This device is able to join an above ground multihop mesh network which then allows signals from underground sensors to travel above ground and reach controllers (UG1024 or UG1012), other repeaters and Bridges (UG1000B). The UG1000R is typically installed outdoors and is wall mounted. The Repeater is powered using a wall wart that is supplied with the unit. The external power supply is connected to the repeater per the following diagram. Figure 1 Wirirng Diagram for the Repeater + -­‐ A repeater after powering up joins an existing above ground Unet. This implies a controller or bridge must already be present in the network for the repeater to be able to join the network. Once powered, a red LED on the front of the Repeater will aluminate followed by a series of Green LEDs as the bridge searches the area for any existing hardware or networks. The LEDs are very helpful in determining the current state and operation of the bridge. Regulatory Notices FCC ID: YVAUG1000R; IC ID: 10216A-­‐UG1000R M/N: UG1000R This device complied with Part 15 of the FCC Rules and Industry Canada License Exempt RSS Standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. • This device may only be used with the approved internal antenna that is shipped with the unit and installed per installation instructions. The use of any other antennas will invalidate the unit’s FCC Part 15 certification. • To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Operating the device with the supplied antenna will ensure that this requirement is met. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-­‐003. Cet appareil numérique de la classe B est conforme à la norme NMB-­‐003 du Canada.

UgMO Technologies 840 First Avenue, Suite 300 King of Prussia, PA 19406 Phone 484 690 0570 Fax 510 688 2429 Email: [email protected] www.ugmo.com February 7, 2012 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Letter of Agency for FCC & Industry Canada Compliance Testing FCC ID: YVAUG1000R and IC: 10216A-UG1000R Please be advised that I appoint Peter J. Walsh, NCE of Walshire Labs, LLC to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the conditions of certification still resides with Green Badge LLC D/B/A UgMO Technologies, 840 First Avenue, Suite 300, King of Prussia, PA 19406. Dated this: 7 th day of February 2012 By: Kathy Sohrabi (Signature) (Printed Name) Title: Vice President of Engineering Email: [email protected] On behalf of: Green Badge LLC, D/B/A UgMO Technologies Telephone: 484 690 0570

UgMO Technologies 840 First Avenue, Suite 300 King of Prussia, PA 19406 Phone 484 690 0570 Fax 510 688 2429 Email: [email protected] www.ugmo.com February 7, 2012 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Confidentiality Request Regarding Application for Certification of FCC ID: YVAUG1000R and IC: 10216A-UG1000R Dear Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Diagram Block Diagram Operating Description Schematic_Diagram.pdf Block_Diagram.pdf Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kathy Sohrabi, Ph.D. Vice President of Engineering UgMO Technologies

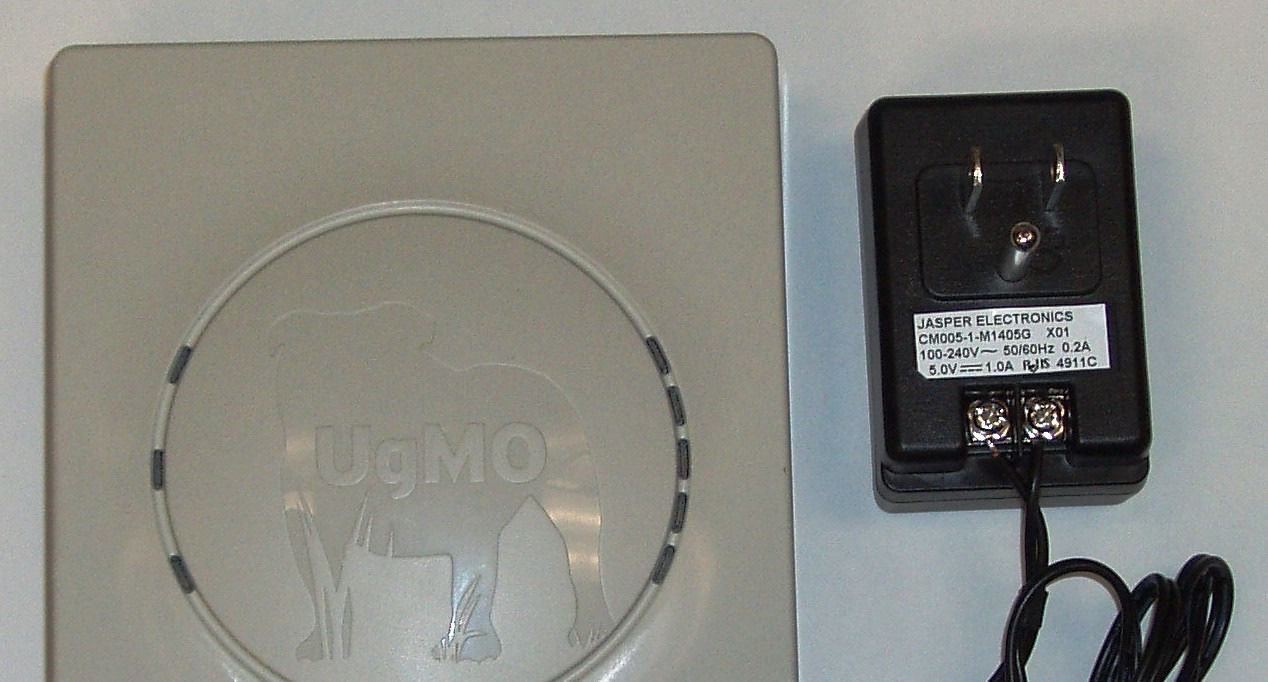

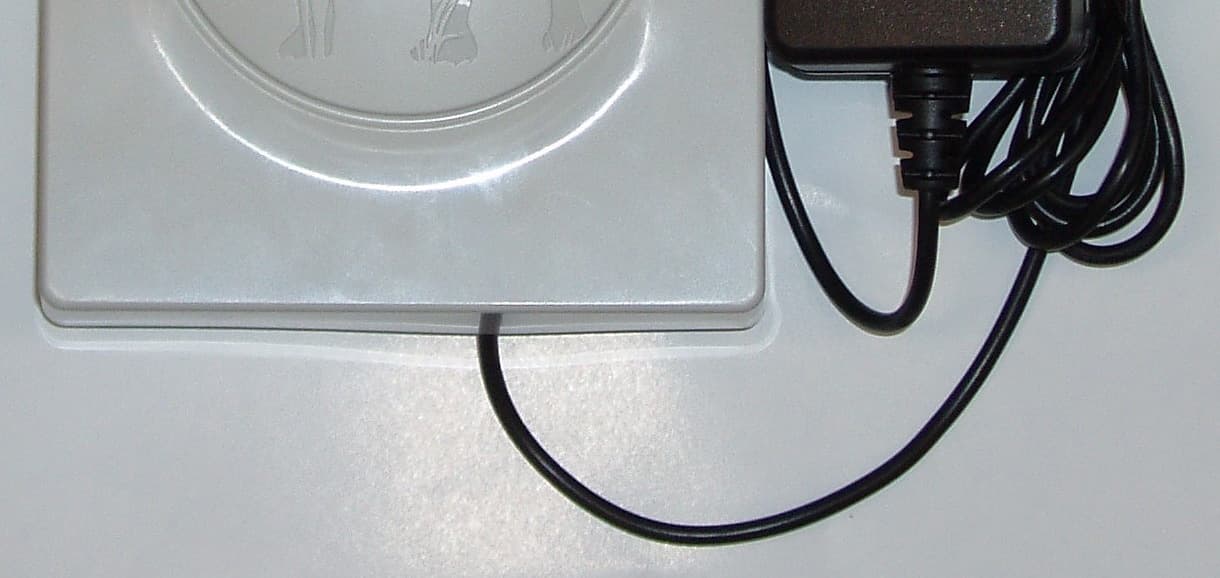

UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 1 of 4 Photo 1 – Front View with Jasper Electronics Power Adapter UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 2 of 4 Photo 2 – Front View with GOLD Power Adapter UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 3 of 4 Photo 3 – Back View UgMO Technologies External Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 4 of 4 Photo 4 – Top Side View Photo 5 – Bottom Side View Photo 6 – Left Side View Photo 7 – Right Side View

UgMO Technologies ID Label Photograph Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 1 of 1 Photo 1 – Sample Label and Placement

UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 1 of 5 Photo 1 – Top View of the Radio Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 2 of 5 Photo 2 – Bottom View of the Radio Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 3 of 5 Photo 3 – Top View of the Main Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 4 of 5 Photo 4 – Bottom Top View of the Main Board UgMO Technologies Internal Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 5 of 5 Photo 5 – Top View with the Cover Removed

Walshire Labs, LLC 8545 126 th Avenue North Largo, FL 33773 USA Telephone: (727) 530'8637 47 C.F.R. Part 15 FCC Rules, Subpart C & Industry Canada RSS'GEN Issue 3 & RSS'210 Issue 8 Test Results for the Augusta Irrigation Controller Repeater Unit Equipment: Augusta Repeater Client: Jabil Circuit, Inc. on behalf of Green Badge LLC D/B/A UgMO Technologies Address: 10800 Roosevelt Boulevard St. Petersburg, FL 33716 Test Report Number: FCCIR'UGMO'02'09'12A Date: September 7, 2012 Total Number of Pages: 78 NVLAP LAP Code: 20012550 FCC Test Site Registration Number: 830450 Industry Canada Site Number 7868A51 Test Report ID: FCCIR5UGMO502509512A Title: UgMO Augusta Repeater – FCC ID: YVAUG1000R IC: 10216A-UG1000R FCC Part 15 / RSS5210 Test Report Page: 2 of 78 Table of Contents 1 IDENTIFICATION SUMMARY..........................................................................................................................4 1.1 TEST REPORT...............................................................................................................................................4 1.2 TESTING LABORATORY..................................................................................................................................4 1.3 LIMITS AND RESERVATIONS...........................................................................................................................4 1.4 CLIENT INFORMATION....................................................................................................................................5 1.5 DATES..........................................................................................................................................................5 1.6 DEVICE UNDER TEST (DUT)..........................................................................................................................5 2 GENERAL INFORMATION..............................................................................................................................6 2.1 PRODUCT DESCRIPTION................................................................................................................................6 2.2 INTERFACE CABLE DETAILS...........................................................................................................................6 2.3 PERIPHERAL DEVICES...................................................................................................................................6 2.4 TEST METHODOLOGY....................................................................................................................................6 2.5 TEST FACILITY..............................................................................................................................................6 2.6 DEVIATIONS..................................................................................................................................................6 3 SYSTEM TEST CONFIGURATION..................................................................................................................7 3.1 JUSTIFICATION..............................................................................................................................................7 3.2 SPECIAL ACCESSORIES.................................................................................................................................7 3.3 EQUIPMENT MODIFICATIONS..........................................................................................................................8 4 CONDUCTED EMISSIONS DATA...................................................................................................................9 4.1 TEST PROCEDURE......................................................................................................................................10 4.2 MEASURED DATA........................................................................................................................................11 4.3 CONDUCTED EMISSIONS TEST INSTRUMENTATION........................................................................................16 4.4 CONDUCTED EMISSIONS PHOTOGRAPHS......................................................................................................16 5 RADIATED EMISSIONS DATA......................................................................................................................18 5.1 TEST PROCEDURE......................................................................................................................................21 5.2 TEST DATA.................................................................................................................................................22 5.3 TEST INSTRUMENTATION USED, RADIATED MEASUREMENT...........................................................................42 5.4 FIELD STRENGTH CALCULATION..................................................................................................................42 5.5 RADIATED EMISSIONS PHOTOGRAPHS..........................................................................................................43 6 ANTENNA REQUIREMENT...........................................................................................................................46 6.1 TEST PROCEDURE......................................................................................................................................46 6.2 TEST DATA.................................................................................................................................................46 6.3 ANTENNA PHOTOGRAPHS............................................................................................................................47 7 BANDWIDTH DATA.......................................................................................................................................48 7.1 TEST PROCEDURE...........................................…

Text truncated - open the document above for the full version.

UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 1 of 4 Photo 1 – Front View of the Radiated Emissions Test Set-up UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 2 of 4 Photo 2 – Rear View of the Radiated Emissions Test Set-up UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 3 of 4 Photo 3 – Antenna Port Conducted Test Set-up UgMO Technologies Test Set-up Photographs Exhibit FCC ID: YVAUG1000R IC: 10216A-UG1000R Page 4 of 4 Photo 4 – AC Mains Conducted Emissions Test Set-up
