YYO-PTE2010Wireless Dual Band Signal Amplifier

Helloway （HW8010/8020/8050） Wireless Dual Band Signal Amplifier User Manual 1 / 6 FCC WARNING This device complies with Part 15，22 and 24 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SAFTY WARNING WARNING: † The human user’s body should always be separated from the antenna of the equipment by at least 2 0cm † Do not remove the covers during working. † Do not try to repair or replace any components inside of the quipment. Alteration or abuse of the equipment or other components will void this product’s warranty, and could be dangerous to the user. PACKAGE CONTENTS sddg 1. HW8010/8020/8050 equipment 1PCS 2. Patch Antenna with SMA male connector 3. SMA male to FME male Adaptor for Optional External Antennas 4. 9’Antenna with Rare-Earth Magnetic Base, SMA male connector, and 10’ Cord 5. DC Vehicle Power Connector with Fused Cigarette Lighter Plug and 9’Cord 6. AC Power plug with Cord to the Amplifier 7. 2 Velcro and Screw Mounting Kits. 8. User manual (this document) INSTALLATION PROCEDURES NOTE: This wireless amplifier can be used for vehicle, boat, RV, home, office and all other applicable area. Do not place the equipment in direct sunlight or in an area 2 / 6 that has abrupt temperature and humidity changes. 1. Prepare a location. Place the equipment on a sturdy, and the surface in a well-ventilated area, makes sure that the air vents are not blocked. 2. Connect the Inside Antenna: The patch antenna is intended for indoors or in vehicle use only. Do not mount on a surface within 4 inches of metal. Remove the cap from the Amplifier connector marked with CELLULAR PHONE. Screw the patch antenna in to the CELLULAR PHONE connector and make sure to tighten it. NOTE: The internal antenna needs always position vertically. The inside antenna must be mounted with a separation distance of at least 20 cm from all persons and must not be co-located in conjunction with any other antenna or amplifier. WARNING: The SMA connector is fragile, handle it with extra caution, otherwise the connector might be broken, and it might not be covered under manufacturer warrantee. 3. Connect the Outside Antenna: The outdoor antenna is for outdoor use only. Select an outside mounting location. For best performance, try to keep the antenna on top of the vehicle. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. Remove the cap from the Amplifier connector marked with OUTSIDE ANTENNA. Screw the outside antenna in to the OUTSIDE ANTENNA connector and make sure to tighten it. NOTE: Keep the separation distance between the inside and outside antennas at least 5 feet apart. WARNING: The outside antenna must be mounted with a separation distance of at least 3 feet from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. 4. Connect the Power Cord: 1) Connect the power cord to the power connect on the top end of the amplifier marked with DC 6V, 2) connect the other end of the power cord to a grounded alternating current (AC) outlet. Also, if the Power Cord is connected to a power strip, make sure that the power strip is switched on. 3) The LED light is green, indicating that the Amplifier is ready to use. NOTE: To prevent damage to the Amplifier, before plugging in the Amplifier to a DC/AC power outlet, make sure that all of the connections (ANTENA to AMPLIFIER) to the Amplifier are tight and secure. 3 / 6 WARNING: The input voltage for the Amplifier is 6V DC. DO NOT use this Amplifier with a regular 12V power supply. If a 12-volt power supply is connected directly to this Amplifier, it will be damaged and the user may also be injured. (Optional) Mounting the Amplifier with Velcro: You can leave the Amplifier on top of a flat surface or use the enclosed Velcro straps to mount the Amplifier. There are two 6cm x 2.5cm Velcro strips (hook-and-loop pairs) in the box for mounting the amplifier. Determine the location where your Amplifier will be placed. Clean the intended surface and allow it to dry. Peel the protective paper from the back of the hook sides of the Velcro. Press the adhesive side of the Velcro strips into place on the bottom of the Amplifier, one strip on each end. Wait 5 minutes for the adhesive to set before attaching the loop side of the Velcro to the hook side. The adhesive bond will reach its maximum strength after 24 hours. With both of the Velcro loop and hook pieces attached to the back of the Amplifier, peel the protective paper off of the back of the loop strips. Press the entire Amplifier into its mounting place. Wait 5 minutes for the adhesive to set. Make sure the Amplifier is firmly seated. To remove the Amplifier, rotate it across the Velcro – do not pull the Amplifier or cables. ( Optional) Using Other External Antennas: It is possible to connect this Amplifier to an external antenna that is not supplied in this package. If the user wishes to do that, it may be necessary to use the included Adapter to couple that antenna to the Amplifier. This Adapter connects to the antenna input side of the Amplifier with an SMA-type male connection. The other side of the Adapter is an FME-type male or N-type female connector, which may be used to connect with other antennas that use the FME or N type of physical connector. STARTING THE AMPLFIER The signal is received by the outside antenna from the cell tower, then amplified and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then amplified and transmitted to the cell …

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 PHONETONE TECHNOLOGY (SHENZHEN) CO., LTD. Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031 Phone: + 86 (755) 2819-9993 Fax: + 86 (755) 2819-9993 http://www.phonetone-tech.com November 9, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, PHONETONE TECHNOLOGY (SHENZHEN) CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Wireless Dual Band Signal Amplifier, with model of HW8010/HW8020/HW8050 FCC ID: YYO-PTE2010 We affirm that between SIEMIC and PHONETONE TECHNOLOGY (SHENZHEN) CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature / General Manager Mobile Phone: +8613510329652 Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:YYO-PTE2010 We hereby request confidential treatment of information accompanying this application as outlined below: Schematics circuit Block diagrams &Circuits Description User Manual Part List and Tuneup Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

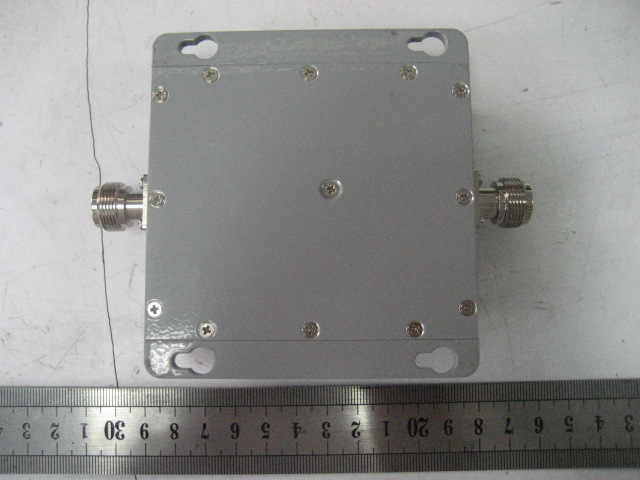

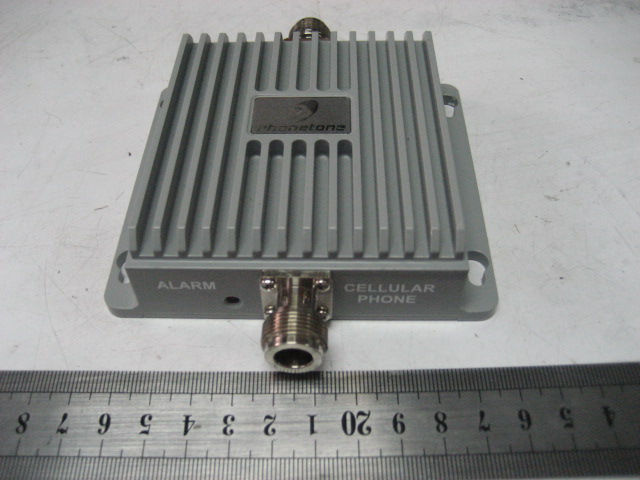

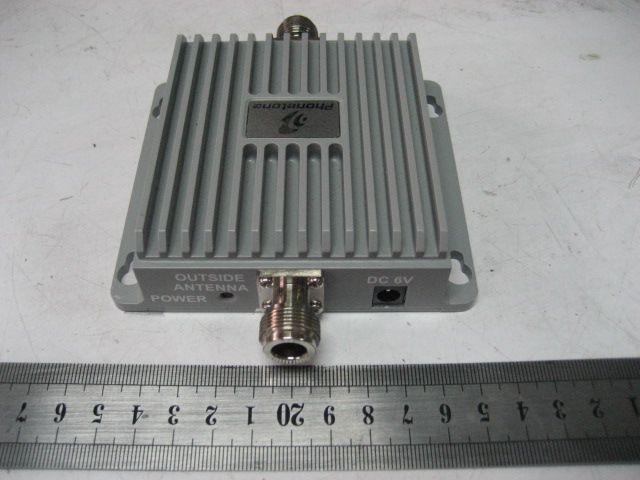

EXTERNAL PHOTOS OF EUT Front View of EUT Rear View of EUT Left View of EUT Right View of EUT

RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2-1. GSM850 BAND Max Peak output Power at antenna input terminal (dBm) 24.06 Max Peak output Power at antenna input terminal (mW) 254.683 Prediction distance (cm) 20 Prediction frequency (MHz) 848.8 Antenna Gain(typical) (dBi) 2 Antenna Gain(numeric) 1.58 Power density at prediction frequency (mW/cm²) 0.080 MPE limit for uncontrolled exposure at prediction frequency(mW/cm²) 0.566 2-2. GSM1900 BAND Max Peak output Power at antenna input terminal (dBm) 24.99 Max Peak output Power at antenna input terminal (mW) 315.50 Prediction distance (cm) 20 Prediction frequency (MHz) 1850 Antenna Gain(typical) (dBi) 2 Antenna Gain(numeric) 1.58 Power density at prediction frequency (mW/cm²) 0.100 MPE limit for uncontrolled exposure at prediction frequency(mW/cm²) 1.0 3. RESULTS The power density level at 20 cm is 0.080 mW/cm², which is below the uncontrolled exposure limit of 0.566 mW/cm² at 848.800 MHz for GSM850 band. The power density level at 20 cm is 0.100 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1850 MHz for GSM1900 band.

Report No. : SZEE101108575319 Page 1 of 70 FCC TEST REPORT Product Name : Wireless Dual Band Signal Amplifier Model Number : HW8010 / HW8020 / HW8050 Trade Name : Helloway Technical Data : DC 6V by adaptor FCC ID : YYO-PTE2010 Report Number : SZEE101108575319 Date : January 4, 2011 Prepared for: Phonetone Technology (Shenzhen) Co., Ltd. Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao’an District, Shenzhen 518031 TEL: +86-013510329652 FAX: +86-755-28199993 Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 22 Subpart H PASS 47 CFR FCC Part 24 Subpart E PASS Report No. : SZEE101108575319 Page 2 of 70 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION............................................................................................................... 4 2. TEST SUMMARY........................................................................................................................................ 5 3. MEASUREMENT UNCERTAINTY.............................................................................................................. 5 4. PRODUCT INFORMATION ........................................................................................................................ 5 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 6 6. TEST EQUIPMENT LIST ............................................................................................................................ 7 7. SUPPORT EQUIPMENT LIST.................................................................................................................... 7 8. OUTPUT POWER ....................................................................................................................................... 8 8.1. LIMITS ................................................................................................................................................. 8 8.2. TEST CONFIGURATION .................................................................................................................... 8 8.3. TEST METHOD................................................................................................................................... 8 8.4. TEST RESULT .................................................................................................................................... 9 9. SPURIOUS EMISSIONS AT ANTENNA TERMINALS............................................................................. 16 9.1. LIMITS ............................................................................................................................................... 16 9.2. TEST CONFIGURATION ..................................................................................................................16 9.3. TEST METHOD................................................................................................................................. 16 9.4. TEST RESULT .................................................................................................................................. 16 10. OCCUPIED BANDWIDTH ........................................................................................................................ 45 10.1. REGULATIONS................................................................................................................................. 45 10.2. TEST CONFIGURATION ..................................................................................................................45 10.3. TEST PROCEDURE ......................................................................................................................... 45 10.4. TEST RESULT .................................................................................................................................. 45 11. FIELD STRENGTH OF RADIATED SPURIOUS EMISSION ................................................................... 58 11.1. LIMITS ............................................................................................................................................... 58 11.2. TEST CONFIGURATION ..................................................................................................................58 11.3. TEST METHOD................................................................................................................................. 58 11.4. TEST PROCEDURE ......................................................................................................................... 59 Report No. : SZEE101108575319 Page 3 of 70 11.5. TEST RESULT .................................................................................................................................. 60 12. AC POWER LINE CONDUCTED EMISSIONS ........................................................................................ 61 12.1. LIMITS ............................................................................................................................................... 61 12.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 61 12.3. TEST PROCEDURE ......................................................................................................................... 61 12.4. TEST RESULT .................................................................................................................................. 61 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................................................66 APPENDIX 2 EXTER…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS TEST SETUP OF RADIATED EMISSION TEST SETUP OF CONDUCTED EMISSION
