YYOT10IN-US59Cell Phone Signal booster

Phonetone Technology (Shenzhen) Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/21/2024 U.S. Agent Designation P honetone Technology (Shenzhen) Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: YYOT10IN-US59): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Phonetone Technology (Shenzhen) Co., Ltd. Phonetone Technology (Shenzhen) Co., Ltd. with the FRN 0020320701 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Guangwei Zhang General Manager Phonetone Technology (Shenzhen) Co., Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-25 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name YYOT10IN-US59 T10IN-US59 We, applicant Company Name: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-25 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

Phonetone Technology (Shenzhen) Co., Ltd. March 25, 2024 Attestation for signal booster: FCC ID:YYOT10IN-US59 Each Signal Booster certificated under FCC ID: YYOT10IN-US59 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sincerely, Guangwei Zhang

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name YYOT10IN-US59 T10IN-US59 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Procedure The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-25 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

Phonetone Technology (Shenzhen) Co., Ltd. Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Date: March 25, 2024 FCC ID: YYOT10IN-US59 Model Number: T10IN-US59 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Phonetone Technology (Shenzhen) Co., Ltd. hereby declare that our product (Cell Phone Signal booster) Model Number: T10IN-US59 will disable WLAN function by software although BT modular DA14580 hardware support due to marketing purposes. End-user cannot use BT function in United States market. We will apply new FCC certification if open BT function due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Tel: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

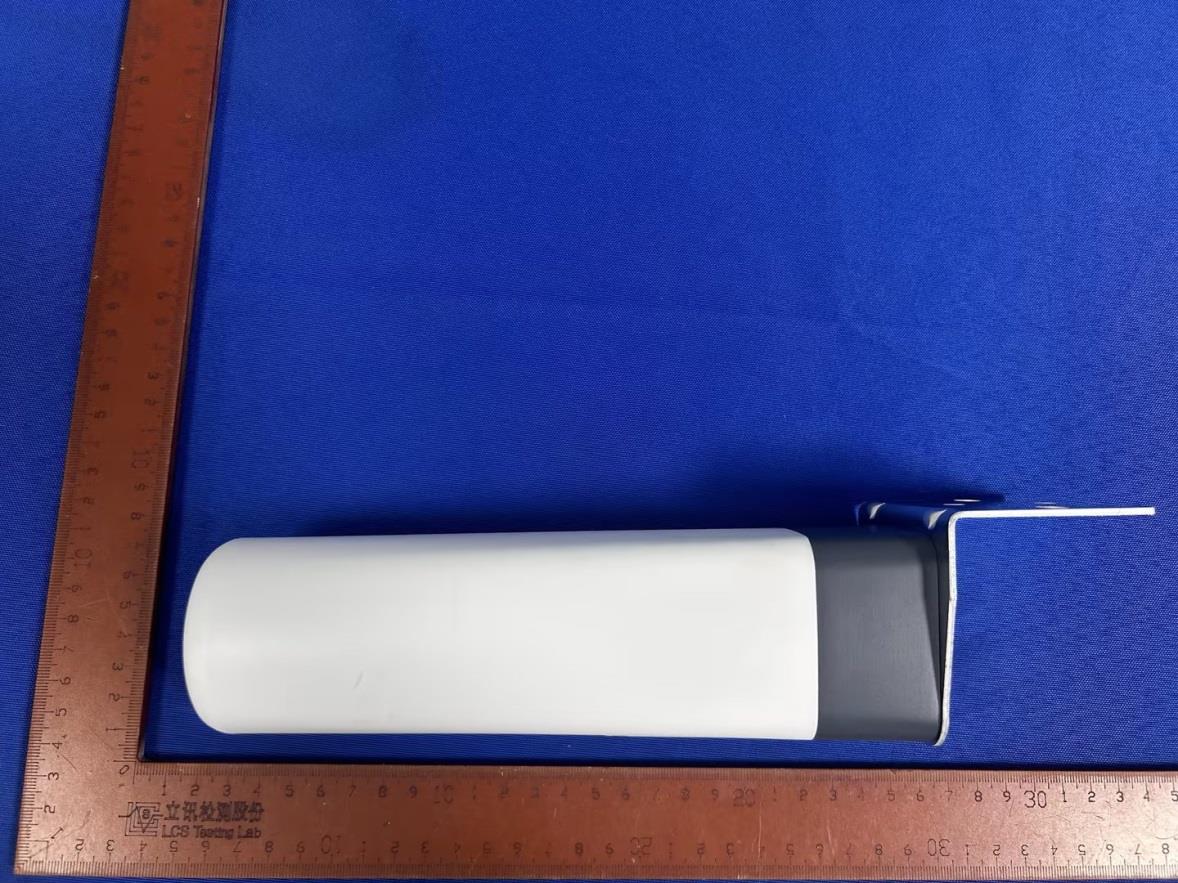

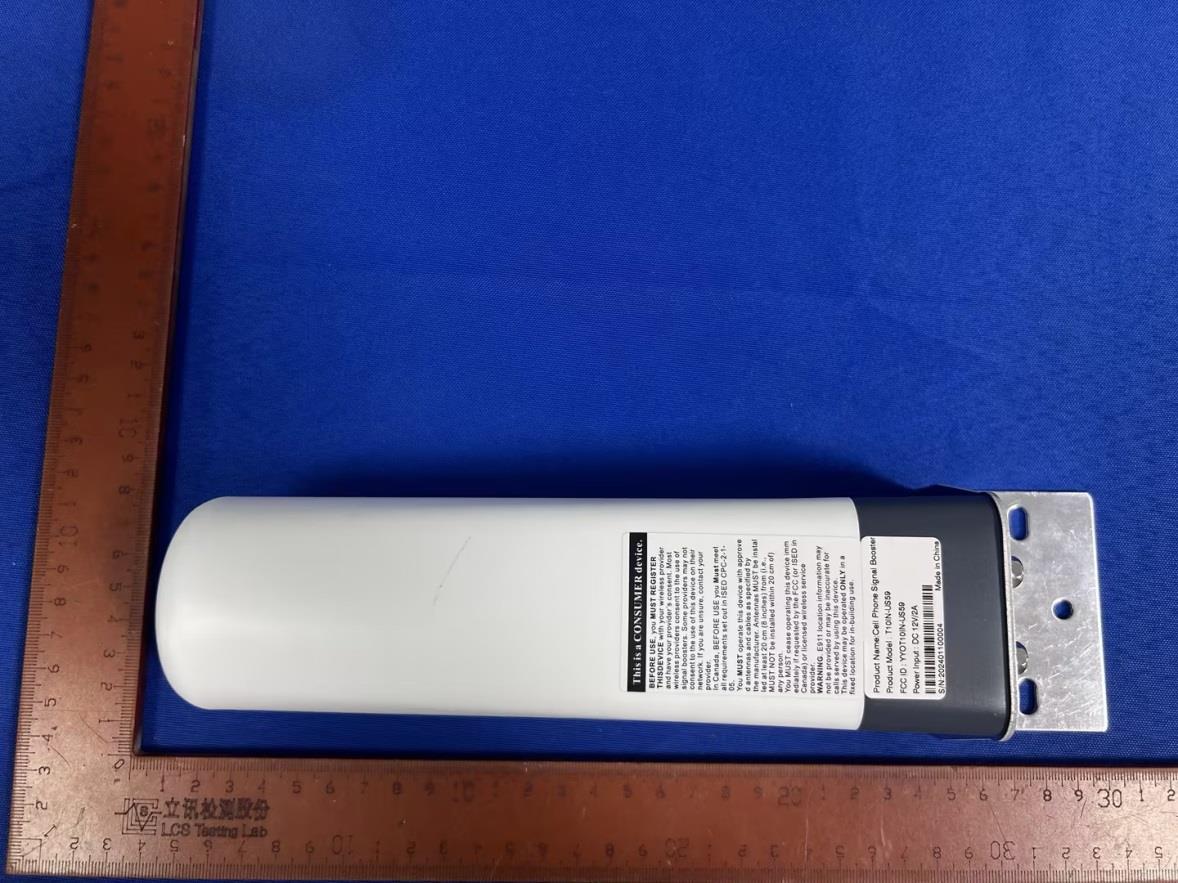

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOT10IN-US59 Exterior Photographs Fig.1 Fig.2 Indoor Panel Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOT10IN-US59 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOT10IN-US59 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOT10IN-US59 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOT10IN-US59 Fig.8 Fig.9

LABEL AND LOCATION Model label Warning label Dimension: 40*20mm Dimension: 45*60mm

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Interior Photographs Fig.1 Fig.2 Omni-directional Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Fig.5 Fig.6 The BT ANT disable by software Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Fig.7 Fig.8 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Fig.9 Fig.10 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA Fig.11

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Maximum Permissible Exposure Report 1. Product Information EUT : Cell Phone Signal booster Equipment Type : Fixed Wideband Consumer Signal Booster Test Model : T10IN-US59 Power Supply : For AC Adapter(model: SK03T1-1200200U): Input: AC 100-240V,50/60Hz,0.6A Output: DC 12V2A Hardware Version : V1.0 Software Version : V1.0 Frequency Range : Lower 700MHz Band(B12) Uplink: 698~716MHz, Downlink: 728~746 MHz Lower 700MHz Band(B17) Uplink: 704~716MHz, Downlink: 734~746 MHz Upper 700MHz Band(B13) Uplink: 776~787MHz, Downlink: 746~757 MHz Cellular Band(B5) Uplink: 824~849MHz, Downlink: 869~894 MHz PCS Band(B2& B25) Uplink: 1850~1915MHz, Downlink: 1930~1995 MHz AWS Band(B4) Uplink: 1710~1755MHz, Downlink: 2110~2155 MHz Max .Gain : ≤64dB(band 5 12 13 17); ≤72dB(band 2 4 25) Max. Antenna Port Output power : Uplink: 23dBm Downlink:10dBm Emission Designator : F9W, G7D, G7W, GXW, W7D FCC Classification : B2W/Wideband Consumer Booster(CMRS) Operating Temperature : -25ºC~+55ºC Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Antenna Information: External Antenna can only use antennas certificated as follows provided by manufacturer: Outdoor Antenna Outdoor Antenna Indoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Omni-directional Antenna 2.7 2.7 3.0 3.0 3.0 Indoor Antenna Indoor Antenna Indoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Ceiling Antenna 3.0 3.0 3.0 4.5 4.5 Indoor Panel Antenna 6.0 6.0 6.0 8.0 8.0 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 20feet（6.1 meters）PH-400 Cable SMA male/SMA male 0.9 0.9 1.34 1.73 1.66 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 30feet（9.15 meters）PH-400 Cable SMA male/SMA female 1.09 1.09 1.75 2.34 2.25 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 1feet（0.3 meters） RG316 Window Entry Cable SMA male/SMA female 0.71 0.71 0.74 1.03 0.87 Indoor Cable Indoor Cable Indoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 20feet（6.1 meters）PH-400 Cable SMA male/SMA male 0.9 0.9 1.34 1.73 1.90 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report …

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 92 FCC TEST REPORT FOR Phonetone Technology (Shenzhen) Co., Ltd. Cell Phone Signal booster Test Model: T10IN-US59 Prepared for : Phonetone Technology (Shenzhen) Co., Ltd. Address : Room 404, Building 12, Qianlong Estate, Minzhi Sub-district, Bao’an District Shenzhen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 01, 2024 Number of tested samples : 2 Serial number : Prototype Date of Test : March 01, 2024 ~ March 22, 2024 Date of Report : March 23, 2024 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 92 FCC TEST REPORT FCC CFR 47 PART 20.21 Report Reference No. ....................... : LCSA02284074E Date of Issue ......................................... : March 23, 2024 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................. : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : Phonetone Technology (Shenzhen) Co., Ltd. Address ................................................. : Room 404, Building 12, Qianlong Estate, Minzhi Sub-district, Bao’an District Shenzhen, China. Test Specification Standard................................................ : FCC CFR Title 47 Part 20.21 Test Report Form No............................ : LCSEMC-1.0 TRF Originator ..................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ........................ : Cell Phone Signal booster Trade Mark ........................................... : Test Model ........................................... : T10IN-US59 Ratings.................................................. : For AC Adapter(model: SK03T1-1200200U): Input: AC 100-240V,50/60Hz,0.6A Output: DC 12V2A Result ................................................. : Positive Compiled by: Supervised by: Approved by: Jack Liu/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 92 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA02284074E March 23, 2024 Date of issue Test Model........................... : T10IN-US59 EUT......................................... : Cell Phone Signal booster Applicant............................... : Phonetone Technology (Shenzhen) Co., Ltd. Address.................................. : Room 404, Building 12, Qianlong Estate, Minzhi Sub-district, Bao’an District Shenzhen, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Phonetone Technology (Shenzhen) Co., Ltd. Address................................... : Room 404, Building 12, Qianlong Estate, Minzhi Sub-district, Bao’an District Shenzhen, China. Telephone............................... : / Fax.......................................... : / Factory................................... : Phonetone Technology (Shenzhen) Co., Ltd. Address................................... : Room 404, Building 12, Qianlong Estate, Minzhi Sub-district, Bao’an District Shenzhen, China. Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 92 Revision History Revision Issue Date Revisions Revised By 000 March 23, 2024 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOT10IN-US59 Report No.: LCSA02284074EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 92 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) ................................................................................................................... 6 1.2 Support equipment List .................................…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID:YYOF30IN-US59 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2
