User's Manual Cell Phone Signal Booster Internal No. F10IN-PL OUTDOOR INDOOR Package Contents Please confirm that your purchase includes the following items: 1 BoosterIndoor Panel Antenna Power AdaptorMount Bracket for Indoor Antenna Mount Bracket for Outdoor Antenna Window Entry Cable Outdoor Log-period Antenna 16ft (5m) Cable *2 33ft (10m) Cable OUTDOOR INDOOR Before Getting Started The whole installation process may take 1 to 2 hours, and 2 people will be easier to calibrate the position and direction of the antenna. Make sure the following materials are prepared and ready for your installation. 1. 2 inches diameter mount pole2. Phillips-head screwdriver 3. Adjustable wrench or open-end wrench4. Drill (if routing cable through wall) Note: We strongly recommend that you find optimal locations for indoor and outdoor antennas via a pre-installation process, then start your formal installation. Note: Do not power on the booster until system is fully installed. Installation Installation Overview Find the Location with the Strongest Signal Step 1 Mount the Outdoor Antenna Step 2 Mount the Indoor Antenna Step 3 Route & Connect Cable to the Signal Booster Step 4 Power Up & Check Performance Step 5 Troubleshooting Step 6 2 Find a location outside the house that has the best reception of cell phone signals. It is recommended to install it in a high, open, and unobstructed location such as the roof. Before you begin, please note that you may require a mast on which to mount the outdoor antenna, you need to purchase it additionally from the manufacturer. After identifying the location with the strongest signal, decide the installation location for your outdoor antenna. It should allow for sufficient isolation between outdoor and indoor antennas. Vertical isolation is preferred as it is more effective than horizontal. 1. The greater the isolation between indoor and outdoor antennas, the better performance you will get from the booster. 2. Make sure Indoor Antenna and Outdoor Antenna are installed in opposite directions. The Directional Log-Periodic Antenna should be mounted at the highest possible location above the roof line and point towards the direction of your carrier's nearest cell tower. This is the most critical step of installation process because it will determine the overall performance of the booster. (Use ‘Signal Advisor’ APP to check signal strength and find direction of your carrier's cell tower, see the APP instruction on Page 10 for detailed guide.） Step 1 Find Location with the Strongest Signal Step 2 Mount the Outdoor Directional Log-Periodic Antenna Note: 3 4 5 The Indoor Panel Antenna is directional with a 120-degree reach, it should be mounted on a vertical surface or wall where there are no objects that may obstruct signals. Connect the antenna to the booster connector labelled ‘INDOOR’. Note: 1. The Indoor Panel Antenna should be intalled in indoor activity area to get best coverage and at least 9 meters away linearly from the outdoor antenna. 2. The installation height is the approximate 1.5-2 meters. Step 3 Mount the Indoor Panel Antenna Panel Antenna Install Illustration 6 Connect the cable to outdoor antenna and route cable into house. All connections should be tightened. A Window Entry Cable is provided to help route cable into house easier. Route cable to booster, please connect it to the connector labelled 'OUTDOOR'. Step 4 Route & Connect Cable to the Signal Booster Outdoor Antenna Window Entry Cable Booster Indoor Antenna 10m Cable 5m Cable 5m Cable OUTDOOR INDOOR 7 After completing installation step by step, turn on the power and the booster will start to work. The indoor signal strength should be enhanced for normal use. If the signal is still not improved, please refer to troubleshooting steps. Step 5 Power On the Booster & Check Performance Cell Tower Outdoor Antenna Window Entry Cable Booster Indoor Antenna OUTDOOR INDOOR at least 9m apart or good isolation in between 8 Step 6 Troubleshooting Problem Pout (Output Power) shows OFF Indoor signal strength has not improved Indoor signal coverage is too narrow Resolution Stronger signal input or self-oscillation has been detected, AGC (Auto-Gain Control) function is working and one or more of the band channel have been shut down. 1.Increase the distance (ideally greater than 9m) between indoor and outdoor antennas if possible, make sure that they are installed in opposite directions. 2.Try to adjust the direction of the outdoor antenna to slightly deviate from the signal tower base station to reduce input signal strength. 1. Check if the installation is correct. If not sure, please contact us. 1.Find a location outdoors that receives a stronger signal as the installation location of outdoor antenna. Please install the outdoor antenna as high as possible. 2.Use ‘Signal Advisor’ APP to find the direction of the nearest cell tower as the installation direction of the outdoor antenna. 3.Contact us to replace with our newly developed high sensitive booster. For Android: Use our ‘Signal Advisor’ APP, see the APP instruction for detailed guide For iPhone: Dial No. *3001#12345#* → tap ’Serving Cell Info’ → Check ‘Band Info’ 2. Verify that the frequency band of your cell phone matches with the frequency band supported by booster. 5." ": Press the "Right" key to switch between different frequency bands. 1."FREQ": Frequency for each frequency band. 2."GAIN": Gain for each frequency band. When the gain for a particular frequency band is less than 45dB, the channel for this frequency band will shut down automatically and gain will set to 0dB. 3."Pout": Output Power of the booster for each frequency band. When self–oscillation happens, input signals are too strong or reduction value of the gain reaches the limit 20dB, "Pout" shows "OFF" and the band channel is shut down automatically. 4."Isolation": Isolation status of antennas. Three bars indicate "good", two bars indicate "medium" and one bar indicates "bad". Please increase t…

Text truncated - open the document above for the full version.

Phonetone Technology (Shenzhen) Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/17/2024 U.S. Agent Designation P honetone Technology (Shenzhen) Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: YYOF10IN-US53): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Phonetone Technology (Shenzhen) Co., Ltd. Phonetone Technology (Shenzhen) Co., Ltd. with the FRN 0020320701 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Guangwei Zhang General Manager Phonetone Technology (Shenzhen) Co., Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-17 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name YYO F10IN-US53 F10IN-US53 We, applicant Company Name: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-17 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

Phonetone Technology (Shenzhen) Co., Ltd. March 16, 2024 Attestation for signal booster: FCC ID:YYOF10IN-US53 Each Signal Booster certificated under FCC ID: YYOF10IN-US53 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sincerely, Guangwei Zhang

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name YYO F10IN-US53 F10IN-US53 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Procedure The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-17 Name / Title: Guangwei Zhang / General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen 518031, China Phone: +86-13510329652 Fax: +86-755-28199993 E-Mail: [email protected]

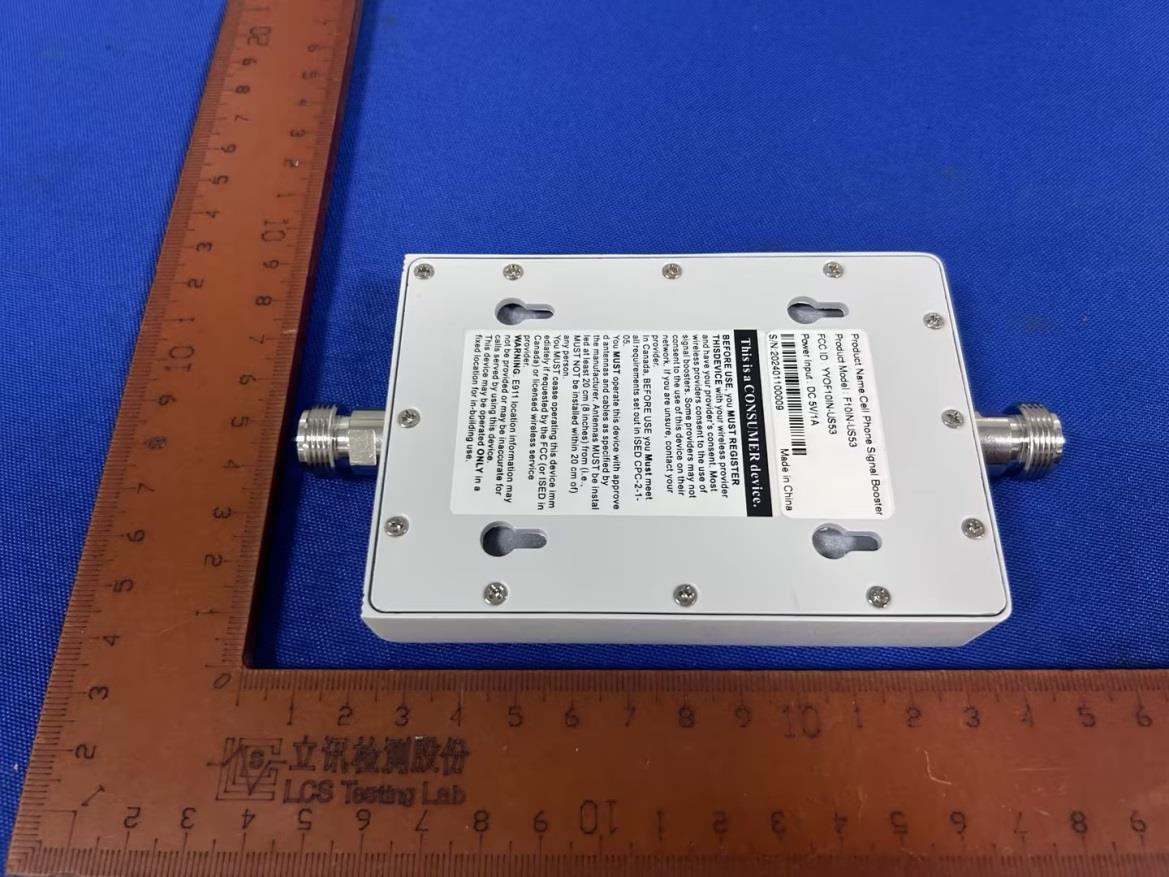

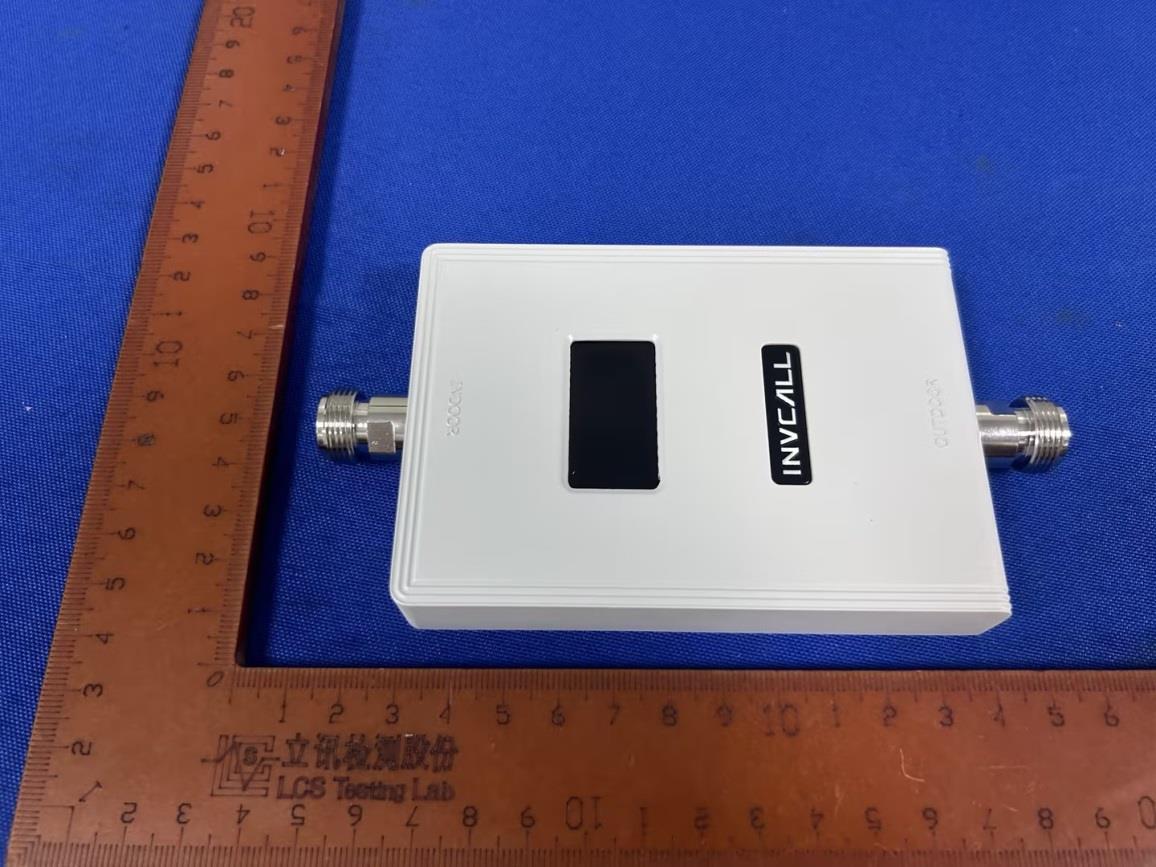

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Exterior Photographs Fig.1 Fig.2 Outdoor Log Periodic Antenna Indoor Panel Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:YYOF10IN-US53 Fig.11

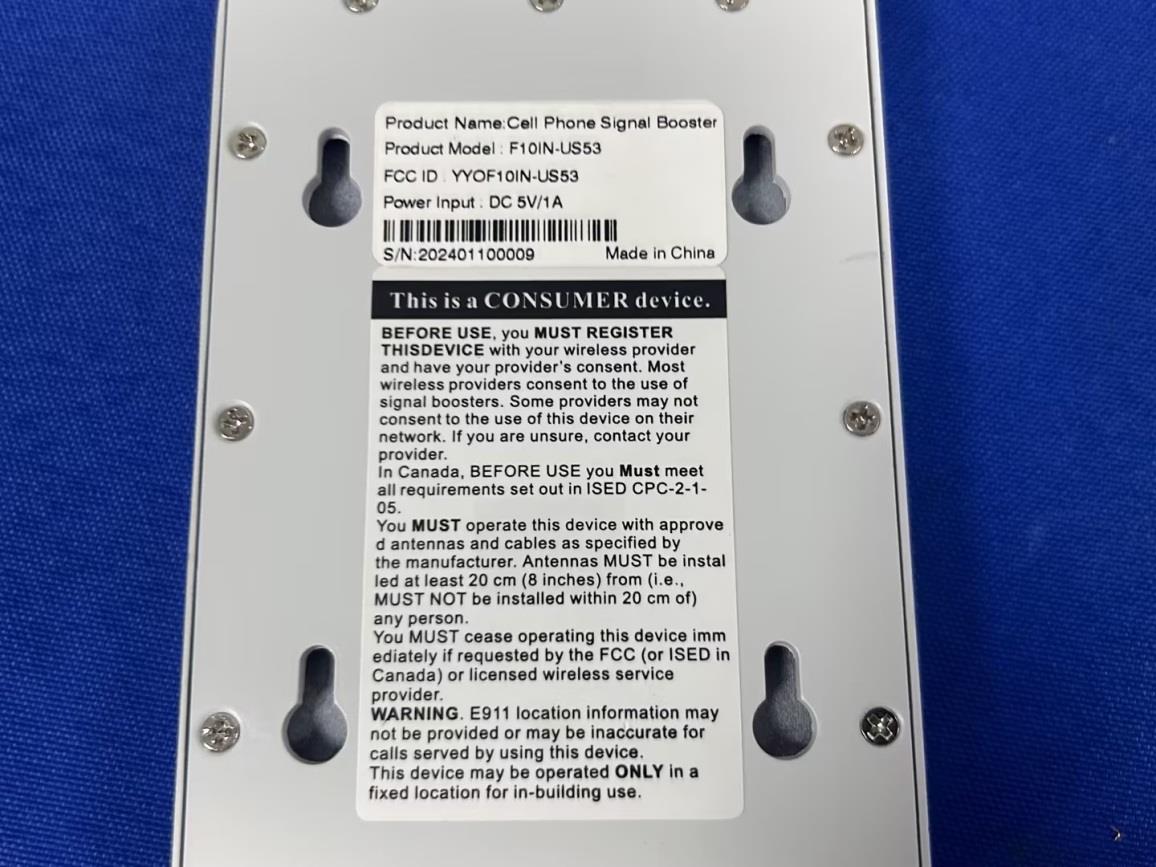

LABEL AND LOCATION Model label Warning label Dimension: 40*20mm Dimension: 45*60mm

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Interior Photographs Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Fig.5 Fig.6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Report No.: LCSA01024313EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Maximum Permissible Exposure Report 1. Product Information EUT : Cell Phone Signal booster Equipment Type : Fixed Wideband Consumer Signal Booster Test Model : F10IN-US53 Additional Model No. : N/A Power Supply : For AC Adapter(model: SK01T-0500100U): Input: AC 100-240V,50/60Hz,0.25A Output: DC 5.0V1.0A Hardware Version : / Software Version : / Frequency Range : AWS Band(B4) Uplink: 1710~1755MHz, Downlink: 2110~2155 MHz PCS Band(B25) Uplink: 1850~1915MHz, Downlink: 1930~1995 MHz Max .Gain : ≤65dB(Uplink); ≤70dB(Downlink) Max. Antenna Port Output power : Uplink: 20dBm Downlink:8dBm Emission Designator : F9W, G7D, G7W, GXW, W7D FCC Classification : B2W/Wideband Consumer Booster(CMRS) Operating Temperature : -25ºC~+55ºC Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Report No.: LCSA01024313EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Antenna Information: External Antenna can only use antennas certificated as follows provided by manufacturer: Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Magnet Antenna / / / 3.5 3.5 Log Periodic Antenna / / / 8.0 8.0 Outdoor Omni Antenna / / / 6.0 6.0 Indoor Antenna Indoor Antenna Indoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Indoor Panel Antenna / / / 8.0 8.0 Ceiling Antenna / / / 4.5 4.5 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 5-meter RG58 Coaxial cable with N male/SMA male connector / / / 3.25 3.25 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 0.3-meter RG316 Coaxial cable with SMA male/SMA Female connector / / / 0.7 0.7 Outdoor Cable Outdoor Cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Report No.: LCSA01024313EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 10-meter RG58 Coaxial cable with SMA male/SMA female connector / / / 6.5 6.5 Indoor Cable Indoor Cable Indoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 5-meter RG58 Coaxial cable with N male/SMA male connector / / / 3.25 3.25 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Report No.: LCSA01024313EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:YYOF10IN-US53 Report No.: LCSA01024313EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 4. MPE Calculation Method Predication of MPE limit at a given distance Equatio…
