YYOPTECP65Cell Phone Signal Booster

1 / 11 AN-CP65 Cell Phone Signal Booster User Manual 2 / 11 Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. in this cases, cell phone signal booster can solve this problem in a certain extent. Features ■AGC(Automatic Gain Control): When the downlink output signal is too strong or self- oscillated, the uplink and downlink can automatically reduce the gain and reduce the interference signal ■Self- Oscillation elimination: The system detects self- Oscillation, first reduces the link gain, then detects the loop, and finds that the self- oscillation is eliminated, the system returns to normal working state, otherwise, the power is turned off to prevent interference signal. ■Inactivity Mode: When no user calls, the device is in standby mode, the uplink power amplifier is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy saving. SAFETY WARNINGS WARNING: This equipment should be installed and operated with minimum distance 20cm （8 inches）between the radiator& your body. FCC Cautions: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other Antenna or transmitter. SAFTY WARNING: End users must follow the specific operating instruction for satisfying RF exposure 3 / 11 compliance. Do not remove the covers during working. Do not try to repair or replace any components inside of the equipment. Alteration or abuse of the equipment or other components will void this product’s warranty, and could be dangerous to the user. PACKAGE CONTENTS 1 2 1. 1Pcs AN-CP65 Booster with SMA Female connectors. 2.AC/DC Power Adaptor. 3.Screws Mounting Kits. 4.User manual (this document). Antennas and Cables: In order to use the Booster, you still need the corresponding indoor antenna 1pcs, outdoor antenna 1pcs, outdoor cable 1pcs and indoor cable 1pcs. Antennas and cables kitting information are as follows Name Model Gain/Loss Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @824-894MHz 3.5dbi @1850-1990MHz Ceiling AntennaPTE-CI-800-2500 3dbi @824-894MHz 4.5dbi @1850-1990MHz Indoor Panel Antenna PTE-PN-800-2500 7dbi @824-894MHz 8.5dbi @1850-1990MHz Outdoor Antenna YAgi Antenna PTE-YG-800/1900 8dbi @824-894MHz 10dbi @1850-1990MHz LPDA Antenna PTE-LO-700-2500 9dbi @824-894MHz 10.5dbi @1850-1990MHz Omni directional glass fiber Antenna PTE-GF-700-2500 3dbi @824-894MHz 5dbi @1850-1990MHz 4 / 11 Indoor Cable 20 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db @824-894MHz 2.55db @1850-1990MHz Outdoor Cable 50 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.49db @824-894MHz 6.25db @1850-1990MHz Notes：The above model antennas are suitable for AN-CP65 booster. Warning：Unauthorized antennas，cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the PHONETONE company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna The booster’s main function is to improve weak RF signals of an area. A simple formula: Input power+ Gain= Output power. The signal strength from the outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to choose the outdoor antenna location in order to get the best signals. Testing the signal strength received from outdoor antenna mounted in site by mobile phone: Please select the top of building to install the outdoor antenna if total floors are less than 7 floors, and shall try your best to select places like balcony or platform lower than 7 th floor for outdoor antenna if the buildings are over 7 floors, because the mobile signals are clean at less than 7 th floor. The mobile phone shall display full bar signals in location where the outdoor 5 / 11 antenna is installed The phone calls or data transmission shall be smooth and stable by 3 times testing in location where the outdoor antenna is to be installed As shown from the above illustration, testing the signals from A to E, and select a best place that displays full bar signals to install the outdoor antenna. Selecting the installation direction of outdoor antenna. The outdoor antenna shall point to the direction of the tower, and it would be much better to keep line of sight. Please select the opposite directions for outdoor antenna and indoor antenna. If outdoor and indoor antennas have to be installed in the same direction, please install them only after the signal quality is tested and the self-oscillation is avoided. If the directional antenna is selected, the main directional angle should point to the tower antenna. If the performance is poor due to weak signals or poor phone call quality, please adjust the direction of outdoor antenna or change its position in order to obtain the best calling effect. The wide band booster supports all mobile operators or different mobile systems, so please adjust the outdoor antenna direction to have balance between signals of different mobile operators or various mobile systems. Connect the outdoor antenna to th…

Text truncated - open the document above for the full version.

Phonetone Technology (Shenzhen) Co., Ltd. Oct 12, 2018 Attestation for Cell phone signal bo oster: FCC ID: YYOPTECP65 Each Signal Boos ter certificated under FCC ID: YYOPTECP65 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sincerely, Guangwei Zhang

Phonetone Technology (Shenzhen) Co., Ltd. Date: 2020-09-18 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: YYOPTECP65 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Guangwei Zhang Title: General Manager

Statement Product: Cell Phone Signal Booster Model: AN-CP65 Additional Model: AN-CA65, AN-CP45, AN-CA45, AN-C65, AN-P65, AN-A65, AN-L65A, AN-L65V, AN-L65VA, AN-L45VA Trademark: We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names and trademarks are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/09/18 Name: Guangwei Zhang Company Name : Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen, 518031 China Tel / Fax: 86-013510329652/86-755-28199993 E-Mail: [email protected]

Phonetone Technology (Shenzhen) Co., Ltd. Sep. 18, 2020 Subject: Tuning and Adjustment of Signal booster, FCC ID: YYOPTECP65 There are no external tuning adjustments, the amplifier is factory set not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Yours sincerely, Guangwei Zhang

Phonetone Technology (Shenzhen) Co., Ltd. Agent Authorization Company: Phonetone Technology (Shenzhen) Co., Ltd. Address: Room 404, Building 12, Qianlong Garden, Minzhi Street, Bao'an District, Shenzhen, 518031 China Product Name: Cell Phone Signal Booster Model Number(s): AN-CP65, AN-CA65, AN-CP45, AN-CA45, AN-C65, AN-P65, AN- A65, AN-L65A, AN-L65V, AN-L65VA, AN-L45VA Product Description: Cell Phone Signal Booster We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-18 Name: Guangwei Zhang Title: General Manager Company: Phonetone Technology (Shenzhen) Co., Ltd.

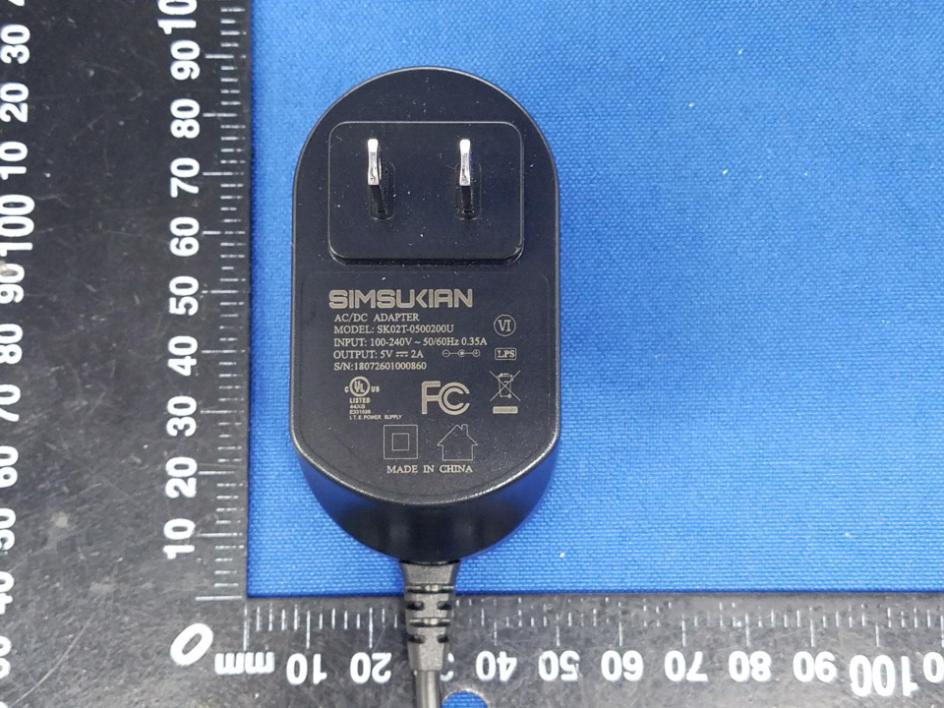

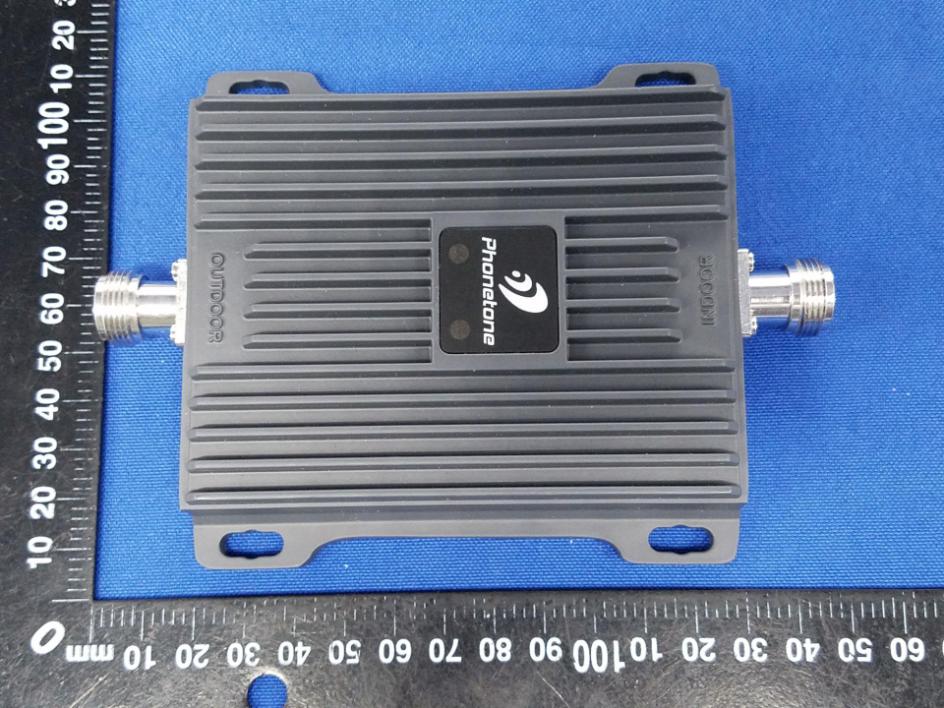

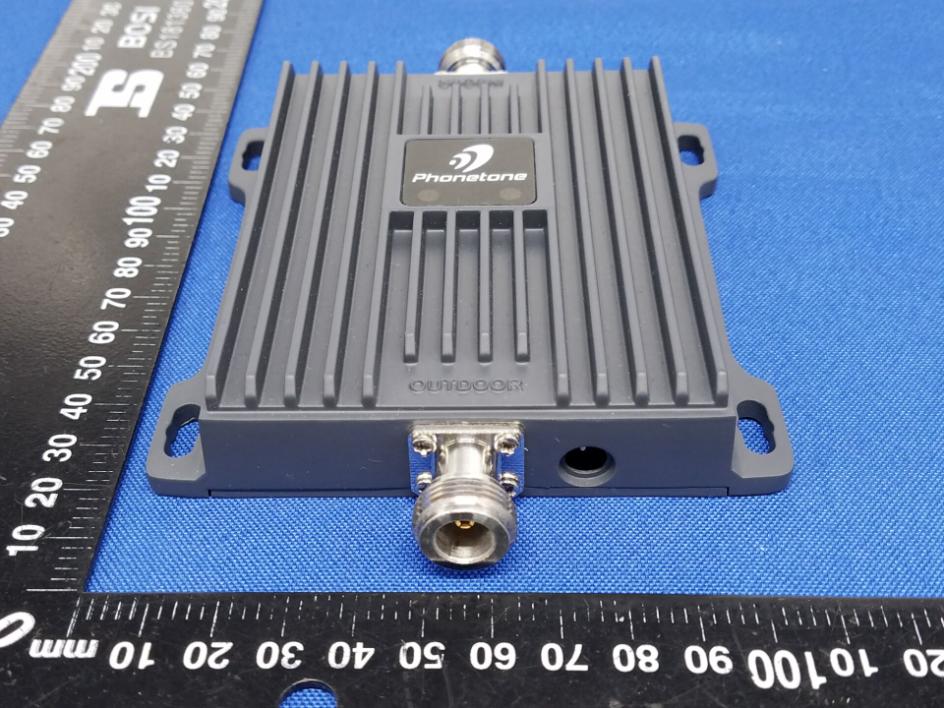

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CP65 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

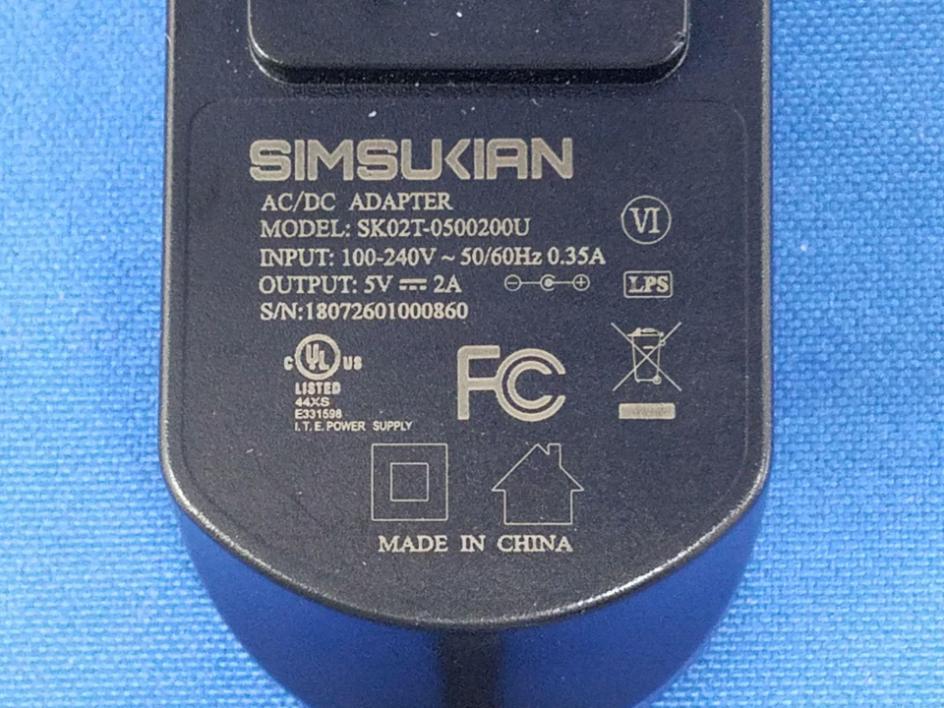

LABEL AND LOCATION Model: AN-CP65 Model label Warning label Dimension: 40*15mm Dimension: 40*60mm

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *10030 1.34-30 824/f 2.19/f *180/f 2 30 30-30027.5 0.0173 0.2 30 300-1,500f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Operation Bands Frequency (MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL1850-1910 1863.27 18.50 6.25 16.79 10.5 11.22 UL824-849 845.31 21.03 5.49 35.81 9 7.94 DL1930-1990 1967.31 9.60 2.55 5.07 8.5 7.08 DL869-894 873.08 8.34 2.29 4.03 7 5.01 Results: PASS Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL1850-1910 16.79 11.22 20 0.037 1.0 UL824-849 35.81 7.94 20 0.057 0.56 DL1930-1990 5.07 7.08 20 0.007 1.0 DL869-894 4.03 5.01 20 0.004 0.58
