Z26-BIGFOOTIntelligent tracking robot

FTR System (Shanghai), Inc.
Intelligent tracking robot - FCC ID Z26-BIGFOOT - FTR System (Shanghai), Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 22, 2014
Application Purpose
Original Equipment
Date of Application
May 22, 2014
Equipment Note
Intelligent tracking robot
Frequency Range
2403.00000000 - 2480.00000000
Company
FTR System (Shanghai), Inc.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more support and information please call (702) 982-6598, email [email protected], or go to www.caddytrek.com Visit our website at www.caddytrek.com Training Reference Guide for CaddyTrek Bigfoot Powering on and off: Press handset power button Press unit power button Manual (Pushcart) use: Turn both handset and unit off to use cart manually Remote control functions: Power button When four lights are all going off it means it's looking for a connection. Lights on handset: SB= Standby, RC= Remote Control, FL = Follow, OA (not applicable). Hold down left directional button for RC mode. Stop button (very important). Press stop 2 times to put into SB mode. Use RC mode in parking lots, on hills, on gravel, over streets, around buildings and around groups of people. To keep handset from errant beeping, put handset in SB mode. Allow user to use RC, run it forward and back, emphasizing STOP. Follow mode: Explain where sensors on handset and unit are, there must always be a clear signal from handset to the unit. Follow button. Hold down until it beeps to start, hold down until it beeps again to stop. Must be a clear path from handset sensor to unit sensor to follow correctly. No blocking from things such as clothing, jackets, and towels. Clip handset to belt before turning on Follow function. User must set themselves up in front of unit before starting Follow function. Use follow mode to show user how to take wider turns and not to turn too fast or sensor will disconnect. Allow user to test follow mode. Explain how there are different interferences that may cause unit to lose connection. Use RC if Follow continues to disconnect. When stopping to take a shot or get a club, turn off follow mode by hitting the FOLLOW button or pressing stop button. Interference can occur near walls, groups of people, tunnels, cell phone or radio towers, and some Wi-Fi networks. Follow mode intended for open course, only. It will take at a couple of holes to get used to the unit. Run it around everywhere the first couple of holes to understand the unit and commands better. Unit can go down curbs but cannot go up curbs. For more support and information please call (702) 982-6598, email [email protected], or go to www.caddytrek.com Visit our website at www.caddytrek.com Maintenance & Support Guide Battery Charging When charging the Bigfoot unit, always plug the handset into accessory box to charge. Charge for 1-2 hours in between rounds or every 18 holes. When not in use, leave Bigfoot on the charger. If the unit begins to act slow, loses power, or beeps 3 times, check the battery level. It may be time to charge the unit. Handset  Keep clean. Do not get wet. Check to see if all buttons and modes are functional before play. To sync handset, turn on handset, then turn on unit, then hold stop down and while pressing the directional up button 3 times. If your handset completely loses sync or you cannot switch modes shut off both the handset and cart for 5-10 seconds then power on.  If your handset cannot sync, remove the battery for 5-10 seconds, re-insert it, then try again.  Do not pair/sync units simultaneously. A. Bag Support Joints B. Spine-Frame Connecting Bolts C. Motor Wheel D. Motor Wheel-Motor Joints E. Caster Wheel Bolt F. Caster Wheel Once a day check if any bolts or joints are loose and tighten accordingly. (A, B, D, E) Brush dirt and grass off of motor wheels and caster wheels after use (C, F) FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.

Cover Letter(s)

FTR Systems(Shanghai) Inc. SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 FTR Systems(Shanghai) Inc. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2014/5/13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, FTR Systems(Shanghai) Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Intelligent tracking robot Trade Name: N/A Model Name: Bigfoot 2.0 Serial Model: Bigfoot 1.0,Bigfoot 3.0,Bigfoot 4.0,Bigfoot 5.0, Bigfoot 6.0,Bigfoot 7.0,Bigfoot 8.0 FCC ID : Z26-BIGFOOT We affirm that between SIEMIC and FTR Systems(Shanghai) Inc. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Name: Jinlong Ye Title : Manager Address: #500, Suite 108, Bi-Bo Rd, Hi-Tech Park, Pudong, Shanghai,China. 201203

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FTR Systems(Shanghai) Inc. 2014/5/13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: Z26-BIGFOOT We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Name: Jinlong Ye Title : Manager Address: #500, Suite 108, Bi-Bo Rd, Hi-Tech Park, Pudong, Shanghai,China. 201203

Cover Letter(s)

FTR Systems(Shanghai) Inc. Model Difference FCC ID: Z26-BIGFOOT Model : Bigfoot 2.0, Bigfoot 1.0,Bigfoot 3.0,Bigfoot 4.0,Bigfoot 5.0, Bigfoot 6.0,Bigfoot 7.0,Bigfoot 8.0 All the models are the same circuit and RF module, except the mode names and colours. Regards, Client’s signature Name: Jinlong Ye Title : Manager Address: 139 Pu Tuo Rd, Liutuan Town, Pudong District, Shanghai,China

External Photos

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

ID Label/Location Info

FCC ID LABELING AND LOCATION FCC ID Label Intelligent tracking robot Model NO.: Bigfoot 2.0 FCC ID: Z26-BIGFOOT FTRSystems(Shanghai) Inc. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

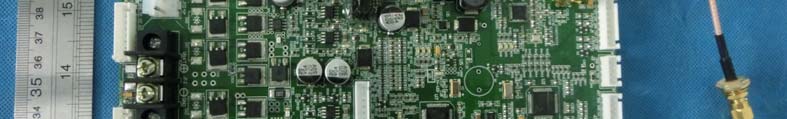

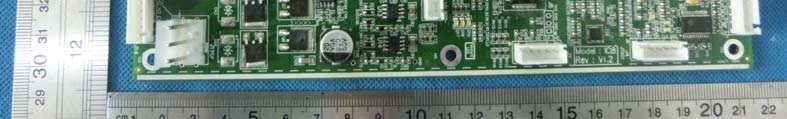

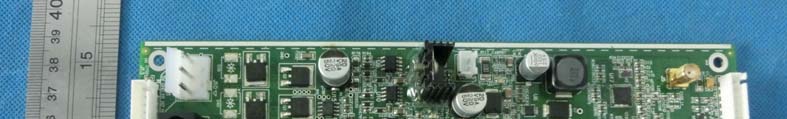

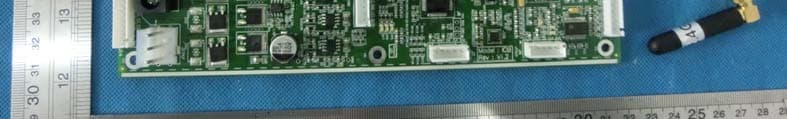

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 ANT Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

RF Exposure Info

FCC ID : Z26-BIGFOOT RF EXPOSURE EVALUATION METHOD FCC ID: Z26-BIGFOOT SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : Z26-BIGFOOT Maximum measured transmitter power. Frequency Maximum Peak Conducted Output Power (PK) Maximum Peak Conducted Output Power(AV) Te s t Channe (MHz) (dBm) dBm CH01 2403 3.47 2.223 CH48 2450 3.39 2.183 CH78 2480 3.53 2.254 Remark: The best case gain of the antenna is 2.5 dBi. 2.5 dBi logarithmic terms convert to numeric result is nearly 1.78 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] Mode [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [√f(GHz)] Result Limit CH01 2.223 5 2.403 0.689 3 CH48 2.183 5 2.450 0.683 3 CH78 2.254 5 2.480 0.710 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Test Report

FCC RADIO TEST REPORT FCC ID: Z26-BIGFOOT Product: Intelligent tracking robot Trade Name: N/A Model Name: Bigfoot 2.0 Serial Model: Bigfoot 1.0,Bigfoot 3.0,Bigfoot 4.0,Bigfoot 5.0, Bigfoot 6.0,Bigfoot 7.0,Bigfoot 8.0 Report No.: NTEK-2014NT0401419F Prepared for FTR Systems(Shanghai) Inc. 139 Pu Tuo Rd, Liutuan Town, Pudong District, Shanghai,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 41 Report No.: NTEK-2014NT0401419F TEST RESULT CERTIFICATION Applicant’s name........ FTR Systems(Shanghai) Inc. Address ........................ 139 Pu Tuo Rd, Liutuan Town, Pudong District, Shanghai,China Manufacture's Name... Shanghai Ying Yu Electronic Co., Ltd. Address ........................ 68 Yuan Ye Rd,Volkswagen Industrail Park. Anting Town,Jiading District,Shanghai,China Product description Product name .................Intelligent tracking robot Model and/or type reference ..................... Bigfoot 2.0 Serial Model .................... Bigfoot 1.0,Bigfoot 3.0,Bigfoot 4.0,Bigfoot 5.0, Bigfoot 6.0,Bigfoot 7.0,Bigfoot 8.0 Standards.................... FCC Part15.247 Test procedure ................ ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test...................................... Date (s) of performance of tests ....... 01 Apr. 2014 ~24 Apr. 2014 Date of Issue..................................... 24 Apr. 2014 Test Result......................................... Pass Testing Engineer : (Apple Huang) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 41 Report No.: NTEK-2014NT0401419F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 28 4.1 APPLIED PROCEDURES / LIMIT 28 4.1.1 TEST PROCEDURE 28 4.1.2 DEVIATION FROM STANDARD 28 4.1.3 TEST SETUP 28 4.1.4 EUT OPERATION CONDITIONS 28 4.1.5 TEST RESULTS 29 5 . BANDWIDTH TEST 31 5.1 APPLIED PROCEDURES / LIMIT 31 5.1.1 TEST PROCEDURE 31 Page 4 of 41 Report No.: NTEK-2014NT0401419F Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 31 5.1.3 TEST RESULTS 32 6 . PEAK OUTPUT POWER TEST 34 6.1 APPLIED PROCEDURES / LIMIT 34 6.1.1 TEST PROCEDURE 34 6.1.2 DEVIATION FROM STANDARD 34 6.1.3 TEST SETUP 34 6.1.4 EUT OPERATION CONDITIONS 34 6.1.5 TEST RESULTS 35 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 36 7.1 DEVIATION FROM STANDARD 36 7.2 TEST SETUP 36 7.3 EUT OPERATION CONDITIONS 36 7.4 TEST RESULTS 37 8 . ANTENNA REQUIREMENT 39 8.1 STANDARD REQUIREMENT 39 8.2 EUT ANTENNA 39 9 . EUT TEST PHOTO 40 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 41 Report No.: NTEK-2014NT0401419F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 41 Report No.: NTEK-2014NT0401419F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 41 Report No.: NTEK-2014NT0401419F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Intelligent tracking robot Trade Name N/A Model Name Bigfoot 2.0 Serial Model Bigfoot 1.0,Bigfoot 3.0,Bigfoot 4.0,Bigfoot 5.0, Bigfoot 6.0,Bigfoot 7.0,Bigfoot 8.0 Model Difference All the models are the same circuit and RF module, except the mode names and colours. Product Description The EUT is a Intelligent tracking robot Operation Frequency: 2403~2480 MHz Modulation Type: OQPSK Number Of Channel 78CH Antenna Designation: Please see Note 3. Output Power(Conducted): 3.53 dBm (Max.) Antenna Gain (dBi) 2.5dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 40 of 41 Report No.: NTEK-2014NT0401419F 9. EUT TEST PHOTO Radiated Measurement Photos Page 41 of 41 Report No.: NTEK-2014NT0401419F Conducted Measurement Photos

Contact Information

Applicant

Jinlong Ye(PM)
[email protected]0755-61156588Fax: 0755-61156599

Test Firm

Shenzhen NTEK Testing Technology Co., Ltd.Jason Chen
[email protected](86)-0755-61156588Fax: (86)-0755-61156599

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.25 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum conducted output power.
