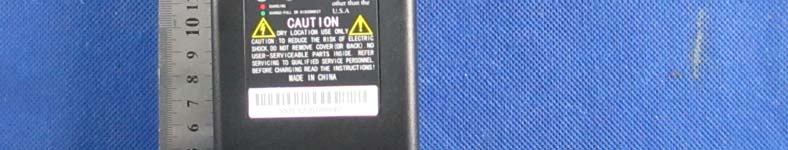

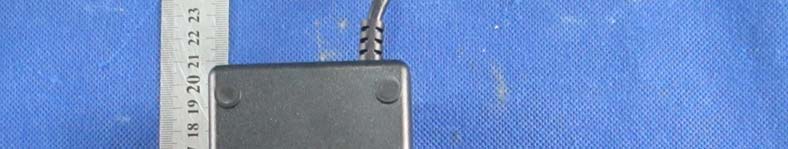

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Intelligent tracking robot Model NO.: CT-2000-BA-R2 FTR FCC ID: Z26CT-2000-BA-R2 FTRSystems(Shanghai) Inc. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

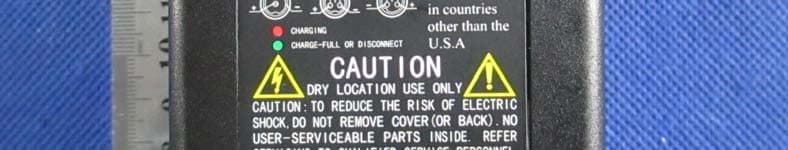

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16

FCC ID : Z26CT-2000-BA-R2 RF EXPOSURE EVALUATION METHOD FCC ID: Z26CT-2000-BA-R2 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : Z26CT-2000-BA-R2 Maximum measured transmitter power. Frequency Maximum Peak Conducted Output Power（PK） Maximum Peak Conducted Output Power（AV） Maximum Peak Conducted Output Power （AV） Te s t Channe (MHz) (dBm) (dBm) mW CH01 2403 3.83 1.77 1.50 CH48 2450 3.52 1.62 1.45 CH78 2480 3.64 1.68 1.47 Remark: The best case gain of the antenna is 2.5dBi. 2.5 dBi logarithmic terms convert to numeric result is nearly 1.78 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] Mode [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [√f(GHz)] Result Limit CH01 1.50 5 2.403 0.47 3 CH48 1.45 5 2.450 0.45 3 CH78 1.47 5 2.480 0.46 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: Z26CT-2000-BA-R2 Product： Intelligent tracking robot Trade Name： FTR Model Name： CT-2000-BA-R2 Serial Model： CT-3000, CT-4000, CT-5000, CT-6000 CT-2100, CT-3500, CT-4500, CT-5500 CT-6500 Report No.： NTEK-2013NT1122615F1 Prepared for FTR Systems(Shanghai) Inc. #500, Suite 108, Bi-Bo Rd, Hi-Tech Park, Pudong, Shanghai,China. 201203 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 40 Report No.: NTEK-2013NT1122615F1 TEST RESULT CERTIFICATION Applicant’s name........ FTRSystems(Shanghai) Inc. Address ........................ #500, Suite 108, Bi-Bo Rd, Hi-Tech Park, Pudong, Shanghai,China. 201203 Manufacture's Name... Shanghai Ying Yu Electronic Co., Ltd Address ........................ 68 Yuan Ye Rd,Volkswagen Industrail Park. Anting Town, Jiading District,Shanghai,China Product description Product name .................Intelligent tracking robot Model and/or type reference ..................... CT-2000-BA-R2 Serial Model .................... CT-3000, CT-4000, CT-5000, CT-6000 CT-2100, CT-3500, CT-4500, CT-5500 CT-6500 Standards.................... FCC Part15.247 Test procedure ................ ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test...................................... Date (s) of performance of tests ....... 22 Nov. 2013 ~16 Dec. 2013 Date of Issue..................................... 16 Dec. 2013 Test Result......................................... Pass Testing Engineer : (Polo Cha) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 40 Report No.: NTEK-2013NT1122615F1 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 Page 4 of 40 Report No.: NTEK-2013NT1122615F1 Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 30 5.1.3 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 DEVIATION FROM STANDARD 35 7.2 TEST SETUP 35 7.3 EUT OPERATION CONDITIONS 35 7.4 TEST RESULTS 36 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 40 Report No.: NTEK-2013NT1122615F1 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 40 Report No.: NTEK-2013NT1122615F1 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 40 Report No.: NTEK-2013NT1122615F1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Intelligent tracking robot Trade Name FTR Model Name CT-2000-BA-R2 Serial Model CT-3000, CT-4000, CT-5000, CT-6000 CT-2100, CT-3500, CT-4500, CT-5500 CT-6500 Model Difference All the models are the same circuit and RF module, except the mode names and colours. Product Description The EUT is a Intelligent tracking robot Operation Frequency: 2403~2480 MHz Modulation Type: OQPSK Number Of Channel 78CH Antenna Designation: Please see Note 3. Output Power(Conducted): 3.83 dBm (Max.) Antenna Gain (dBi) 2.5dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computi…

Text truncated - open the document above for the full version.

Page 39 of 40 Report No.: NTEK-2013NT1122615F1 9. EUT TEST PHOTO Radiated Measurement Photos Page 40 of 40 Report No.: NTEK-2013NT1122615F1 Conducted Measurement Photos
