Z2HBDSI13Wall outlet Dual Mode Speaker Phone

1 5 234 678 Wall outlet Dual Mode Speaker Phone Includes: Portable Speaker Quick Start Guide Getting Started For iOS (iPhone/ iPad) Users:Using Your Mushroom Wireless Bluetooth Speaker Plug Bluetooth Speaker in wall outlet then it will turn on then you will hear “Blue Dot Power On”. 1.Please turn on the BLUETOOTH function from your mobile phone. Pair with "BlueDotSound" after your hear " Blue Dot Sound Paring" 2. For Android Users: Go to: SETTINGS>BLUETOOTH Turn on Bluetooth The device will automatically search for AVAILABLE DEVICES. If not, press SEARCH FOR DEVICES. Select BlueDotSound and the device will automatically connect to the speaker. It will then show it is connected to “BlueDotSound”. Go to: SETTINGS> GENERAL> BLUETOOTH Turn on Bluetooth The device will automatically search for Discoverable Devices. If not, press SEARCH FOR DEVICES. Select BlueDotSound and select yes when it asks to pair up. It will then show it is connected to “BlueDotSound”. SAFETY WARNING The microphone on your speaker is on the bottom left coner of speaker fabric. Talk into that during phone calls. The microphone is useful for group or conference calls. microphone To reduce the risk of electric shock or damage to your equipment: Avoid contact with water or other wet surfaces. Avoid inserting items into the openings of the speaker. Do not disassemble your speaker. Only a certified service technician should perform repairs on your speaker. Otherwise, The Company is not responsible for any damages that may result in the disassembly. The information contained herein is subject to change without notice. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Connect with BlueDotSound ...

DATE : March 23, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_Z2HMBDSI13__ Product Name: Wall outlet Dual Mode Speaker Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this March 23, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Chi-Liang Chen Signature Printed Title: CTO On behalf of : ADDON Technology Telephone: +886-2-2706-9692

Statement DATE : March , 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z2HBDSI13 Product Name: Wall outlet Dual Mod e Speaker Phone We ADDON Technology Hereby confirm that The Model numbers of BDS8888X, P-100, P-200, P-300, P-400, Mushroom, Mushroom BT SP1, Mushroom BT SP2, BT-100, BT-300, TOUGH SPEAKER, JV-05, JV-06, JV-07, Wall Outlet speaker, Power Play, BlueDotSound are all identical in interior structure, electrical circuits and components, and just model names and appearance color are different for the marketing requirement. Dated this June 16, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Chi-Liang Chen Signature Printed Title: CTO On behalf of : ADDON Technology Telephone: +886-2-2706-9692

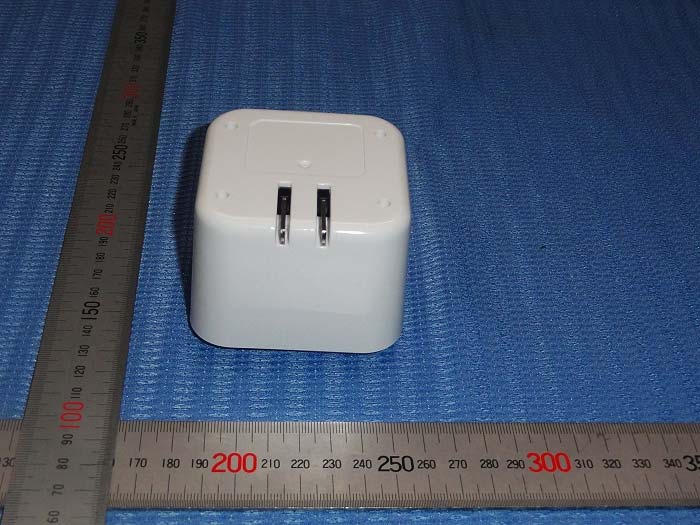

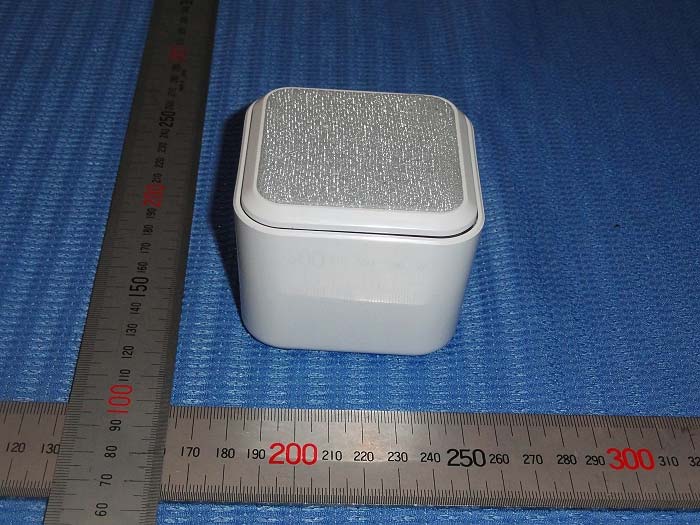

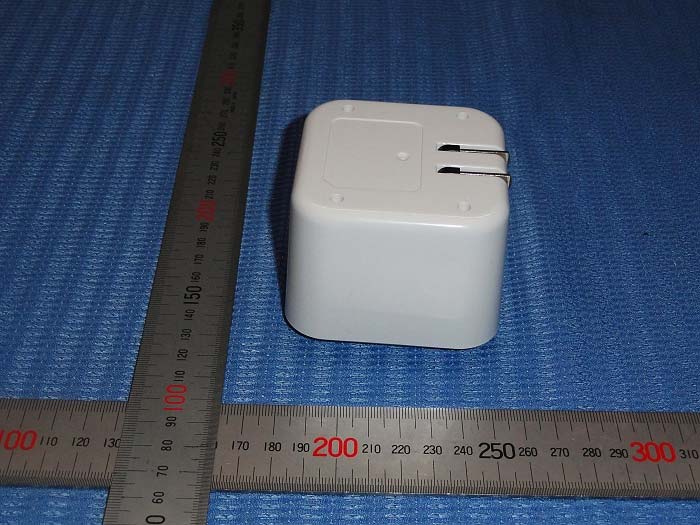

Outside view Outside view

Mark Location: Label Location

Inside view Inside view Inside view Inside view

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -8.94dBm（0.13mW） output power] (0.13mW /5mm) ·[√2.402 (GHz)]= 0.04 <3.0 for 1-g SAR Then SAR evaluation is not required

ISO/IEC17025Accredited Lab. Report No.: FCC 1503092 File reference No.: 2015-03-21 Applicant: ADDON Technology Product: Wall outlet Dual Mode Speaker Phone Model No.: BDS8888X, P-100, P-200, P-300, P-400, Mushroom, Mushroom BT SP1, Mushroom BT SP2, BT-100, BT-300, TOUGH SPEAKER, JV-05, JV-06, JV-07, Wall Outlet speakerˈ Power PlayˈBlueDotSound Trademark: BlueDotSound, Gecho, Mushroom, Mushroom Wireless , Add On, TELEFUNKEN, Freecom, Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: March 21, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1503092 Page 2 of 80 Date: 2015-03-21 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: FCC1503092 Page 3 of 80 Date: 2015-03-21 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure..................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
