Z3K-ATK2010AXXACTIVE RES MONITOR-10.1 STD-BLACK

ATK2010 Rear Seat Entertainment System Owners Manual ATK2010 Owners Manual English English 2 2015 Atom Enterprises, Inc. All rights r eserved. This manual, or any portion thereof, may not be reproduced without the express written consent of Atom Enterprises, Inc. For any questions, please call customer service (855) 574-2866 www.atomenterprisesinc.com ATK2010 Owners Manual Table of Contents English 3 General information 4 S afety instructions 4 General Characteristics 4 Cleaning and care 4 Supported media 5 Country codes 5 Front panel control buttons 6 Inputs/outputs 7 Remote control 8-9 Wireless IR headphones 10 How to identify Monitor A/B 10 Operation Playing a disc 11 Playing media via wireless display (miracast/DLNA) 11 Playing media via AUX input 11 Playing media via USB 11 Playing media via HDMI/MHL input 11 FM Transmitter function 11 Sharing media between monitors 12 Setup Main menus 13 Troubleshooting 14 Compliance information 14-16 Specifications 16 English 4 General Information P lease read this instruction manual carefully. Poor road conditions can cause problems with some media playback. In cold environments, the screen may sometimes display distortion. This is normal. Safety Information For safety reasons, it is recommended that media is only changed when vehicle is stationary. Children should not be permitted to unfasten their seatbelt to function the system/change media. System can be functioned using the remote control with seatbelts fastened. The use of headphones at high volume can cause permanent damage to hearing. To avoid hearing damage, set the volume to low before using them. It is unlawful, in most jurisdictions, and unsafe to drive a motor vehicle which is equipped with a video display that is visible, directly or indirectly, by the driver while moving. This system should never be installed where visible by the driver. General Characteristics •10.1” LED LCD display •1024 x 600 Resolution •Slot load DVD player •USB 2.0/2 amp charge •Miracast/DLNA (wireless connection to smartphone, etc) •Front capacitive touch controls •Support IR headphones/remote control •Analog A/V input-1/8” Jack •Stereo headphone output-1/8” Jack •FM Transmitter (88.5-107.5 MHZ) Caution Do not operate the system without the vehicle running, as it may cause the battery to drain. Please make sure the system is turned off when the vehicle is not running. Cleaning and Care Clean your rear seat entertainment system with a soft, dry cloth. For stubborn deposits, a mild cleaning agent may be used. Wipe off and finish with a dry cloth. Please note that strong cleaning agents, such as alcohol, thinners, benzene, insecticides, may cause damage to the system and should never be used. English 5 Supported Media S upported disc media Before inserting media, ensure that it is compatible with the system. Please note that the following data media is NOT compatible with the system: •Optical data media (CD-1, CD-ROM, DVD-ROM) •Mini disc Disc types that are compatible Supported USB media files MP3,WMA,OGG,MPE,MPG,MPEG,AVI, DIV,VID,VOB,JPG,JPEG, AAC, M1V, M2V, OGM. Supported HDMI/MHL input •HDMI media from any HDMI output Device •HDMI media from MHL compatible device (ie: MHL compatible smartphone, MHL compatible tablet, etc) NOTE: only certain devices are MHL compatible and may require special cables/adapters (please check with the device manufacturer) Symbol Disc Type Video DVD Audio CD (ie: CD- R with MP3, MPEG, WMA, or JPG files) Video CD Region Countriesin this region 1Canada, USA, US territories 2Japan, Europe, South Africa, Middle East (including Egypt) 3South East Asia, East Asia (including Hong Kong) 4Australia, New Zealand, Pacific Islands, Central America, Mexico, South America, Carribean 5Former Soviet Union, (also North Korea, Mongolia), Indian subcontinent, Africa 6China Country code restrictions If the country code on a DVD disc does not match the system country code, the DVD cannot be played. Panel Control Buttons/Disc slot English 6 2 3 41 1. Power button-turns system power on/off. 2. Source button-select media source for playing media (ie:DVD, AV input, MHL/HDMI, Wireless screen mirroring, USB) 3. Play/Pause-starts/pauses media source selected. 4. Stop-stops media that is playing. 5. Eject-ejects disc 5 English 7 Inputs/Outputs 1 5 3 4 1. HDMI input (MHL compatible) 2. USB 2.0 input (2 amp charging) 3. Headphone jack output (wired) 4. A/V input jack (analog 3.5MM) 5. Disc slot 2 Remote Control Buttons/Functions To control monitor A, press the A button first. To control monitor B, press the B button first. (SEE WIRELESS HEADPHONE DETAIL PAGE FOR MORE INFO) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1. POWER - turns power on/off 2. UP- navigate selection up 3. LEFT- navigate selection left 4. ENTER- accepts selection 5. FM- turns FM transmitter on/off (station can also be changed when button is depressed) **Function is for Monitor A only. 6. PLAY- select to play media 7. REVERSE- reverses play (fast) 8. PREVIOUS- selects previous track 9. STOP- stops media from playing 10. A- depress to control A monitor 11. HOME– back to home page 12. MENU – back to home page 13. EJECT- ejects disc 14. RIGHT- navigate selection right 15. DOWN- navigate selection down 16. DVD MENU - displays DVD “ROOT MENU” 17. FORWARD- plays media fast forward 18. PAUSE- pauses media being played 19. NEXT- selects next track 20. B- depress to control B monitor 21. BACK – back to previous page 22. SEARCH – back to home page 8 English Remote Control Battery Installation/Operation English 9 TAB 1. Remove battery cover by depressing tab (in direction of arrow) then lifting cover. 2. Insert 2 AAA batteries (make sure batteries are installed with correct polarity (+/-) 3. Reinstall battery cover ! NOTE: There is risk of fire if batteries are not handled correctly. Do NOT recharge batteries. Do NOT intermix different battery types, or batteries not charged the same amount. Please dispose of batteries per local laws. Please…

Text truncated - open the document above for the full version.

V 25 3F.,No.300,Yangguang St.,Neihu Dist.,Taipei City 11491,Taiwan,R.O.C FCC ID: Z3K-ATK2010AXX Device Name: ACTIVE RES MONITOR-10.1 STD-BLACK Model No.: ATK2010 Date: 4/16/2015 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize the of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Owen.chi (Signature) (Printed) Title : DQR Deputy Manager Applicant : JET OPTOELECTRONICS CO.,LTD Address : 3F.,No.300,Yangguang St.,Neihu Dist.,Taipei City 11491,Taiwan,R.O.C Tel: +886-3-321-7416 #5533 Fax: +886-3-312--1676

V 25 3F.,No.300,Yangguang St.,Neihu Dist.,Taipei City 11491,Taiwan,R.O.C FCC ID: Z3K-ATK2010AXX Device Name: ACTIVE RES MONITOR-10.1 STD-BLACK Model No.: ATK2010 Date: 4/16/2015 Federal Communications Commission Dear Sir: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By: By: Owen.chi (Signature) (Printed) Title : DQR Deputy Manager Applicant : JET OPTOELECTRONICS CO.,LTD Address : 3F.,No.300,Yangguang St.,Neihu Dist.,Taipei City 11491,Taiwan,R.O.C Tel : +886-3-321-7416 #5533 Fax: +886-3-312--1676

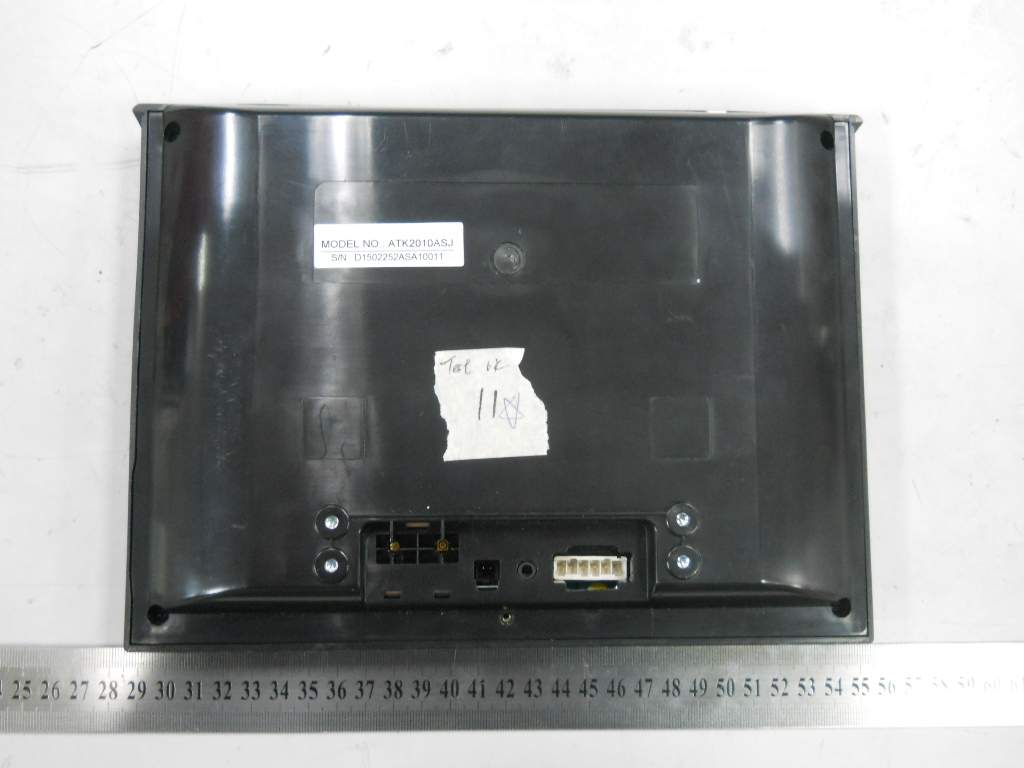

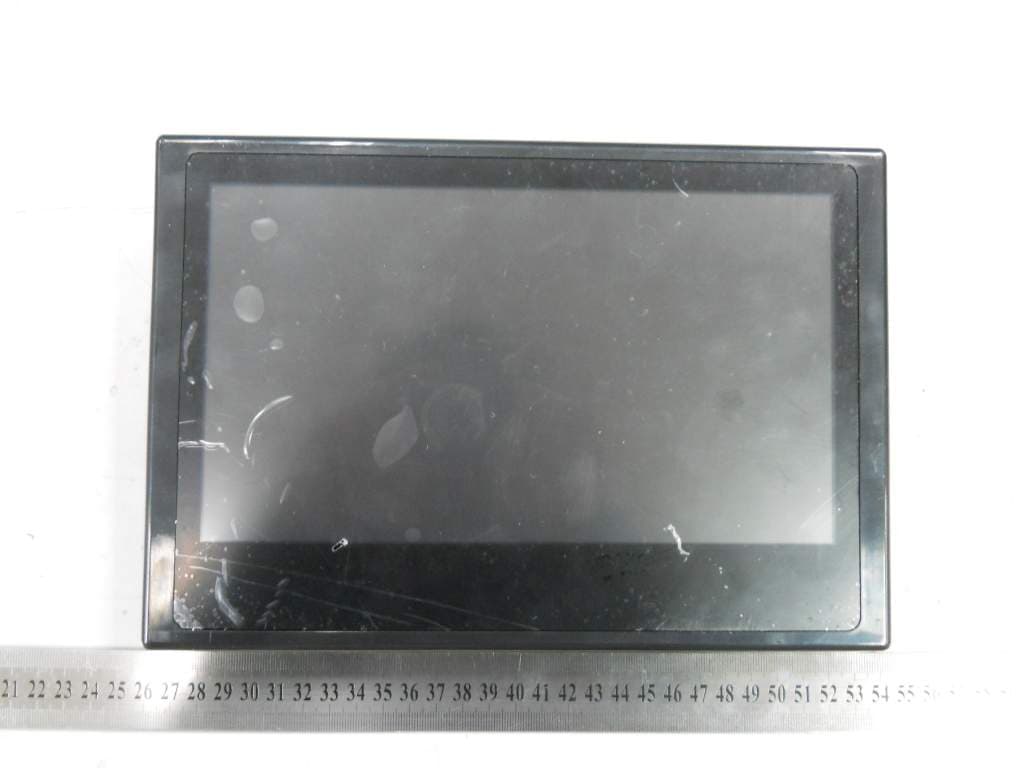

FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page A1 of A3 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page A2 of A3 3. Cable 4. FM Antenna FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page A3 of A3 5. FM Antenna

05_label_location (1948x1280x16M jpeg)

FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B1 of B8 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B2 of B8 3. Inside View 3 of EUT 4. Inside View 4 of EUT FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B3 of B8 5. Inside View 5 of EUT 6. Inside View 6 of EUT FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B4 of B8 7. Inside View 7 of EUT 8. Inside View 8 of EUT FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B5 of B8 9. Front view of PCB1 10. Rear view of PCB1 FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B6 of B8 11. Front view of PCB2 12. Rear view of PCB2 FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B7 of B8 13. Front view of PCB3 14. Rear view of PCB3 FCC ID: Z3K-ATK2010AXX ETC Report No.: 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Page B8 of B8 15. Front view of PCB4 16. Rear view of PCB4

FCC ID.: Z3K-ATK2010AXX Sheet 1 of 37 Sheets IC ID: 9930A-ATK2010AXX ETC Report No. : 15-03-MAS-087-02 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C and Canada RSS-210 Report No.: 15-03-MAS-087-02 Client: JET OPTOELECTRONICS CO., LTD. Product: ACTIVE RSE MONITOR-10.1 STD-BLACK Model: ATK2010 FCC ID: Z3K-ATK2010AXX IC ID: 9930A-ATK2010AXX Manufacturer/supplier: JET OPTOELECTRONICS CO., LTD. Date test item received: 2015/03/09 Date test campaign completed: 2015/03/27 Date of issue: 2015/03/27 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 37 pages Total number of pages of photos: External photos 3 pages Internal photos 8 pages Setup photos 1 pages Test Engineer Checked By Approved By Phillip Luo Falcon Shi James Cheng ELECTRONICS TESTING CENTER, TAIWAN No.8, Lane 29, Wenming Rd. Guishan Dist. Taoyuan City 33383, Taiwan, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID.: Z3K-ATK2010AXX Sheet 2 of 37 Sheets IC ID: 9930A-ATK2010AXX ETC Report No. : 15-03-MAS-087-02 Rev. No 1.0 Client : JET OPTOELECTRONICS CO., LTD. Address : 3F., No.300, Yangguang St., Neihu Dist., Taipei City 11491, Taiwan,R.O.C Manufacturer : JET OPTOELECTRONICS CO., LTD. Address : 3F., No.300, Yangguang St., Neihu Dist., Taipei City 11491, Taiwan,R.O.C EUT : ACTIVE RSE MONITOR-10.1 STD-BLACK Trade name : ATOM Model No. : ATK2010 Power Source : 13.5V dc Regulations applied : FCC 47 CFR, Part 15 Subpart C Canada RSS-210 Issue 8 / RSS-Gen Issue 4 The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Registration Number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID.: Z3K-ATK2010AXX Sheet 3 of 37 Sheets IC ID: 9930A-ATK2010AXX ETC Report No. : 15-03-MAS-087-02 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION.................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE:....................................................................................................................................... 4 1.3 TEST METHODOLOGY..................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 1.5 TEST SUMMARY............................................................................................................................................................. 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION.................................................................................................................................................................... 7 2.4 LABELING REQUIREMENT............................................................................................................................................... 8 2.5 USER INFORMATION....................................................................................................................................................... 9 3. SYSTEM TEST CONFIGURATION ........................................................................................................................ 10 3.1 DEVICES FOR TESTED SYSTEM..................................................................................................................................... 10 3.2 SELECTION OF THE AUDIO INPUT SIGNAL.................................................................................................................... 10 4. RADIATED EMISSION MEASUREMENT ........................................................................................................... 11 4.1 APPLICABLE STANDARD............................................................................................................................................... 11 4.2 MEASUREMENT PROCEDURE...............................................................…

Text truncated - open the document above for the full version.

FCC ID: Z3K-ATK2010AXX ETC Report No. : 15-03-MAS-087 IC ID: 9930A-ATK2010AXX Sheet 1 of 1 Sheets Photos of Radiation Measuring Setup
