  1. Home/
  2. JET OPTOELECTRONICS CO.,LTD./
  3. Z3K30101ABOX00

Z3K30101ABOX00FM Transmitter

JET OPTOELECTRONICS CO.,LTD.

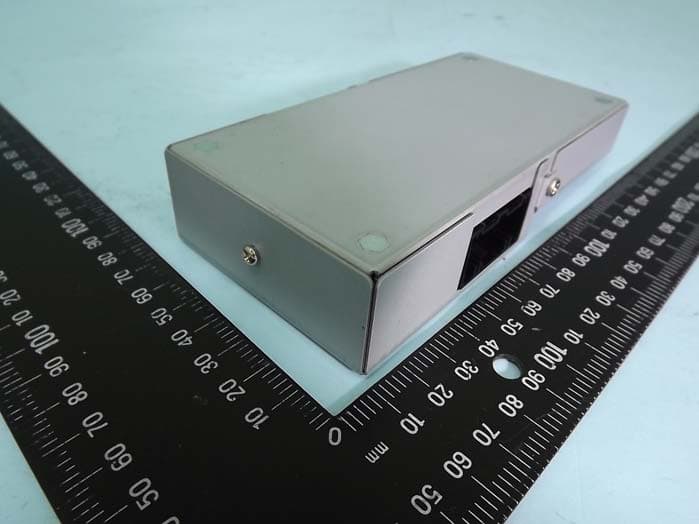

FM Transmitter - FCC ID Z3K30101ABOX00 - JET OPTOELECTRONICS CO.,LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
May 17, 2012
Application Purpose
Original Equipment
Date of Application
May 17, 2012
Equipment Note
FM Transmitter
Frequency Range
88.30000000 - 107.70000000
Company
JET OPTOELECTRONICS CO.,LTD.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

一、 Wiring :Power Supply 12~16 DCV MODULE Connection instructional diagram 1 This product is car audio and video control box 2 Recommendations Please installation by professional technicians 3Will pick a good line monitor A and monitor B、 each placed within the head restraint is being co-pilot。 4Will take a good line Ccontrol Box, Placed in the bottom of the co-pilot seat chairs。 1 3010-1A User’s manual 二、Explanation & Specification: Monitor AMonitor B 2 Monitor A Monitor B To Power supply DCV:12V~16V To Monitor A Red Connector Power & AV Output To Monitor A White Connector AV Input & I2C To Ear phome Audio Aux Output FM Transmitter frequency : 88.3MHz ~107.7 MHz FM Modulator IC (Quintic) : SMD QN8007B QFN24 3 WIRE CABLE FUNCTION NAME GRAY 1 2 BLACK To Monitor B Blue Connector AV Input & I2C To Monitor B Black Connector Power & AV Output To FM Antenna Output 88.3 MHz ~107.7 MHz Gray Connector Power Supply Black Connector Black Antenna 三、 Operating Instructions A.POWER ON/OFF 1. Press the Power key, opened the Monitor A and Monitor B. The look at the screen is normal B. Monitor A SOURCE button to switch the screen (Monitor A.Monitor B. AUX. TV). Or press the Monitor B SOURCE button to switch the screen (Monitor B. AUX. TV.Monitor A). To each other to see the picture and sound are normal. C.FM Modulator Playback 1 2 The radio automatically search the radio to find the same with the Monitor A channel. Listen to the radio, the sound is clear with or without noise or interference (AUDIO sound source only from the Monitor A) 4 To listen to the audio portion of the viewed source though the vehicle’s stereo system aim the remote at the driver’s side monitor and simply press the can be changed by pressing the Sound Around (Select) button on the remote. Tune the vehicle’s radio to the corresponding station to listen to the source that is displayed frequency as follows: the Driver's side headrest will now be audible through the vehicle's stereo. If a different audible source is desired, press the Sound Around (ON / OFF) button again to select Fm output ON and OFF. Once the desired audible source has been selected, the transmitting frequency the FM modulator transmits on Sound Around (ON / OFF) button to turn the FM modulator on. The screen will now display FM SOURCE: Monitor A . The Audio portion of the source originating from on the driver’s side monitor. To change the transmitting frequency, aim the remote at the driver’s side monitor and press the Sound Around (Select) button. Each press of the button advances the (1. 88.3, 2. 88.7 , 3. 89.1 , 4. 89.5 , 5.89.9 , 6.90.3MHZ Circulating). 3 And then CH + / CH-(UP / DOWN) key, press the remote control the Sound Around (SELECT) button to start the FM the OSD Office. Each time you press a frequency increment or decrement 200KHZ. The whole frequency range of FM of CH 88.3 to FMCH 107.7MHZ. Using full-frequency (before 88.3 , 99.5 , 107.7 three) radio must also channel the correct position. 5 Sound Around (ON/OFF) Sound Around (SELECT) CH+/CH- (UP/DOWN) 按壓一次跳200KHZ 4 When you want to leave when not in use, Press the power the key to turn off the Monitor A and Monitor B Power. 5 This video product is designed and intended for positioning in back seating areas of a vehicle where it cannot be viewed directly or indirectly by the driver and possibly cause him/her to be distracted from the task of operating the vehicle. Driver distraction is a major cause of accidents and for this reason many states specifically prohibit the viewing of motion video within view of the driver while the vehicle is in motion. The REV-LT system features auxiliary component RCA input jacks on the A/V Control Module. Devices connected to this input can be viewed on either screen (independently or simultaneously), as well as output through the vehicle stereo via the 3010-1A Control Box FM Transmitter. To view this input press the SOURCE button until EXT. AUX is displayed. NOTE: Consult your installer to determine how to access this input. 6 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts L'exploitation est autorisée aux deux conditions suivantes:(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there …

Text truncated - open the document above for the full version.

Cover Letter(s)

Confidentiality Request Letter Date: 2012/4/6 Federal Communications Commission Authorization and Evaluation Division FCC ID:Z3K30101ABOX00 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : JET OPTOELECTRONICS CO.,LTD. Applicant’s company address : 3F.,No.300,Yangguang St., Neihu Dist., Taipei City, 11491 Taiwan Signature : _______________________________ Job Title and Dept. : CHI OWEN / Deputy Manager E-mail : [email protected] Tel. : 886-3-321-7416 Ext: 5533

Cover Letter(s)

Date: 2012/4/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: Z3K30101ABOX00 Product name: 3010-1A Control Box To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model KA000N1001 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : JET OPTOELECTRONICS CO.,LTD. Address : 3F.,No.300,Yangguang St., Neihu Dist., Taipei City, 11491 Taiwan Signature : _________________________________April 6, 2012 Name and Job Title. : CHI OWEN / Deputy Manager E-mail : [email protected] Tel. : 886-3-321-7416 Ext: 5533

External Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B5 TEL : 886-3-327-3456 ISSUED DATE : May 07, 2012 FAX : 886-3-318-0055 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B5 TEL : 886-3-327-3456 ISSUED DATE : May 07, 2012 FAX : 886-3-318-0055

ID Label/Location Info

KA000N1001 / 3010-1A Control Box ECMMNF1AXXA1 AMCL1J 14G248 AA Supplier: EYCJA Made in China SERIAL NO.#: D110609000001 D110609000002 D110609000003 D110609000004 D110609000005 D110609000006 D110609000007 D110609000008 D110609000009 D110609000010 D110609000011 D110609000012 D110609000013 D110609000014 D110609000015 D110609000016 D110609000017 D110609000018 D110609000019 D110609000020 D110609000021 D110609000022 D110609000023 D110609000024 D110609000025 D110609000026 D110609000027 D110609000028 Z3K30101ABOX00 9930A-30101ABOX0

Internal Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B5 TEL : 886-3-327-3456 ISSUED DATE : May 07, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B5 TEL : 886-3-327-3456 ISSUED DATE : May 07, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B5 TEL : 886-3-327-3456 ISSUED DATE : May 07, 2012 FAX : 886-3-318-0055

Test Report

SPORTON International Inc. Report Format Version: a IC TEST REPORT Report No. : CR233022 IC RADIO TEST REPORT According to IC RSS-210 Section A2.8 Equipment : 3010-1A Control Box Brand Name : JET Model Name : KA000N1001 Filing Type : New Application Applicant : JET OPTOELECTRONICS CO., LTD. 3F., No. 300, Yangguang St., Neihu Dist., Taipei City 11491, Taiwan, R.O.C. IC ID : 9930A-30101ABOX0 Manufacturer : 3D Technologies (WuJiang) Co., LTD. No.18, Yanbang Road, TongLi Science and Technology Park Wujiang Economic Development Zone, Jiangsu Province P.R.C. Received Date : Apr. 06, 2012 Final Test Date : May 16, 2012 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and IC RSS-210 issue 8. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : May 16, 2012 FAX : 886-3-318-0055 IC ID : 9930A-30101ABOX0 IC TEST REPORT Report No. : CR233022 Table of Contents 1. SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2. GENERAL INFORMATION ...................................................................................................................................... 3 2.1. Product Details .........................................................................................................................................................................................3 2.2. Table for Carrier Frequencies ..................................................................................................................................................................3 2.3. Table for Test Modes ...............................................................................................................................................................................4 2.4. Table for Testing Locations ......................................................................................................................................................................4 2.5. Table for Supporting Units .......................................................................................................................................................................4 2.6. Test Configurations ..................................................................................................................................................................................5 3. TEST RESULT ......................................................................................................................................................... 7 3.1. AC Power Line Conducted Emissions Measurement ..............................................................................................................................7 3.2. Field Strength of Fundamental Emissions Measurement ......................................................................................................................10 3.3. 20dB Spectrum Bandwidth Measurement .............................................................................................................................................13 3.4. Radiated Emissions Measurement ........................................................................................................................................................18 3.5. Band Edge Emissions and Tuning Range of FM transmitter Measurement ..........................................................................................34 3.6. Antenna Requirements ..........................................................................................................................................................................36 4. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 37 5. TEST LOCATION ................................................................................................................................................... 38 6. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 39 APPENDIX A. TEST PHOTOS ................................................................................................................................. A4 APPENDIX B. PHOTOGRAPHS OF EUT ................................................................................................................ B5 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : May 16, 2012 FAX : 886-3-318-0055 IC ID : 9930A-30101ABOX0 IC TEST REPORT Report No. : CR233022 History of This Test Report Original Issue Date: May 16, 2012 Report No.: CR233022 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 2.2(a) 2.2(b) IC RSS-210 issue 8 SPORTON International Inc. Page No. : 1 of 39 TEL : 886-3-327-3456 Issued Date : May 16, 2012 FAX : 886-3-318-0055 IC ID : 9930A-30101ABOX0 IC TEST REPORT Report No. : CR233022 CERTIFICATE OF COMPLIANCE According to IC RSS-210 Section A2.8 E quipment : 3010-1A Control Box Brand Name : JET Model No. : KA000N1001 Applicant : JET OPTOELECTRONICS CO., LTD. 3F., No. 300, Yangguang St., Neihu Dist., Taipei City 11491, Taiwan, R.O.C. Sporton International as requested by the applicant to evaluate the EMC performance of the product sample received on Apr. 06, 2012 would like to declare that t…

Text truncated - open the document above for the full version.

Test Setup Photos

Page No. : A1 of A4 FCC ID : Z3K30101ABOX00 FCC TEST REPORT Report No. : FR233022 Appendix A. Test Photos Page No. : A2 of A4 FCC ID : Z3K30101ABOX00 FCC TEST REPORT Report No. : FR233022 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : A3 of A4 FCC ID : Z3K30101ABOX00 FCC TEST REPORT Report No. : FR233022 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : A4 of A4 FCC ID : Z3K30101ABOX00 FCC TEST REPORT Report No. : FR233022 For radiated emissions above 1GHz FRONT VIEW REAR VIEW

Contact Information

Applicant

CHI OWEN(Deputy Manager)
[email protected]886-2-5582-1818Fax: 886-2-5582-0098

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
115C88.3 MHz - 107.7 MHz-
Confidentiality
Long Term
