Z4D-BFM147Bluetooth Low Energy Personal Weighing Scale

www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 10 of 14 1.6 User Manual www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 11 of 14 www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 12 of 14 www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 13 of 14 www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 14 of 14

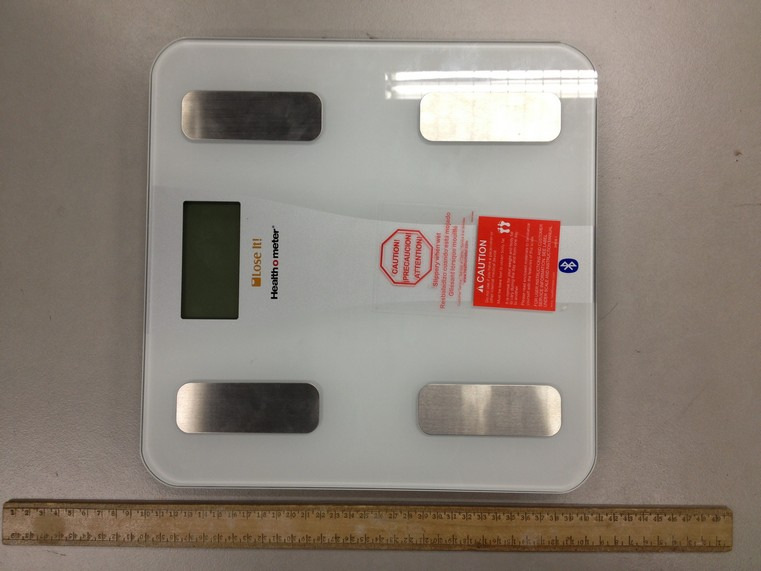

www.tuv.com Test Report No.: 14033627 001 Appendix 3 page 2 of 5 External View External View

www.tuv.com Test Report No.: 14033627 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14033627 001 Appendix 3 page 3 of 5 Internal View Internal View www.tuv.com Test Report No.: 14033627 001 Appendix 3 page 4 of 5 Internal View Internal View www.tuv.com Test Report No.: 14033627 001 Appendix 3 page 5 of 5 Internal View

TÜV Rheinland Hong Kong Ltd.
8-10/F., Goldin Financial Global Square
7 Wang Tai Road, Kowloon Bay, Hong Kong
Tel.: +852 2192 1000
Fax: +852 2192 1001
Email [email protected]
Web: www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No.: 14033627 001 Seite 1 von 10 Page 1 of 10 Auftraggeber: Client: Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions 2381 NW Executive Center Drive Boca Raton, FL 33431 United States Gegenstand der Prüfung: Test Item: Bluetooth Low Energy Personal Weighing Scale Bezeichnung: Identification: BFM147 Serien-Nr.: Serial No.: Engineering sample Wareneingangs-Nr.: Receipt No.: 00130731198-005 Eingangsdatum: Date of Receipt: 31.07.2013 Prüfort: Testing Location: TÜV Rheinland Hong Kong Ltd. 8/F, First Group Centre, 14 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Zustand des Prüfgegenstandes bei Anlieferung: Condition of test item at delivery: Test sample(s) is/are not damaged and suitable for testing. Prüfgrundlage: Test Specification: FCC Part 15 Subpart C ANSI C63.4-2003 Prüfergebnis: Test Results: Das vorstehend beschriebene Gerät wurde geprüft und entspricht oben genannter Prüfgrundlage. The above mentioned product was tested and passed. Prüflaboratorium: Testing Laboratory: TÜV Rheinland Hong Kong Ltd. 8 - 10/F., Goldin Financial Global Square, 7 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong geprüft/ tested by: Joey Leung 09.09.2013 Test Engineer kontrolliert/ reviewed by: Mika Chan 09.09.2013 Project Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges: FCCID: Z4D-BFM147 Other Aspects Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.: 14033627 001 Date: 09.09.2013 page 2 of 10 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 4 Submitted documents ................................................................................................................................. 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.203 – Antenna Information ....................................................................... Pass ................. 6 Subclause 15.204 – Antenna Information ....................................................................... Pass ................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................... N/A ................. 6 Subclause 15.247 (a)(2) – 6dB Bandwidth Measurement .............................................. Pass ................. 6 Subclause 15.247 (b)(3) – Maximum Peak Output Power ............................................. Pass ................. 7 Subclause 15.247 (d) – Spurious Conducted Emissions .............................................. Pass ................. 7 Subclause 15.247 (d) – Spurious Radiated Emissions .................................................. Pass ................. 8 Subclause 15.247 (d) – Band Edge Emissions ............................................................... Pass ................. 9 Subclause 15.205 – Restricted Bands next to Band-Edge ........................................... Pass ............... 10 Subclause 15.247 (e) – Power Spectral Density ............................................................. Pass ............... 10 Appendix 1 – Test protocols 14 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 5 pages Appendix 4 – Product documentation 14 pages www.tuv.com Test Report No.: 14033627 001 Date: 09.09.2013 page 3 of 10 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK Number of channels 40 Channel separation 2 MHz Type of antenna PCB Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 6.0V Independent Operation Modes Transmitting Receiving www.tuv.com Test Report No.: 14033627 001 Date: 09.09.2013 page 4 of 10 Product function and intended use The Lose It, Health o meter wireless body analysis scale offers user to measure, track and share body composition vitals in addition to the ability to track user’s calories, exercises and join challenges with the millions of other Lose It members. In addition to body weight, the Lose It Health o meter scale measures: · Body Fat · BMI · Hydration Submitted documents Circuit Diagram Block Diagram Bill of material Label Artwork User manual www.t…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 1 of 14 Appendix 1 Test Results www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 2 of 14 6 dB Bandwidth Measurement Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.402 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.41 dB m 2.402240000 GHz 2 Delta 2 [T1 ] -6.26 dB -610.000000000 kHz 3 Delta 3 [T1 ] -6.05 dB 100.000000000 kHz Date: 22.AUG.2013 17:04:58 Tx frequency: 2440MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.44 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -9.49 dBm 2.440230000 GHz 2 Delta 2 [T1 ] -5.95 dB -590.000000000 kHz 3 Delta 3 [T1 ] -6.11 dB 110.000000000 kHz Date: 22.AUG.2013 17:16:00 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 3 of 14 Tx frequency: 2480MHz Ref 10 dBm 2.47975 GHz Att 20 dB 2.47975 GHz * 2.47975 GHz * 2.47975 GHz * 2.47975 GHz A 2.47975 GHz RBW 100 kHz 2.47975 GHzVBW 300 kHz 2.47975 GHz SWT 2.5 ms 2.47975 GHz Center 2.48 GHz 2.47975 GHz Span 5 MHz 2.47975 GHz 500 kHz/ 2.47975 GHz 1 PK 2.47975 GHz MAXH 2.47975 GHz * 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz 2.47975 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.47975 GHz 1 Marker 1 [T1 ] -10.67 dB m 2.479750000 GHz 2 Delta 2 [T1 ] -6.07 dB -120.000000000 kHz 3 Delta 3 [T1 ] -6.33 dB 580.000000000 kHz MARKER 1 2.47975 GHz Date: 22.AUG.2013 17:31:21 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 4 of 14 Maximum Peak Output Power Tx frequency: 2402MHz Ref 0 dBm 2.402222 GHz Att 30 dB 2.402222 GHz A 2.402222 GHz Center 2.402 GHz 2.402222 GHz Span 3 MHz 2.402222 GHz 300 kHz/ 2.402222 GHz * 2.402222 GHz * 2.402222 GHz RBW 1 MHz 2.402222 GHzVBW 3 MHz 2.402222 GHz SWT 2.5 ms 2.402222 GHz 1 PK 2.402222 GHz MAXH 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz 2.402222 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.402222 GHz 1 Marker 1 [T1 ] -7.65 dB m 2.402222000 GHz MARKER 1 2.402222 GHz Comment: test print Date: 7.SEP.2013 14:14:01 Tx frequency: 2440MHz Ref 0 dBm 2.440186 GHz Att 30 dB 2.440186 GHz A 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz 2.440186 GHz Center 2.44 GHz 2.440186 GHz Span 3 MHz 2.440186 GHz 300 kHz/ 2.440186 GHz * 2.440186 GHz * 2.440186 GHz RBW 1 MHz 2.440186 GHzVBW 3 MHz 2.440186 GHz SWT 2.5 ms 2.440186 GHz 1 PK 2.440186 GHz MAXH 2.440186 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.440186 GHz 1 Marker 1 [T1 ] -8.97 dBm 2.440186000 GHz MARKER 1 2.440186 GHz Comment: test print Date: 7.SEP.2013 14:15:03 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 5 of 14 Tx frequency: 2480MHz Ref 0 dBm 2.47973 GHz Att 30 dB 2.47973 GHz A 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz 2.47973 GHz Center 2.48 GHz 2.47973 GHz Span 3 MHz 2.47973 GHz 300 kHz/ 2.47973 GHz * 2.47973 GHz * 2.47973 GHz RBW 1 MHz 2.47973 GHzVBW 3 MHz 2.47973 GHz SWT 2.5 ms 2.47973 GHz 1 PK 2.47973 GHz MAXH 2.47973 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.47973 GHz 1 Marker 1 [T1 ] -10.04 dB m 2.479730000 GHz MARKER 1 2.47973 GHz Comment: test print Date: 7.SEP.2013 14:15:53 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 6 of 14 Spurious Conducted Emissions Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 60 s Center 12.5 GHzSpan 25 GHz2.5 GHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.51 dBm 2.400000000 GHz 2 Delta 2 [T1 ] -50.34 dB 4.650000000 GHz Date: 22.AUG.2013 17:12:57 Tx frequency: 2440MHz A 2.4 GHz * 2.4 GHz RBW 100 kHz 2.4 GHzVBW 300 kHz 2.4 GHz * 2.4 GHz SWT 60 s 2.4 GHz Ref 10 dBm 2.4 GHz Start 0 Hz 2.4 GHz Stop 25 GHz 2.4 GHz 2.5 GHz/ 2.4 GHz Att 20 dB 2.4 GHz * 2.4 GHz 1 PK 2.4 GHz MAXH 2.4 GHz * 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.4 GHz 1 Marker 1 [T1 ] -10.69 dBm 2.400000000 GHz 2 Delta 2 [T1 ] -48.46 dB 6.000000000 GHz MARKER 1 2.4 GHz Date: 22.AUG.2013 17:35:57 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 7 of 14 Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 60 s Center 12.5 GHzSpan 25 GHz2.5 GHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.03 dB m 2.450000000 GHz 2 Delta 2 [T1 ] -47.10 dB 850.000000000 MHz Date: 22.AUG.2013 17:27:36 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 8 of 14 Band Edge Emissions Tx frequency: 2402MHz (conducted measurement) Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.394 GHzSpan 20 MHz2 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.00 dBm 2.402280000 GHz 2 Marker 2 [T1 ] -48.96 dBm 2.399280000 GHz Date: 22.AUG.2013 17:07:40 Tx frequency: 2480MHz (conducted measurement) Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.488 GHzSpan 20 MHz2 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -11.22 dBm 2.480240000 GHz 2 Marker 2 [T1 ] -60.23 dBm 2.485120000 GHz Date: 22.AUG.2013 17:30:11 www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 9 of 14 Tx frequency: 2402MHz (radiated measurement) Vertical Polarization www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 10 of 14 Horizontal Polarization www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 11 of 14 Tx frequency: 2480MHz (radiated measurement) Vertical Polarization www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 12 of 14 Horizontal Polarization www.tuv.com Test Report No.: 14033627 001 Appendix 1 page 13 of 14 Power Spectral Density Tx frequency: 2402MHz Ref 0 dBm 2.40223208 GHz Att 30 dB 2.40223208 GHz A 2.40223208 GHz 2.40…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14033627 001 Appendix 2 page 2 of 2 Setup for Radiated Emission Set-up for Radiated Emission
