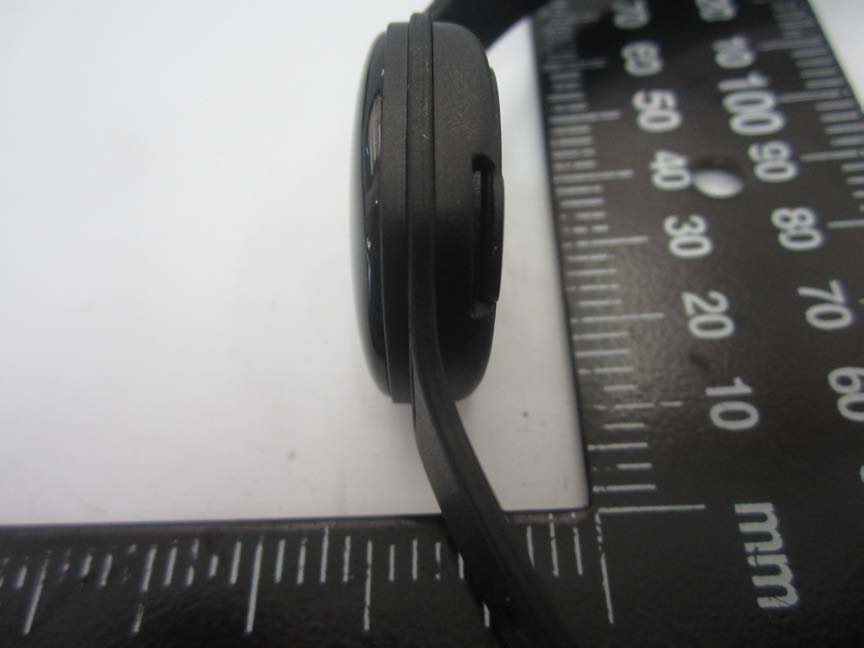

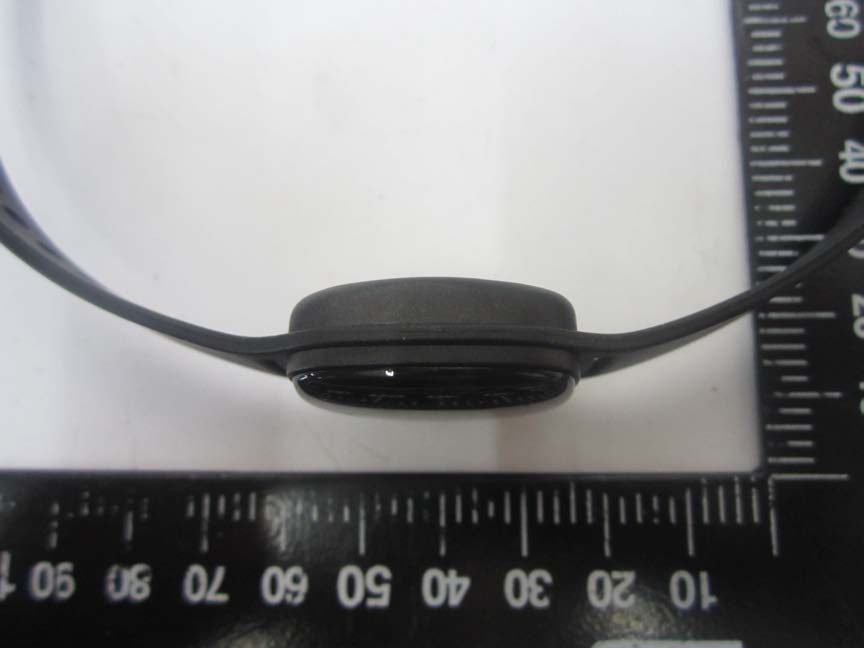

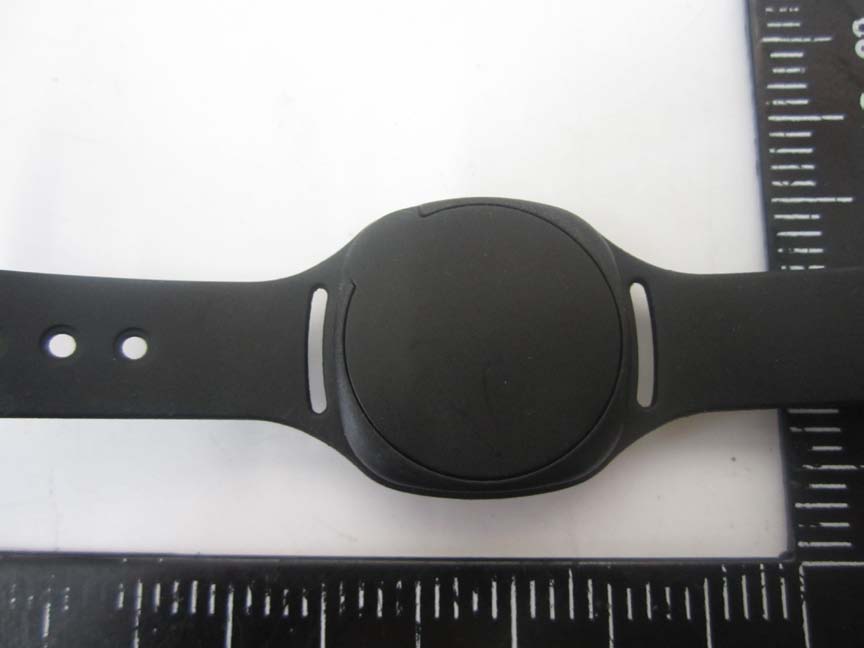

Z4D-HNY100Healthometer nuyu Activity Monitor

Confidential document, all rights reserved by R.E.A.C. Co., Ltd Project Name: Healthometer nuyu Activity Monitor Product No.: HNY100 Confidential document, all rights reserved by R.E.A.C. Co., Ltd PRODUCT SPECIFICATION Battery : Lithium cell CR2032 (220mAh) Bluetooth distance : max. 8m Display : OLED dot matrix (resolution : 64 x 32) MAIN FE AT U R E S  Daily step taken, distance traveled;  Daily Calories burnt (including RMR);  Goal achieved Progress;  Real Time Clock;  Low Battery Indicator  Bluetooth 4.0  Sleep Quality (Auto sleep and manual function done APP)  Exercise mode. (Walking/Running)  30 days memory summary for step, time traveled, time traveled, calories and recent 7 days detailed data with 15 minutes interval.  Auto synchronization at certain time everyday (In Battery Saver Mode)  Auto sleep algorithm calculated by APPs. OLED DISPLAY OLED Display (64x32 dots) Confidential document, all rights reserved by R.E.A.C. Co., Ltd DAILY DATA RANGE (ACTIVITY) Daily step : 0 - 999999 steps Step Distance : 0 – 599.99km Active Time Duration : 00:00 – 23:59 (hr:mm) Calories : 0 – 59999 kcal Age : 5 - 99 Weight : 30 – 200kg Height : 100 cm – 250cm Step length : 30 cm – 200cm Note: The step accuracy is varied which is dependent on different testing conditions. (eg, wearing positions, pace, movement pattern of a person.....). DEFAULT SETTING Time & Date : 12:00am (12hr Format) 2015/1/1 Gender : Female DOB : 1/1/1980 (Age : 35) Weight : 150 lbs (68 kg) Height : 5’ 5” (165cm) Step length : 27” in (female = Height x 0.413) Corrected RMR : 1.10 kcal/min (By Mufflin equation) Unit display : Imperial Unit Broadcast device name : HNY100 Auto synchronization times: 7:00am & 6:00pm (Configurable) BUTTON FUNCTION There are button functions inside the device: Swipe function and Tap function Swipe function : Swipe Right to Left to turn on the display, and then swipe Right to Left to scroll to next display. Double Ta p : Double tap to for command / confirmation. (Exercise only & manual sleep only) Confidential document, all rights reserved by R.E.A.C. Co., Ltd POWER ON RESET (INITIALIZATION)  When new battery is inserted, there is a nuyu logo which shows on the display for 3s,  Then enter to the step mode, the default step time is 0 step.  Swipe from right to left to scroll the next display.  Default scroll sequence : Steps  Clock  Distance  Calories  Goal achieve  Step Note : When there is no any swipe within 5s, it will exit and OLED will be off. STEP MODE  When scroll to the STEP mode, it will show current daily step below  Measuring Range : 0 – 999,999 steps  If the step exceeds to the maximum range, it will show the maximum display.  The daily step data will be reset at midnight. CLOCK MODE  When scroll to the CLOCK mode, it will show current clock below Confidential document, all rights reserved by R.E.A.C. Co., Ltd  The real time clock was synchronized by Apps  12/24 hour mode format was also selected by Apps  Low Battery icon will only be displayed when battery is low. Low Battery indication DISTANCE MODE  When scroll to the DISTANCE mode, it will show current daily distance traveled below  The display unit can be selected Imperial or Metric unit by Apps  Measuring Range : 0 – 600.00km (0 – 372.80 miles)  The measured result in miles or km will be with 2 decimal places.  If the step exceeds to the maximum range, it will show the maximum display.  The daily step data will be reset at midnight.  The daily distance data will be reset at midnight. TOTAL CALORIES BURNT MODE  When scroll to the CALORIES mode, it will show current daily calories burnt below  Measuring Range : 0 – 60000 kcal (No decimal place)  Sum up all calories burnt --- RMR (updated every minute), walk/running (steps), extra exercise.  The activity calories is calculated using the METs.  The daily calories data will be reset at midnight. GOAL ACHIEVE MODE  When scroll to the TARGET ACHIEVE mode, it will show current daily goal achievement of progress below: Confidential document, all rights reserved by R.E.A.C. Co., Ltd  Default Goal steps: 7000 steps. The goal steps can be configured by Apps.  Display range : 0 – 100+ (%)  Maximum range : 999% CONFIGURABLE DISPLAY  In Home Mode, the display of “DISTANCE”, “TOTAL CALORIES” and “GOAL ACHIEVED” is configurable ON/OFF by APPs.  If the modes of display are configured to be OFF, it will not show this mode on the device. SYNCHRONIZATION a.) SYNCHRONIZATION MODE (NORMAL MODE DEFAULT)  The device will automatically broadcast signal every 10s (to be confirmed later on), if the APP gets the signal from device, it can connect the device itself. Note: If the device is being connected, it will not broadcast anymore, it will broadcast again when the connection is disconnected by APPs. b.) SYNCHRONIZATION MODE (BATTERY SAVER MODE)  The APP can be configured to the device into “Battery Saver Mode”.  When the connection is disconnected, it will enter into “Battery Saver Mode”.  During “Battery Saver Mode”, the auto broadcast will be stopped. The device will be broadcasting every 10 sec for 1 minute when consumer swipe the display to wake up the display.  If the APP gets the signal from the device, it can connect the device itself.  If no connection is established for 1 minute, it will stop broadcast the signal until the customer swipe the display to wake up the display next time. Note : If the device is being connected, it will not broadcast anymore, it will broadcast again when the connection is disconnected by APPs. AUTO SYNCHRONIZATION (ONLY AVAIABLE WHEN BATTERY SAVER MODE IS SELECTED)  The device will automatically broadcast the signal at certain time every day.  The auto synchronization time can be adjusted by App.  At the auto synchronization time, the device will broadcast its signal every 10s for 1 minutes.  If the APP gets the signal from the device, it can connect the device itself.  If no connection is established for 1 minute, it…
