Z8P-KTTV101WNetwork Media Player

English Quick Start Guide English Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents isasued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD High Resolution Audio and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. Dune HD TV 101 Quick Start Guide 3 Table of Contents Table of Contents English Quick Start Guide • Introduction • Key Features • Extra Functions • Package Contents • Exterior • Remote Control • Getting Started • Quick Setting of Video Output Mode • Connecting USB Drives • Accessing Network Drives • Formatting HDD • Switching the Player On and Off • NAS (Network Attached Storage) • WiFi • Limitations • Updating Your Player and Getting More Information Русский Краткое руководство • Введение • Основные особенности • Дополнительные функции • Содержимое коробки • Внешний вид • Пульт управления • Начало работы • Быстрое изменение видеорежима • Подключение USB-накопителей • Доступ к сетевым дискам • Форматирование жесткого диска • Включение и выключение проигрывателя • NAS (Network Attached Storage) • WiFi • Ограничения • Обновление плеера и доп. информация 416 4 Dune HD TV 101 Quick Start Guide Introduction Dune HD TV-101 is an all-in-one solution for up to Full HD (1080p) video playback. Key Features ● The newest Sigma Designs 8670/8671 media processor: enjoy excellent playback and performance of interactive features. ● HDD player: connect an HDD to the player and play content directly from the HDD. ● Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS). ● MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate. ● USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices. ● HDMI 1.3: ensure the best possible quality of HD video and HD audio. ● Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC). ● Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution. ● File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort). Extra Functions ● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc). ● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions. ● NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP). 5 English ● BitTorrent: use built-in BitTorrent client to download files from P2P networks. ● Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics). ● Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats). ● IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider*. ● Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle**. * Check availability of multicast UDP/RTP streams with your Internet provider. ** Digital TV USB dongle is not included; this option can be purchased separately. 6 Dune HD TV 101 Quick Start Guide Package Contents 1. Dune HD TV-101 media player 2. Remote control (batteries may not be included) 3. Wi-Fi antenna (optional) 4. AV cable (3.5mm minijack to 3xRCA) 5. External power supply 6. Quick start guide NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and distributor. 1 4 2 65 3 7 English Front view Exterior 1. LED indicator 2. IR eye 3. USB 2.0 host 213 1. 3.5mm minijack AV out 2. HDMI 1.3 3. LAN 4. Wi-Fi antenna (optional) 5. DC power 5V Rear view AV OUTHDMILAN 10/100DC IN 21345 8 Dune HD TV 101 Quick Start Guide Remote Control 1 2 3 4 5 6 7 8 10 11 12 13 9 1. POWER — toggle the standby mode. 2. 0–9 — enter numbers and text, switch TV channels during TV watching. 3. CLEAR — delete entered data, delete selected items. 4. SELECT (cap/num) — switch text input modes, select several items, control some other player functions. 5. RIGHT/LEFT (V+/V-) — navigate through the menu, adjust the volume during play- back. 6. UP/DOWN (CH+/CH-) — navigate through the menu, switch TV channels during TV watching. 7. ENTER — open/use the selected item, confi rm the input, show OSD menu during play- back, show TV channels menu and Electronic Program Guide during TV watching. 8. RETURN — go back, cancel the action. 9. INFO — show information about the selected item or the current player state. 10. POP UP MENU — show a menu with possible actions for the selected item or the current player state. 11. TOP MENU — navigate to the top menu of the player, control some other player functions. 12.PLAY/PAUSE, STOP, PREV, NEXT, REW, FWD, REC, MUTE — control the playback and some other player functions. 13. A (Red), B (Green), C (Yellow), D (Blue) — control various player functions (depend- ing on the context). 9 English NOTES: ● Use alkaline AAA batteries. ● Observe polarity when inserting batteries. ● Direct the remote control to the player. There must be no obstacles between the RC and the player. ● If RC functions only at short distances or stops functioning, make sure to replace the batteries. ● Some RC buttons may have several functions depending on the current player mode. ● Some RC buttons may be available only in certain player modes or only during playback of a certain content. 10 Dune HD TV 101 Quick Start Guide Getting Started Ensure there is enough space aroun…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 HDI Dune Limited RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road Central, Hong Kong PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: Nov. 07, 2011 FCC ID: Z8P-KTTV101W Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory _____________________ Konstantin Dyshlevoy Vice President RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road Central, Hong Kong Tel: +852 8 1753500 Fax: +7 (495) 6460002 E-Mail: [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Date: Nov 09, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: Z8P-KTTV101W To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, HDI Dune Limited RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road Central, Hong Kong Signatory _____________________ Konstantin Dyshlevoy Vice President RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road Central, Hong Kong Tel: +852 8 1753500 Fax: +7 (495) 6460002 E-Mail: [email protected]

HDI Dune Limited RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, Hong Kong PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 08.11.2011 Authority to Act as an Agent We declare that the following representative (agent) Name Delia Feng Position Specialist Company Name Cerpass Technology Corporation Address 2F-11, No.3, YuanQu St.,NanKang Dis., Taipei City, Taiwan, R.O.C. Tel / Fax +886-2-2655-8100/ +886-2-2655-8200 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name NETWORK MEDIA PLAYER Model Name TV-101 Brand Name --- We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Konstantin Dyshlevoy Position Vice President Company Name HDI Dune Limited Address RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, Hong Kong Tel / Fax +852 81753500/ +7 (495) 6460002 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

HDI Dune Limited RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road Central, Hong Kong Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: HDI Dune Limited FCC ID: Z8P-KTTV101W FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Konstantin Dyshlevoy Position Vice President Company Name HDI Dune Limited Address RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, Hong Kong Tel / Fax +852 81753500/ +7 (495) 6460002 E-Mail [email protected]

Customers:金運科技股份有限公司 Customer Model No.: Master Wave Model No.:98282MRSX000 Product Description: Issue Date: REV.:00 承 認 書 APPROVAL SHEET 2011/9/7 8282 Replacement Ant. 核准 Approve主管 Chief承辦 Responsible CharleneCoreyHero 客戶承認用印 Customer Approved 權億承認用印 Confirmation Signature 2011.9.7 MASTER WAVE TECHNOLOGY CO., LTD. 權億科技股份有限公司 Address: No.81-8, Longshou St., Taoyuan City, Taoyuan County 330, Taiwan (R.O.C.) Tel: +886-3-3600306 Fax: +886-3-3600979 Shengyih Electronic Plastic Co. Ltd (Shou Zhou) 聲億電子塑膠有限公司 (蘇州廠 ) Address: No.95 Wusong south Rd of Luzhi Town Wu zhong Area Suzhou City, China Tel：+86-512-65046030 Fax：+86-512-65046033 Shengyih Electronic Plastic Manufactory (Dongguan) 聲億電子塑膠製品廠 (東莞廠) Address: Mu-Lun Administration Area, Changping Town,Dongguan City.Guangdong Province,China T el：+86-769-83914045 Fax：+86-769-83914046 Table of Contents Item 1. Antenna Specifications -Drawing -Electrical Properties -Mechanical Properties 2. Test Report -Electrical test -Pattern test -Antenna Efficiency 3. Material Certifications -Connector -Cable 4. Packing -PE Bag -Carton Modification History: REV.Content 002011/9/7 Date Electrical Properties Mechanical Properties RP SMA Plug 8282 Replacement Antenna 2.4~2.5 GHz 50 Ohms ≦2.0 TPEEMaterial Connector Dimension(L*W*H)86*Ø10 mm Type Frequency range Impedance VSWR Electrical Test 2D Radiation Pattern XY-Plane XZ-Plane YZ-Plane Antenna Efficiency 85.9 92.3 89.7 Efficienc y ( % ) 2.65 3.09 2.7 Peak EIRP ( dBm ) 2500 2450 2400 Fre q uenc y ( MHz ) -2.34 -2.25 -2.49 Avera g e Gain ( dB ) 2.76 2.78 2.71 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) YZ-Plane -2.09 -2.23 -2.47 Avera g e Gain ( dB ) 1.52 1.85 1.94 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) XZ-Plane 1.58 1.96 2 Avera g e Gain ( dB ) 2.68 3.12 2.75 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) XY-Plane Connector SMA Shock Environmental Ratings Working Voltage Moisture Resistance -65°C ~ +165°C MIL-STD-202,METHOD 107,Condition B MIL-STD-202,METHOD 101,Condition B MIL-STD-202,METHOD 213,Condition I MIL-STD-202,METHOD 204,Condition D Insulator Brass Brass Teflon Material DataMaterial Body Center Contact MIL-STD-202,METHOD 106 Thermal shock Corrosion Vibration Durability (mating) Center contact: 3.0 Milliohms (Max.) Outer contact: 2.0 Milliohms (Max.) Recommended coupling nut torque 4.0 in. lbs. ~ 8.8in. lbs. Coupling nut retention force ≧60 lbs. Contact captivation axial ≧6 lbs. Coupling Proof Torque15 in-1bs.min 50 ohm 0~6 GHz ≦1.5 Impedance Frequency Range V.S.W.R Material Specifications Electrical Properties ≦250Vrms ≦670 Vrms ≧2000 Megohms ≧500 cycles Operating Temperature Contact Resistance Dielectric Withstanding Voltage Insulation Resistance CABLE SPECIFICATION 線材規格

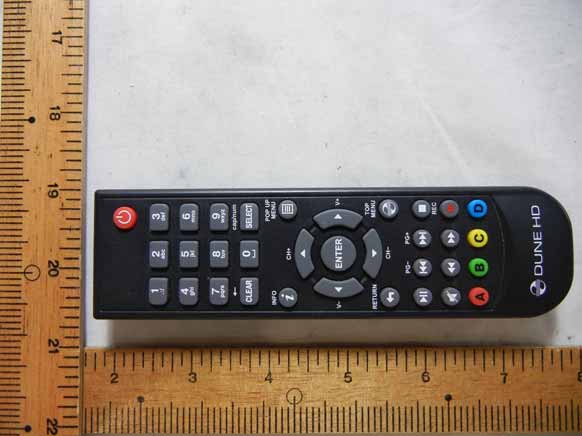

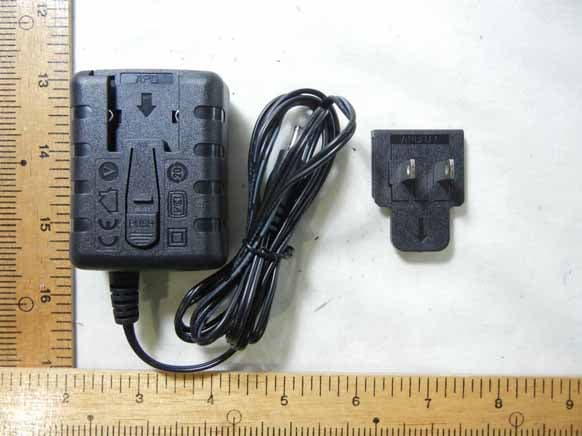

CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A15 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A15

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A9 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A10 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A11 of A15 CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued Date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A12 of A15

Test Result of RF Exposure Evaluation . Product: Network Media Player . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.4 GHz Antenna 1 -Antenna type: Dipole Antenna -Antenna Gain: 2.0 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Aug. 16, 2011 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 46% Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 17.81 0.019 06 2437 17.94 0.020 11 2462 17.79 0.019 802.11g (54Mbps) 01 2412 15.95 0.012 06 2437 15.78 0.012 11 2462 15.60 0.011 Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) 802.11n HT20 (130Mbps) 01 2412 15.84 0.012 06 2437 15.67 0.012 11 2462 15.33 0.011 The MPE is calculated as 0.020 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 75 FCC ID Z8L-KTTV101W FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : HDI Dune Limited Address : Room 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road, Central, Hong Kong Equipment : NETWORK MEDIA PLAYER Model No. : TV-101 Series No. : Kartina Micro HD FCC ID. : Z8P-KTTV101W ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 75 FCC ID Z8L-KTTV101W Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 RF Specification ......................................................................................................................... 6 2.3 Carrier Frequency of Channels .................................................................................................. 7 2.4 Test Mode and Test Software ..................................................................................................... 7 2.5 Description of Test System ......................................................................................................... 7 2.6 General Information of Test ........................................................................................................ 8 2.7 Measurement Uncertainty .......................................................................................................... 8 2.8 History of this test report ............................................................................................................ 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 17 5. Test of Radiated Emission ............................................................................................................... 18 5.1 Test Limit .................................................................................................................................. 18 5.2 Test Procedures ....................................................................................................................... 18 5.3 Typical Test Setup .................................................................................................................... 19 5.4 Measurement Equipment ......................................................................................................... 19 5.5 Test Result and Data ................................................................................................................ 20 5.6 Test Photographs ..................................................................................................................... 46 6. 6dB Bandwidth Measurement Data ................................................................................................. 47 6.1 Test Limit .................................................................................................................................. 47 6.2 Test Procedures ....................................................................................................................... 47 6.3 Test Setup Layout .................................................................................................................... 47 6.4 Measurement Equipment ......................................................................................................... 47 6.5 Test Result and Data ................................................................................................................ 47 7. Maximum Peak Output Power .................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 17 of 75 FCC ID Z8L-KTTV101W 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1109079 Cerpass Technology Corp. Issued date : Oct. 21, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 46 of 75 FCC ID Z8L-KTTV101W 5.6 Test Photographs Front View Rear View
