Z8P-KTTV301WIEEE 802.11b/g/n WiFi Module

IEEE 802.11 b/g/n WiFi Module Product Specifications Model: GWF-3M05 Version: 1.5 2010-1-7 Information in this document is subject to change without prior notice. Page 1 of 9 1. Introduction GWF-3M05 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector supporting USB 2.0 interface. This is a low cost compact WLAN module designed in products with embedded system for the wireless connectivity. This Module is designed to operate in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature. 1.2 Features _ 802.11b: 1, 2, 5.5, 11Mbps; _ 802.11g: 6, 9, 12, 18，24, 36, 48, 54Mbps _ 802.11n: (20MHz) MCS0-7, Support up to 72Mbps _ OFDM, Peak rate 150Mbps, Peak throughput 90Mbps. _ Security support for 64/128 WEP, WPA, WPA2, TKIP, AES 2. Product Information 2.1 Specification Overview Standards IEEE802.11b/g & 802.11n (1T1R mode) Operating Frequency USA (FCC): 2.412GHz ~ 2.462GHz (channel 1 – 11) ISM band Europe (CE): 2.412GHz ~ 2.472GHz (channel 1 – 13) ISM band Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM Antenna External 50 ohm antenna via an I-PEX receptacle Security WPA/WP2, 64/128/152-bit WEP, WPS Transmit Output Power (Typical) 11b: 19±1.0dBm @ 11Mbps 11g: 16±1dBm @ 54Mbps 802.11n: (HT20), 15+/-1dBm, Receive Sensitivity (Typical) 11b: -84dBm @ 11Mbps; 11g: -70dBm @ 54Mpbs. 802.11n: (HT20), -66dBm@MSC7 Operating Voltage 5.0VDC ± 5% (or3.3VDV± 5% upon special requirement) Operating Current <110mA at 5.0V DC input. Bus Interface USB 2.0/USB1.1 USB Interface 6-pin, 2.0mm pitch male jumper , or 1.0mm pitch connector Information in this document is subject to change without prior notice. Page 2 of 9 2.2 Hardware Information 2.2.1 Block Diagram 5V/3.3V External antenna 2.412~2.4835GHz 3.3V/1.8V I-PEX Receptacle USB Connector VCC (5V) DATA+ DATA- GND USB Interface RT3070 Baseband MAC/ Packet Buffer/ Encrption Engine RF Transmitter RF Receiver PA RF SW TX CONTROL EXTERNAL LED USB WiFi adapter Figure 1: System Block Diagram of GWF-3M05 5.0V WLAN Module External antenna 2.412~2.4835GHz 3.3V/1.8V I-PEX Receptacle USB Connector VCC(3.3V) DATA+ DATA- GND USB Interface RT3070 Baseband MAC/ Packet Buffer/ Encrption Engine RF Transmitter RF Receiver PA RF SW TX CONTROL EXTERNAL LED USB WiFi adapter Figure 2: System Block Diagram of GWF-3M05 3.3V WLAN Module Information in this document is subject to change without prior notice. Page 3 of 9 2.3 Software and system Information Operation System CPU Supplier Driver Linux 2.4/2.6 ARM, MIPSII Available Windows 2000/XP/Vista X86 Platform Available Windows CE 5.0/6.0 ARM, MIPSII Available Mac OS X 10.3/10.4/10.5/10.6 N/A Available 2.4 Mechanical Information 2.4.1 OUTLINE and Connection Interface (Pictures are for reference only) a). 6-pin 1.0 mm pitch connector. Model: GWF-3M05-50-CT; GWF-3M05-33-CT Information in this document is subject to change without prior notice. Page 4 of 9 I - P E X r e c ep t a c l e C o m p o n e n t s U n i t : m m S h i e l d C a s e S h i e l d C a s e T O P - V I E W Model: GWF-3M05-50-CB; GWF-3M05-33-CB Connector information: The profile of the 6-pin connector Information in this document is subject to change without prior notice. Page 5 of 9 U n i t : m m S h i e l d C a s e B O T TT T O M - V I E W b). 6-pin 2.0 mm pitch male jumper. Model: GWF-3M05-50-T; GWF-3M05-33-T Model: GWF-3M05-50-B; GWF-3M05-33-B Information in this document is subject to change without prior notice. Page 6 of 9 M a l e J u m p e r U n i t : m m S h i e l d C a s e P C B I - P E X r e c e p t a c l e S h i e l d C a s e T O P - V I E W (To be noted: For special application, the direction of the male jumper can be upside down mounted, or the connector can be 90 degree bended) 2.4.2 Pin definition: Pin 6-pin 1.0mm pitch connector 6-pin 2.0mm pitch male jumper 1 VCC (3.3 VDC or 5.0VDC) VCC (3.3 VDC or 5.0VDC) 2 UD- ( USB data-) UD- ( USB data-) 3 UD+ (USB data+) UD+ (USB data+) 4 GND (Ground) GND (Ground) 5 LED (Wireless TX status) TX (RF ON/OFF control) 6 TX (RF ON/OFF control) LED (Wireless TX status) *The TX ( RF ON/OFF control) is low level activated to OFF. 2.4.3 Antenna Connection Information A 50 ohm external antenna via an I-PEX receptacle. ( Part No: 20279-001E-01) Information in this document is subject to change without prior notice. Page 7 of 9 M a l e J u m p e r U n i t : m m P C B S h i e l d C a s e B O T TT T O M - V I E W The profile of the I-PEX connector 2.5 Order information: GWF-3M05-33-T, for 3.3+/-5%VDC, the long pins are at the same side with the shield case. GWF-3M05-33-B, for 3.3+/-5%VDC, the long pins are at the opposite side with the shield case. GWF-3M05-50-T, for 5.0+/-5%VDC, the long pins are at the same side with the shield case. GWF-3M05-50-B, for 5.0+/-5%VDC, the long pins are at the opposite side with the shield case. GWF-3M05-50-CT, for 5.0+/-5%VDC, Soldered with 6 pin connector, top side mounted. GWF-3M05-50-CB, for 5.0+/-5%VDC, Soldered with 6 pin connector, bottom side mounted. GWF-3M05-33-CT, for 3.3+/-5%VDC, Soldered with 6 pin connector, top side mounted. GWF-3M05-33-CB, for 3.3+/-5%VDC, Soldered with 6 pin connector, bottom side mounted . 3. Agency Approval Agency Approval FCC Part15 √ CE √ RoHS √ 4. Environment 4.1 Temperature 4.1.1 Operating Temperature Continuous reliable operation in ambient temperature: 0ºC to +50ºC. 4.1.2 Storage Temperature The product is not damaged or degraded when keeping in -20ºC to +85ºC. 4.2 Humidity 4.2.1 Operating Humidity Conditions Information in this document is subject to change without prior notice. Page 8 of 9 The product is capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing). 4.2.2 Non-Operating Humidity Conditions (including warehouse) The product is not damaged or degraded when kept in the relative humidity range from 20% to 80%. 5 Disclaimer T…

Text truncated - open the document above for the full version.

Federal Communication Commission Statement (FCC, U.S.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTES FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Co-location warning: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Limited Channels fixed for use in the US: IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is firmware-limited to Channel 1 through 11. OEM integration instructions: This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. The module shall be only used with the external antenna(s) that has been originally tested and certified with this module. For all products market in US, OEM has to limit the operation channels in Channel 1 to Channel 11 as specified above by the supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Validity of using the module certification: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Custom design antennas may be used, however the OEM installer must following the FCC 15.21 requirements and verify if new FCC approval will be necessary. End product labeling: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: Z8P-KTTV301W”. Information that must be placed in the end user manual: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

HDI Dune Limited FCC Declaration of Conformity Number: CF302 Version: V01 Date: 01-02-2010 DoC We, (legal entity within the US, such as importer or manufacturer) Company Name: HDI Dune Limited Address: RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, Postal/Zip: City: Hong Kong State/Province: Country: Hong Kong Contact Person: Mr. Ms. Name: Konstantin Dyshlevoy Function: CEO Email: [email protected] Web: Phone:+852 81753500 Fax: 74956460002 declare for the equipment identified by: Product Description IEEE 802.11 b/g/n WiFi Module Type or Model(s) GWF-3M05 Tradename or Brand(s) --- that: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired op- eration. The following documents are subject to this declaration: Test Firm or Laboratory: Test Report Number: Date of issue: Cerpass Technology Corporation TEFD1201038 Apr. 19, 2012 Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong, Hong Kong 2012/05/09 Konstantin Dyshlevoy CEO (APEC MRA TE1049)

HDI Dune Limited FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name HDI Dune Limited Addresss RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, City Hong Kong Country Hong Kong declare that the following representative (agent): Name (person) Sophia Lin Company name Cerpass Technology Corporation Addresss No.3, 2F-11, YuanQu St., City Taipei City Country Taiwan is hereby authorized to apply the following equipment for certification on our behalf: Product Description IEEE 802.11 b/g/n WiFi Module Type or Model(s) GWF-3M05 Tradename or Brand(s) --- We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong, Hong Kong 2012/05/09 Konstantin Dyshlevoy CEO

HDI Dune Limited FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name HDI Dune Limited Addresss RMs 1101-1104, 11/F., Nan Fung Tower, 173 Des Voenux Road Central, City Hong Kong Country Hong Kong request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Z8P -KTTV301W of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong, Hong Kong 2012/02/06 Konstantin Dyshlevoy CEO

FCC Modular Approval Request Number:CF305 Version: V01 Date: 01-02-2010 To the FCC or FCC TCB handling this application Hereby we, Company (grantee) HDI Dune Limited Addresss Room 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road, Central, City / ZIP / State / Country Hong Kong / Hong Kong request modular approval for the certification of our equipment within this application, identified by: FCC ID: Z8P-KTTV301W The table below contains justification for modular approval of this equipment. Requirement per DA 00-1407 Explanation from grantee 1. The modular transmitter must have its own RF shielding. Yes, The modular Transmitter has metal shielding. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter uses RT3070 for buffered/ data inputs. 2. The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply Regulator. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The antenna of the modular transmitter complies with FCC requirements. 3. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand- alone configuration. 4. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. When the module is installed inside another device, it will be labeled as “ contain transmitter module” Z8P-KTTV301W” 5. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The user’s manual has provide instructions to explain the requirements. 6. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimetre wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The radiated output power of WiFi Module 802.11bgn devices is far below the FCC radio frequency exposure limits. Attestation (by grantee) City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong, Hong Kong 2012/05/09 Konstantin Dyshlevoy CEO

Declaration We, Company Name: HDI Dune Limited Address: Room 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road, Central Postal/Zip/ City: Hong Kong Country: Hong Kong Hereby declare that Product: IEEE 802.11 b/g/n WiFi Module Type or Model(s): GWF-3M05 Tradename or Brand(s): N/A When the device is working in ad‐hoc mode, is not capable of transmitting on any other frequency not authorized in the US. When operating in Ad‐hoc mode, the supported channels are limited to channel 2412‐2462 MHz in 11b/g/n (20) mode. ____________________________ Konstantin Dyshlevoy / CEO HDI Dune Limited e‐mail: dkv@dune‐hd.com Tel: 85281753500 Fax: 74956460002

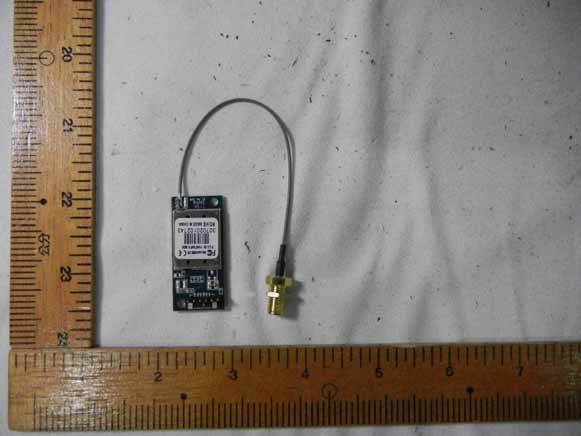

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201038 Cerpass Technology Corp. Issued Date : May 03, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A2 FCC ID : Z8P-KTTV301W Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201038 Cerpass Technology Corp. Issued Date : May 03, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A2 FCC ID : Z8P-KTTV301W Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1201038 Cerpass Technology Corp. Issued Date : May 03, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A2 FCC ID : Z8P-KTTV301W

Test Result of RF Exposure Evaluation . Product: IEEE 802.11 b/g/n WiFi Module . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.412-2.462 GHz Antenna type: Dipole Antenna Antenna Gain: 2 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Apr. 26, 2012 Temperature: 24°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 802.11b (11Mbps) 01 2412 19.03 0.025 06 2437 19.15 0.026 11 2462 19.10 0.026 802.11g (54Mbps) 01 2412 16.23 0.013 06 2437 16.21 0.013 11 2462 16.29 0.013 802.11n HT20 (65Mbps) 01 2412 15.25 0.011 06 2437 15.34 0.011 11 2462 15.28 0.011 The MPE is calculated as 0.026 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Control Signals USB Interface 3.3V 1.8V Interface Signals 2.4G TX0 RTC6661 2.4G RX0 Antenna T/R SPDTSwitch 2.4G TX PAPE_G0 BP F PA RT3070 SW Regulator ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 Title v e R r e b m u N t n e m u c o D e z i S f o t e e h S : e t a D 1 3.0 GWF-3M05-33 Shenzhen Ogemray Technology Co., Ltd 6 C Wednesday, April 30, 2010 40MHz RT3070 ANT 2.4G-2.5G XZ3406N18 GWF-3M05-33 Shenzhen Ogemray Technology Co., Ltd Wednesday, June 11, 2010 C 2 3.0 6 of Sheet Date: Rev Document Number SizeTitle Filename:CB-RT2661+RT5326-V10TQ-X-062705.DSN RALINK TECHNOLOGY, CORP. CONFIDENTIAL Filename:PEN-RT3070-QFN-V30RW-1X1-080611.DSN ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 UDM UDP USB_I/F_AND_POWER PA_RFG RFING TR_SW0 TR_SWN0 PA_PE_G UDPUDM MAC/TRANSCEIVER_RT3070 MPAOG TR_SWN0 TR_SW0RFING FRONT-END PA_PE_G MPAOG PA_RFG 2_4GHZ_PA MPAOG TR_SWN0PA_PE_G PA_PE_G RFING PA_RFG TR_SW0 UDPUDM Shenzhen Ogemray Technology Co., Ltd Wednesday, June 11, 2010 C 6 GWF-3M05-33 3.0 -1 of Sheet Date: Rev Document Number SizeTitle ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 [4][4] 1 2 B190 ohm NC NCG V- + G 4321 2341 65 7 J1 USB_A-PLUG 12 R261M 12 R251M 4 VIN 1 EN 3 SW 5 VOUT 2 GND U11 XZ3406 C7 4.7uF C15 0.1uF 1 2 L7 IND-UPRIGHT 4.7uH UDMUDP GND VBUS UDM UV+ UDP GND VBUS 3.3V 1.8V VB US Shenzhen Ogemray Technology Co., Ltd Wednesday, June 11, 2010 C -1 3.0 GWF-3M05-33 6 of Sheet Date: Rev Document Number SizeTitle 44 count Place RT1 closeto Power Amp. Reserve FOR RX LOleakage ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 [3][3][2][2] [3] [5][5] 1 2 C2827pF/RF 1 TP5 12 C50 0.1uF t 12 RT1 CT6103-3435-5P 1 2 C34 0.1uF/RF 1 TP6 12 C7210pF/RF 1 2 L9 3.9pF/RF 1 2 C41 10pF/RF 12 C580.1uF 12 R29110K1 2 C29 0/RF 1 2 C46 0.1uF 1 2 C39 1.5nH/RF 12 C375 0.5pF/RF 12 C37 22nF/RF 12 C3740.1uF 12 C47 0.1uF 1 2 B200 ohm/NI 12 C350.1uF 12 C79 1uF 12 R4 12K/RF 1 2 C43 1pF 1 2 D2 LED 1 2 R292 0/RF 1 2 R8 620 12 C36 1pF/NI 1 2 R290 10K 12 C55 0.1uF 12 C780.1uF/RF 12 C37010pF/RF 12 R28810K 1 2 R293 0/RF 12 C31 100pF/RF 1 2 C4 0 0.1uF 1 2 C369 1uF 12 C3730.1uF/RF 1 2 L8 3.3pF/RF 1 RF2G_INP 2 RF2G_INN 3 RF_V12A 4 RF2G_OUTP 7 RF_TSSI_IN 6 RF_PA_PE 9 LDO_CORE_VO12 10 LDO_CORE_VI15 11 RST_N 12 LDO_FUSE_VO25 13 LDO_FUSE_VI33 14 VDD 18 CPU_PFL_CSN 19 LED_ACT_N 17 EXT_PM_MODE 15 TR_SW0 16 TR_SWN0 69 PLL_X2 70 PLL_X1 63 LDO_OUT1_V12A 64 LDO_IN12_VX 65 LDO_OUT2_V12A 66 BG_VBG 67 BG_RES_12K 68 BG_ V33A 71 PLL_DIV_V12A 72 PLL_PRE_V12A 73 PLL_VC_CAP 74 VCO_LO_V12A 75 VCO_V CO_V12A 8 BASE_1_V12A 76 RF_LO_V1 2A 5 RF_IO_V33A 20 LED_RDYG_N 21 VDD 22 VC CIO 23 TESTEN 24 SEL_EFUSE 25 LNA_PE 26 GPIO3 27 GPIO2 28 GPIO1 29 GPIO0 30 USB_SU SPM 31 SEL_EXT_CLK 32 CLK_EXT 33 VDD 34 VRES 35 VDDA 36 PADM 37 PADP 38 VDDL 39 SPICSN 40 SPISCK 41 SPISI 42 SPISO 43 VDD 44 VCCIO 45 PLL_AVDD_V12A 46 PLL_DVDD_V12D 47 BASE_TRX_QN 48 BASE_TRX_QP 49 BASE_TRX_IN 50 BASE_TRX_IP 51 BASE_2_V12A 52 ADC_V33A 53 ADC_VREF 54 ADC_VREF025N 55 ADC_VREF025P 56 ADC_VCC12D 57 ADC_VCC12D 58 ADC_VCC1 2A 59 ADC_VCC1 2A 60 ADC_V REFN 61 ADC_V REFP 62 ADC_VCC1 2A 77 GND U7 RT3070-QFN 12 C37110pF/RF 1 2 C38 3.3nH/RF 12 C810.1uF 12 C75 1uF 1 2 R15 100K 12 R289 8.2K/RF 2.5x3.2 12 43 U5 XTAL/3.2x2.5/40MHz/RF 1 2 R287 10K/NI 12 C850.1uF 1 TP1 12 C59 10pF/RF 1 TP2 12 C37210pF/RF 12 C821uF 12 C56 0.1uF 1 2 R12 330 1 TP3 12 L51 2.7nH/RF 1 2 C3 0 0/RF 12 C570.1uF 12 C368 1pF/RF 1 TP4 TR_SW0 TR_SWN0 PA_PE_GPA_RFG RFING UDPUDM GND 1_2V GND 1_2VA_2 3_3V 1_5V GND 1_2VA_1 GND GND GND GND GND GND GND GND GND GN D GND GND GND GND GND GND 3_3V GND GND GND 3_3V 3_3V GND LD1P_ACT BG_RES_1 2K ADC_VREFP UDP RFING+0 ADC_VREF 40 MX1 40MX1 LED_LKACT# 40MX2 40 MX2 ADC_VREF025N UDM PLL_VC_CAP RFING-0 ADC_VREFN RF_ING_ L ADC_VREF025P DP_DM SEL_EFUSE TSSI RF_2G_OUTP RF2G_OUTP RF_ING RFING0+RFING0- RST_N 2_5V PA_PE_G PA_RFG TR_SWN0 TR_SW0 RFING 1_2V VRES GND 1_2VA_1 1_2VA_1 1_ 2VA_1 1_ 2VA_1 1_2VA_1 1_ 2VA_2 1_ 2VA_2 1_ 2VA_2 1_ 2VA_2 1_ 2VA_21_ 2V 1_2V1_2V 1_ 2V 1_2V1_2V1_2V1_2V 1_ 2V 1_ 2V 1_ 2V 1_ 2V 1_2V 3_ 3V 3_3V 3_3V 3_ 3V 3_3V3_3V 3_ 3V 3_3V 3_3V 3_3V 1_5V 1_ 5V GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND Shenzhen Ogemray Technology Co., Ltd Wednesday, June 11, 2010 C -1 3.0 GWF-3M05-33 Front-End 6 of Sheet Date: Rev Document Number SizeTitle CAP: 10pF/NI (ANTENNA0)(TX0/RX0) MonopoleAntenna ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 [4][4][2] [4] MPAOGTR_SW0 1 IO 2 G E1 USB-ANT-RA-1 3 OUT1 2 GND 1 OUT2 6 VC2 5 IN 4 VC1 U4 RTC6603/RF 12 C202.2pF/RF 1 2 C17 2.7nH/RF 1 IN 2 G 4 G 3 OUT U3CON MS-156-C/RF 12 C21 1.2pF/RF 1 2 R5 1K 1 2 C27 10pF/RF 1 2 R61K 1 2 C19 10pF/RF 1 2 C18 10pF/RF 12 C223.9nH/NI TR_SWN0 TR_SW0MPAOG RFING GND GND GND GND GND GND GND ANTES ANTEC RFING ANTES1 ANTESA ANTESA MPAOG TR_SWN0TR_SW0 TR_SWN1 TR_SW1 GND GND GND GND GND GND Shenzhen Ogemray Technology Co., Ltd Wednesday, June 11, 2010 C 6 GW-3M05-33 2.4GHz PA 3.0 -1 of Sheet Date: Rev Document Number SizeTitle ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 [4][4] [3] 12 R10/RF 12 C12 NI 12 C101.5pF/RF 12 L4 1.5pF/NI 12 C81.8pF/NI 12 L11.5nH/RF 12 C110.1uF/RF 12 C140.1uF/NI 1 2 C13 0.1uF/RF 1 2 L5 2.7nH/RF 12 C5300R/NI 12 L2 3.3nH/RF 4 BI 2 BO 3 G 1 G U1 BF1608-RF 12 C310uF/RF 12 C20.1uF/RF 1 2 C6 4.7pF/RF 12 C10.1uF/RF 1 NC 2 RFIN 3 NC 4 VC CB 5 VREF 6 PD 7 NC 8 RFOUT 9 NC 10 NC 11 VC C1 12 NC 13 GND U2RTC6661 1 2 R2 80.6/RF 12 L3 NI 12 C92.4pF/RF 1 2 C4 3.3pF/RF 1 2 C37610pF/RF PA_PE_G PA_RFG MPAOG GND GND GND 3_3V GND GND GND GND GND GND GND GND VB1 BPF_OG VCCB1 3_3V VCC_ 11 PA_RFG PAIN_G PA_PE_G PAF1 GND MPAOG MPAO PAOG GND GND GND GND GND GND GND GND GND GND

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201038 Cerpass Technology Corp. Issued date : May 03, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 81 FCC ID : Z8P-KTTV301W FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : HDI Dune Limited Address : Room 1101-1104, 11/F., Nan Fung Tower, 173 Des Voeux Road, Central, Hong Kong Equipment : IEEE 802.11 b/g/n WiFi Module Model No. : GWF-3M05 FCC ID. : Z8P-KTTV301W ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1201038 Cerpass Technology Corp. Issued date : May 03, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 81 FCC ID : Z8P-KTTV301W Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Wireless Specifications .............................................................................................................. 7 2.3 Carrier Frequency of Channels .................................................................................................. 8 2.4 Test Mode and Test Software ..................................................................................................... 8 2.5 Description of Test System ......................................................................................................... 9 2.6 General Information of Test ...................................................................................................... 10 2.7 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement Equipment ......................................................................................................... 13 4.5 Test Result and Data .........................................…
