Z8P-KTTV102WNetwork Media Player

English Quick Start Guide  ࠄࡰߐೲΕז English  ᕷᡏύЎ TV-102 TV-102AW ΋΋ ૓ ໨ Ҟ ! 2 / ! ႝ ྍ ा ؃ ; ! 2 2 1 W !  ! 3 5 1 W ! Ҭ ࢬ ႝ ! - ! 7 1 I { ! 3 / ! ф ౗ ੃ ઻ ; ! 2 1 X ! 4 / ! ᏹ բ ྕ ࡋ ; ! 6 ࡋ D Կ 4 6 ࡋ D ! 5 / ! ᏹ բ ྒྷ ࡋ ; ! 3 6 & ! Կ ! 9 1 & ! 3 Table of Contents Table of Contents EnglishQuick Start Guide   Key FeaturesExtra FunctionsPackage Contents ExteriorRemote ControlGetting StartedQuick Setting of Video Output ModeConnecting USB DrivesAccessing Network DrivesFormatting HDDSwitching the Player On and OffNAS (Network Attached Storage)Wi-FiLimitations         416 ύЎࠄࡰߐೲΕז Ǹ!ᙁϟǸ!ЬाфૈǸ!ځдфૈǸ!хးϣ৒ނ!!!Ǹ!ѦᢀǸ!འ௓Ꮤ٬Ҕۈ໒!ǸǸ!זೲ೛ۓຎૻᒡрኳԄǸ!ೱௗ!VTC!ᅶᅷᐒǸ!Ӹڗᆛၡး࿼Ǹ!਱ԄϯѦௗԄฯᅷǸ!ኞܫᏔ໒ᜢϪඤǸ!OBTȐᆛၡߕуᓯӸး࿼ȑǸ!Xj.GjǸ!ज़ڋǸ!׳ཥኞܫᏔᆶڗள׳ӭၗૻ 4 Dune HD TV-102 Quick Start Guide   Dune HD TV-102 is an all-in-one solution for up to Full HD (1080p) video playback.Key Features The newest Sigma Designs SMP867x media processor: enjoy excellent playback and performance of interactive features.  HDD player: connect an HDD to the player and play content directly from the HDD.  Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).  MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.  USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.  HDMI port: ensure the best possible quality of HD video and HD audio.  Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).  Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.  File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort). Extra Functions High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, etc).  Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.  NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP). 5 English  Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).  Internet radio:        !""#$  % &'  Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle*. * Digital TV USB dongle is not included; this option can be purchased separately. 6 Dune HD TV-102 Quick Start Guide Package Contents 1. Dune HD TV-102 media player 2. Remote control (batteries may not be included) 3. +7  4. AV cable (3.5mm minijack to 3xRCA) 5. External power supply 6. Quick start guide NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and distributo r. 14 2 6 5 3 7 English Front viewExterior 1. LED indicator 2. + 3. USB 2.0 host 2 13 Rear view 2 1345 1. 3.5mm minijack AV out* 2. !; 3. LAN 10/100 4. +<7 #= >;? @@ 5. DC power 5V *Composite video out, analog 2.0 audio out,   7 >;?   % analog audio output). **Requires optional adapter (sold separately). 8 Dune HD TV-102 Quick Start Guide Remote Control1. Command indicator IJ%   +X   ' 2. TV — switch to TV mode. MUTE — turn the sound on/off. MODE — switch the video output mode; control some other player functions. POWER — toggle the standby mode. 3. A (Red), B (Green), C (Yellow), D (Blue) — control some player functions. 4. 0–9 — enter numbers and text; control some other player functions. 5. SEARCH IZ   [     ' ZOOM — change the zoom factor for the video content being played. SETUP — enter/leave the setup menu; adjust playback settings during playback. 6. V+/V- (volume up / volume down) — adjust the volume. 7. P+/P- (page up / page down) — scroll up and down in various lists; control some other player functions. 8. Arrows , ENTER, RETURN, TOP MENU, POP UP MENU, INFO — main buttons for controlling the player (navigate across the items on the screen, open/use the currently selected item, go back to the previous screen, go to main menu, show popup menu with actions, show information, control some other player functions). 9. — control the playback. 9 English 10. SUBTITLE, ANGLE/ROTATE, AUDIO, REC, DUNE, URL — control the playback and some other player functions. 11. REC — start/stop TV channel recording, — launch Dune HD Portal, URL — open Web Browser with concrete URL NOTES:                    !"##    !  #   $   %  #   ! !   !%         odes or only during playback of a certain content. 10 Dune HD TV-102 Quick Start Guide Getting Started Ensure there is enough space around the player for proper cooling. The space at each side should be not less than 10 cm.Ensure the RC has batteries installed.X  %  "\   %]#\^    _'!;    %best possible quality of video and audio. Make sure to switch off the player and all relevant A/V equipment before connecting them. Ensure your TV and other A/V equipment are configured to use proper inputs.Switch on the player. The player will perform its initial loading procedure, which may take up to about 1 minute. During the loading procedure, "DUNE HD" logo is shown on the TV.   {;|<!;{ …

Text truncated - open the document above for the full version.

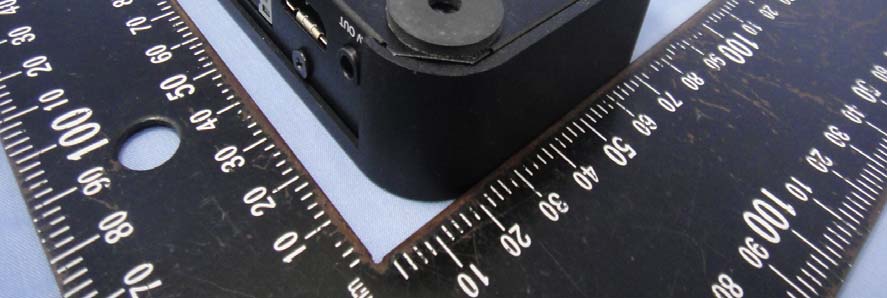

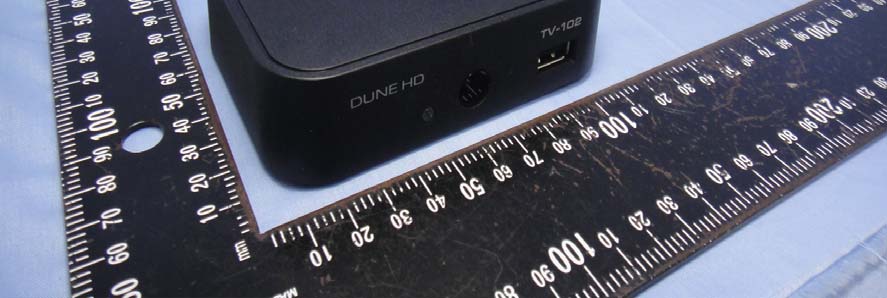

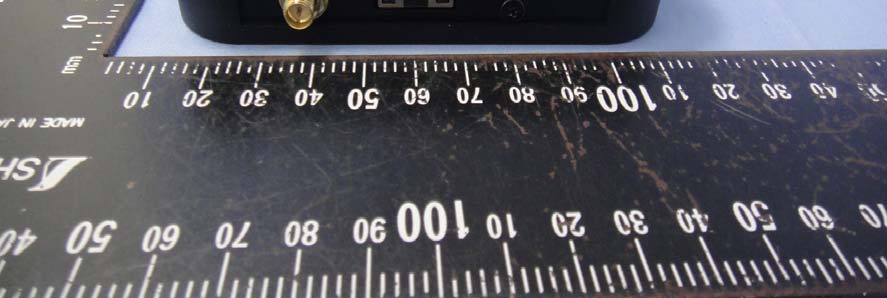

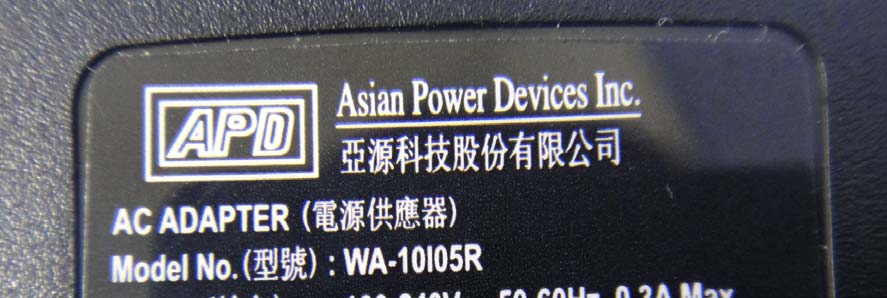

Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 7 Rev. 00 Antenna (1) Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 9 Rev. 00 (2) Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 10 Rev. 00

Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 12 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: November 15, 2012 A1 - 14 Rev. 00 Module

Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: April 26, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Network Media Player Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 1. Master Wave Technology CO., LTD / 98242MRSX000 Dipole Antenna / Gain: 2dBi (Numeric gain: 1.58) (Reverse polarity SMA) 2. Dail Fong Electronics CO., LTD / P/N: AN-DF073007 Dipole Antenna / 2.4GHz Gain: 2dBi (Numeric gain: 1.58) (Reverse polarity SMA) Max. output power IEEE 802.11b : 11.59 dBm (14.421mW) IEEE 802.11g : 12.59 dBm (18.155mW) IEEE 802.11n HT20 : 11.68 dBm (14.723mW) IEEE 802.11n HT40 : 11.83 dBm (15.240mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 12.59dBm (18.155mW) at 2462MHz (with 1.58numeric antenna gain.) Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: April 26, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T121115W03 Date of Issue: April 26, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246214.4211.58200.00451 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246218.1551.58200.00571 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241214.7231.58200.00461 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9245215.2401.58200.00481

Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 108 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Network Media Player Model: TV-102AW, TV-102, TV-102W, TV-102A, STV-102, STV-102W, STV-102A, STV-102AW Trade Name: DUNE HD Issued to HDI Dune Limited 1101-1104,11/F.,Nan Fung Tower,173 Des Voen Hong Kong,Hong Kong Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 22, 2013 Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 22, 2013 Initial Issue ALL Rachel Wu Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................10 4.3 MEASUREMENT UNCERTAINTY .............................................................................................11 5. FACILITIES AND ACCREDITATIONS ........................................................................................12 5.1 FACILITIES .......................................................................................................................................12 5.2 EQUIPMENT......................................................................................................................................12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................13 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................14 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................14 6.2 SUPPORT EQUIPMENT ...............................................................................................................14 7. FCC PART 15.247 REQUIREMENTS.............................................................................................15 7.1 6DB BANDWIDTH.............................................................................................................................15 7.2 PEAK POWER....................................................................................................................................29 7.3 AVERAGE POWER............................................................................................................................31 7.4 BAND EDGES MEASUREMENT ................................................................................................33 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................59 7.6 SPURIOUS EMISSIONS.................................................................................................................73 7.7 RADIATED EMISSIONS ..............................................................................................................86 7.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................103 APPENDIX I PHOTOGRAPHS OF TEST SETUP.............................................................................106 Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: HDI Dune Limited 1101-1104,11/F.,Nan Fung Tower,173 Des Voen Hong Kong,Hong Kong Equipment Under Test: Network Media Player Tr a d e N a m e : DUNE HD Model: TV-102AW, TV-102, TV-102W, TV-102A, STV-102, STV-102W, STV-102A, STV-102AW Date of Test: February 23 ~ March 26, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247.…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 106 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 107 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: Z8P-KTTV102W Report No.: T121115W03-RP1 Page 108 Rev. 00 Powerline Conducted Emissions Setup Photos
