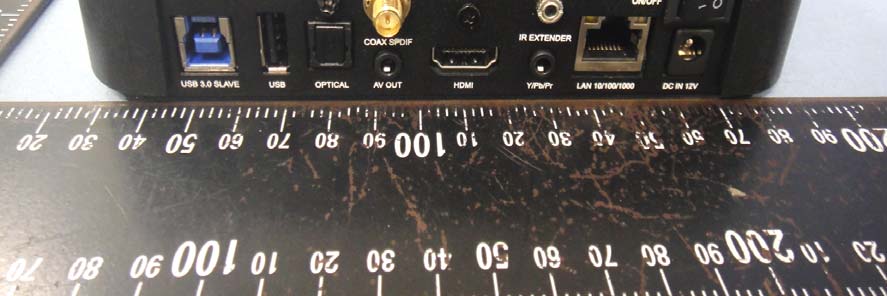

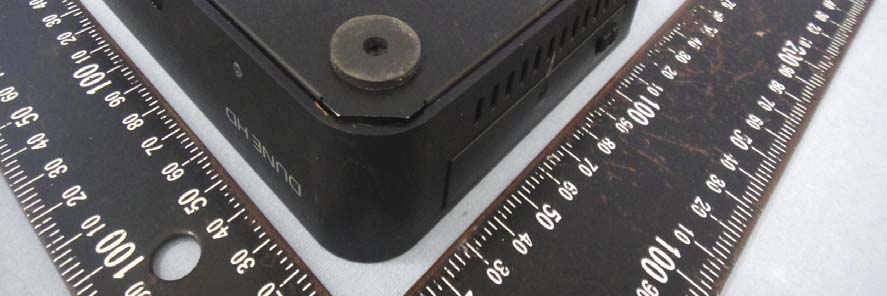

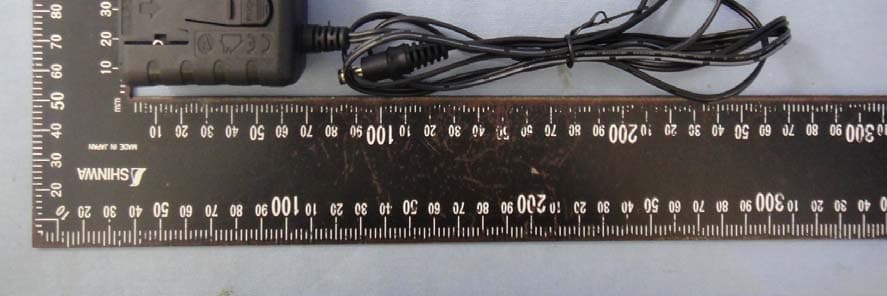

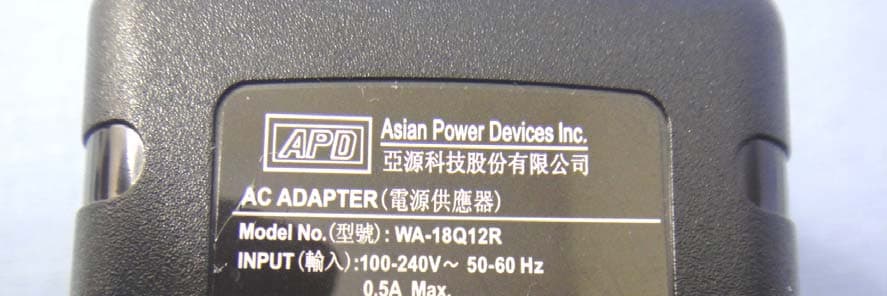

Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 1 / 12 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 4 Rev. 00 Adapter Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 6 Rev. 00 Antenna For 98242MRSX000 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 7 Rev. 00 For AN-DF073007

Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: April 29, 2013 A1 - 12 Rev. 00 Module

FCC ID:Z8P-KTTV303DW Description of Operation The EUT is a TV-303D, Network Media Player With RTL8188CUS / 40MHz oscillator / Dipole antenna : 2dBi For 2.4 GHz: This device is a Network Media Player; the maximum data rate could be up to 135Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 135Mbps, the 65Mbps data rate with OFDM technique will be applied. The transmitter of the EUT (Network Media Player) is powered by DC 12V from power adapter. Frequency range is IEEE 802.11g/ 802.11n 2.4GHz 20MHz: 2412~2462 MHz. IEEE 802.11n 2.4GHz 40MHz: 2422~2452 MHz. Modulation type is IEEE 802.11g:DSSS/OFDM, IEEE 802.11n 2.4GHz 20MHz: OFDM, IEEE 802.11n 2.4GHz 40MHz: OFDM

Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: May 13, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Network Media Player Frequency band (Operating) 802.11g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 1. Master Wave Technology CO., LTD / 98242MRSX000 Dipole Antenna / Gain: 2 dBi, (Numeric gain: 1.58) 2. Dail Fong Electronics CO., LTD / P/N: AN-DF073007 Dipole Antenna / 2.4GHz Gain: 2 dBi, (Numeric gain: 1.58) Max. output power IEEE 802.11g : 11.95 dBm (15.668mW) IEEE 802.11n HT20 : 10.87 dBm (12.218mW) IEEE 802.11n HT40 : 10.94 dBm (12.417mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 11.95dBm (15.668mW) at 2412MHz (with 1.58numeric antenna gain.) Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: May 13, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T121128W01 Date of Issue: May 13, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241215.6681.58200.00491 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241212.2181.58200.00381 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9245212.4171.58200.00391

Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 90 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Network Media Player Model: TV-303D, Zappiti Player Mini Trade Name: DUNE HD Issued to HDI Dune Limited 1101-1104,11/F.,Nan Fung Tower,173 Des Voen Hong Kong, Hong Kong Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 1, 2013 Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 1, 2013 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................10 4.3 MEASUREMENT UNCERTAINTY .............................................................................................11 5. FACILITIES AND ACCREDITATIONS ........................................................................................12 5.1 FACILITIES .......................................................................................................................................12 5.2 EQUIPMENT......................................................................................................................................12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................13 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................14 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................14 6.2 SUPPORT EQUIPMENT ...............................................................................................................14 7. FCC PART 15.247 REQUIREMENTS.............................................................................................15 7.1 6DB BANDWIDTH.............................................................................................................................15 7.2 PEAK POWER....................................................................................................................................26 7.3 AVERAGE POWER............................................................................................................................28 7.4 BAND EDGES MEASUREMENT ................................................................................................30 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................50 7.6 SPURIOUS EMISSIONS.................................................................................................................61 7.7 RADIATED EMISSIONS ..............................................................................................................71 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................85 APPENDIX I PHOTOGRAPHS OF TEST SETUP...............................................................................88 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: HDI Dune Limited 1101-1104,11/F.,Nan Fung Tower,173 Des Voen Hong Kong, Hong Kong Equipment Under Test: Network Media Player Tr a d e N a m e : DUNE HD Model: TV-303D, Zappiti Player Mini Date of Test: March 21 ~ 26, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 88 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 89 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: Z8P-KTTV303DW Report No.: T121128W01-RP Page 90 Rev. 00 Powerline Conducted Emissions Setup Photos
