ZAT1200EM900The CC1200EM-868-930 is a development tool for the sub-1 GHz CC1200 RF transceiver from Texas Instruments

SWRU337 March 2013 Web sites: www.ti.com/lprf E2E Forum: www.ti.com/lprf-forum Make sure to subscribe to the Low-Power RF Newsletter to receive information about updates to documentation, new product releases, and more. Sign up on the TI web pages. CC1200 Evaluation Module Kit Quick Start Guide Opening the Box and Running the Packet Error Rate Test 1. Kit Contents 2 x CC1200 Evaluation Modules 2 x Antennas (type depending on frequency) The EMK is an add-on kit to supplement the CC1200DK with evaluation boards supporting additional frequency bands. This document covers the CC1200EMK. The 868-930 MHz RF boards in this kit are FCC and IC certified and both 868-930 MHz and 420- 470 MHz RF boards are tested to comply with ETSI/R&TTE over temperatures from 0 to +35°C. The W5017 whip antenna from Pulse has a gain of 2 dBi and the SPWH24433TI whip antenna from Pulse has a gain of 0 dBi. Antenna types: 868-930 MHz: Pulse W5017 420-470 MHz: Pulse SPWH24433TI 2. How to use the Modules The CC1200EM boards can be plugged into several development boards from Texas Instruments. Most notably, you can use the SmartRF Transceiver EB, which is included in the CC1200DK. This board lets you run a packet error rate (PER) test, control the device from SmartRF™ Studio and it can be used as a development platform. It is also possible to connect the EM to other TI development boards with the appropriate connectors or to the basic “SoC Battery Board”. The latter can be used as a carrier board for the EM to simplify the connection to other boards with a microcontroller. See: http://www.ti.com/tool/soc-bb This guide will show how to use the modules together with SmartRF Transceiver EB (TrxEB). 3. Plug the EM into the TrxEB Insert a CC1200EM into the TrxEB. The connectors will only fit in one position so that the EM cannot be inserted the wrong way. Do not use excessive force on the EM. Remember to mount the antenna. Caution! The kit contains ESD sensitive components. Handle with care to prevent permanent damage. To minimize risk of injury, avoid touching components during operation if symbolized as hot. 4. Select Board Mode Use the switches S1 and S2 to select the operating mode of the board. For the sake of this quick start guide, please select “Enable” and “UART”. This configuration will make it possible to communicate directly with the MSP430 over a virtual COM port on the PC. 5. Power Options There are several ways of applying power to the TrxEB.  2 x 1.5 V AA batteries  USB  External Power Supply  MSP430 Debugger For the batteries and USB, there are voltage regulators on the TrxEB that will set the on-board voltage to 3.3 V. The external power supply should set a voltage that does not exceed 3.3 V. By default, the MSP430 debugger supplies 3.0 V. Note that there should only be one active power source at any one time. Warning! To minimize risk of personal injury or property damage, never use rechargeable batteries to power the board. Do not leave the EVM powered when unattended. 6. Select Power Source Depending on the power source, make sure you connect jumpers to the appropriate pins on the “Power Source” header. For instance, if you use batteries, use a jumper to short- circuit pin 1 and 2 on the header. The last jumper in the row (pin 9-10) should always be mounted, unless the MSP430 FET is used as the power source. 7. Welcome Screen Turn on power with the Main Power switch. You should now see the Texas Instruments logo and a short description of the buttons on the LCD. Pushing any of the five buttons on the board will take you to the main menu. NB! If you don’t see anything on the screen make sure the mode switches are in the correct positions (see step 4 above).. 8. Packet Error Rate Test Select the PER (Packet Error Rate) test by highlighting the selection using the up/down buttons. Confirm your selection by pressing Enter (right button). 9. Select Test Mode The PER test can be run is several modes. Easy Mode sets up a one-way test and uses default settings. This test is convenient for practical range testing. The other test modes are described in the “TrxEB RF PER Test Software Example User’s Guide”. To proceed, highlight “Easy Mode” and press Enter (right button). 10. Select Frequency Select which frequency to use for the test. Make sure that the evaluation modules you have match the selected frequency. 11. Select Mode One of the boards must operate as the slave (transmitter) and the other as master (receiver). Select Slave on one board... ...and Master on the other board. 12. Establish Link The slave node will now wait for a configuration package from the Master. The configuration contains the parameters used for the PER test. The configuration package will be sent when you select “link devices” on the master node. 13. Link Established When the initial linking has completed, the slave node will start the test by continuously transmitting packets to the master. 14. Start the Receiver (master) On the master node, you can select the number of packets you want to receive in order to calculate the packet error. When selecting “Start PER Test”, the master (receiver) will begin to count the number of received packets and provide some statistics. 15. PER Test Results The master will display a window that plots the received signal strength (RSSI) for each packet. Press the “Up” button to go to the detailed statistical window. 16. PER Test Results The statistics window will show the error rate based on the number of lost or erroneous packets divided by the total number of packets that should have been received. 17. Troubleshooting It you are experiencing problems with this test, please check the following:  Nothing is shown in the display! Make sure the mode switches are in the correct positions (see step 4 above).  Please visit the kit web page and check for updated SW and documentation. Updated SW can be downloaded to the device using IAR EW430 or SmartRF Flash Programmer.  If you get poor PER results at …

Text truncated - open the document above for the full version.

CC1200EM-868-930 CC1200 f = <902MHz – 928MHz> LNA PA FREQUENCY SYNTHESIZER f_internal = <3608MHz – 3712MHz> f_output = <902MHz – 928MHz> AAF ADCADC DEMODULATOR MODULATOR RADIO CONTROLLER AND DATA INTERFACE LNA_N LNA_P CLOCK MUX XOSC_Q2 XOSC_Q1 32678kHz RC-OSC 40MHz Crystal OSC I Q Q I CTRL Balun Passive LC network PA

Certification Document Label 1/1 Description of label for CC1200EM-868-930 FCC/IC/CE labeling of product is shown below. The FCC ID and CE logo is printed directly on the front side of the board. The model name, IC identifier, variant, revision, and serial number are printed on a label attached to the back side of the board. ~39 mm ~ 4 9 m m M o d e l : C C 1 2 0 0 E M - 8 6 8 - 9 3 0 ( x x ) R e v . : x . x . x S N : x x x x x x x I C : 4 5 1 H - 1 2 0 0 E M 9 0 0 Front side Back side Label manufacturer is Brady. Label part number B473 (http://www.bradyid.com/bradyid/domino/contentView.do/B473.html) with print using series R6000 ribbons (R6007 - http://www.bradyid.com/bradyid/pdpv/IP-R6007.html).

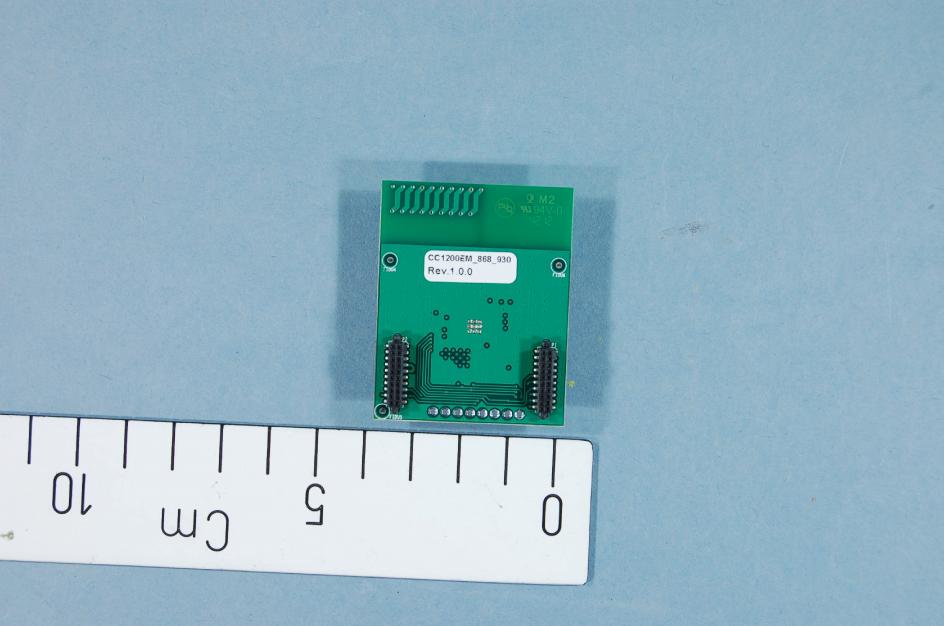

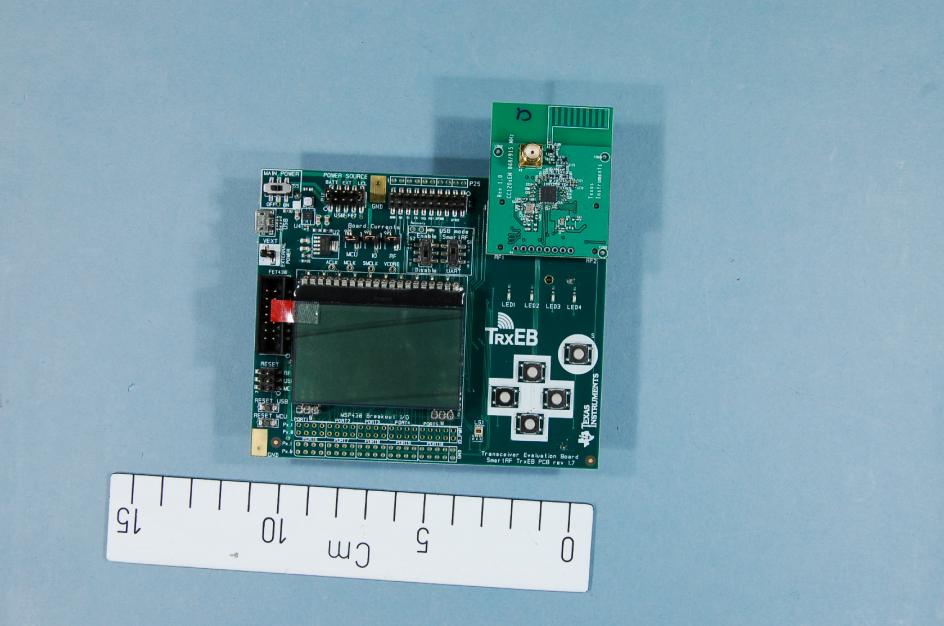

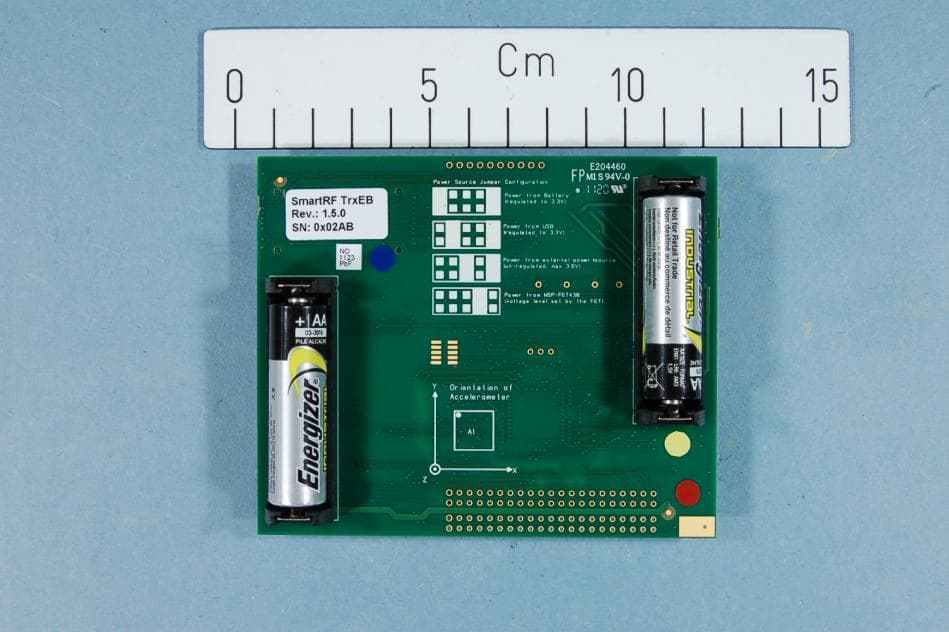

FCC ID:ZAT1200EM900 & IC ID: 451H-1200EM900 Project no.:231835 Page1of3 EXTERNALPHOTOS–CC1200EM-868-930 CC1200EM-868-930 FCC ID:ZAT1200EM900 & IC ID: 451H-1200EM900 Project no.:231835 Page2of3 Antenna FCC ID:ZAT1200EM900 & IC ID: 451H-1200EM900 Project no.:231835 Page3of3 CC1200EM-868-930hostedon TrxEB TrxEBwith2xAA Batteries

Texas Instruments Norway AS Gaustadalléen 21 0349 Oslo Norway (+47) 22 95 85 44 (+47) 22 95 85 46 Technical Description The CC1200EM-868-930 is an evaluation board for the CC1200 RF transceiver chip from Texas Instruments. The board will only function together with the SmartRF Transceiver Evaluation Board (TrxEB) which is included in the CC1200 Development Kit. The CC1200 has a single ended PA output and a differential LNA input. On the CC1200EM-868-930 board these RF inputs and outputs are combined and transformed to a 50 ohm signal through a passive component (capacitor/inductor) balun. The output of the balun is low pass filtered to reduce harmonic radiation and then connected to an SMA connector. The CC1200EM-868-930 board is equipped with an 868 - 928 MHz whip antenna W5017 from Pulse. The antenna gain is 2 dBi.

Item NumberQuantityValueDescriptionPart NumberPart ReferenceMPN 10DNMCAPACITOR, CERAMIC, N/A VALUE, -55DEGC/+125DEGC, 0402, SMD02-04164ANT1 C12 C41 C177 C302CAPACITOR_0402_DNM_N/A_M 221pFCAPACITOR, CERAMIC C0G/NP0, 1pF, 50V, -0.1pF/+0.1pF, -55DEGC/+125DEGC, 0402, SMD02-04367ANT2 C176GRM1555C1H1R0BA01D 3512nHINDUCTOR, CHIP, 12nH, -5%/+5%, 0.5A, -55DEGC/+125DEGC, 0402, SMD03-06556ANT3 L174 L192 L193 L201LQW15AN12NJ00D 41147nFCAPACITOR, CERAMIC, X7R, 47nF, 25V, -10%/+10%, -55DEGC/+125DEGC, 0402, SMD02-04324C11 C51 C121 C131 C151 C221 C251 C261 C271 C281 C291GRM155R71E473KA88D 512.2uFCAPACITOR, CERAMIC X5R, 2.2uF, 10V, -10%/+10%, -55DEGC/+85DEGC, 0603, SMD02-02405C52GRM188R61A225KE34D 61220nFCAPACITOR, CERAMIC X5R, 220nF, 10V, -15%/+15%, -55DEGC/+85DEGC, 0402, SMD02-04353C61GRM155R61A224KE19D 7210nFCAPACITOR, CERAMIC X7R, 10nF, 25V, -10%/+10%, -55DEGC/+125DEGC, 0402, SMD02-02314C171 C211GRM155R71E103KA01D 81100pFCAPACITOR, CERAMIC C0G/NP0, 100pF, 50V, -5%/+5%, -55DEGC/+125DEGC, 0402, SMD02-04365C172GRM1555C1H101JA01D 9133pFCAPACITOR, CERAMIC C0G/NP0, 33pF, 50V, -5%/+5%, -55DEGC/+125DEGC, 0402, SMD02-04354C173GRM1555C1H330JA01D 10315pFCAPACITOR, CERAMIC C0G/NP0, 15pF, 50V, -5%/+5%, -55DEGC/+125DEGC, 0402, SMD02-04372C174 C301 C311GRM1555C1H150JA01D 1113pFCAPACITOR, CERAMIC C0G/NP0, 3pF, 50V, -0.25pF/+0.25pF, -55DEGC/+125DEGC, 0402, SMD02-04606C175GRM1555C1H3R0CA01D 1212.2pFCAPACITOR, CERAMIC C0G/NP0, 2.2pF, 50V, -0.25pF/+0.25pF, -55DEGC/+125DEGC, 0402, SMD02-04605C181GRM1555C1H2R2CA01D 1323.3pFCAPACITOR, CERAMIC C0G/NP0, 3.3pF, 50V, -0.25pF/+0.25pF, -55DEGC/+125DEGC, 0402, SMD02-04369C191 C201GRM1555C1H3R3CA01D 1411.5nFCAPACITOR, CERAMIC U2J, 1.5nF, 10V, -5%/+5%, -55DEGC/+125DEGC, 0402, SMD02-04545C231GRM1557U1A152JA01D 150DNMCAPACITOR, CERAMIC X7R, 100nF, 10V, -10%/+10%, -55DEGC/+125DEGC, 0402, SMD02-00760C321GRM155R71A104KA01D 160DNMCAPACITOR, CERAMIC C0G/NP0, 22pF, 50V, -5%/+5%, -55DEGC/+125DEGC, 0402, SMD02-04373C322GRM1555C1H220JA01D 171BLM15HG102SN1FILTER, INDUCTOR TYPE, 1000OHM@100MHZ, 25%,250mA, 0402, SMD04-00032L1BLM15HG102SN1D 18110nHINDUCTOR, CHIP, 10nH, -5%/+5%, 0.5A, -55DEGC/+125DEGC, 0402, SMD03-06552L171LQW15AN10NJ00D 1917.5nHINDUCTOR, CHIP, 7.5nH, -2%/+2%, 0.57A, -55DEGC/+125DEGC, 0402, SMD03-06551L172LQW15AN7N5G00D 20118nHINDUCTOR, CHIP, 18nH, -5%/+5%, 0.37A, -55DEGC/+125DEGC, 0402, SMD03-06593L173LQW15AN18NJ00D 21115nHINDUCTOR, CHIP, 15nH, -5%/+5%, 0.46A, -55DEGC/+125DEGC, 0402, SMD03-06555L191LQW15AN15NJ00D 222SFM-110-02-S-D-A-K-TRCONNECTOR, HEADER, FEMALE, STRAIGHT, 2 ROWS, 20 PINS, PITCH 1.27mm, SMD06-02251P1 P2SFM-110-02-SM-D-A-K-TR 231SMA-10V21-TGGCONNECTOR, COAX RF, STRAIGHT, FEMALE, 1 PIN, SMD06-02188P3SMA-10V21-TGG 2410RESISTOR, JUMPER, -55DEGC/+155DEGC, 0402, SMD01-01784R12RK73Z1ETTP 25156kRESISTOR, THICK FILM, 56k, -1%/+1%, 0.063W, 50V, -55DEGC/+155DEGC, 0402, SMD01-16848R141RK73H1ETTP5602F 26110RESISTOR, THICK FILM, 10, -5%/+5%, 0.063W, 50V, -55DEGC/+155DEGC, 0402, SMD01-11612R171RESISTOR_0402_10_+/-5%_50V_0.063W_M_+/-200PPM 2710RESISTOR, JUMPER, 3 PORTS, -55DEGC/+155DEGC, 0402, SMD01-16574R181RK73Z1ETTP 280DNMRESISTOR, DO NOT MOUNT, 0402, SMD01-02472R321 R322DNM 290DNMIC, ANALOG, HIGH PSRR FAST RF LOW DROPOUT REGULATOR IN WAFER CHIP SCALE, VIN:2.7V TO 5.5V, VOUT: 3V, SOT23-5, SMD18-01358U2TPS79330DBVR 301CC120xRHBIC, ANALOG RF, CC120xRHB, N/A, QFN32, SMD18-28112U3CC120xRHB 31140MHzCRYSTAL, OSCILATOR, 40MHz, -15PPM/DEGC/+15PPM/DEGC, 100V, -20DEGC/+75DEGC, SMD12-00469X1NX3225SA 40MHz EXS00A-CS03880 320DNMCRYSTAL, OSCILATOR, TBD, 2.3V TO 3.6V, -30DEGC/+85DEGC, , SMD12-00451X2TG_5021CG

MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antennaSource Based Time Averaged Duty Cycle is 100% in calculation below Maximum peak output power at antenna input terminal: -8.30 (dBm) Maximum peak output power at antenna input terminal: 0.000 (W) Maximum antenna gain: 6.65 (dBi) Maximum antenna gain: 4.624 (numeric) Prediction distance: 20 (cm) Prediction frequency: 903.5 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction frequency: 6.02 (W/m^2) Power density at prediction frequency: 0.0001 (mW/cm^2) Power density at prediction frequency: 0.001 (W/m^2) Maximum allowable antenna gain: 43.11 (dBi) Margin of Compliance: 36.46 (dB) 2 4 R PG S π =

55 44 33 22 11 D D C C B B A A L1 is a Bead to be mounted if the regulator U2and capacitors C12 and C41 are not mounted. Bydefault the regulator is not mounted CC120x using XTAL: do not mount X2, C321, C322 R321 , R322 CC120x using TCXO: do not mount R12, R321, C311, X1 , C301: mount 0 Ohm resistor R12 is a 0 Ohms shunt resistor that groundthe EXT_OSC pin when TCXO is not mounted Default mount 2-3 40MHz DCPL_XOSC DCPL_XOSC GPIO0GPIO2CSNSCLKMOSIMISO RESET GPIO3 RESET GPIO3GPIO0 CSNSCLKMOSI GPIO2MISO GPIO0GPIO2CSNSCLKMOSIMISO VDD_REG GND 3V3A VDD_REG VDD_REG VDD_REG VDD_REG 3V3A SizeScale CAGE Code DW G NO Rev Sheet of A CC120XEM_868_915 Monday, January 28, 2013 1 1 A3 SizeScale CAGE Code DW G NO Rev Sheet of A CC120XEM_868_915 Monday, January 28, 2013 1 1 A3 SizeScale CAGE Code DW G NO Rev Sheet of A CC120XEM_868_915 Monday, January 28, 2013 1 1 A3 C31115pF R14156k C1761pF FIDU3 P3SMA-10V21-TGG 1 23 45 CC120xRHBU3 RESET_N 2 SI 7 SCLK 8 CS_N 11 RBIAS 14 LNA_P 19 LNA_N 20 XOSC_Q1 30 XOSC_X2 31 EXT_OSC 32 EGP 33 VDD_GUARD 1 GPIO3 3 GPIO2 4 DVDD 5 DCPL 6 SO(GPIO1) 9 GPIO0 10 DVDD 12 AVDD_IF 13 AVDD_RF 15 NC 16 PA 17 TRX_SW 18 DCPL_VCO 21 AVDD_SYNTH1 22 AVDD_PFD_CHP 25 DCPL_PFD_CHP 26 AVDD_SYNTH2 27 AVDD_XOSC 28 DCPL_XOSC 29 LPF0 23 LPF1 24 L17318nH C2013.3pF L19312nH TG-5021CGX2 NC 1 GND 2 OUT 3 VCC 4 C30115pF C17110nF FIDU5 X140MHz 1 2 4 3 Ant21pF C17333pF R17110 P4CONN_8 12345678 C17415pF C52 2.2uF C61 220nF C251 47nF C221 47nF C322DNM C41 DNM_0402 R120 L201 12nH C1913.3pF FIDU2 C12 DNM_0402 C1753pF L17412nH R181 0 1 2 3 C302 DNM_0402 L192 12nH TPS79330 U2 IN 1 GND 2 EN 3 NR 4 OUT 5 C2311.5nF C29147nF FIDU4 C1812.2pF C172100pF C177DNM_0402 L19115nH C151 47nF C281 47nF C131 47nF C271 47nF FIDU6 C12147nF C26147nF R321DNM A1ANTENNA 1 L17110nH P1 SFM-110-02-S-D-A-K-TR 13579 1113151719 2468101214161820 L1727.5nH C51 47nF R322 DNM P2SFM-110-02-S-D-A-K-TR 13579 1113151719 2468101214161820 FIDU1 L1BLM15HG102SN1 C21110nF C321DNM Ant1DNM_0402 Ant312nH C11 47nF

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo NorwayT+47 22 96 03 30F+47 22 96 05 50 Enterprise number NO974404532 Visiting address: NemkoKjeller,Instituttveien 6, P.O.Box 96, NO-2027 Kjeller NorwayT+47 64 84 57 00F+47 64 84 57 05 Test report no. :231835-3 Item tested :CC1200EM-868-930 Type of equipment :LowPowerTransceiverModule FCC ID :ZAT1200EM900 Client :Texas Instruments Norway AS FCC Part 15.249 Low Power Transmitter 902-928 MHz Band RSS-210,Issue 8 Low-Power Licence-exempt Radiocommunications devices 902–928 MHz Band 29April2013 Authorized by :.............................................. Frode Sveinsen Technical Verificator TEST REPORT FCC part 15.249 Project no.:231835-3 FCC ID:ZAT1200EM900& IC ID:451H-1200EM900 NemkoAS, NO-2027 KjellerPage2(34) CONTENTS 1GENERAL INFORMATION......................................................................................................3 1.1Testhouse info..........................................................................................................................3 1.2Client information......................................................................................................................3 1.3Manufacturer.............................................................................................................................3 2TEST INFORMATION...............................................................................................................4 2.1Test item...................................................................................................................................4 2.2Test environment......................................................................................................................5 2.3Test period................................................................................................................................5 3TEST REPORT SUMMARY.....................................................................................................6 3.1General.....................................................................................................................................6 3.2Test summary...........................................................................................................................7 3.3Description of modification for modification filing......................................................................7 3.4Comments................................................................................................................................7 3.5Family list rationale...................................................................................................................7 4TEST RESULTS.......................................................................................................................8 4.1Transmitter Frequency Stability................................................................................................8 4.220 dB Bandwidth.......................................................................................................................9 4.3Peak power output..................................................................................................................13 4.4Spurious emissions (radiated)................................................................................................23 5LIST OF TEST EQUIPMENT..................................................................................................32 6BLOCK DIAGRAM.................................................................................................................33 6.1System set up for radiated measurements.............................................................................33 6.2Test site radiated emission.....................................................................................................34 TEST REPORT FCC part 15.249 Project no.:231835-3 FCC ID:ZAT1200EM900& IC ID:451H-1200EM900 NemkoAS, NO-2027 KjellerPage3(34) 1GENERAL INFORMATION 1.1Testhouse info Name :Nemko AS Address :Nemko Kjeller Instituttveien 6, Box 96 NO-2027 Kjeller, NORWAY Telephone :+47 64 84 57 00 Fax :+47 64 84 57 05 Email:[email protected] FCC test firm :994405 IC OATS :2040D-1 Total Number of Pages:34 1.2Client information Name :Texas Instruments Norway AS Address :Gaustadalléen 21, NO-0349 Oslo, Norway Telephone :+47 22 95 85 44 Fax :+47 22 95 85 46 Contact: Name :Dag Grini Telephone :+47 22 95 83 01 E-mail :[email protected] 1.3Manufacturer Same as client TEST REPORT FCC part 15.249 Project no.:231835-3 FCC ID:ZAT1200EM900& IC ID:451H-1200EM900 NemkoAS, NO-2027 KjellerPage4(34) 2TEST INFORMATION 2.1Test item Name :Texas Instruments Model/version :CC1200EM-868-930 FCC ID: ZAT1200EM900 IC ID: 451H-1200EM900 Serial number :- Hardware identity and/or version:- Software identity and/or version :- Frequency Range :903.5–926.5MHz Number of Channels :3 Operating Modes :TXand RX Type of Modulation :2-GFSK Data rate:50kbit/s User Frequency Adjustment :None, Software controlled ConductedOutput Power :0.15mW Type of Power Supply :Battery(tested with 2 AA batteries) Antenna Connector :SMA female Antenna type:Pulse W5017, rodantenna Antenna Diversity Supported :None Description oftest item The CC1200EM-868-930RF-transceiver module is an evaluation module developed for the sub-1 GHz ISM band and intended for development purposes. It is based on the CC1200 transceiver device. TEST REPORT FCC part 15.249 Project no.:231835-3 FCC ID:ZAT1200EM900& IC ID:451H-1200EM900 NemkoAS, NO-2027 KjellerPage5(34) 2.2Test environment 2.2.1Normal test condition Temperature: 20–21C Relative humidity:29–43% Normal test voltage:3.0VDC The values are the limit registered during the test period. 2.3Test period Item received date:2013-01-28 Test period :from 2013-02-26-2013-03-11 TEST REPORT FCC part 15.249 Project no.:231835-3 FCC ID:ZAT1200EM900& IC ID:451H-1200EM900 NemkoAS, NO-2027 KjellerPage6(34) 3TEST REPORT SUMMARY 3.…

Text truncated - open the document above for the full version.

FCCID:ZAT1200EM900 & IC ID: 451H-1200EM900 Project no.:231835 Page1of2 PHOTOS OF TEST SET-UP–CC1200EM-868-930 Radiated emissions-In band–VP Radiatedemissions30–1000MHz FCCID:ZAT1200EM900 & IC ID: 451H-1200EM900 Project no.:231835 Page2of2 Radiatedemissions>1 GHz Radiatedemissions< 30 MHz
