ZAT2511USBThe CC2511Dongle is a development tool for TIs 2.4 GHz CC2511 proprietary System-on-Chip.

September 2013 CC2511 USB Evaluation Kit Quick Start Guide 1. Kit Contents  1 x CC2511 USB Dongle  This Quick Start Guide The hardware in this kit is FCC and IC certified and complies with ETSI/R&TTE requirements over temperature from 0 to +35°C. FCC/IC Regulatory Compliance FCC Part 15 Class A Compliant IC ICES-003 Class A Compliant 2. Getting Started The CC2511 USB Dongle can be used as a development platform for USB and RF applications. An external development board or debugger, like the CC Debugger, SmartRF04EB or SmartRF05EB, is required to program and debug software running on the CC2511. Note that the CC2511 USB Dongle is pre-programmed with the packet sniffer firmware. This Quick Start Guide will describe how to use the dongle with the packet sniffer and what would be the next steps for developing your own software. 3. Preparations Before proceeding, please download and install the following tools: SmartRF Flash Programmer www.ti.com/tool/flash-programmer You will need this tool to program the packet capture firmware on the CC2511 USB dongle SmartRF Packet Sniffer www.ti.com/packetsniffer This is the PC tool that displays and parses the packets received by the capture device. 4. Programming the Dongle For the USB dongle to operate as a packet capture device, it must be programmed with the packet sniffer firmware. By default, the dongle comes pre-programmed with this firmware. Connect the USB dongle to the debugger or the development board with an appropriate 10 pin flat cable. The dongle must also be powered via the USB bus. Refer to picture below for an example. Caution! Avoid using other power sources 1 for the dongle than a regular USB voltage source at max 5.5V, 500 mA, (efficiency level V). 5. Programming the Dongle Launch the SmartRF Flash Programmer and make sure you select the “System-on-Chip” tab. The tool should show a line with CC2511 connected to a SmartRF04EB. Next, locate the flash image sniffer_fw_ccxx11.hex in “C:\Program Files\Texas Instruments\SmartRF Tools\Packet Sniffer\bin\general\firmware” Select “Erase, program and verify” and press the “Perform Actions” button. 6. Install USB Driver After programming the device, disconnect the dongle from the programming board and plug it into the PC. Windows’ new hardware wizard will appear. Select the options for automatic installation and wait for the driver installation to complete. If the Wizard asks for a specific driver, point it to the cebal2.inf file located in “C:\Program Files\Texas Instruments\SmartRF Tools\Drivers\cebal\win_<arch-specific>\” After installation of the driver, the Packet Sniffer capture device is ready for use. 1 When using an external power supply, make sure it meets the listed requirements in addition to complying with applicable regional product regulatory and safety certification requirements such as UL, CSA, VDE, CCC, and PSE. Web sites: www.ti.com/lprf E2E Forum: www.ti.com/lprf-forum Make sure to subscribe to the Low-Power RF Newsletter to receive information about updates to documentation, new product releases, and more. Sign up on the TI web pages. 7. Packet Sniffer (1) Launch the Packet Sniffer. A dialog will request the user to select a protocol. The CC2511 capture device can be used with the SimpliciTI or the Generic (no parsing) protocols. A new window will appear. The USB dongle should be listed with chip type CC2511 and EB type CC2511 USB dongle in the “Capturing Device” tab. Highlight the device to make it your capture device. 8. Packet Sniffer (2) Next, select the Radio Configuration tab and make sure the radio registers on the device are set according to the format of the radio signals you are sniffing. If this is the first time you use the tool, press the browse button to locate a .prs file with packet sniffer register settings for CC2511. You can generate your own .prs files with the “Register Export” function in SmartRF Studio 9. Packet Sniffer (3) Finally, press the small “play” icon on the tool bar to start sniffing packets. If there are radio packets on the air, and the CC2511 has the appropriate radio settings, the captured packets will be displayed in the packet sniffer display window. Enjoy! 10. Developing USB Software A good start for developing your own USB application for the CC2511 USB dongle would be the “CC USB Firmware Library and Examples” software package. The Library contains a complete USB framework that allows the user to develop any USB device type. Examples showing implementations of a HID device and a CDC device are included. The software can be downloaded from the CC2511EMK web page or directly from www.ti.com/lit/zip/swrc088 11. Development Tools The preferred tool for developing software for CC2511 and for single stepping and debugging is IAR Embedded Workbench for 8051. A free, code size limited version can be downloaded from the web. See www.iar.com/ew8051 12. Thank You! We hope you will enjoy working with the CC2511 device and related Low-Power RF products from Texas Instruments. The Low Power RF Online Community has forums, blogs and videos. Use the forums to find information, discuss and get help with your design. Join us at www.ti.com/lprf-forum Caution! The kit contains ESD sensitive components. Handle with care to prevent permanent damage. To minimize risk of injury, avoid touching components during operation if symbolized as hot. EVALUATIONBOARD/KIT/MODULE(EVM)ADDITIONALTERMS TexasInstruments(TI)providestheenclosedEvaluationBoard/Kit/Module(EVM)underthefollowingconditions: Theuserassumesallresponsibilityandliabilityforproperandsafehandlingofthegoods.Further,theuserindemnifiesTIfromallclaims arisingfromthehandlingoruseofthegoods. Shouldthisevaluationboard/kitnotmeetthespecificationsindicatedin theUser’s Guide,theboard/kitmaybereturnedwithin30daysfrom thedateofdeliveryfora fullrefund.THEFOREGOINGLIMITEDWARRANTYISTHEEXCLUSIVEWARRANTYMADEBYSELLERTO BUYERANDISINLIEUOFALLOTHERWARRANTIES,EXPRESSED,IMPLIED,ORSTATUTORY,INCLUDINGANYWARRANTYOF MERCHAN…

Text truncated - open the document above for the full version.

f = <2400MHz – 2483.5MHz> CTRL LNA PA FREQUENCY SYNTHESIZER f_internal = <4800MHz – 4967MHz> f_output = <2400MHz – 2483.5MHz> AAF ADCADC DEMODULATOR MODULATOR RADIO CONTROLLER AND DATA INTERFACE Q I RF_N RF_P I Q CLOCK MUX XOSC_Q2 XOSC_Q1 32kHz RC-OSC 48MHz Crystal OSC BALUN ADC CLOCK 13MHz RC-OSC

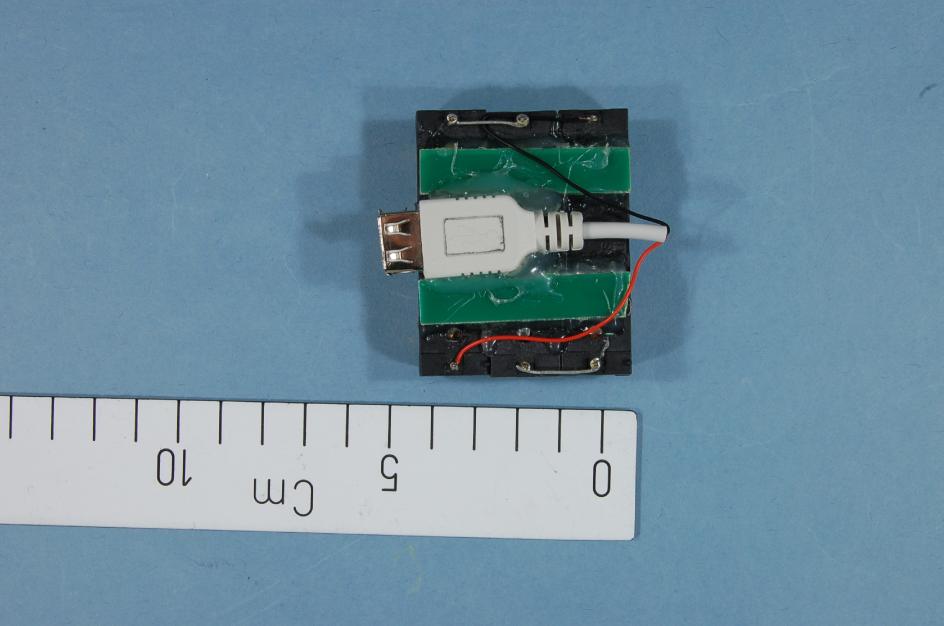

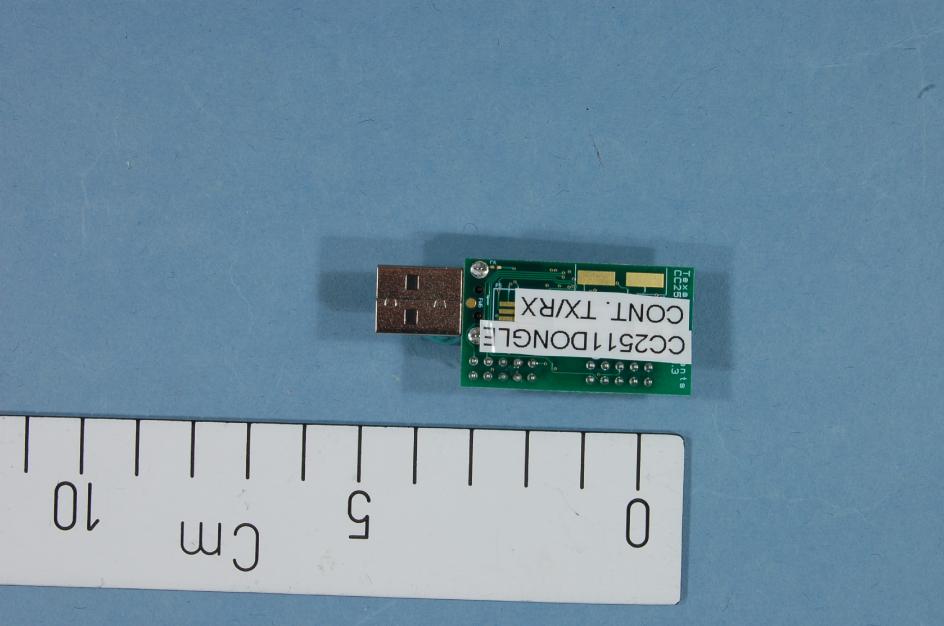

FCC ID:ZAT2511USB Project no.:182225 Page1of2 INTERNALPHOTOS–CC2511Dongle FCC ID:ZAT2511USB Project no.:182225 Page2of2 Test Jig with 3xAAA Batteries

Certification Document Label 1/1 Description of label for CC2511Dongle FCC/IC/CE labeling of product is shown below. There is a separate label with the model name, optional variant designator, revision, serial number, FCC ID and IC number. Texas Instruments Model: CC2511Dongle (xx) Rev. x.x.x S.No.: xxxxxx FCC ID: ZAT2511USB IC: 451H-2511USB ~ 1 3 m m ~ 25 mm Placement of label on product ~22 mm ~ 4 0 m m 1 5 m m 11 mm T e x a s I n s t r u m e n t s M o d e l : C C 2 5 1 1 D o n g l e ( x x ) R e v . x . x . x S . N o . : x x x x x x F C C I D : Z A T 2 5 1 1 U S B I C : 4 5 1 H - 2 5 1 1 U S B Label manufacturer is Brady. Label part number B473 (http://www.bradyid.com/bradyid/domino/contentView.do/B473.html) with print using series R6000 ribbons (R6007 - http://www.bradyid.com/bradyid/pdpv/IP-R6007.html).

FCC ID:ZAT2511USB Project no.:182225 Page1of2 INTERNALPHOTOS–CC2511Dongle FCC ID:ZAT2511USB Project no.:182225 Page2of2 Test Jig with 3xAAA Batteries

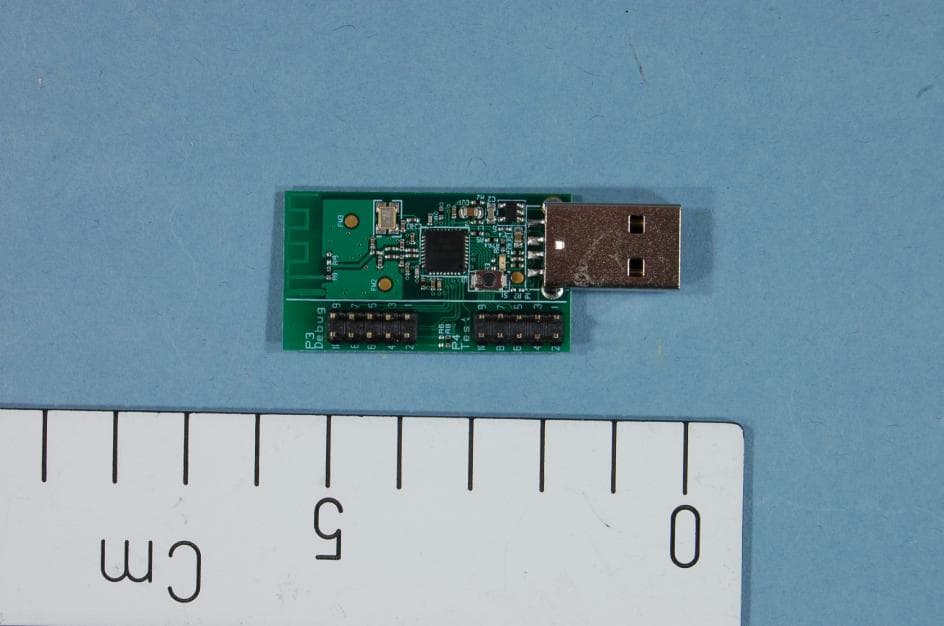

Texas Instruments Norway AS Gaustadalléen 21 0349 Oslo Norway (+47) 22 95 85 44 (+47) 22 95 85 46 Technical Description The CC2511Dongle is an evaluation board for the CC2511 chip from Texas Instruments. The board is powered through USB. The CC2511 System on Chip has a differential RF output. On the CC2511Dongle board this differential output is transformed to a single ended, 50 ohm signal through a passive component (capacitor/inductor) balun. The output of the balun is low pass filtered to reduce harmonic radiation. The single ended output of the balun is connected to an on-board PCB antenna.

Test Report OTA Test Results for Frequency 2400.000 MHz OTA Evaluation Results: Total Radiated Power-1.70 dBm Peak EIRP4.33 dBm Directivity6.03 dBi Efficiency-1.70 dB Efficiency67.59 % Gain4.33 dBi NHPRP 45°-3.56 dBm NHPRP 45° / TRP-1.85 dB NHPRP 45° / TRP65.24 % NHPRP 30°-5.29 dBm NHPRP 30° / TRP-3.59 dB NHPRP 30° / TRP43.77 % NHPRP 22.5°-6.55 dBm NHPRP 22.5° / TRP-4.85 dB NHPRP 22.5° / TRP32.71 % UHRP-3.24 dBm UHRP / TRP-1.54 dB UHRP / TRP70.18 % LHRP-6.96 dBm LHRP / TRP-5.26 dB LHRP / TRP29.82 % Front/Back Ratio9.89 PhiBW171.4 deg PhiBW Up129.7 deg PhiBW Down41.7 deg ThetaBW80.0 deg ThetaBW Up39.9 deg ThetaBW Down40.1 deg Boresight Phi45 deg Boresight Theta45 deg Maximum Power4.33 dBm Minimum Power-11.30 dBm Average Power-1.41 dBm Max/Min Ratio15.63 dB Max/Avg Ratio5.74 dB Min/Avg Ratio-9.89 dB Best Single Value3.68 dBm Best PositionPhi = 30 deg; Theta = 60 deg; Pol = Ver board 15 - 2400-2480 MHz1 / 12 07-07-201020:01:24 Antenna KitTexas InstrumentsDN611 Richard WallaceRev: A RP_2400.000_tot Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.000.130.261.320.961.591.571.731.170.33-1.68-4.21-9.33-5.84 15.000.431.112.422.643.362.942.861.67-0.17-2.17-4.56-9.45-5.35 30.000.671.973.223.983.833.262.180.71-1.52-3.14-4.71-9.77-5.14 45.000.662.703.764.333.472.590.67-1.20-2.42-3.43-4.16-9.68-5.47 60.000.763.173.833.982.311.08-1.62-3.13-3.08-3.70-3.90-9.03-5.43 75.000.873.283.753.020.55-1.47-4.65-4.98-4.34-3.97-3.35-7.83-5.39 90.000.883.173.642.20-0.63-3.66-6.12-6.83-5.86-4.32-3.20-6.94-5.14 105.000.852.803.791.73-0.52-4.50-7.87-8.69-7.50-5.42-3.27-6.01-4.56 120.000.782.423.972.050.13-4.88-8.61-7.31-7.60-7.25-3.52-5.40-4.03 135.001.022.354.042.540.95-4.46-8.26-6.25-7.57-8.44-4.76-4.96-3.79 150.001.412.443.662.951.29-3.41-7.24-6.49-6.94-7.98-6.76-4.94-3.79 165.001.612.422.832.440.28-3.07-6.43-6.46-5.10-8.61-9.15-5.42-3.76 180.001.681.931.510.71-1.78-5.03-7.76-6.75-4.36-8.83-11.30-6.04-3.87 195.001.631.12-0.26-2.43-4.28-7.10-6.65-7.14-5.39-7.02-11.13-6.83-4.49 210.001.350.03-2.08-4.69-4.97-4.66-3.28-3.82-4.33-5.39-8.33-7.02-4.99 225.001.15-0.89-3.23-4.14-3.73-2.97-2.37-2.28-3.49-5.57-6.00-6.91-5.00 240.000.90-1.44-3.34-3.63-3.00-2.31-2.63-2.71-5.00-6.83-4.99-6.37-4.99 255.000.83-1.63-3.56-4.26-3.63-2.75-3.37-3.53-7.50-7.32-4.36-6.30-5.17 270.000.79-1.78-3.72-5.54-4.84-3.87-4.64-4.85-8.30-6.19-3.95-6.91-5.93 285.000.43-2.22-3.75-6.52-5.24-4.34-4.79-5.46-7.19-5.00-3.37-7.91-6.42 300.00-0.02-2.65-3.61-7.01-5.70-4.01-4.57-4.88-5.86-4.45-2.87-9.01-7.11 315.00-0.34-2.74-3.14-7.02-5.95-4.10-4.75-5.05-4.73-4.30-2.92-10.03-7.23 330.00-0.44-2.33-1.90-5.66-5.01-4.58-4.37-5.00-3.02-3.89-3.01-10.41-6.92 345.00-0.31-1.25-0.33-2.81-1.78-2.30-1.25-2.33-0.72-2.42-3.27-9.84-6.14 360.000.02-0.140.890.030.640.801.000.550.14-1.40-3.55-9.29-5.84 RP_2400.000_hor Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.0-6.33-7.74-10.01-17.39-18.10-12.82-9.34-6.18-5.64-8.61-8.98-13.83-6.86 15.0-5.78-6.23-9.06-12.35-17.09-12.83-7.88-5.80-6.66-10.18-9.26-13.84-6.78 30.0-4.69-3.80-5.26-6.10-10.78-11.94-7.96-7.04-8.80-11.53-9.31-14.00-7.77 45.0-3.46-1.25-1.80-3.20-7.19-10.61-8.36-9.51-9.78-11.37-8.30-15.22-9.66 60.0-2.210.570.21-1.61-5.46-9.41-9.18-10.61-9.62-10.50-8.47-16.15-12.00 75.0-1.111.801.74-0.32-4.00-8.00-9.66-11.07-10.43-10.20-8.62-14.68-13.20 90.0-0.572.322.490.52-2.98-7.67-9.57-12.99-12.19-9.33-7.65-11.89-11.17 105.0-0.532.072.700.51-2.91-8.19-10.31-14.14-14.25-8.94-5.78-9.02-8.44 120.0-1.021.092.08-0.32-3.68-8.79-10.97-12.85-20.34-10.80-5.13-7.40-6.43 135.0-1.59-0.390.77-2.24-4.65-9.04-11.26-10.13-13.53-12.70-5.91-6.01-5.36 150.0-2.20-1.77-1.06-3.61-5.27-8.23-10.73-8.19-8.15-9.55-7.53-5.52-4.77 165.0-3.32-2.83-2.62-3.55-4.91-7.28-9.86-8.17-6.67-9.03-9.63-5.70-4.39 180.0-4.21-3.39-3.66-3.68-4.54-7.18-8.83-9.72-7.87-11.40-12.25-6.32-4.65 195.0-4.82-4.21-4.78-5.47-5.71-8.46-9.40-11.36-11.19-13.20-12.00-7.42-5.95 210.0-4.88-5.40-6.86-8.32-9.07-10.73-10.93-11.28-14.42-13.44-10.37-8.41-7.78 225.0-4.11-6.92-8.89-9.65-9.16-10.21-11.14-11.44-16.60-19.66-10.22-8.89-9.86 240.0-3.21-7.39-9.95-9.51-7.72-9.07-9.77-13.16-16.57-18.74-11.10-8.71-11.58 255.0-2.21-6.93-11.26-10.37-8.05-8.43-9.17-14.60-15.85-17.66-11.90-8.86-14.19 270.0-1.49-6.03-11.76-11.22-8.74-8.25-8.92-12.32-16.63-19.56-10.47-9.28-16.22 285.0-1.43-5.44-10.88-11.81-9.88-8.61-8.62-9.74-15.49-13.62-8.12-9.75-13.92 300.0-2.02-5.36-9.07-12.42-11.65-9.79-8.54-8.56-11.52-9.35-6.83-10.39-11.83 315.0-3.07-5.74-7.96-12.49-14.33-10.84-8.45-8.14-7.82-7.41-6.44-11.33-9.98 330.0-4.38-6.35-7.45-12.13-15.36-12.22-8.84-7.92-6.02-7.26-6.62-12.39-8.49 345.0-5.72-7.27-8.13-12.93-15.37-12.41-9.03-7.55-5.23-7.78-7.31-13.06-7.18 360.0-6.22-7.77-10.03-15.51-16.55-12.39-9.11-6.65-5.50-8.31-8.25-13.40-6.75 RP_2400.000_ver Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.0-0.98-0.490.990.891.541.411.370.29-0.93-2.66-5.96-11.24-12.66 15.0-0.750.222.102.503.322.832.480.81-1.27-2.91-6.36-11.41-10.85 30.0-0.820.642.563.533.683.121.74-0.09-2.42-3.83-6.55-11.84-8.57 45.0-1.460.452.343.483.072.380.09-1.89-3.31-4.20-6.27-11.10-7.55 60.0-2.29-0.281.352.571.520.68-2.46-3.99-4.17-4.72-5.76-9.96-6.51 75.0-3.48-2.11-0.570.32-1.33-2.56-6.30-6.21-5.56-5.15-4.88-8.83-6.17 90.0-4.57-4.34-2.69-2.75-4.42-5.85-8.72-8.03-7.01-5.96-5.13-8.61-6.39 105.0-4.81-5.3…

Text truncated - open the document above for the full version.

CC2511Dongle Part list Ref. Part namePcs/unitDescription C1C_1U_0603_X5R_L_6P31Capacitor, 1u, 0603, X5R, 15%, 6.3V C16,C221,C251,C291C_100N_0402_X5R_K_104Capacitor, 100n, 0402, X5R, 10%, 10V C191,C261C_220P_0402_NP0_J_502Capacitor, 220p, 0402, NP0, 5%, 50V C2C_4U7_0603_X5R_K_61Capacitor, 4u7, 0603, X5R, 10%, 6.3V C203,C214C_33P_0402_NP0_J_502Capacitor, 33p, 0402, NP0, 5%, 50V C21C_2U2_0805_X5R_K_101Capacitor, 2u2, 0805, X5R, 10%, 10V C231,C241C_100P_0402_NP0_J_502Capacitor, 100p, 0402, NP0, 5% 50V C232,C242C_1P0_0402_NP0_C_502Capacitor, 1p, 0402, NP0, +/-0.25pF 50V C233C_1P8_0402_NP0_C_501Capacitor, 1p8, 0402, NP0, +/-0.25pF 50V C234C_1P5_0402_NP0_C_501Capacitor, 1p5, 0402, NP0, +-0.25pF, 50V C3,C4C_47P_0402_NP0_J_502Capacitor, 47p, 0402, NP0, 5%, 50V C301C_1U_0402_X5R_K_6P31Capacitor, 1u, 0402, X5R, 10%, 6.3V D2LED_EL19-21SYGC1LED, green, 0603, 2.0V, 16mcd L1L_BEAD_102_04021EMI filter bead, 0402 1k ohms Tape GHz Band Gen Use L231,L232,L241L_1N2_0402_S3Inductor, 1n2, 0402, Monolithic type, +/-0.3 nH P1USB_A_TYCO1USB Plugg A/PCB Montering P3,P4PINROW_2X52TH pinrow header, .100 spacing, 2x5 without alignment pin P5SMD_HEADER_2x51SMD pinrow header, .050 spacing, 2x5 without alignment pin R1R_270_0402_F2Resistor, 270 ohms, 0402, ±1% R2R_2_0402_F1Resistor, 2 ohms, 0402, ±1% R263R_33_0402_G1Resistor, 33 ohms, 0402, 2% R264R_1K5_0402_G1Resistor, 1k5 ohms, 0402, 2% R271R_56K_0402_F1Resistor, 56k ohms, 0402, ±1% R4R_4K7_0402_G1Resistor, 4k7 ohms, 0402, 2% R5,R8,R9R_0_04023Resistor, 0 ohm, 0402 S1PUSH_BUTTON_SKRK1Momentary push-button, SMD 3.9*2.9*2 mm U1CC25111Single-chip transceiver with 8051 MCU and USB U2TPS769331ULTRALOW-POWER 100-mA LOW-DROPOUT LINEAR REGULATORS X2X_48.000/20/35/20/181Crystal, ceramic SMD, 4x2.5mm, +/-20ppm 48MHZ Total no of components 43

SAR Exclusion Justification for FCC ID ZAT2511USB Test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm Guidance document reference: 447498 D01 General RF Exposure Guidance v05r01, page 11, paragraph 4.3.1(1). The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The r esult is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SAR test exclusion analysis: Assumptions: Since the exact separation distance may vary from sensor to sensor, the minimum separation distance of 5 mm is assumed per the guidance document. Max. power of channel: 2 mW Min. separation distance:5 mm Max. frequency:2.48GHz [(Pwr/Dist)*Freq.] = 1 The r esult of the above SAR threshold calculation demonstrates that the result is less than the 1-g numeric threshold of 3 and the 10-g numeric threshold of 7.5. Co nclusion: The above analysis shows that the digital transmission system transceiver with FCC ID ZAT2511USB qualifies for exemption from SAR testing. Si gned: Tom Tidwell, Technical Manager 21 October, 2013 Nemko USA, Inc.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 182225-5 Item tested : CC2511Dongle Type of equipment : 2.4GHz USB Dongle FCC ID : ZAT2511USB Client : Texas Instruments Norway AS FCC Part 15.247 Digital Transmission System RSS-210, Issue 8 Low Power Licence-Exempt Radiocommunication Devices 2013-11-14 Authorized by : .............................................. G.Suhanthakumar Technical Verificator TEST REPORT FCC part 15.247 Ref. no.: 182225-5 FCC ID: ZAT2511USB Nemko AS, NO-2027 Kjeller Page 2 (35) CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 3 1.1 Testhouse Info .......................................................................................................................... 3 1.2 Client Information ...................................................................................................................... 3 1.3 Responsible Manufacturer (If other than client) ........................................................................ 3 2 Test Information ...................................................................................................................... 4 2.1 Test Item ................................................................................................................................... 4 2.2 Test Environment ...................................................................................................................... 4 2.3 Test Period................................................................................................................................ 4 3 TEST REPORT SUMMARY ..................................................................................................... 5 3.1 General ..................................................................................................................................... 5 3.2 Test Summary ........................................................................................................................... 6 3.3 Description of modification for Modification Filing ..................................................................... 6 3.4 Comments ................................................................................................................................ 6 3.5 Family List Rational .................................................................................................................. 6 4 TEST RESULTS ....................................................................................................................... 7 4.1 Power Line Conducted Emissions ............................................................................................ 7 4.2 Minimum 6 dB Bandwidth ......................................................................................................... 9 4.3 20 dB Bandwidth ..................................................................................................................... 10 4.4 Peak Power Output ................................................................................................................. 11 4.5 Spurious Emissions (Radiated) .............................................................................................. 14 4.6 Receiver Spurious Emissions ................................................................................................. 29 4.7 Power Spectral Density (PSD) ................................................................................................ 32 5 LIST OF TEST EQUIPMENT .................................................................................................. 34 6 BLOCK DIAGRAM ................................................................................................................. 35 6.1 Power Line Conducted Emission ............................................................................................ 35 6.2 Test Site Radiated Emission ................................................................................................... 35 TEST REPORT FCC part 15.247 Ref. no.: 182225-5 FCC ID: ZAT2511USB Nemko AS, NO-2027 Kjeller Page 3 (35) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko AS Address : Nemko Kjeller Instituttveien 6, Box 96 NO-2027 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm : 994405 IC OATS : 2040D-1 Total Number of Pages: 35 1.2 Client Information Name : Texas Instruments Norway AS Address : Gaustadalléen 21, NO-0349 Oslo, Norway Telephone : +47 22 95 85 44 Fax : +47 22 95 85 46 Contact: Name : Fredrik Kervel Telephone : +47 22 95 8362 E-mail : [email protected] 1.3 Responsible Manufacturer (If other than client) Name : / Address : / TEST REPORT FCC part 15.247 Ref. no.: 182225-5 FCC ID: ZAT2511USB Nemko AS, NO-2027 Kjeller Page 4 (35) 2 Test Information 2.1 Test Item Name : Texas Instruments FCC ID : ZAT2511USB IC ID: 451H-2511USB Model/version : CC2511Dongle Serial number : / Hardware identity and/or version: / Software identity and/or version : / Frequency Range : 2405 – 2480 MHz Number of Channels : / Type of Modulation : Digital User Frequency Adjustment : None Type of Power Supply : Powered from USB Antenna Connector : None (PCB Antenna) Antenna Diversity Supported : No Desktop Charger : None Description of Test Item The CC2511 is an RF-transceiver USB dongle operating in the 2.4 GHz ISM band. It is based on the CC2511 system on-chip device. Exposure Evaluation The EUT is exempted from RF Exposure Evaluation. 2.2 Test Environment 2.2.1 Normal test condition Temperature: 20 - 22 °C Relative humidity: 42 - 52 % Normal test voltage: 4.5 V DC The radiated emissions tests were performed with the EUT powered from a test-jig wit…

Text truncated - open the document above for the full version.

FCCID:ZAT2511USB Project no.:182225 Page1of2 PHOTOS OF TEST SET-UP–CC2511Dongle Radiated Emissions 30-1000 MHz RadiatedEmissions1-12GHz FCCID:ZAT2511USB Project no.:182225 Page2of2 Power lineConductedEmissionsTest
