ZB9-CIRCLEPlugwise Circle

Contents of the package Check the content of your package for the following parts. If a part is missing, please contact us as soon as possible. 1x Circle+ Plugwise sticker at the back with thick black line at the bottom Circle1x Stick This manualInstallation list with software license code license code Thank you for purchasing this Plugwise kit; the most advanced system for monitoring and control of your energy consumption available today. The system is managed by Plugwise Source, a software application that communicates with the Circles (the smart plugs) via a ZigBee wireless network. The installation process consists of three steps: plugging in the Circles, installing Source and configuring the system. A detailed manual for Source will be shown if you click the application’s question mark button. Installing and configuring your kit can take approximately 45 to 90 minutes. Windows XP/Vista/7 30 MB free disk space 1 GB memory 1 GHz processor 64 MB graphics card Internet connection System requirements In order to install Source you need a computer with at least the following specifications: Circle+ ÌPak de Circle+ (te herkennen aan de grijze achterkant), de meegeleverde installatielijst en een pen. ÌKies een apparaat in de nabijheid van de computer (niet de computer zelf), dat u op de Circle+ wilt aansluiten en loop naar het apparaat. ÌOp de achterkant van de Circle+ zijn twee stickers met een code bevestigd. Scheur één sticker af en plak deze op de installatielijst. Laat de andere sticker zitten. Het is mogelijk dat de code al op de installatatielijst is gedrukt. ÌSchrijf naast de sticker op de installatielijst de naam van het apparaat dat u op de Circle aansluit en het vertrek waarin het zich bevindt. ÌSteek nu de Circle+ in het stopcontact en steek vervolgens de stekker van het apparaat in de Circle+. Het aangesloten apparaat zal na enkele seconden ingeschakeld worden. Circle(s) ÌHerhaal de procedure met de resterende Circle(s); scheur de sticker los, vul de installatielijst in en sluit het apparaat aan. ÌGa terug naar uw computer wanneer alle Circles zijn ingestoken en de installatielijst volledig is ingevuld. 2. Software installatie Plugwise Source is de applicatie waarmee u op uw computer verbruiksgegevens van uw apparaten kunt bekijken en schakelschema’s kunt maken om energie te besparen. ÌGa naar www.myplugwise.com en download het installatiebestand. ÌStart de installatie-wizard door het bestand te openen. Als u Internet Explorer gebruikt, klikt u op ‘uitvoeren’, als u gevraagd wordt of u het bestand wilt uitvoeren of opslaan. ÌDoorloop alle stappen van de installatie-wizard, zodat de software zich automatisch installeert op uw computer. ÌZodra Source is geïnstalleerd, wordt de configuratie-wizard gestart. Ga dan verder met de stappen die hieronder staan beschreven. Stick ÌPlaats nu de Stick in een USB-ingang van uw computer. 3. Configureren van het Plugwise-netwerk De Source configuratie-wizard wordt automatisch geopend na de installatie van de software. Als er iets mis gaat, kunt u de configuratie-wizard zelf starten door op de snelkoppeling in uw Windows menu ‘Start’ te klikken. ÌDoorloop de stappen van de configuratie-wizard. Iedere stap wordt in 1. Plaatsing van de Circles 121 1. Placing the Circles Circle+ The Circle+ is the coordinator of the Plugwise network. This feature only plays a role while installing the network and when new modules are added. The Circle+ also contains a clock that the other Circles use to synchronize their time stamps. The Circle+ should always be installed first and should always be plugged in within range (30 feet) of the rest of the Plugwise network, even when no appliance is connected. ÌTake the Circle+ (recognizable by the sticker at the back with a thick black line at the bottom), the included installation list and a pen. ÌChoose an appliance, located in the same room as the computer, to plug into the Circle+. ÌCarefully tear off the lower code label and stick it in the space on the installation list. It is possible that the codes have already been printed on the installation list. ÌWrite the name of the appliance connected to the Circle+ next to the code on the installation list, as well as the location of the appliance. ÌPut the Circle+ into the power socket and plug the appliance into the Circle+. Circle(s) ÌRepeat the above procedure for the other Circle(s). ÌIf Circles are placed close to each other, the Plugwise network will operate faster. Although Circles can bridge longer distances, it is recommended that the Circles are placed no more than 30 feet away from each other. ÌReturn to your computer when all Circles are connected and the installation list is complete. It is not necessary to install all Circles at once as they can be added later via the settings menu. This is further explained in the Source manual. Some examples of heavy energy users are: refrigerators, water heaters, ovens and water beds. Most people can save energy on lighting, digital TV tuners, internet routers and devices with a stand-by feature. If you want to connect multiple appliances to one Circle, please take the inrush current of each appliance into account. The inrush current can be many times the nominal use current of the appliance. detail toegelicht in de Source software-handleiding. U kunt deze bekijken door op het vraagtekenknopje rechts onderin het scherm te klikken. ÌAan het eind van het configuratieproces krijgt u een e-mail toegezonden. Na het aanklikken van de activatielink in deze e-mail is Source klaar voor gebruik. ÌBewaar de installatielijst met de licentiecode goed. 2. Installing Plugwise Source It can take up to 10 minutes for all the Circles to be registered by the network. If a Circle is not found by the network during the configuration, you can add it manually via the settings menu. This process is explained in the Source software manual that appears if you click the question mark button at the bottom right of the Source window. Plugwise Sour…

Text truncated - open the document above for the full version.

Ills PIi.lg\~GNED BY THE APPLICANT/AGENT AND SHOULD BE Jill .. 'PLACED ON APPROPRlA TE LETTERHEAD Authority to Act as Agent Date: , ~JUIY. 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Richard van der Meer of TOV Rheinland EPS BV is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C. 862. Further, no party, as defined in 47 CFR 1,2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: \ -..4.!:!.ly_3~. 2012 ~ '"---,, By: 1)\ f'-J ~~ Willem Houck t7t Si QhlttJfei) (Print name) . ......." ,,---­ ........ .-........~-....-_..­ Title: .".....---------.-~....~--.. On behalf of: Plugwise BV.o (Company Name) Telephone: tM' -r-­ C) r-\ 1­ -t-\ q 'i-~Y5~! I _ \tt,">! h .. ' "',gncrl b,? 'Sit..:. Uf h~ ilHtlhJrlZetl agent "flpr"prlat< JLU'Wrt/~d age:m k~Hcr <1(1 apprr:)pri3.il..~ lcltttriM.:ad

TÜV Rheinland EPS B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tuv-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date ... Our reference 11030302 Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior appr oval. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: ZB9-CIRCLE, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Plugwise B.V. and TÜV Rheinland EPS B.V.: 1. Circuit diagram 2. Block diagram 3. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

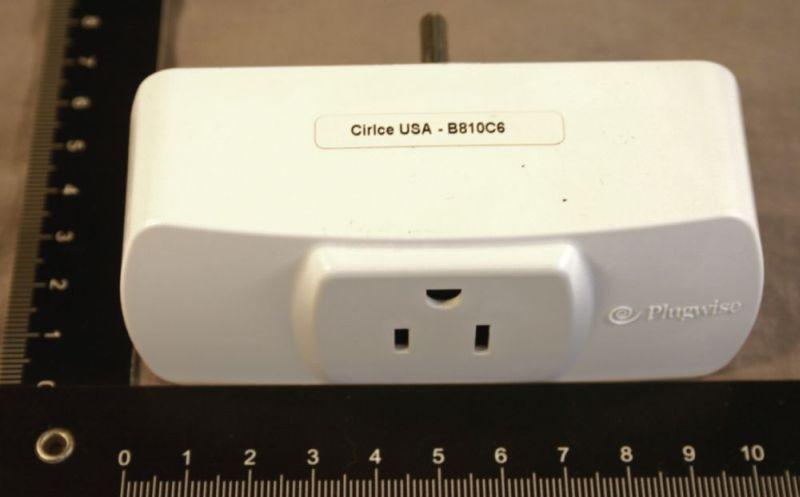

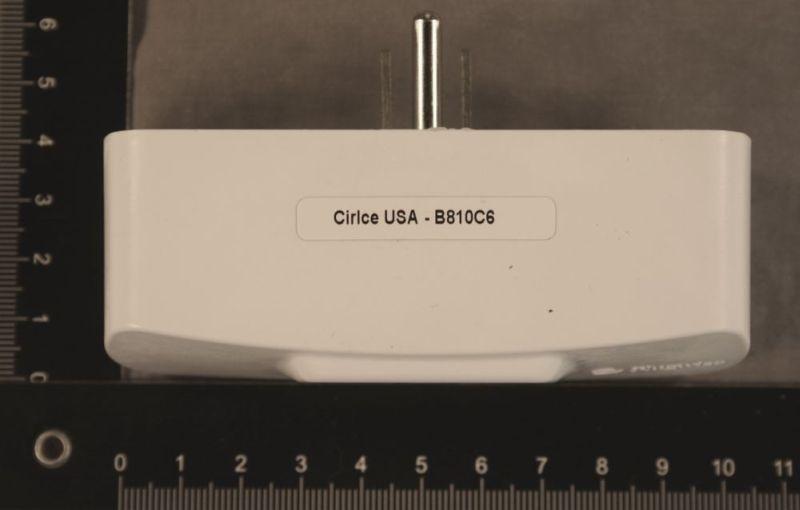

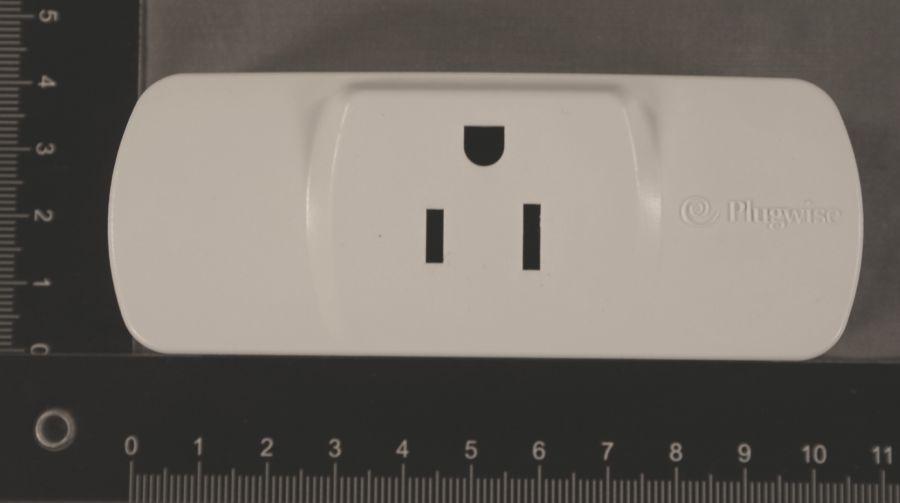

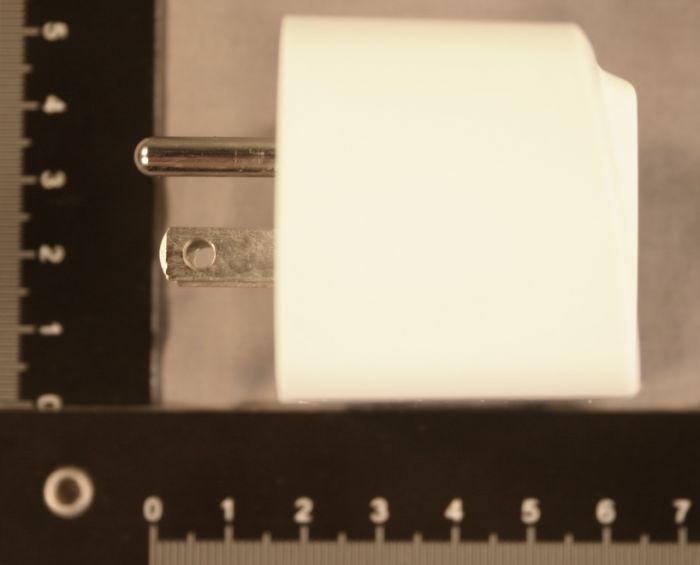

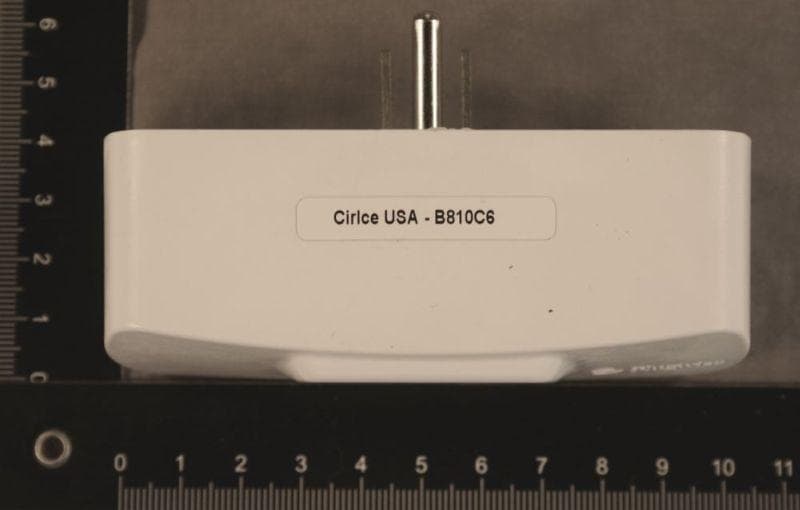

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11030302_ZB9-CIRCLE.p02 Page 1 of 8 PHOTOGRAPHS OF THE EXTERIOR OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL CIRCLE FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 2 of 8 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Circle Serial number(s) : -- MAC 000D6F0000B810C6 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 3 of 8 Table of contents 1 PHOTOGRAPHS OF THE EQUIPMENT. ....................................................................................................................... 4 1.1 EXTERNAL VIEW. ............................................................................................................................................................ 4 1.1.1 General over view ................................................................................................................................................ 4 1.1.2 Front view.............................................................................................................................................................. 5 1.1.3 Rear view .............................................................................................................................................................. 6 1.1.4 Side view, top ....................................................................................................................................................... 7 1.1.5 Side view, bottom ................................................................................................................................................ 7 1.1.6 Side view, left ....................................................................................................................................................... 8 1.1.7 Side view, right ..................................................................................................................................................... 8 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 4 of 8 1 Photographs of the equipment. 1.1 External view. 1.1.1 General over view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 5 of 8 1.1.2 Front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 6 of 8 1.1.3 Rear view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 7 of 8 1.1.4 Side view, top 1.1.5 Side view, bottom Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p02 Page 8 of 8 1.1.6 Side view, left 1.1.7 Side view, right

Label and Label location

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 110_.p01 Page 1 of 7 PHOTOGRAPHS OF THE INTERIOR OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL CIRCLE. FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 2 of 7 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Circle Serial number(s) : -- MAC 000D6F0000B810C6 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 3 of 7 Table of contents 1.1 OVERVIEW, OPENED EUT. ............................................................................................................................................. 4 1.2 OPENED EUT OVERVIEW ............................................................................................................................................... 5 1.3 PCB ................................................................................................................................................................................ 6 1.3.1 PCB front view ...................................................................................................................................................... 6 1.3.2 PCB rear view ...................................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 4 of 7 1.1 Overview, opened EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 5 of 7 1.2 Opened EUT overview Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 6 of 7 1.3 PCB 1.3.1 PCB front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302_ZB9-CIRCLE.p01 Page 7 of 7 1.3.2 PCB rear view

TÜV Rheinland EPS B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tuv-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject RF Exposure statement Date July 18,2011. Our reference 11030302 Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior approval. MPE Evaluation FCC ID : ZB9-CIRCLE Brand : Plugwise Model : Circle Description : A Digital Transmission System operating in the frequencyband 2405MHz up to 2480MHz This device has an e.i.r.p. less than +0.73 dBm ( 12 mW, including a maximum antenna gain of +1.8 dBi), which means that the worst case prediction of power density (100% reflection) at 20 cm distance (worst case) can be calculated as follows : EIRP S = 4* * R 2 (power density without reflection) 2 2 *EIRP S = 4* * R 2 (power density with 100% reflection) 2 2 *EIRP 12 mW S = 4* * R 2 = *(20cm) 2 = 0.00955 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure. Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

TÜV Rheinland EPS B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tuv-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Statement Date . Our reference -- Your reference 11030302 Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior approval. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands ACB Attn.: Mr. M. Derby Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mr. Derby, Regarding: FCC ID’s : ZB9-STICK, ZB9-Circle and ZB9-CIRCLE-PLUS Brand : Plugwise Model s : Stick, Circle and Circle plus Description : An Energy Management System operating in the 2400 – 2483.5 MHz band. I hereby declare that the information in the testreports is complete and emission tests at the band edge 2483.5 MHz are done and proved to comply with part 15.209 limits. Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

FCC ID: ZB9-CIRCLE IC: N/A Test Report No.: 11030302 Page 1 of 36 Client: Plugwise B.V. Wattstraat 56, 2171TR Sassenheim Test Item: Energy Management System, ZigBee device Identification: Circle Serial No.: ---- Project No.: 11030302 Date of Receipt: 2011-06-01 Testing Location: TÜV Rheinland EPS B.V. Smidshornerweg 18 9822 TL Niekerk Test Specification: FCC 47 CFR Part 15, Subpart C, Section 15.247 (October 1, 2010) ANSI C63.4-2009 KDB Publication No. 558074: Measurement of Digital Transmission Systems Operating under Section 15.247 (March 23, 2005) Test Result: The test item passed the test specification(s). Testing Laboratory: TÜV Rheinland EPS B.V. Smidshornerweg 18 9822 TL Niekerk Tested by: 2011-07-18 R. van der Meer / Inspector Date Name/Position Signature Reviewed by: 2011-07-18 O. Hoekstra / Reviewer Date Name/Position Signature Other Aspects: N/A Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. . FCC ID: ZB9-CIRCLE IC: N/A Test Report No.: 11030302 Page 2 of 36 TEST SUMMARY 5.1.1 VOLTAGE REQUIREMENTS RESULT: PASS 5.1.2 ANTENNA REQUIREMENTS RESULT: PASS 5.1.3 RESTRICTED BANDS OF OPERATION RESULT: PASS 5.2.1 CONDUCTED OUTPUT POWER RESULT: PASS 5.2.2 6DB BANDWIDTH RESULT: PASS 5.2.3 CONDUCTED SPURIOUS EMISSION RESULT: PASS 5.2.4 PEAK POWER SPECTRAL DENSITY RESULT: PASS 5.2.5 BAND EDGE CONDUCTED EMISSIONS RESULT: Pass 5.2.6 RADIATED SPURIOUS EMISSIONS OF TRANSMITTER RESULT: PASS 5.3.1 AC POWER LINE CONDUCTED EMISSION OF TRANSMITTER RESULT: PASS FCC ID: ZB9-CIRCLE IC: N/A Test Report No.: 11030302 Page 3 of 36 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 4 2.1 TEST FACILITIES ..................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 5 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.3 CLOCK FREQUENCIES ............................................................................................. 8 3.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................ 8 4. TEST SET-UP AND OPERATION MODES ..................................................................... 9 4.1 TEST METHODOLOGY .............................................................................................. 9 4.2 OPERATION MODES ................................................................................................ 9 4.3 PHYSICAL CONFIGURATION FOR TESTING ................................................................. 9 4.4 TEST SOFTWARE .................................................................................................. 10 4.5 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 5. TEST RESULTS R ADI O ....................................................................................... 12 5.1 TECHNICAL REQUIREMENTS ................................................................................... 12 5.1.1 Voltage Requirements ............................................................................................................... 12 5.1.2 Antenna Requirements .............................................................................................................. 12 5.1.3 Restricted Bands of Operation ................................................................................................... 13 5.2 CONDUCTED MEASUREMENTS AT ANTENNA PORT ................................................... 14 5.2.1 Conducted Output Power ........................................................................................................... 14 5.2.2 6dB Bandwidth ........................................................................................................................... 16 5.2.3 Conducted Spurious Emission ................................................................................................... 19 5.2.4 Peak Power Spectral Density .................................................................................................... 23 5.2.5 Band Edge Conducted Emissions ............................................................................................. 26 5.2.6 Radiated Spurious Emissions of Transmitter ............................................................................. 29 5.3 AC POWER LINE CONDUCTED MEASUREMENTS ...................................................... 34 5.3.1 AC Power Line Conducted Emission of Transmitter .................................................................. 34 6. LIST OF TABLES .................................................................................................... 36 7. LIST OF FIGURES .................................................................................................. 36 FCC ID: ZB9-CIRCLE IC: N/A Test Report No.: 11030302 Page 4 of 36 1. General Remarks 1.1 Complementary Materials There is no attachment to this test report. 2. Test Sites 2.1 Test Facilities The Federal Communications Commission and Industry Canada has reviewed the technical characteristics of th…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11030302.p03 Page 1 of 9 PHOTOGRAPHS OF THE TESTSETUP OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL CIRCLE FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 2 of 9 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Circle Serial number(s) : -- MAC 000D6F0000B810C6 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 3 of 9 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ....................................................................................................................... 4 1.1 RADIATED EMISSIONS..................................................................................................................................................... 4 1.1.1 Radiated emissions @ 3m, 30MHz – 1000MHz ............................................................................................. 4 1.1.3 Radiated emissions @3m, 1GHz – 25GHz ..................................................................................................... 5 1.1.4 Photographs showing setup for Radiated emission testing ....................................................................... 6 1.2 CONDUCTED MEASUREMENTS ....................................................................................................................................... 7 1.2.1 Conducted measurements testsetup overview ............................................................................................... 7 1.2.2 Test-jig connected to PCB .................................................................................................................................. 8 1.3 CONDUCTED EMISSIONS TEST SETUP ............................................................................................................................ 9 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 4 of 9 1 Photographs of the testsetup. 1.1 Radiated emissions. 1.1.1 Radiated emissions @ 3m, 30MHz – 1000MHz Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 5 of 9 1.1.3 Radiated emissions @3m, 1GHz – 25GHz Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 6 of 9 1.1.4 Photographs showing setup for Radiated emission testing Photographs showing EUT in X, Y and Z orientation Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 7 of 9 1.2 Conducted measurements 1.2.1 Conducted measurements testsetup overview EUT EUT Testsoftware Spectrum Analyzer Plotting software Test-Jig Mains EUT Spectrum Analyzer Test-Jig Mains Stick Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 8 of 9 1.2.2 Test-jig connected to PCB Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Circle ZB9-CIRCLE N/A Project number: 11030302.p03 Page 9 of 9 1.3 Conducted emissions test setup
