ZB9-SCANPlugwise Network Device

FCC Declarations Compliance statement (part 15.19) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning (part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This in particular is applicable for the antenna which has been delivered with any of the Pugwise products mentioned in the list below. FCC ID: ZB9-STICK ZB9-CIRCLE-PLUS ZB9-CIRCLE ZB9-STEALTH-PLUS ZB9-STEALTH ZB9-STEALTH-PLUS ZB9-STEALTH ZB9-SWITCH ZB9-SCAN ZB9-SENSE Plugwise user manual attestation. Version 2012.1 Product: Stick Circle+ Circle Stealth+ Stealth Sting+ Sting Switch Scan Sense

Scan 200.106.110211 Presence detection Manual 23 Scan Manual Thank you for buying this extension to your Plugwise system. The Scan enables you to detect people’s presence by means of an IR sensor and to switch appliances and lighting on and off when people are or are not present in a room. The wireless Scan is battery operated and communicates measurement data by means of the Plugwise ZigBee protocol. This does not require the computer to be left on. The Scan also has a ‘daylight override’ option to switch lights off automatically if the ambient light intensity is above a specified value for a certain period (the override option is switched off as standard). This manual describes the installation of a single Scan, but the same steps can be followed if you want to install multiple Scans at the same time. Before you start • We recommend that you follow this manual carefully; it is essential to take the steps in the correct order. • To be able to use the Scan, you will require a Plugwise network consisting of at least a Stick or Stretch and a Circle+. A Plugwise network can never contain more Scans than 5 times the number of Circles. What this manual explains for the Circle also applies to the Stealth and the Sting, or a combination thereof. • Ensure that you use the latest version of Source and that your modules have the latest firmware version. You can check this by clicking the Updates button in Source. The Scan is only supported if all other modules have firmware version 2.36 (as of 13-05-2011) or later. If this is not yet the case, prior to the installation of the Scan, the other modules must first be updated. In Source, check whether the Stick and all of the modules are online. • In Source, check whether the tick at the bottom left of the screen shows that the Stick is online: • In Source, check in the tree at ‘Overviews’ to see whether all devices are online. This is indicated by grey and yellow lights: • Only insert the battery when you start to use the Scan. A Scan uses a great deal more power if it is not connected to a Plugwise network. • To use the Scan, it must be connected to a Plugwise network. Finally, the Scan must be mounted on the ceiling. These steps are explained in more detail below. • Check whether all components are present. If a component is missing, please contact us as soon as possible. Contents of the package • Per Scan: ScanMounting plate Scan 200 .106 .11021 1 Manual 1 3,6V AA battery This manual 45 1. Adding the Scan to your Plugwise network ÌAdding the Scan to your Plugwise network. When you are asked to select a network, select the network to which the Scan must be added. ÌFill in the ID of the Scan. This ID is indicated on the stickers that are attached to the back. ÌClick the button with the green arrow: Next, insert the AA battery in the Scan, making note of the + and – marks. ÌIf you want to install multiple Scans, you can add the IDs for all of the Scans to the list. The Plugwise network will then search for the Scans with the new IDs in the list. Wait until Source indicates that the Scan is online. The circle with the question mark will then change into the following icon: If the Scan is not found within several minutes, check whether the Plugwise network is operating correctly (refer to ‘Before you start’). If the Stick and the other modules are available in Source and the Scan is still not shown as being online, follow the instructions to delete the network settings under ‘Delete network settings’, see: ‘Advanced use’. ÌClick ‘Next’ and then ‘Finish’. The Scan is now connected to your network. 2. Attaching the Scan to the ceiling ÌTake the Scan to the location where it must be installed. The Scan must always be in contact with its ‘parent’ (for example, a Circle), otherwise no communication can take place. Additionally, to ensure proper functioning of the Scan, it should be installed in a location where it is not exposed to direct sunlight or car headlights and must not be directly exposed to an air conditioner or central heating/heater. ÌThis Scan has the following sensitivity settings: ÌHigh sensitivity (particularly suited to office environments) ÌMedium sensitivity (mainly for home use) ÌOff The following figure shows the range for the first two settings for various degrees of registered movements (for walking or desk work) at various optimal installation heights. ÌCheck whether Source still indicates that the Scan is online. It can take several minutes for the network to process the new location of the Scan. ÌAttach the Scan mounting plate to the ceiling. The Up/Window arrow on the inside of the mounting plate indicates the top. Ensure that the Plugwise logo on the front ends up in a horizontal position: Up/Window > < Reset ÌWhen the mounting plate is attached to the ceiling, slide the Scan from above onto the plate until you feel the Scan click into place. 4.50 m 3.50 m 6 m high sensitivity medium sensitivity 2.40 m 2.70 m 67 3. Use Communication in the network The Scan contacts one of the Circles in your network. This Circle transmits the measurement data to the other Circles. If the Circle that the Scan tries to contact is unavailable, a connection will be made with another Circle. This can take several seconds. The computer does not need to be switched on to be able to use the Scan. Switching and insight The Scan can be set up, for example, to switch on lighting automatically when human presence is registered. The Scan then sends a ‘Switch on’ command in case of a detected movement. If a ‘Switch on’ command has already been sent, the command will not be sent again. A switching delay can also be set up (1–255 minutes, 10 minutes is standard) to determine that lighting is switched off after a certain period in which no movement is detected. In addition, ‘daylight override’ can also be activated. Starting at a certain level of ambient light, bearing in mind the specified switching delay, the lighting is then switched off automatically. Detected…

Text truncated - open the document above for the full version.

TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek The Netherlands www.tuv.com/nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date June 14. 2012 Our reference .. Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior approval. ACB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, On behalf of our customer Plugwise B.V., we hereby would like to apply for a original certification for the following device: FCC ID : ZB9-SCAN Brand : Plugwise Model : Scan Description : Digital Transmission System (DTS) The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request or confidentiality 3. Authorization letter 4. Form 731 5. Antenna information 6. Bill of material (BOM)- Not required-Not provided 7. Block diagram 8. Circuit diagram 9. Interior photographs 10. Exterior photographs 11. Label information 12. Operational description 13. Test report in conformity with 47 CFR Part 15 14. Test setup photographs 15. User/installation manual Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek The Netherlands www.tuv.com/nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date June 14, 2012 Our reference -- Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior approval. ACB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: ZB9-SCAN be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Plugwise B.V. and TÜV Rheinland EPS B.V.: 1. Circuit diagram 2. Block diagram 3. Operational description The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek The Netherlands www.tuv.com/nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Antenna info Date August 27, 2012 Our reference -- Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior approval. ACB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, On behalf of our customer Plugwise B.V. , we hereby declare that the antenna of the following device: FCC ID: ZB9-SCAN Brand: Plugwise Model: Ssan Description: Digital Transmission System (DTS) . The antenna is fixed to the PCB and part of the device. The antenna used is a chip antenna, Manufacturer:MURATA Model: ANCV12G44SAA127. Max Gain = -5.9 dBi. See for details the photographs of the interior of the device (exibit 09). Best regards, TÜV Rheinland EPS B.V. R. van der Meer Test Engineer

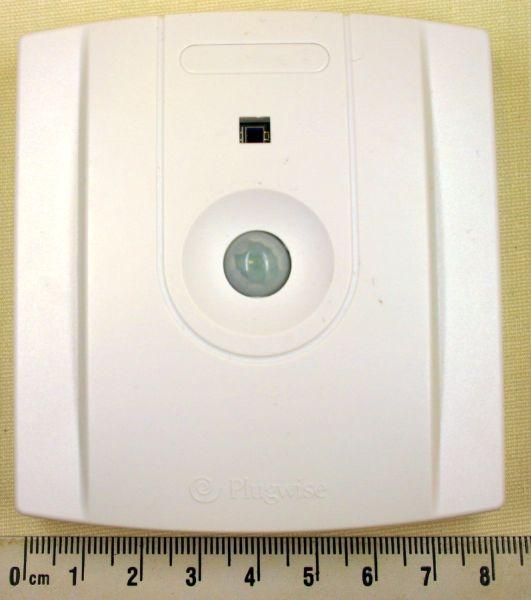

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12030804_ZB9-SCAN.p02 Page 1 of 5 PHOTOGRAPHS OF THE EXTERIOR OF A DIGITAL TRANSMISSION SYSTEM BRAND PLUGWISE, MODEL SCAN FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p02 Page 2 of 5 Description of test item Test item : Digital Transmission System (Plugwise System Wireless light and motion detector) Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Scan Serial number(s) : -- Revision : n.a. Receipt date : April 20, 2012 Applicant information Applicant's representative : Mr. R. Van Rooijen Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p02 Page 3 of 5 Table of contents 1 PHOTOGRAPHS OF THE EQUIPMENT. ....................................................................................................................... 4 1.1 EXTERNAL VIEW. ............................................................................................................................................................ 4 1.1.1 Front view.............................................................................................................................................................. 4 1.1.2 Rear view .............................................................................................................................................................. 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p02 Page 4 of 5 1 Photographs of the equipment. 1.1 External view. 1.1.1 Front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p02 Page 5 of 5 1.1.2 Rear view

Plugwise Scan ver. 20120614 FCC marking sticker: Position on backside: BATTERY Use only Lithium AA battery 3,6V < Reset 000D6F0000 XXX XXX 000D6F0000 XXX XXX 30 mm FCC ID: ZB9-SCAN FCC ID: ZB9-SCAN

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12030804_ZB9-SCAN.p01 Page 1 of 7 PHOTOGRAPHS OF THE INTERIOR OF A DIGITAL TRANSMISSION SYSTEM BRAND PLUGWISE, MODEL SCAN. FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 2 of 7 Description of test item Test item : Digital Transmission System Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Scan Serial number(s) : -- Revision : n.a. Receipt date : April 20, 2012 Applicant information Applicant's representative : Mr. R.van Rooijen Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 3 of 7 Table of contents 1.1 OVERVIEW, OPENED EUT. ............................................................................................................................................. 4 1.2 OPENED EUT OVERVIEW ............................................................................................................................................... 5 1.3 PCB ................................................................................................................................................................................ 6 1.3.1 PCB front view ...................................................................................................................................................... 6 1.3.2 PCB rear view ...................................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 4 of 7 1.1 Overview, opened EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 5 of 7 1.2 Opened EUT, PCB removed Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 6 of 7 1.3 PCB 1.3.1 PCB front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission System Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804_ZB9-SCAN.p01 Page 7 of 7 1.3.2 PCB rear view Antenna

FCC ID: ZB9-SCAN IC: N/A Test Report No.: 12030804.fcc01 Page 1 of 36 Client: Plugwise B.V. Wattstraat 56, 2171TR Sassenheim Test Item: Digital Transmission System (DTS) Plugwise System Wireless light and motion detector, ZigBee device Identification: Serial No.: ---- Project No.: 12030804 Date of Receipt: 2012-04-20 Testing Location: TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek Test Specification: FCC 47 CFR Part 15, Subpart C, Section 15.247 (October 1, 2010) ANSI C63.4-2009 KDB Publication No. 558074 D01: Measurement of Digital Transmission Systems Operating under Section 15.247 (January 18, 2012) Test Result: The test item passed the test specification(s). Testing Laboratory: TÜV Rheinland EPS B.V. Eiberkamp 10 9351 VT Leek Tested by: 2012-09-07 R. van der Meer / Inspector Date Name/Position Signature Reviewed by: 2012-09-07 O. Hoekstra / Reviewer Date Name/Position Signature Other Aspects: N/A Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. . FCC ID: ZB9-SCAN IC: N/A Test Report No.: 12030804.fcc01 Page 2 of 36 TEST SUMMARY 5.1.1 VOLTAGE REQUIREMENTS RESULT: PASS 5.1.2 ANTENNA REQUIREMENTS RESULT: PASS 5.1.3 RESTRICTED BANDS OF OPERATION RESULT: PASS 5.2.1 CONDUCTED OUTPUT POWER RESULT: PASS 5.2.2 6DB BANDWIDTH RESULT: PASS 5.2.3 CONDUCTED SPURIOUS EMISSION RESULT: PASS 5.2.4 PEAK POWER SPECTRAL DENSITY RESULT: PASS 5.2.5 BAND EDGE CONDUCTED EMISSIONS RESULT: Pass 5.2.6 RADIATED SPURIOUS EMISSIONS OF TRANSMITTER RESULT: PASS 5.3.1 AC POWER LINE CONDUCTED EMISSION OF TRANSMITTER RESULT: Not Applicable- Battery operated device FCC ID: ZB9-SCAN IC: N/A Test Report No.: 12030804.fcc01 Page 3 of 36 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 4 2.1 TEST FACILITIES ..................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 5 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.3 CLOCK FREQUENCIES ............................................................................................. 8 3.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................ 8 4. TEST SET-UP AND OPERATION MODES ..................................................................... 9 4.1 TEST METHODOLOGY .............................................................................................. 9 4.2 OPERATION MODES ................................................................................................ 9 4.3 PHYSICAL CONFIGURATION FOR TESTING ................................................................. 9 4.4 TEST SOFTWARE .................................................................................................. 10 4.5 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 5. TEST RESULTS R ADI O ....................................................................................... 13 5.1 TECHNICAL REQUIREMENTS ................................................................................... 13 5.1.1 Voltage Requirements ............................................................................................................... 13 5.1.2 Antenna Requirements .............................................................................................................. 13 5.1.3 Restricted Bands of Operation ................................................................................................... 14 5.2 CONDUCTED MEASUREMENTS AT ANTENNA PORT ................................................... 15 5.2.1 Conducted Output Power ........................................................................................................... 15 5.2.2 6dB Bandwidth ........................................................................................................................... 17 5.2.3 Conducted Spurious Emission ................................................................................................... 20 5.2.4 Peak Power Spectral Density .................................................................................................... 24 5.2.5 Band Edge Conducted Emissions ............................................................................................. 27 5.2.6 Radiated Spurious Emissions of Transmitter ............................................................................. 30 5.3 AC POWER LINE CONDUCTED MEASUREMENTS ...................................................... 35 5.3.1 AC Power Line Conducted Emission of Transmitter .................................................................. 35 6. LIST OF TABLES .................................................................................................... 36 7. LIST OF FIGURES .................................................................................................. 36 FCC ID: ZB9-SCAN IC: N/A Test Report No.: 12030804.fcc01 Page 4 of 36 1. General Remarks 1.1 Complementary Materials There is no attachment to this test report. 2. Test Sites 2.1 Test Facilities The Federal C…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv.com/nl E-mail: [email protected] Project number: 12021502.p03 Page 1 of 6 PHOTOGRAPHS OF THE TESTSETUP OF A DIGITAL TRANSMISSION SYSTEM OPERATING IN THE 2G4 ISM-BAND BRAND PLUGWISE, MODEL Scan 12030804.p03 June 26, 2012 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission Sytem Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804.p03 Page 2 of 6 Description of test item Test item : Digital Transmission System Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model : Scan Serial number : -- FCC ID : ZB9-SCAN IC : N.A. Applicant information Applicant's representative : Mr. R.van Rooijen Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Report written by : R. van der Meer Report date : June 26, 2012 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission Sytem Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804.p03 Page 3 of 6 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ....................................................................................................................... 4 1.1 RADIATED EMISSIONS..................................................................................................................................................... 4 1.1.1 Radiated emissions setup .................................................................................................................................. 4 1.1.2 Radiated emissions setup detail ........................................................................................................................ 5 1.2 CONDUCTED TESTS ........................................................................................................................................................ 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission Sytem Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804.p03 Page 4 of 6 1 Photographs of the testsetup. 1.1 Radiated emissions. 1.1.1 Radiated emissions setup Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission Sytem Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804.p03 Page 5 of 6 1.1.2 Radiated emissions setup detail Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Digital Transmission Sytem Applied Micro Electronics “AME” BV Plugwise Scan ZB9-SCAN N/A Project number: 12030804.p03 Page 6 of 6 1.2 Conducted tests
