ZB9-STICKPlugwise Stick

Contents of the package Check the content of your package for the following parts. If a part is missing, please contact us as soon as possible. 1x Circle+ Plugwise sticker at the back with thick black line at the bottom Circle1x Stick This manualInstallation list with software license code license code Thank you for purchasing this Plugwise kit; the most advanced system for monitoring and control of your energy consumption available today. The system is managed by Plugwise Source, a software application that communicates with the Circles (the smart plugs) via a ZigBee wireless network. The installation process consists of three steps: plugging in the Circles, installing Source and configuring the system. A detailed manual for Source will be shown if you click the application’s question mark button. Installing and configuring your kit can take approximately 45 to 90 minutes. Windows XP/Vista/7 30 MB free disk space 1 GB memory 1 GHz processor 64 MB graphics card Internet connection System requirements In order to install Source you need a computer with at least the following specifications: Circle+ ÌPak de Circle+ (te herkennen aan de grijze achterkant), de meegeleverde installatielijst en een pen. ÌKies een apparaat in de nabijheid van de computer (niet de computer zelf), dat u op de Circle+ wilt aansluiten en loop naar het apparaat. ÌOp de achterkant van de Circle+ zijn twee stickers met een code bevestigd. Scheur één sticker af en plak deze op de installatielijst. Laat de andere sticker zitten. Het is mogelijk dat de code al op de installatatielijst is gedrukt. ÌSchrijf naast de sticker op de installatielijst de naam van het apparaat dat u op de Circle aansluit en het vertrek waarin het zich bevindt. ÌSteek nu de Circle+ in het stopcontact en steek vervolgens de stekker van het apparaat in de Circle+. Het aangesloten apparaat zal na enkele seconden ingeschakeld worden. Circle(s) ÌHerhaal de procedure met de resterende Circle(s); scheur de sticker los, vul de installatielijst in en sluit het apparaat aan. ÌGa terug naar uw computer wanneer alle Circles zijn ingestoken en de installatielijst volledig is ingevuld. 2. Software installatie Plugwise Source is de applicatie waarmee u op uw computer verbruiksgegevens van uw apparaten kunt bekijken en schakelschema’s kunt maken om energie te besparen. ÌGa naar www.myplugwise.com en download het installatiebestand. ÌStart de installatie-wizard door het bestand te openen. Als u Internet Explorer gebruikt, klikt u op ‘uitvoeren’, als u gevraagd wordt of u het bestand wilt uitvoeren of opslaan. ÌDoorloop alle stappen van de installatie-wizard, zodat de software zich automatisch installeert op uw computer. ÌZodra Source is geïnstalleerd, wordt de configuratie-wizard gestart. Ga dan verder met de stappen die hieronder staan beschreven. Stick ÌPlaats nu de Stick in een USB-ingang van uw computer. 3. Configureren van het Plugwise-netwerk De Source configuratie-wizard wordt automatisch geopend na de installatie van de software. Als er iets mis gaat, kunt u de configuratie-wizard zelf starten door op de snelkoppeling in uw Windows menu ‘Start’ te klikken. ÌDoorloop de stappen van de configuratie-wizard. Iedere stap wordt in 1. Plaatsing van de Circles 121 1. Placing the Circles Circle+ The Circle+ is the coordinator of the Plugwise network. This feature only plays a role while installing the network and when new modules are added. The Circle+ also contains a clock that the other Circles use to synchronize their time stamps. The Circle+ should always be installed first and should always be plugged in within range (30 feet) of the rest of the Plugwise network, even when no appliance is connected. ÌTake the Circle+ (recognizable by the sticker at the back with a thick black line at the bottom), the included installation list and a pen. ÌChoose an appliance, located in the same room as the computer, to plug into the Circle+. ÌCarefully tear off the lower code label and stick it in the space on the installation list. It is possible that the codes have already been printed on the installation list. ÌWrite the name of the appliance connected to the Circle+ next to the code on the installation list, as well as the location of the appliance. ÌPut the Circle+ into the power socket and plug the appliance into the Circle+. Circle(s) ÌRepeat the above procedure for the other Circle(s). ÌIf Circles are placed close to each other, the Plugwise network will operate faster. Although Circles can bridge longer distances, it is recommended that the Circles are placed no more than 30 feet away from each other. ÌReturn to your computer when all Circles are connected and the installation list is complete. It is not necessary to install all Circles at once as they can be added later via the settings menu. This is further explained in the Source manual. Some examples of heavy energy users are: refrigerators, water heaters, ovens and water beds. Most people can save energy on lighting, digital TV tuners, internet routers and devices with a stand-by feature. If you want to connect multiple appliances to one Circle, please take the inrush current of each appliance into account. The inrush current can be many times the nominal use current of the appliance. detail toegelicht in de Source software-handleiding. U kunt deze bekijken door op het vraagtekenknopje rechts onderin het scherm te klikken. ÌAan het eind van het configuratieproces krijgt u een e-mail toegezonden. Na het aanklikken van de activatielink in deze e-mail is Source klaar voor gebruik. ÌBewaar de installatielijst met de licentiecode goed. 2. Installing Plugwise Source It can take up to 10 minutes for all the Circles to be registered by the network. If a Circle is not found by the network during the configuration, you can add it manually via the settings menu. This process is explained in the Source software manual that appears if you click the question mark button at the bottom right of the Source window. Plugwise Sour…

Text truncated - open the document above for the full version.

TÜV Rheinland EPS B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tuv-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date ... Our reference 11030302 Your reference -- Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TÜV Rheinland EPS B.V. TÜV Rheinland EPS B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requi res prior approval. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands ACB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: ZB9-STICK, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Plugwise B.V. and TÜV Rheinland EPS B.V.: 1. Circuit diagram 2. Block diagram 3. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TÜV Rheinland EPS B.V. R .van der Meer Test Engineer

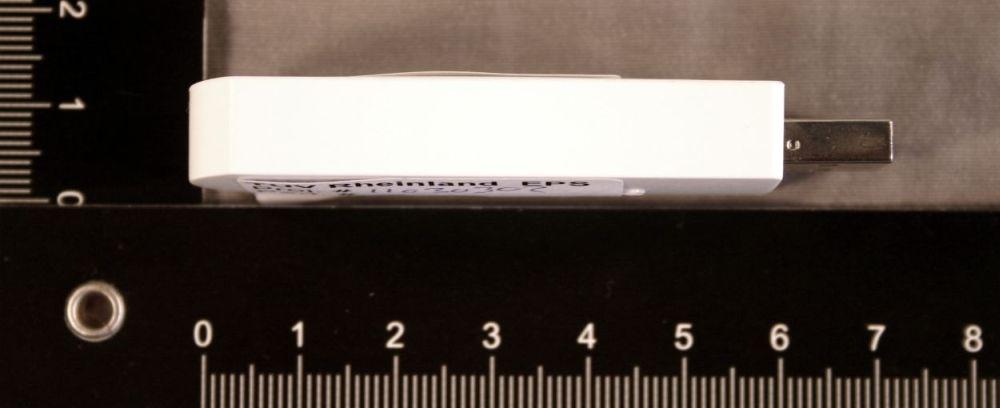

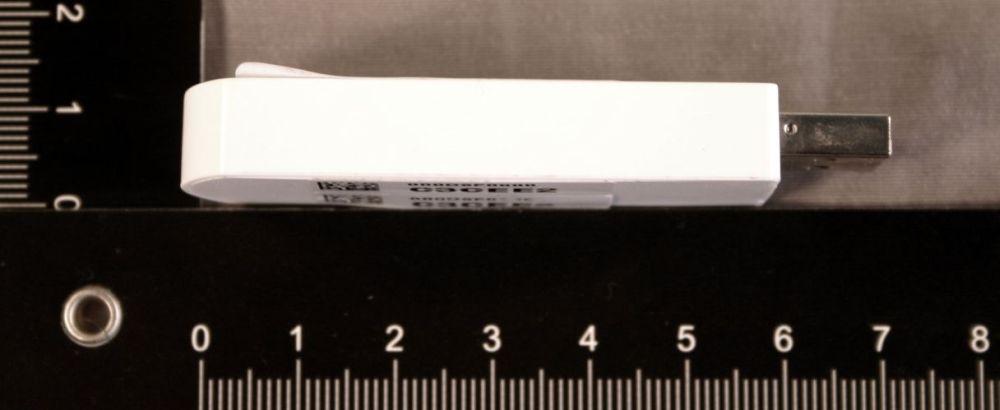

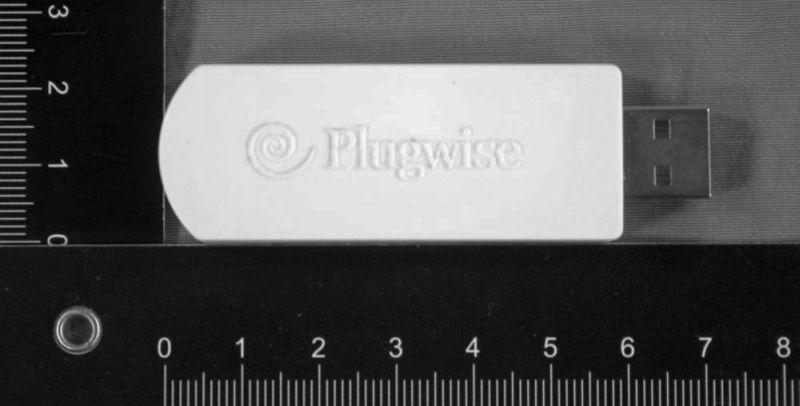

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11030302_ZB9-STICK.p02 Page 1 of 5 PHOTOGRAPHS OF THE EXTERIOR OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL STICK. FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p02 Page 2 of 5 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Stick Serial number(s) : -- MAC 000D6F0000C3CEE2 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p02 Page 3 of 5 Table of contents 1 PHOTOGRAPHS OF THE EQUIPMENT. ....................................................................................................................... 4 1.1 EXTERNAL VIEW. ............................................................................................................................................................ 4 1.1.1 Front view.............................................................................................................................................................. 4 1.1.2 Rear view .............................................................................................................................................................. 4 1.1.3 Side view, top ....................................................................................................................................................... 5 1.1.4 Side view, bottom ................................................................................................................................................ 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p02 Page 4 of 5 1 Photographs of the equipment. 1.1 External view. 1.1.1 Front view 1.1.2 Rear view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p02 Page 5 of 5 1.1.3 Side view, top 1.1.4 Side view, bottom

Label and Label location

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11030302_ZB9-STICK.p01 Page 1 of 6 PHOTOGRAPHS OF THE INTERIOR OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL STICK. FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p01 Page 2 of 6 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Stick Serial number(s) : -- MAC 000D6F0000C3CEE2 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p01 Page 3 of 6 Table of contents 1.1 OVERVIEW, OPENED EUT. ............................................................................................................................................. 4 1.2 OPENED EUT OVERVIEW ............................................................................................................................................... 5 1.3 PCB ................................................................................................................................................................................ 6 1.3.1 PCB front view ...................................................................................................................................................... 6 1.3.2 PCB rear view ...................................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p01 Page 4 of 6 1.1 Overview, opened EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p01 Page 5 of 6 1.2 Opened EUT overview Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p01 Page 6 of 6 1.3 PCB 1.3.1 PCB front view 1.3.2 PCB rear view

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 11021701.fcc01 Page 1 of 12 TEST REPORT CONCERNING THE COMPLIANCE OF AN ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL STICK. WITH 47 CFR PART 15 (10-1-09). 11030302.fcc02 August 02, 2011 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15B Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK Project number : 11030302.fcc02 Page 2 of 12 MEASUREMENT/TECHNICAL REPORT ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL STICK FCC ID: ZB9-STICK This report concerns: Original grant/certification Class 2 change Verification Equipment type: Class-B Digital device Report prepared by: Name : Richard van der Meer Company name : TÜV Rheinland EPS B.V. Address : Smidshornerweg 18 Postal code/city : 9822 TL Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 ZG Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (10-1-09 edition) and the measurement procedures of ANSI C63.4-2009. TÜV Rheinland EPS B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: August 02, 2011 Signature: O. Hoekstra Senior Engineer Telecom TÜV Rheinland EPS B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15B Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK Project number : 11030302.fcc02 Page 3 of 12 Summary The device under test does: fulfill the general approval requirements as identified in this test report o not fulfill the general approval requirements as identified in this test report Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Stick Serial number(s) : -- MAC 000D6F0000C3CEE2 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Test(s) performed Location : Niekerk Test(s) started : June 01, 2011 Test(s) completed : June 07, 2011 Purpose of test(s) : Verification Test specification(s) : 47 CFR Part 15 (10-1-09 Edition) Test engineer(s) : R. van der Meer Report written by : R. van der Meer Report date : August 02, 2011 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15B Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK Project number : 11030302.fcc02 Page 4 of 12 Table of contents 1 General information. .............................................................................................................................................. 5 1.1 Product description. ........................................................................................................................................ 5 1.1.1 Introduction. ............................................................................................................................................ 5 1.2 Related submittal(s) and/or Grant(s). ............................................................................................................. 5 1.2.1 General. .................................................................................................................................................. 5 1.3 Tested system details. .................................................................................................................................... 5 1.4 Test Summary ................................................................................................................................................ 6 1.4.1 Description of input and output ports. ..................................................................................................... 7 1.5 Test methodology. .......................................................................................................................................... 8 1.6 Test facility. .................................................................................................................................................... 8 1.7 Test conditions. .............................................................................................................................................. 8 2 System test configuration. ..................................................................................................................................... 9 2.1 Justification. .................................................................................................................................................... 9 2.2 EUT mode of operation. ................................................................................................................................. 9 2.3 Special ac…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11030302_ZB9-STICK.p04 Page 1 of 7 PHOTOGRAPHS OF THE CLASS B DIGITAL DEVICE TESTSETUP OF A ENERGY MANAGEMENT SYSTEM, ZIGBEE DEVICE BRAND PLUGWISE, MODEL STICK. FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 2 of 7 Description of test item Test item : Energy Management System, ZigBee device Manufacturer : Applied Micro Electronics “AME” BV Brand : Plugwise Model(s) : Stick Serial number(s) : -- MAC 000D6F0000C3CEE2 Revision : n.a. Receipt date : June 01, 2011 Applicant information Applicant's representative : Mr. E. Vroege Company : Plugwise B.V. Address : Wattstraat 56 Postal code : 2171TR City : Sassenheim Country : The Netherlands Telephone number : +31 252433070 Telefax number : +31 252433079 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 3 of 7 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ....................................................................................................................... 4 1.1 RADIATED EMISSIONS..................................................................................................................................................... 4 1.1.1 Radiated emissions @ 3m, 30MHz – 1000MHz ............................................................................................. 4 1.1.3 Photographs showing setup for Radiated emission testing ........................................................................... 5 1.2 CONDUCTED EMISSIONS TEST SETUP ............................................................................................................................ 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 4 of 7 1 Photographs of the testsetup. 1.1 Radiated emissions. 1.1.1 Radiated emissions @ 3m, 30MHz – 1000MHz Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 5 of 7 1.1.3 Photographs showing setup for Radiated emission testing Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 6 of 7 Photographs showing EUT in X, Y and Z orientation Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Energy Management System, Zigbee device Applied Micro Electronics “AME” BV Plugwise Stick ZB9-STICK N/A Project number: 11030302_ZB9-STICK.p04 Page 7 of 7 1.2 Conducted emissions test setup
