ZBG-ATRVHF-2VHF ATR

Agility Telemetry Radio (ATR) User Manual Oct 2012 Revision D.2 Quick Start Procedure Note: Prior to starting the installation process, go to the KTS Wireless website (ktswireless.com) and download a copy of the ATR Element Management System (EMS) software. Store this software on your PCs Desktop. Follow the steps below to install and configure Agility Telemetry Radio (ATR): 1. Select the location for the ATR. Must be an area free of water intrusion with a temperature range of -30 to +60 deg C (-22 to 140 deg F). It is always best to use the mounting option shown in Figure 1 below to provide good ‘heat sinking’ of the ATR case to a large metal surface or DIN rail. This will reduce the operating temperature of the ATR and surrounding equipment within the same enclosure. Figure 1: ATR Optional Mounting Bracket See the KTS website for ordering information. Correct mounting is critical to maximizing ATR performance and reliability. 2. Locate the coaxial cable to the antenna. This should be a good quality, low-loss cable that is as short as possible. This cable should include an in-line surge arrestor to prevent lightning strike damage to the radio. The cable should have a BNC (F) connector or an adapter will be needed. See the KTS Wireless website for ordering information, if one is needed. 3. Locate the power source. The ATR requires a 9-24 VDC input and draws about 2.5 A (at 12 VDC) when transmitting. Power is supplied via the Green Terminal Block at the end of the unit (See Figure 2). The mating terminal block connector is supplied with the ATR and can be used to connect to an existing power supply. Alternately, a separate power supply (12 or 24 VDC) can be purchased directly from a OEM supplier provided it meets the FCC or other regulatory requirements when powering the ATR. Power/Fan (TB) Ethernet (RJ45) Antenna (SMA) Serial Data (DB9) Figure 2: ATR Connections The proper wiring for the Terminal Block (TB) is shown in Figure 3 below: +12 to 24 VDC In (Radio) Ground +12 or 24 VDC In (External Fan) 123 Figure 3: ATR Power Connections Note that the radio is powered using pins 1 and 3 and accepts any voltage from 12 to 24 VDC. Pins 2 and 3 can be used to connect to an external fan near the radio if additional cooling is required. A thermostat inside the ATR will turn the fan on and off based on its internal temperature. The maximum current supported (internal fuse) for the fan is 0.75 A at 12 VDC. 4. Once the power is supplied to the ATR, observe that the green power LED is illuminated. It takes about 7-10 seconds for the ATR to boot-up. After this, only the green power LED should be on. Figure 4 summarizes the LEDs and their meaning. Power on (GRN) or Summary Fault (RED) Wireless Link Activity (Amber = TX; Grn= RX) Reset Button (Recessed) (Depress for 12 secs for Factory Defaults) Ethernet Activity (Flashes Yellow) LAN Speed (GRN = 10 Mb/s Off = 100 Mb/s) Figure 4: ATR LEDs and definitions 5. Connect a laptop to the ATR as shown in the Figure 5. Double-click on the icon below to start the EMS software. EMS_2.3.23.6.jar Agility Telemetry Radio (ATR) Laptop Element Management System (EMS) Software Ethernet cable Figure 5: EMS to ATR Connection 6. The Main screen will appear (See Figure 6). Enter a valid password and click on Login. The IP Tab will open if a valid password is entered. Contact KTS Wireless to obtain your password. Section 4.0 of this manual contains the details of using the ATR Element Management System (EMS). Jump to Section 4.0 for details on setting up the EMS and resetting the ATR IP addresses (i.e., changing from the default value). 7. The default IP address of the ATR is 192.168.1.4. This address is automatically loaded in the Connect to field at the top. Click on the GET button at the bottom if this default address is still loaded in the ATR and not been changed. Note: Pressing and holding the recessed Reset button (See Figure 4) for at least 12 seconds will force the radio back to its default settings. The default radio IP address is 192.168.1.4. If the ATR’s IP address is unknown, clicking on the ‘magnifying glass’ icon to the right of the ‘connect to’ will initiate a search. If it is discovered in the search, a pop-up window will appear with the unit’s serial number and IP address. 8. Open the Configuration Tab. Select the Link Configuration (channel bandwidth) from the pull-down menu. Enter the desired Frequency in Hz (with or without commas separators). Make sure the desired frequency is supported by the RF Card installed in the ATR. The following ranges are supported: RF Card Band Frequency Range (MHz) VHF 145.0 to 225.0 (Band 15 or 26) UHF 450.0 to 470.0 (Band 28) The ATR configuration printed label (on the bottom side) indicates the RF Band supported (VHF or UHF). Verification of the Radio band can be found on the SW/HW tab (RF Band is displayed in the upper right of the tab). 9. Set the Transmit Power level. Valid entries are 10 to 37 (dBm). 10. Enter the Radio Type (Remote or Hub). All networks require a single hub. This Hub radio controls the Media Access Control (MAC) software and implements a round-robin polling of all remote sites that have ‘joined’ the network. All remote sites automatically join the Hub/network if they are configured with the same frequency and link configuration as the hub and have sufficient signal strength to communicate with it. 11. Enter the Site Name (optional). This is a convenient name for the location or site and can be used by operation staff for identification. Its value does not affect radio operation. Up to 15 characters can be entered. This name is used by the optional Network Performance Software (NPM) to display the status of sites and send alerts. It is recommended that a unique name be given to each site. 12. Click on SET to make the desired Configuration changes within the ATR. The ATR will automatically reset and begin using the new configuration information. Allow about 7- 10 seconds for this process to complete. And…

Text truncated - open the document above for the full version.

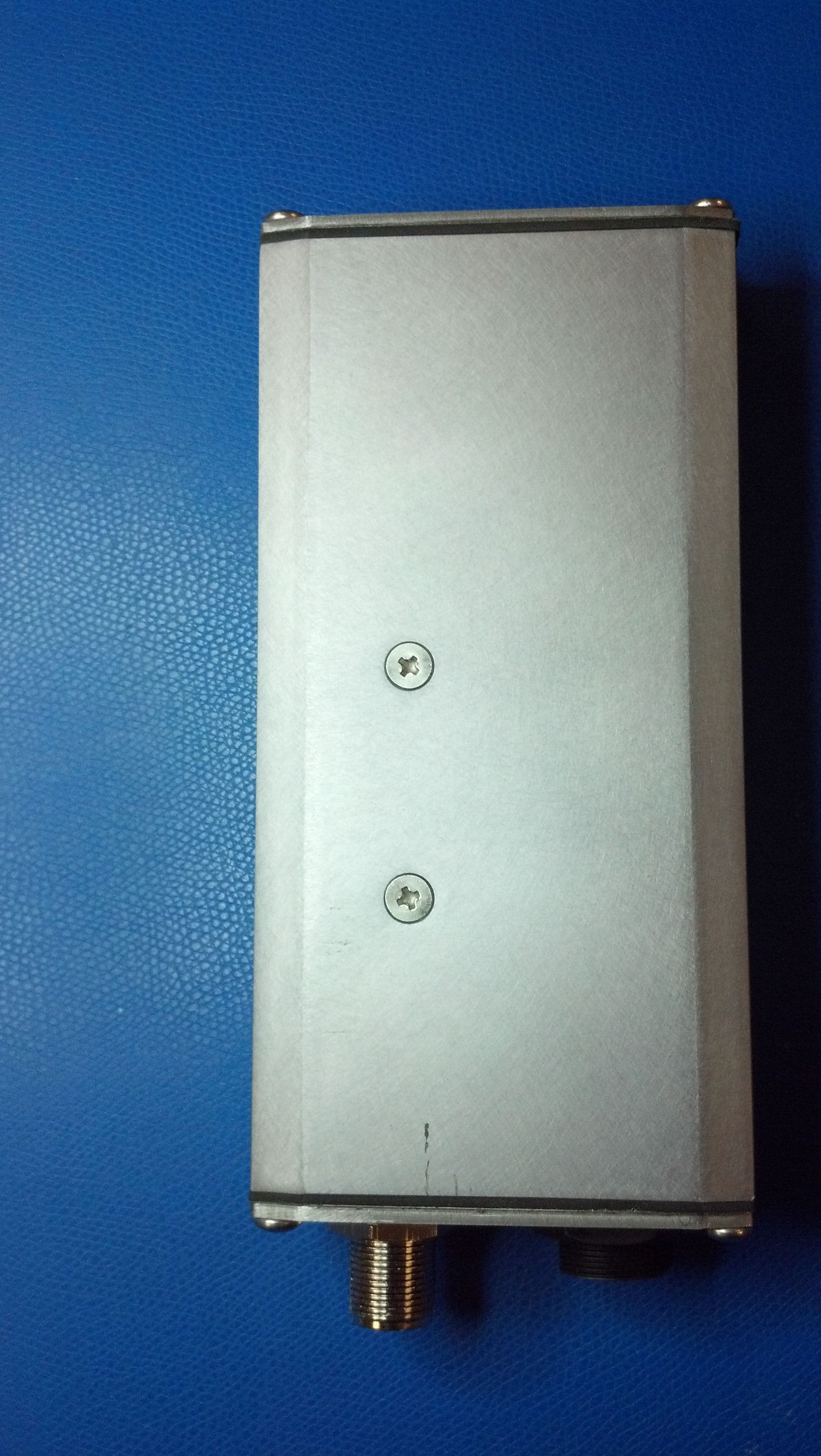

AT R Enclosure AT R Enclosure Ends Front Back

ATR VHF FCC Labels VHF-1 (150 – 174 MHz) This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Agility Telemetry Radio Made in U.S.A Input Power: 12 to 24 VDC, 2.5A Operating Temp Range: -30 to +60 C FCC ID: ZBG-ATRVHF-1 ATR-US-VHF-100 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Agility Telemetry Radio Made in U.S.A Input Power: 12 to 24 VDC, 2.5A Operating Temp Range: -30 to +60 C FCC ID: ZBG-ATRVHF-2 ATR-US-VHF-120 2.6” 1.0” VHF-2 (217 - 220 MHz) Label Location

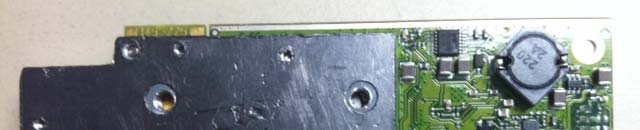

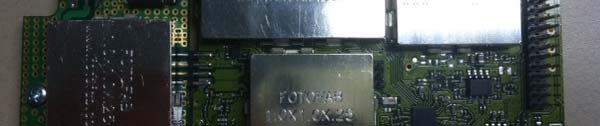

RF Board RF Board To p (Shields on) To p (Shields off) Bottom Digital Board Digital Board Bottom To p

1025 Greenwood Blvd., Suite 391 Lake Mary, FL 32746 Phone: 407.260.0564; Fax: 407.333.3620 www.koostech.com Tuning Procedure VHF ATR (ZBG-ATRVHF-2) The KTS VHF Agility Telemetry Radio (ATR) includes an internal frequency synthesizer with a 20 MHz Frequency Reference. This Reference a Temperature-Compensated Crystal Oscillator (TCXO) with Stratum 3 frequency stability. This reference is multiplied up to the desired operating frequency within the Synthesizer. This TCXO is aged and very accurately set at the factory. It will meet the frequency stability and accuracy requirements for the life of the product and does not require any tuning.

Freq (MHz):220 PTransmit Power (mW):3,300.0 GMax Antenna Gain (dB):7.55.623413Linear Gain RDistance (cm):10039.37inches S Power Density (mW/cm 2 ): 0.197 Limits for General Public (mW/cm 2 ): f = 30 - 300 MHz0.2 f = 300 - 1500 MHzf/15000.200 Limits for Occupational Exposure f=30 - 300 MHz1 f = 300 - 1500 MHzf/3001.000 MPE Calculations

FCC PART 90 TEST DATA APPLICANT KOOS TECHNICAL SERVICES 1025 GREENWOOD BLVD SUITE 391 LAKE MARY FLORIDA 32746 FCC ID ZBG-ATRVHF-2 MODEL NUMBER ATR-US-VHF-120 PRODUCT DESCRIPTION TELEMETRY RADIO DATE SAMPLE RECEIVED 12/19/2012 DATE TESTED 1/25/2013 TESTED BY Joe Scoglio APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 576UT13Test Report.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 2 of 16 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................... 3 GENERAL INFORMATION .................................................................................................... 4 TEST PROCEDURES ............................................................................................................ 5 RF POWER OUTPUT ............................................................................................................ 6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ...................................... 7 FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................... 9 FREQUENCY STABILITY .................................................................................................... 11 OCCUPIED BANDWIDTH ................................................................................................... 12 OCCUPIED BANDWIDTH PLOTS........................................................................................ 14 EMC EQUIPMENT LIST ...................................................................................................... 16 Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 3 of 16 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Joe Scoglio Project Manager/Tester Date: 1/25/2013 Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 4 of 16 GENERAL INFORMATION DUT Specification DUT Description AGILITY TELEMETRY RADIO FCC ID ZBG-ATRVHF-2 Model Number ATR-US-VHF-120 Operating Frequency 217-220 MHz Type of Emission 16K0F3E/11K0F3E Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 5 of 16 TEST PROCEDURES Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C: 2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the antenna. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 6 of 16 RF POWER OUTPUT Rule Part No.: FCC Part 2.1046(a), IC RSS-119 4.1 and 5.4, RSS-GEN 4.8 Test Requirements: Method of Measurement: RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: HIGH – 3.3 Watts Conducted LOW - 0.010 Watts Conducted Applicant: KOOS TECHNICAL SERVICES FCC ID: ZBG-ATRVHF-2 Report: V:\K\KOOS TECHNICAL SERVICES\576UT13\576UT13TestReport.doc Page 7 of 16 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) Rule Part No.: FCC Part 2.1051(a), RSS-GEN 7.1.4 Requirements: 12.5 kHz CH spacing– 50+10log(3.3) = 55.2 6.25 kHz CH spacing - 55+10log(3.3) = 60.2 12.5 kHz CH spacing– 50+10log(0.010) = 30 6.25 kHz CH spacing - 55+10log(0.010) = 35 Method of Measurement: The spectrum was scanned from 0.4 to at least the 10th harmonic of the fundamental. The measurements were m…
