ZBNC18-13Induction Cooker

INSTRUCTION MANUAL I IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors (this item may be omitted if the product is specifically intended for outdoor use). 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Always attach plug to appliance first, then plug cord into the wall outlet( For the detached power cord).To disconnect, turn any control to off, then remove plug from wall outlet. 13. Do not use appliance for other than intended use. 14. Do not immerse in water. 15. A short power-supply cord(or detached power supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. 16. Longer detached power supply cord or extension cords are available and may be used if care is exercised in their use. 17. If a longer detached power supply cord or extension cords power-supply cord is used, a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and b) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. 18. Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. 19. Clean Cook-Top with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface. 20. Do not heat the pot empty or overheat it. 21. Do not place metallic objects such as knives, forks, spoons, lids, cans and aluminum foils on the top plate. 22. Allow sufficient space around the cooking area. 23. Never use the unit on low-heat-resistant materials (carpet, vinyl). 24. Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt. 25. Be aware that the unit surface will remain hot for a short period of time. 26. Items with a magnetic field, such as: radios, televisions, automatic-banking cards and cassette tapes, can affect the unit. 27. An appliance provided with a 2-wire polarized attachment plug shall include the following or equivalent wording:” This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt modify the plug in any way. 28. Products do not need to preheat before use. 29. There is potential interference when it is working. So please keep the device at a distance with people and some items, such as radios, televisions, automatic-banking cards and cassette tapes. This device complies with Part 18 of the FCC Rules. SAVE THESE INSTRUCTIONS. SPECIFICATION:II z Item number: C18-13 z Power Rate: 1800W z Voltage:120V~60Hz z Temperature:150°F-450°F HOW TO USEIII · Plug the power plug into a suitable outlet. · An acoustic signal sounds. The control lamp “ON/OFF” is on. Now the unit is in standby mode. · Place suitable cookware in the centre of the stove. · Now press the ON/OFF switch to turn the induction stove on. · Now press “HEAT / TEMP” button to start the unit. 1. “HEAT” :The preset power stage "5" is selected and the device turns on. (Heat stages: 1, 2, 3, 4, 5, 6, 7 , 8, 9, 10). With the “+” and “-“ keys, you can change the settings at any time in a range from 1-10. 2. “TEMP” :The preset temperature stage "270°F" is selected and the device turns on. (Temperature stages: 150, 180, 210, 240, 270, 300, 330, 360, 390, 420 and 450°F) . With the “+” and “-“ keys, you can change the settings at any time in a range from 150-450°F. 3. Timer-function: After select of the operating mode (heat stage or temperature stage), press the “Timer” key. The cipher “ 0 “ appears in the display. By using the “+” and “-“ keys you will be able to select the operating time in increasing 5 minutes (up to 150 minutes maximum), reducing 1 minute. The time will be counted down in minute steps, whereupon the display returns to the prior status (HEAT, TEMP). Once the time is up, an acoustic signal sounds and the unit automatically goes into standby mode. If you want to cancel the TIMER function, simply press the ON/OFF key to switch off and repeat to restart. 4. LOCK FUNCTION: Long press the “Lock“ button for 2 seconds, the cooktop enter “lock” mode and the light turns on. While locked, the cooktop will not respond to power changes. The only button will function is the On/Off button, to allow you to turn the unit off in case of any emergency. To turn the child lock off, long press the button “Lock“ for 2 seconds. Notice: If using the unit in TEMP or HEAT Function, not setting the TIMER Function, but when the unit is used 150 mins, the LED display shows EE code and sound. The unit will sto…

Text truncated - open the document above for the full version.

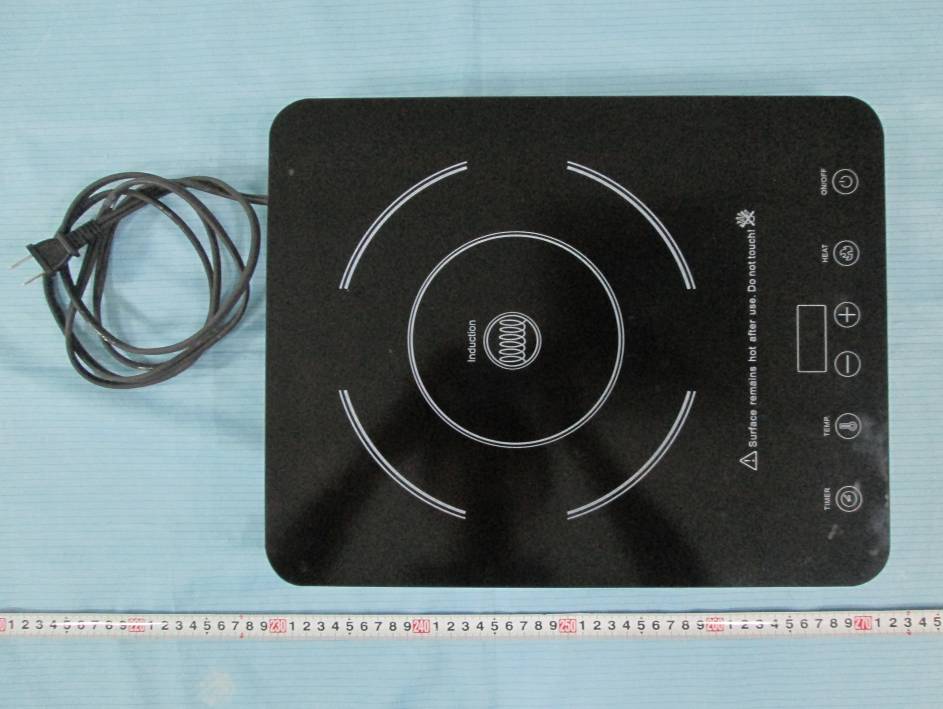

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Front View EUT – Main Board Rear View EUT – Coil Top View EUT – Coil Bottom View EUT – Fans Top View EUT –Fans Bottom View

C18-13 circuit diagram of the principle is following, 1) L, N, GND: power supply input for the circuit diagram of the principle 2) FUSE: It is a security protection. When a short circuit or current is too large , the fuse will break quickly. 3) EMI processing circuit: In the main circuit, effectively eliminate the interference from the induction cooker to the power fluctuations, and also effectively inhibited the interference of power when the induction cooker is working; 4) The main circuit rectifier circuit: the input rectifier circuit will be changed to the DC electricity as the main circuit power supply; 5) Filter circuit: It will prevent the infection when the induction of high frequency oscillation is effective; 6) Collection circuit of power: one set collection circuit of power, it makes the main circuit of the current signal converted to voltage signals to MCU; 7) The main circuit LC oscillator circuit: It is made by resonant capacitor and the coil, and they were controlled by the IGBT, and then, it will come into being the corresponding high frequency oscillation and resulting in power output; 8) IGBT: control of the high-speed electronic switch of main circuit resonant frequency; 9) Temperature Fuse: It is the hardware protection. When the circuit control is failure,and the surface temperature is too high, the temperature fuse will be disconnected, thus closing the power control circuit; 10) Switching power supply circuit: It provides DC power for the control, low-voltage detection circuit; 11) MCU: It is for writing software programs, determining the various states of the circuit, and controlling and protection; 12) Voltage detection: The detection of power and voltage, and transfer the signals to the MCU; 13) Temperature detection: Transferring the temperature information of surface , IGBT , etc to MCU through the temperature sensor; 14) Testing pot: Accessing to the main circuit through the detection circuit, and transferring the signals to the MCU. MCU can determine there is no pot or the material of the pots; 15) Drive circuit: IGBT will administer the requirement under the MCU control signals.

1 2 34 ABCD 4 3 2 1 D CBA 1 2 LIN 1 2 LOUT 1 2 C5 0.27UF/1200VDC IBGT1 H20R1203 R7 47R R6 30K Ω /0805 R14 2.61K Ω /0805 L3 350uH Φ 1.2mm C4 8UF/275ACV F1 T15AH 250VAC 15A/250V 21 FAN BZ 4K C14 10UF50V D1 1N4007 R3 820KΩ/0.5W C9 56PF/50V C10104 R8 10K Ω /0805 +18V C25 104K/50V R28 3K Ω /0805 +5V R20 1K Ω /0805 RJ ф 1.5×20mm C26 103K/50V R1 820K Ω /0.5W R11 20K/0805 C7 221K/50V C2 2J102J C17 104K/50V VDD VR1500R C8 221K/50V C24 104K/50V R2722K Ω /0805 +5V TRT1 47K/8050 RT1 123 Thermal link AC 1 AC 2 + 3 - 4 BG1 HD25SB80 Q1 3904 Q33906 Q23904 C27104K/50V R29820K Ω /0.5W D3 1N4148/1206 D6 1N4007 R19 820K Ω /1W R32 820K Ω /1W Q5 SS8050 C19 4.7UF/450V C12 223K/50V D8 BYV26C C20 1UF/50V D7 UF4007 C23 100UF/25V Vin 1 GND 2 Vout 3 U3 78L05 C29 220UF/25V C22104/50V +5V C11 100UF/25V Z1 18V/0.5W +18V C28 100UF/25V 1 32 4 T1 EE10 10.5V D11 UF4007 R30 22 Ω /1W R2139K Ω /0805 +5V Guo PPG PPG PA7 PA7 EH 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 U2 VIPer-12A D4 1N4148/1206 +5V R2 1.00K Ω /0805 D2 1N4007 1234 CON1 AN0PA0 R9 4.7K Ω /0805 +5V IGBT R16 2.00K Ω /0805 PA0AN0 PC2 R1268K/0805 CP2NPA2PPGTMR0RTSVSSAN0AN1 AN3AN2 VDD OPAOOPAN CPIN CPOP CPON U1EG R35 10K Ω /0805 +5V 01 C3 104K/50V 20150427 R18 120 Ω /1206 VDD +5V 561KD10 ZNR C30 104/50V +5V IBGT2 H20R1203 R7' 47R R6'30K Ω /0805 R13 820K Ω /1W CON4 FUSE HITE L2 L1 C32 10UF/275ACV 12 N 12 L C1 5UF/275ACV

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 18 TEST REPORT For Fruto Industrial International Ltd. Unit 1921, 19/F, China Shine Plaza, No. 3-15 Lin He Road west, Tian He, Guangzhou, China FCC ID: ZBNC18-13 Report Type: Original Report Product Type: INDUCTION COOKER Test Engineer: Joson Xiao Report Number: RSZ150309550-00 Report Date: 2015-06-11 Reviewed By: Sunny Sun EMC Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150309550-00 FCC Part 18 Page 2 of 14 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 OPERATING CONDITION/TEST CONFIGURATION .......................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 EXTERNAL CABLE ........................................................................................................................................................ 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULT ................................................................................................................................. 6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS .............................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 EUT SETUP .................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP ......................................................................................................................................... 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST RESULTS SUMMARY ............................................................................................................................................ 8 TEST DATA .................................................................................................................................................................. 9 FCC §18.305 – FIELD STRENGTH .......................................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP ................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE CALCULATION .................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150309550-0…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (90 kHz-30 MHz) Radiated Emissions - Rear View (90 kHz-30 MHz) Radiated Emissions - Front View (30 MHz-1GHz) Radiated Emissions - Rear View (30 MHz-1GHz)
