ZBNS2F1INDUCTION COOKER

INSTRUCTION MANUAL I. Important Safety Information When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors (this item may be omitted if the product is specifically intended for outdoor use). 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Always attach plug to appliance first, then plug cord into the wall outlet( For the detached power cord).To disconnect, turn any control to off, then remove plug from wall outlet. 13. Do not use appliance for other than intended use. 14. Do not immerse in water. 15. A short power-supply cord(or detached power supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. 16. Longer detached power supply cord or extension cords are available and may be used if care is exercised in their use. 17. If a longer detached power supply cord or extension cords power-supply cord is used, a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and b) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. 18. Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. 19. Clean Cook-Top with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface. 20. Do not heat the pot empty or overheat it. 21. Do not place metallic objects such as knives, forks, spoons, lids, cans and aluminum foils on the top plate. 22. Allow sufficient space around the cooking area. 23. Never use the unit on low-heat-resistant materials (carpet, vinyl). 24. Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt. 25. Be aware that the unit surface will remain hot for a short period of time. 26. Items with a magnetic field, such as: radios, televisions, automatic-banking cards and cassette tapes, can affect the unit. 27. An appliance provided with a 2-wire polarized attachment plug shall include the following or equivalent wording:” This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt modify the plug in any way. 28. Products do not need to preheat before use. 29. There is potential interference when it is working. So please keep the device at a distance with people and some items, such as radios, televisions, automatic-banking cards and cassette tapes. SPECIFICATION:II z Product: Induction Cooker z Item Number: S2F1 z Power Rate: 1800W z Voltage:120V/60Hz z Temperature:140°F-450°F HOW TO USEIII • Plug the power plug into a suitable outlet. • The control lamp of the ON/OFF switch lights up and an acoustic signal sounds. • Now the device is in standby mode. • Place suitable cookware in the centre of the hotplate. • Now press the ON/OFF one second switch to turn the induction hotplate on. The control lamp of power in the display blinks and an acoustic signal sounds. • Press the Function Key HEAT once. The preset power stage "5" is selected and the device turns on. • With the + / - Keys, you can change the settings at any time in a range from 1 – 10. Two sides at the HEAT function, when one side is at level “5”, the other side will start to adjust the heating level, . The max level of two sides is 10. One side at the HEAT function, the other side is at the TEMP function, the max of the HEAT function is “5”. • Press the Function Key TEMP once to select the temperature. The preset temperature stage "270°F" is selected and the device turns on. • With the + / - keys, you can change the settings at any time in a range from 150-450°F. (Temperature stages: 150，180，210，240，270，300，330，360，390，420 and 450°F) • Timer Function. After the selection of the temperature or Heat mode press the button TIMER key once. The display shows the number "0". With the + / - keys, you can now select the operating time in 5-minute intervals (up to max. 150 minutes), and reducing 1 minute. Then the display counts down the duration in minutes. Once the time is up, an acoustic signal sounds and the device automatically goes into standby mode. Press the ON/OFF button to restart the unit. • The total cooking time is 150mins, and then, the unit will stop automatically. Please press ON/OFF button to restart it. Notice: If using the unit in TEMP or HEAT Function, not setting the TIMER Function, but when the unit is used 150 mins, the LED display shows EE code and sound. The unit will stop automatically. If using the unit in TEMP or HEAT Function 10 mins, and then set the TI…

Text truncated - open the document above for the full version.

Different S2F1 S2F2 S2F3 item S2F1 S2F2 S2F3 AppearancePhoto and descriptionInner view I nner v i ew PCBPCB

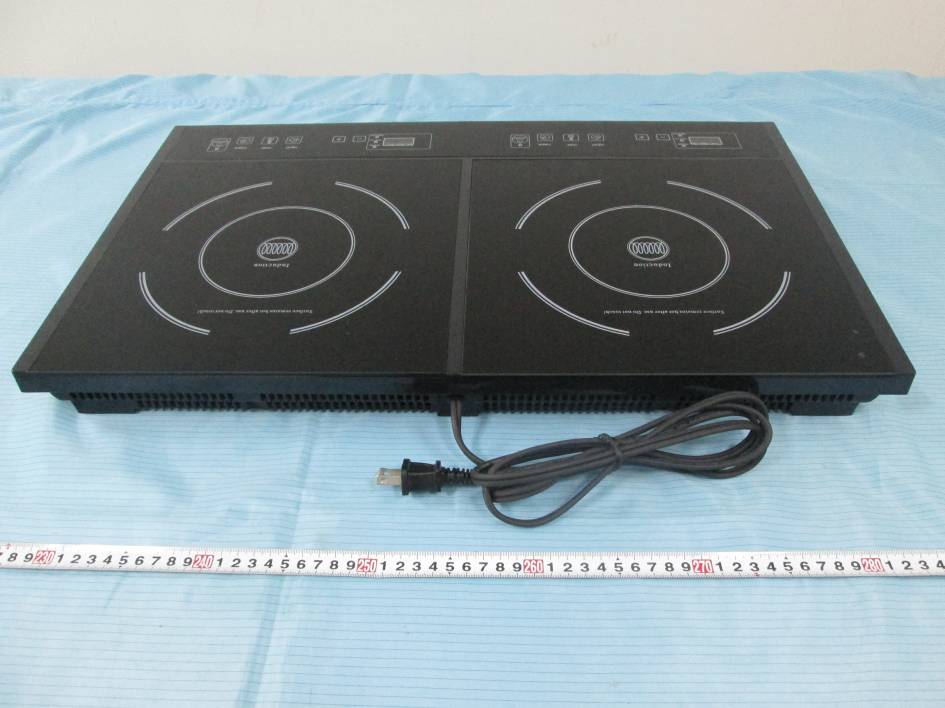

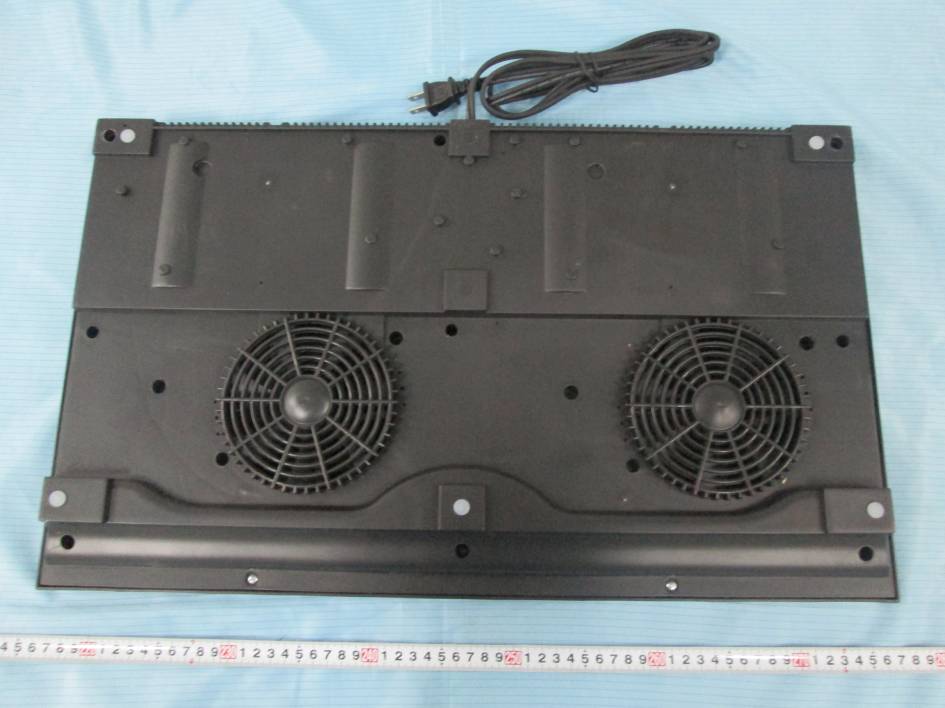

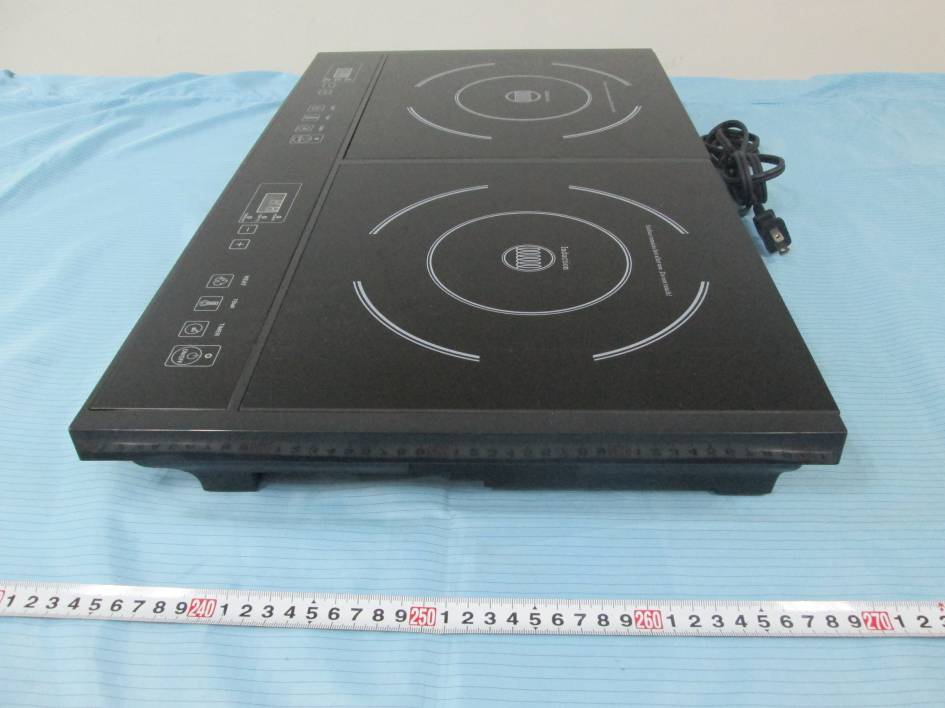

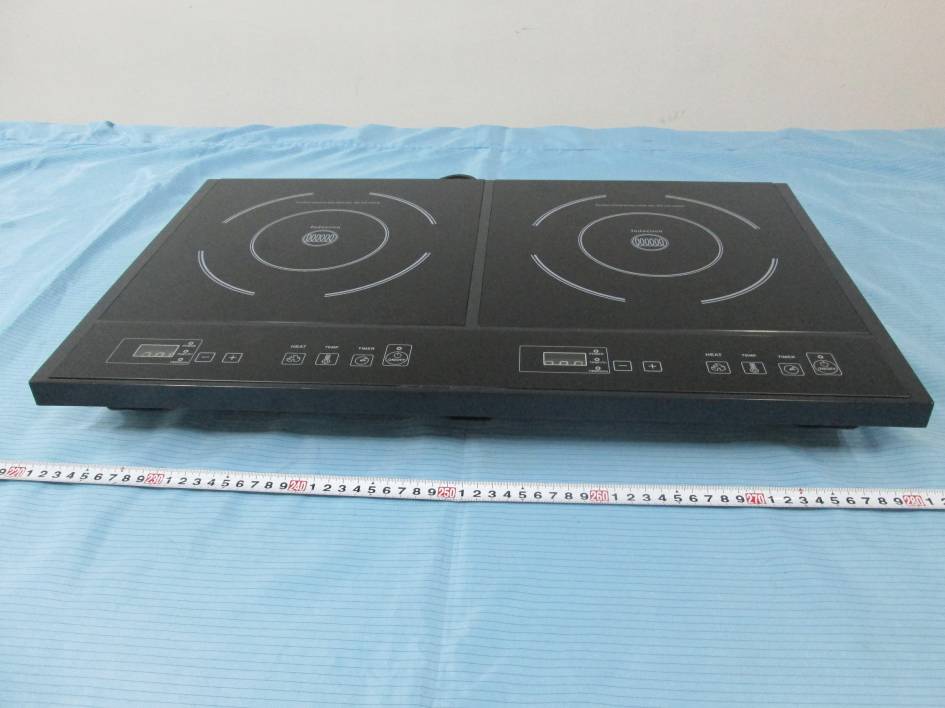

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Cover off View 4 EUT – Cover off View 5 EUT – Cover off View 6 EUT – Main Board 1 Front View EUT – Main Board 1 Rear View EUT – Main Board 2 Top View EUT – Main Board 2 Bottom View EUT – Main Board 3 Top View 1 EUT – Main Board 3 Top View 2 EUT – Main Board 3 Bottom View 1 EUT – Main Board 3 Bottom View 2 EUT – Main Board 4 Top View 1 EUT – Main Board 4 Top View 2 EUT – Main Board 4 Bottom View 1 EUT – Main Board 4 Bottom View 2 EUT – Main Board 5 Top View EUT – Main Board 5 Bottom View EUT – Coil 1 Top View EUT – Coil 1 Bottom View EUT – Coil 2 Top View EUT – Coil 2 Bottom View EUT – Fans 1 Top View EUT –Fans 1 Bottom View EUT – Fans 2 Top View EUT –Fans 2 Bottom View

1234 A B C D 4321 D C B A N-IN2B 250 L-IN1B 250 C1 8UF/275V L-OUT1B 250 L-OUT2B 250 N-OUT1B 250 N-OUT2B 250 FUSE15A250V C-PP-2 Company: ： ： ： Date: YLS REV: Title: 00 2012.10.08 Heyaoran L1 40uh L2 40uh R2 68K 1234 A B C D 4 321 D C B A 12 LIN 12 OUT 12 C5 0.33UF/1200VDC IBGT1 H20R1203 R7 47R R6 30KΩ/0805 R14 2.61KΩ/0805 1 2 N L3 350uH Φ1.2mm 1 2 L C4 8UF/275ACV F1 15A/250VAC 2 1 C0N5 FAN BZ 4K C14 10UF50V D1 1N4007 R3 820K Ω /0.5W C9 56PF/50V C10 104 R8 10KΩ/0805 +18V C25 104K/50V R28 3KΩ/0805 +5V R20 1KΩ/0805 RJ ф1.5×20mm C26 103K/50V R1 820KΩ/0.5W R11 20K/0805 C7 221K/50V C2 2J102J C17 104K/50V VDD VR1 500R C8 221K/50V C24 104K/50V R27 22KΩ/0805 +5V T RT1 47K/8050 RT1 1 2 3 HITE TOP AC 1 AC 2 + 3 - 4 BG1 HD25SB80 Q1 3904 Q3 3906 Q2 3904 C27 104K/50V R29 820KΩ/0.5W D3 1N4148/1206D6 1N4007 R19 820KΩ/1W R32 820KΩ/1W Q5 SS8050 C19 4.7UF/450V C12 223K/50V D8 BYV26C C20 1UF/50V D7 UF4007 C23 100UF/25V Vin 1 GND 2 Vout 3 U3 78L05 C29 220UF/25V C22 104/50V +5V C11 100UF/25V Z1 18V/0.5W +18V C28 100UF/25V 1 3 2 4 T1 EE10 10.5V D11 UF4007 R30 22Ω/1W R21 精 39KΩ/0805 +5V Guo PPG PPG PA7 PA7 S2F1-EG 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 U2 VIPer-22A D4 1N4148/1206 +5V R2 1.00KΩ/0805 D2 1N4007 1 2 3 4 CON1 AN0 PA0 R9 4.7KΩ/0805 Company: ： ： Date:REV: Title: +5V IGBT R16 2.00KΩ/0805 PA0 AN0 PC2 R12 68K/0805 CP2N PA2 PPG TMR0 RTS VSS AN0 AN1AN3 AN2 VDD OPAO OPAN CPIN CPOP CPON U1 G16B R35 10KΩ/0805 +5V C3 104K/50V R18 120Ω/1206 VDD +5V 1 2 3 C0N4 C1 R33 10D561K ZNR C30 104/50V +5V IBGT2 H20R1203 R7' 47R R6' 30KΩ/0805

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 18 TEST REPORT For Fruto Industrial International Ltd. Unit 1921, 19/F, China Shine Plaza, No. 3-15 Lin He Road west, Tian He, Guangzhou, China FCC ID: ZBNS2F1 Report Type: Original Report Product Type: INDUCTION COOKER Test Engineer: Webb Liu Report Number: RSZ150309551-00 Report Date: 2015-05-08 Reviewed By: Sunny Sun EMC Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150309551-00 FCC Part 18 Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 OPERATING CONDITION/TEST CONFIGURATION .......................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 EXTERNAL CABLE ........................................................................................................................................................ 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULT ................................................................................................................................. 6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS .............................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 EUT SETUP .................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP ......................................................................................................................................... 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST RESULTS SUMMARY ............................................................................................................................................ 8 TEST DATA .................................................................................................................................................................. 9 FCC §18.305 – FIELD STRENGTH .......................................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP ................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE CALCULATION .................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 PRODUCT SIMILARITY DECLARATION LETTER ..........................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (90 kHz-30 MHz) Radiated Emissions - Rear View (90 kHz-30 MHz) Radiated Emissions - Front View (30 MHz-1GHz) Radiated Emissions - Rear View (30 MHz-1GHz)
