ZBNF-IH-01SSInduction cooker

INSTRUCTION MANUAL INDUCTION COOKER ITEM: F-IH-01SS I IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors (this item may be omitted if the product is specifically intended for outdoor use). 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Always attach plug to appliance first, then plug cord into the wall outlet( For the detached power cord).To disconnect, turn any control to off, then remove plug from wall outlet. 13. Do not use appliance for other than intended use. 14. Do not immerse in water. 15. A short power-supply cord(or detached power supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. 16. Longer detached power supply cord or extension cords are available and may be used if care is exercised in their use. 17. If a longer detached power supply cord or extension cords power-supply cord is used, a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and b) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. If the appliance is of the grounded type, the extension cord should be a frounding-type3-wire cord. 18. Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. 19. Clean Cook-Top with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface. 20. Do not heat the pot empty or overheat it. 21. Do not place metallic objects such as knives, forks, spoons, lids, cans and aluminum foils on the top plate. 22. Allow sufficient space around the cooking area. 23. Never use the unit on low-heat-resistant materials (carpet, vinyl). 24. Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt. 25. Be aware that the unit surface will remain hot for a short period of time. 26. Items with a magnetic field, such as: radios, televisions, automatic-banking cards and cassette tapes, can affect the unit. 27. There is potential interference when it is working. So please keep the device at a distance with people and some items, such as radios, televisions, automatic-banking cards and cassette tapes. This device complies with Part 18 of the FCC Rules. SAVE THESE INSTRUCTIONS. SPEIICIFICATION:  Item:F-IH-01SS  Power Rate: 1800W  Voltage:120V/60Hz HOW TO USEIII 1. Before turning on the power, make sure the cookware is on the ceramic plate with ingredients inside. 2. After plugging the plug into the socket, the LED indicator will show letter ‘L’, this means the temperature of ceramic glass plate is lower than 50°C (150°F). If the temperature of ceramic glass plate is higher than 50°C(150°F), the LED indicator will show letter ‘H’ 3. To turn the power on, press the ON/OFF button once. The power light will turn a steady red and heating will begin 4. To select the proper heat setting, press the REDUCE or INCREASE until the correct heat setting is achieved.(defaults=1300W) 5. To select temperature setting, press the” TEMP” button (defaults=270 ) ,the temperature°F light will turn a steady red ,and press the REDUCE or INCREASE until the correct temperature setting is achieved. 6. To select automatic timer setting, press the” TIMER” button (defaults =0mins),the timer light will turn a steady red ,and press the REDUCE until the correct timer setting is achieved. 7. After cooking is completed, press the ON/OFF button again to turn off the unit. 8. After the cooking time reach 150 mins, the LED will show “EE” and sound, and then the unit will enter the standby mode. Press the ON/OFF button to restart the unit. Notice: If using the unit in TEMP or HEAT Function, not setting the TIMER Function, but when the unit is used 150 mins, the LED display shows EE code and sound. The unit will stop automatically. If using the unit in TEMP or HEAT Function 10 mins, and then set the TIMER, the max Timer is 140 mins. During timer operation, you can change the duration at any time with the arrow keys. NOTE: The power will completely shut off with 9 second if either (a) the wrong type of cookware is applied or (b) no cookware is placed on the unit. USABLE AND NONIV-USABLE UTENSILS:  Compatible Pans: Steel or cast iron, enameled iron, stainless steel, flat-bottom pan/pots with diameter of 12 to26 cm.  Non- compatible Pans: Heat-resistant glass, ceramic container, copper, aluminum pan/pots. Rounded-bottom pan/pots with the base measuring less than 12cm. V CLEANING AND MAINTENANCE:  Clean after each use. Disconnect plug and wait until the unit has cooled down.  If the pots/pans are used without being cleaned, as this may result in discoloration or stains.  Do not use benzene, thinner, scru…

Text truncated - open the document above for the full version.

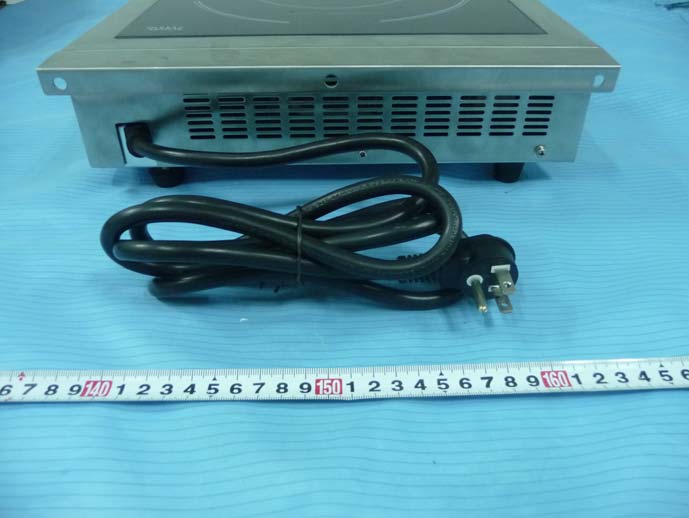

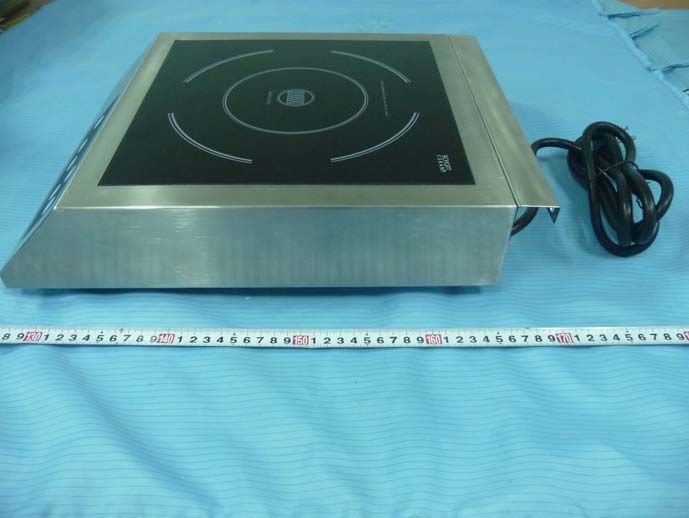

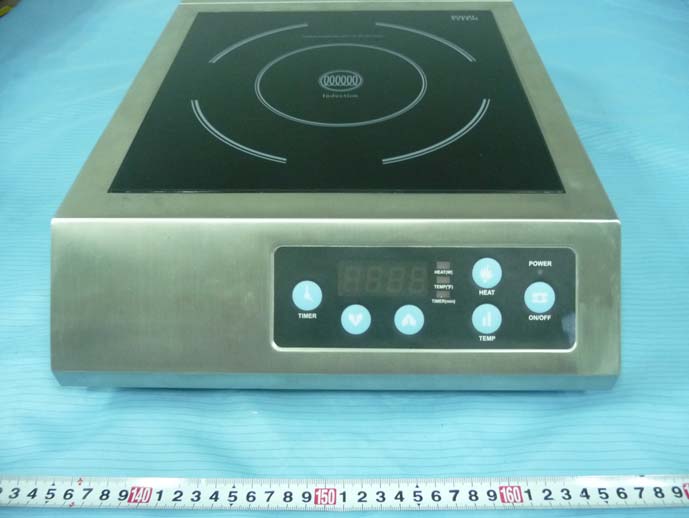

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Main Board 1 Front View EUT – Main Board 1 Rear View EUT – Main Board 2 Top View EUT – Main Board 2 Top Shielding off View EUT – Main Board 2 Bottom View

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Titl e Number Revision Size B Date: 30-Sep-2014 Sheet of VSS 1 PA4 2 PA3 3 PA7/RET 4 PD0/ T1 OUT 5 PD1/BUZ 6 PD2 7 PD3 8 PA0/PWM0 13 PA5/ADC5 14 PD7/ADC4 15 PB1/ADC3 16 PA2/ADC2 17 PA1/ ADC1 / INT1 18 PA6/ ADC0 / INT0 19 VDD 20 PD4 9 PD5 10 PD6/ADC6 11 PB0/ADC7/PWM1 12 U1P20 A B C D E F G DP COM1 COM2 COM3 COM0 LED1 LED8888 1234 J1CON1 5V R4 510R R5 510R LED3 LED4 R6 510RR7 510R LED2 5V D_ OUT C_IN C1104 R1 510R R3 510R R2 510R R8 510R S2S1 LED1 S4S3S6S5 F-IH-01SS 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Titl e Nu mber Rev i sio n Size B Dat e: 2 9-Aug -20 1 4 Sheet o f 1 2 C3 1 0.24UF/2000VDC IBGT3 H2 0R1 3 53 R2 6 47R R2730K R14 2.5K* 12 N L1 450uH 12 L C4D2 4uF/400DC F1 1 5AH/ 25 0 VAC BZ1 4K D2 1N4007 C27471 C29 104 R2 83K +5V JR1 C2 4 104 R14820K 1W R157.5K* C2 6 471 C9 332J C2 1104 VR1500R C4D6 4uF/275AC C3 0 101 C1 9104 R1922K +5V T RT1 123 HITE2 TOP AC 1 AC 2 + 3 - 4 BG1 HD25SB80 R7270K1W D5 1N4007 R6 470K 1W R5 470K 1W C10 10U/450V C6 223 D1 BYV26C C8 1u/50V D4UF40 0 7 C15 1000u/25V Vin 1 GND 2 Vo ut 3 U4 78L05 C22 100uF/25V C14 100u/25V Z1 20V/0.5W +18 V C18 100u/25V VDD 1 32 4 T1 EE1 3 D8 UF40 0 7 R17 120R R12 22R R3 168K +5V PA2 PA2 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 U1 VIP e r-2 2 A D1 2 1N4007 +5V R11510R D3 1N4007 IGB T R16 3K* 1234 CON3 +5V C20104 R16 20K* R13820K1W C17104 +5V SZ-L5 PC1/C1N 1 PPG 2 PA0/ PCK0 /AN4 3 PA1/ PCK1 /AN5 4 PA2/AN6 5 PA3/AN7 6 PA4/TMR0/AN8 7 PA5/INT/AN9 8 PA6/TMR1/AN10 9 R ES/ PB 6 10 VDD 11 VSS 12 PC5/OPO 13 PC4/OPN 14 PC3/C2N 15 PC2/C1P 16 U1 02 * 脉冲 C28 10uF/50V IBGT2 H2 0R1 3 53 R2 4 47R R2530K C21104 JR2 C2 3104 R3 04.7K +18V Q3SS8050Q4N3 90 6 Q5SS8050 D1 11N4007 PPG PPG R2 24.7K C25104 R32 3K +5V 123 HITE1TOP IGB T FAN R10 470K 1W R9 470K 1W Φ 1.2 3.8mH L2 C4 D5 10uF/275AC C4D3 4uF/400DC C4D1 4uF/400DC RL1 R3 1K Q6SS8050 D6 1N4007 VDD Q7SS8050 R4 1K R2 270K1W R2110K RL RL +5V 21 R18 1K Ω VDD Q1 SS8050 +5V R2 310K +5V FAN1 21 C3 104 12 GND CY2 472 CY1 472 CY3 102 123 CN1 炉面温度保险丝 增加硬件保护部分 SF226E10A250V 10A-250VAC SJ-S-118DMH 锅底线圈盘 LOUT LIN 中心 外圈 95UH 24KHZ 120V

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (90 kHz-30 MHz) Radiated Emissions - Rear View (90 kHz-30 MHz) Radiated Emissions - Front View (30 MHz-1GHz) Radiated Emissions - Rear View (30 MHz-1GHz)
