1 THE SLINGSHOT-LI-ION BF4081 User’s Manual 2 Important Safety Instructions When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. 1. Ventilation The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings, a minimum distance 20 cm around the apparatus for sufficient ventilations. 2. Heat & Flame The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus. 3. Cleaning The unit should be cleaned only as recommended. See the section "Care and Maintenance" of this manual for cleaning instructions. 4. Attachments Do not use attachments not recommended by the product manufacturer. 5. Damage Requiring Service This unit should be serviced by qualified service personnel when: A. The unit has been dropped or the enclosure damaged. B. The unit exhibits a marked change in performance or does not operate normally. 6. Periods of Nonuse If the unit is to be left unused for an extended period of time, such as a month or longer, take out the battery from the unit to prevent damage or corrosion. 7. Servicing The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Features Thank you for purchasing the SLINGSHOT-LI-ION, a Bluetooth Shower Speaker. The model incorporates following features:  Playback mobile device, like iPad /iPhone/iPod Touch and smart phone music through Bluetooth technology  Hands-free function for the incoming phone call  Water resistant shower speaker  Built-in rechargeable battery iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Smart phone, iPad, iPhone and iPod models are not included. 3 Low Battery Status While the battery voltage drops to a low voltage level, the unit may operate abnormally and “beep” tone will be sounded. In this case, the built-in battery is needed to recharge. Charging Battery (see Figure A) The unit has built-in rechargeable battery. Figure A To recharge the battery, an USB cable with USB micro B type connector, plug the Micro-USB connector to the Micro-USB port located at rear of the unit. Connect the other end of the USB cable to a DC power supply source. - Status LED indicator lights RED when the unit is charging. - Status LED indicator will turn off (no red light) when the battery is fully charged. Mounting (see Figure B) - Snap the main unit into the rubber sling. - Hang the rubber sling with the unit in bath room Figure B Installation 4 Description of Parts Main Unit Front View Rear View 1. Status LED Indicator 2. button With the unit power off : Press and hold to turn on the unit. With the unit power on: Press to Play / Pause smart phone music. With the unit power on: Press and hold to turn the unit off. 3. button In Bluetooth mode: Press to answer smart phone incoming call, the hands free function. 4. button Adjust volume level up and down. 5. button In Bluetooth mode: Skip tracks Forward / Backward 6. Microphone Voice pick up in the hands free phone mode. 7. Speaker 8. Rear Cap 9. Micro-USB connector 10. RESET button For resetting the unit 5 Bluetooth Operation The unit playback mobile device (for example: smart phone, tablet, iPad, iPhone and iPod Touch) music through Bluetooth operation. Before you did the Bluetooth pairing / connection, following information will help: (A) Whilst the unit is searching for Bluetooth device, the Blue LED indicator lights steadily. Whilst the unit paired/connected with a Bluetooth device, the Blue LED indicator blinks slowly. (B) The Bluetooth device name of this model: Slingshot Pair / Connect a mobile device 1. With the unit at power off mode, press and hold the Power button for around 3 seconds. 2. (a) After the first 3 seconds, the unit will search for the last connected mobile device for around 5 seconds and connect it. Note : If you would like to connect other mobile device, turn off the Bluetooth function of the last mobile device and implement following step (b). (b) If the last connected mobile device is not available within the 5 seconds mentioned in (a) above, it will start searching other nearby Bluetooth device. 3. The Blue LED indicator lights steadily. 4. From the mobile device with its Bluetooth function turned on and it will also search for the nearby Bluetooth device. 5. From the Bluetooth device list of your mobile device, tap on Bluetooth device name “Slingshot” of this model for the connection. 6. Once the mobile device is connected with the unit, the Blue LED indicator blinks slowly. Playback mobile device music 7. Playback your mobile device music. 8. You may adjust both the volume control of your mobile device and the volume control button of this unit to find the most desirable volume setting. 9. (a) You may tap the / button from the mobile device (or the Play-Pause button from the unit) to Play / Pause the mobile device music. (b) Press the button to skip tracks backward / forward. Hands-fre…

Text truncated - open the document above for the full version.

Models different declaration Page 1 of 2 Rev 1.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Models difference delcaration 2013/5/31 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: ZDMBF40808183 Dear Sirs, Our products with the above FCC ID models are defined: BF4080, BF4083, BF4081, BF4080, BF4083, BF4081 All hardware components are in design, circuitry and construction electrical identical. BF4080, BF4083, BF4081, All RF modules are identical are in design, circuitry and construction electrical identical. Only different in BF4083 has an additional alternate external plastic cover. BF4081 has an additional rechargeable battery module. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Signature Models different declaration Page 2 of 2 Rev 1.0 Name: Paul Franzosa Title: Sr. Director of Product Development Address: 745 Boylston Street, Boston, Massachusetts, United States 02116

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/5/31 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ First Act Inc. ____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Shower Bluetooth Speaker Trade Name： N/A Model Name： BF4081 Serial Model： BF4080, BF4083 FCC ID : ZDMBF40808183 We affirm that between SIEMIC and ___ First Act Inc. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Name: Paul Franzosa Title: Sr. Director of Product Development Address: 745 Boylston Street, Boston, Massachusetts, United States 02116

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/5/31 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZDMBF40808183 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Name: Paul Franzosa Title: Sr. Director of Product Development Address: 745 Boylston Street, Boston, Massachusetts, United States 02116

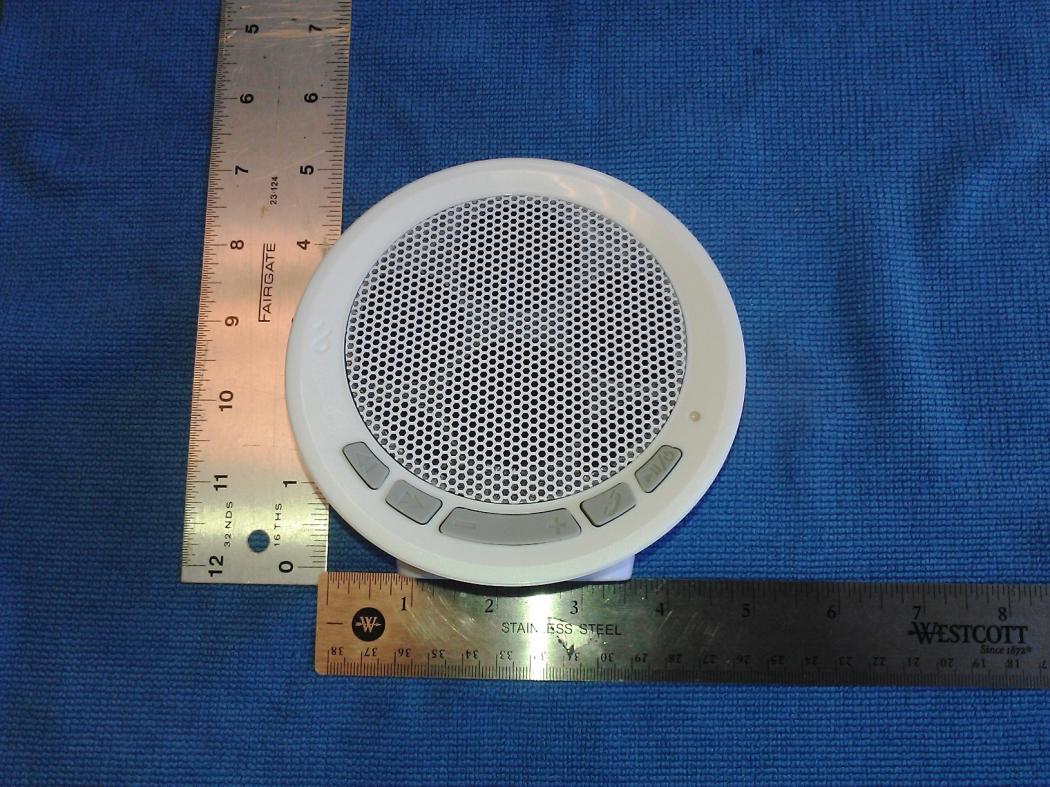

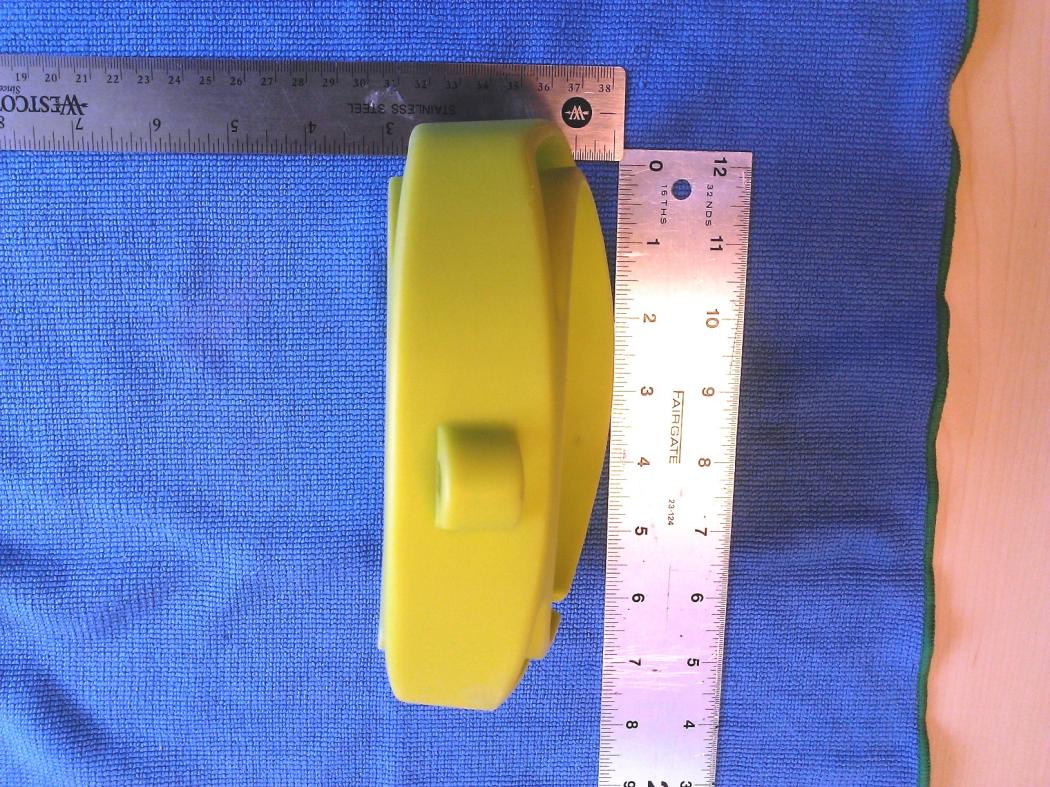

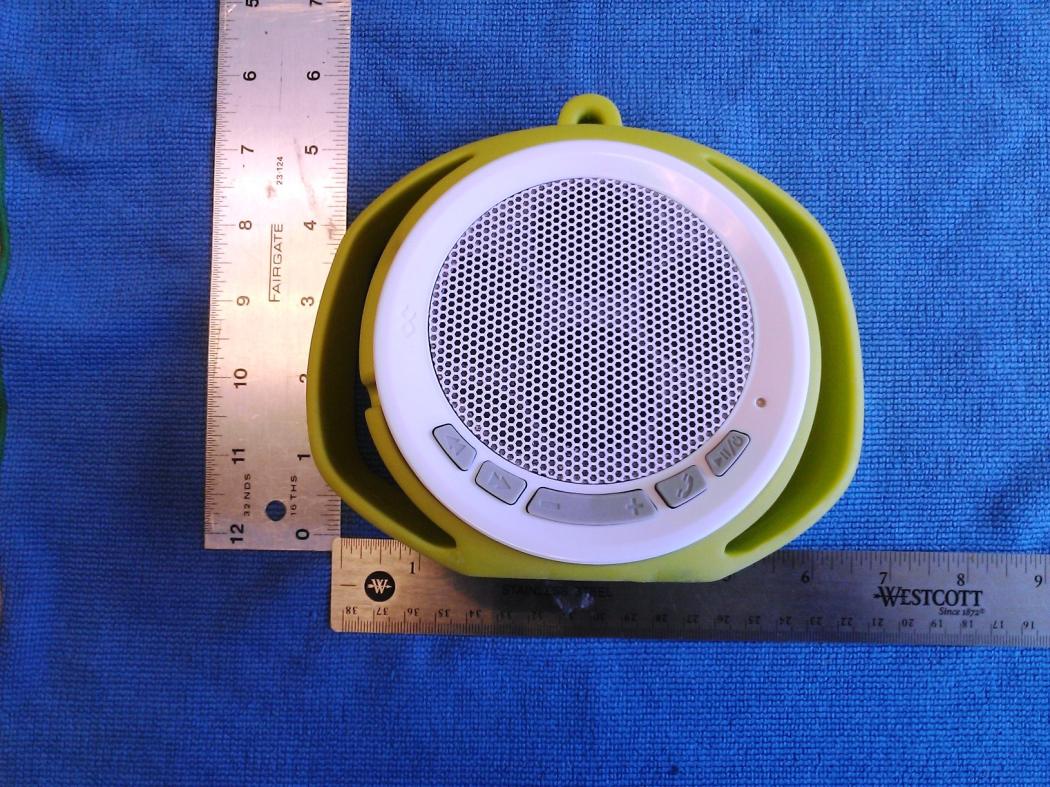

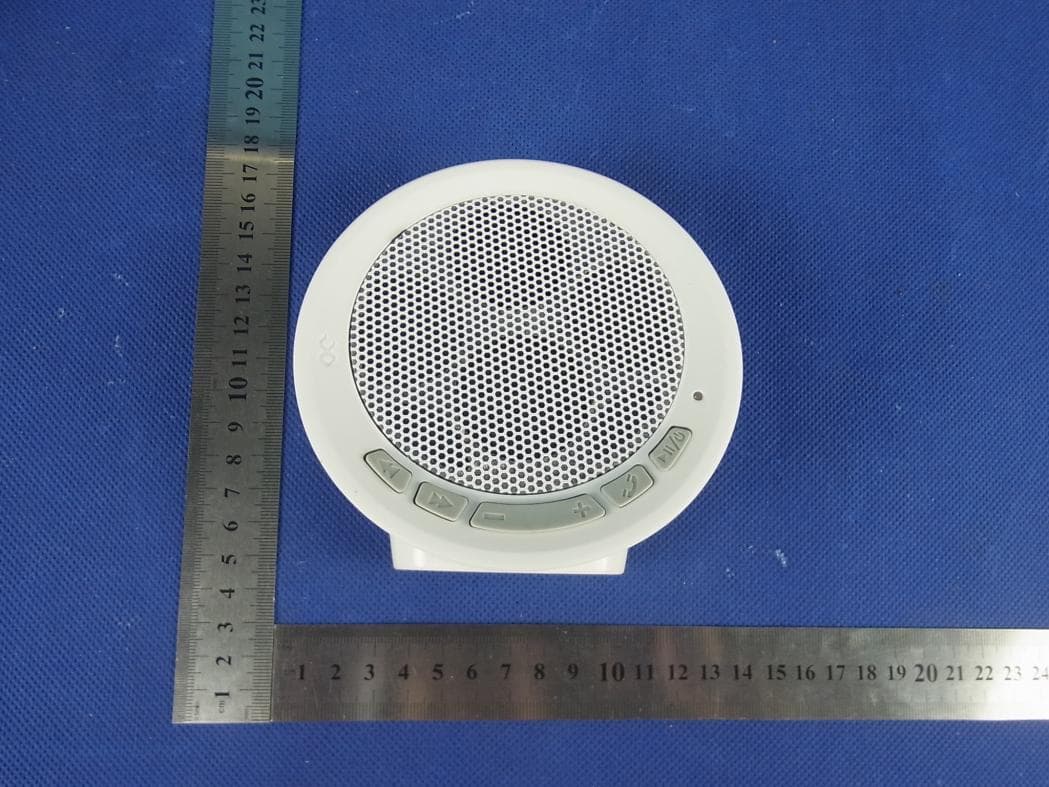

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 4081 Photo 2 4081 Photo 3 4081 Photo 4 4081 Photo 5 4081 Photo 6 4081 Photo 7 4081 Photo 8 4081 Photo 9 4080&4083 Photo 10 4080&4083 Photo 11 4080&4083 Photo 12 4080&4083 Photo 13 additional alternate external plastic cover Photo 14 additional alternate external plastic cover Photo 15 additional alternate external plastic cover Photo 16 additional alternate external plastic cover

O P E N C L O S E O P E N C L O S E

Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22

FCC ID: ZDMBF40808183 RF EXPOSURE TEST SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: ZDMBF40808183 Maximum measured transmitter power Output Power(Max Conducted): BT(1Mbps): -3.251 dBm BT EDR(2Mbps): -4.464 dBm BT EDR(3Mbps): -4.184 dBm The max.output power E.I.R.P is -3.251dBm=0.47mW, Frequency is 2.402GHz So (0.47/5)* √2.402=0.146≤ 3.0 Conclusion: No SAR is required.

RADIO TEST REPORT FCC ID: ZDMBF40808183 IC: 9200A-BF40808183 Product： Shower Bluetooth Speaker Trade Name： N/A Model Name： BF4081 Serial Model： BF4080, BF4083 Report No.： NTEK-2013NT0529105F Prepared for First Act Inc. 745 Boylston Street, Boston, Massachusetts, United States 02126 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 64 Report No.: NTEK-2013NT0529105F TEST RESULT CERTIFICATION Applicant’s name ................. : First Act Inc. Address ................................. : 745 Boylston Street, Boston, Massachusetts,United States 02126 Manufacture's Name ............ : First Act Inc. Address ................................. : 745 Boylston Street, Boston, Massachusetts,United States 02126 Product description Product name............................ : Shower Bluetooth Speaker Model and/or type reference : BF4081 Serial Model： BF4080, BF4083 Standards ............................. : FCC Part15.247, RSS-210 Annex 8 Test procedure ............................... : ANSI C63.4-2003, RSS-Gen Issue 3 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 22 May 2013 ~28 May 2013 Date of Issue .......................................... : 28 May 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 64 Report No.: NTEK-2013NT0529105F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS 21 4 . NUMBER OF HOPPING CHANNEL 26 4.1 APPLIED PROCEDURES / LIMIT 26 4.1.1 TEST PROCEDURE 26 4.1.2 DEVIATION FROM STANDARD 26 4.1.3 TEST SETUP 26 4.1.4 EUT OPERATION CONDITIONS 26 4.1.5 TEST RESULTS 27 5 . AVERAGE TIME OF OCCUPANCY 28 5.1 APPLIED PROCEDURES / LIMIT 28 5.1.1 TEST PROCEDURE 28 5.1.2 DEVIATION FROM STANDARD 28 Page 4 of 64 Report No.: NTEK-2013NT0529105F Table of Contents Page 5.1.3 TEST SETUP 29 5.1.4 EUT OPERATION CONDITIONS 29 5.1.5 TEST RESULTS 30 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 36 6.1 APPLIED PROCEDURES / LIMIT 36 6.1.1 TEST PROCEDURE 36 6.1.2 DEVIATION FROM STANDARD 36 6.1.3 TEST SETUP 36 6.1.4 EUT OPERATION CONDITIONS 36 6.1.5 TEST RESULTS 37 7 . BANDWIDTH TEST 43 7.1 APPLIED PROCEDURES / LIMIT 43 7.1.1 TEST PROCEDURE 43 7.1.2 DEVIATION FROM STANDARD 43 7.1.3 TEST SETUP 43 7.1.4 EUT OPERATION CONDITIONS 43 7.1.5 TEST RESULTS 44 8 . PEAK OUTPUT POWER TEST 50 8.1 APPLIED PROCEDURES / LIMIT 50 8.1.1 TEST PROCEDURE 50 8.1.2 DEVIATION FROM STANDARD 50 8.1.3 TEST SETUP 50 8.1.4 EUT OPERATION CONDITIONS 50 8.1.5 TEST RESULTS 51 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 57 9.1 DEVIATION FROM STANDARD 57 9.2 TEST SETUP 57 9.3 EUT OPERATION CONDITIONS 57 9.4 TEST RESULTS 58 10 . ANTENNA REQUIREMENT 62 10.1 STANDARD REQUIREMENT 62 10.2 EUT ANTENNA 62 11 . EUT TEST PHOTO 63 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 64 Report No.: NTEK-2013NT0529105F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS-210 Annex 8 Standard Section Test Item Judgment Remark 15.207&7.2.4 Conducted Emission PASS 15.247(a)(1)&A8.2 Hopping Channel Separation PASS 15.247(b)(1) & A8.4 Peak Output Power PASS 15.247(c) &A8.5 Radiated Spurious Emission PASS 15.247(a)(iii) &A8.1 Number of Hopping Frequency PASS 15.247(a)(iii) &A8.1 Dwell Time PASS 15.247(a)(1) &A8.1 Bandwidth PASS 15.205&A8.5 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 64 Report No.: NTEK-2013NT0529105F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 64 Report No.: NTEK-2013NT0529105F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Shower Bluetooth Speaker Trade Name N/A Model Name BF4081 Serial Model BF4080, BF4083 Model Difference All RF modules are identical are in design, circuitry and construction electric…
