ZDMVCKRZFirst Act Voice Rockrz Microphone

W11E112 2 nd Version Fasion Mic RFID Reader Mic Control SNC26K MCU Voice Change SNC7x9 DSP MIC ADC SNAD02 MP3 Jack AMP Speaker

I, a representative of First Act Inc., do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2006) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17 th day of March, 2011 Paul Franzosa Director of Engineering First Act Inc. 745 Boylston Street Boston, MA 02116 To Whom It May Concern: The purpose of this letter is to appoint Intertek Testing Services HK Ltd. to act as our agent, with scope of authority limited to testing equipment for conformance with Industry Canada Standards RSS-210, Issue 7. Intertek Testing Services HK Ltd. will assign a file number to the certification application and remit the fees for application review. This appointment is in force until notification to contrary. Signature Name / Title: Paul Franzosa, Director of Engineering Company : Seven45 Studios Phone: 627.3912745 Date: 4-August-2010!

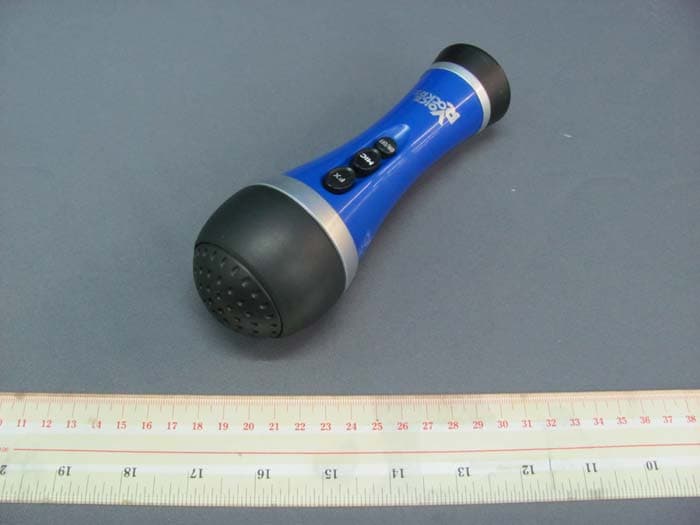

INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (External)

FCC Identifier Label Location FCC ID: ZDMVCKRZ To whom it may concern, Request is hereby submitted by First Act Inc. for the following method of positively identifying the above equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for the First Act Voice Rockrz Microphone(s) FI901 (and color variant models FI902, FI903, FI904, FI905, FI906, FI916, FI926, FI907, FI917, and FI927) will be placed in the battery compartment meeting the following requirements: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Paul Franzosa Director of Engineering First Act Inc. 745 Boylston Street Boston, MA 02116 To Whom It May Concern: The purpose of this letter is to appoint Intertek Testing Services HK Ltd. to act as our agent, with scope of authority limited to testing equipment for conformance with Industry Canada Standards RSS-210, Issue 7. Intertek Testing Services HK Ltd. will assign a file number to the certification application and remit the fees for application review. This appointment is in force until notification to contrary. Signature Name / Title: Paul Franzosa, Director of Engineering Company : Seven45 Studios Phone: 627.3912745 Date: 4-August-2010!

5 APPENDIX C Label and Label Location Voice Rockrz FCC Labels FI901- Voice Rockrz Mic FCCID: ZDMVCKRZ FI902- Voice Rockrz Mic FCCID: ZDMVCKRZ FI9060031- Voice Rockrz Mic FCCID: ZDMVCKRZ FI9160033.01- Voice Rockrz Mic FCCID: ZDMVCKRZ FI926.01- Voice Rockrz Mic FCCID: ZDMVCKRZ FI9070031.01- Voice Rockrz Mic FCCID: ZDMVCKRZ FI9170033.01- Voice Rockrz Mic FCCID: ZDMVCKRZ FI927.01- Voice Rockrz Mic FCCID: ZDMVCKRZ FI901 FI9060031 FI926.01 FI9170033.01 FI902 FI9160033.01 FI9070031.01 FI927.01 Proprietary and Con!dential – First Act Inc. © 2011 First Act Inc. All rights reserved. 30 mm 7 mm 30 mm 7 mm

INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal) INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal) INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal) INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal) INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal) INTERTEK TESTING SERVICE Report No.: HK11040466-1 FCC ID: ZDMVCKRZ Equipment Photographs Model: FI901 (Internal)

FCC ID: ZDMVCKRZ Technical Description: The brief circuit description is listed as follows: - U5 W55MID50 acts as RFID Reader IC. - X1 and associated circuit act as 13.56 MHz Oscillator. - X2 acts as external Clock Frequency Oscillator. - U1 acts as MCU with speech controller. - U2 acts as Audio Driver. - U3 acts as A to D Converter. - U4 acts as voice Processor. - SW1 ~ SW3 act as Control Keys. - TRY/PLAY acts as mode change switch. Antenna Used: A loop antenna has been used.

MODEL NO£ºFI901 TITLE: DATE:2011/02/19 DRAWN:JMY SIZE:A4 DRAWN NO: DATE£º DATE£º DATE£º APPROVED£º CHECKED£º DESICN£º Dong Guan Lam Sun Plastic Products CO Ltd SHEET:1 OF 1 REV:1.0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 SMBG1608-601 mp3 board SW3 SW2 SW1 R10 230K R9 560 C2 104 C6 104 C4 104 R1 1K R2 6.8K R3 1.5K R7 10K SP BATTERY 4.5V(3XAAA) + - MIC + C3 47UF 10V + C5 0.47UF 10V Q1 9014 R4 120K R5 10K R6 2.2K C1 104 + C8 100UF 10V + C9 100UF 10V R8 2.2M C10 105 5 4 3 6 1 2 7 8 U2 GPY0030B 1 CH0 2 CH1 3 CH2 4 CH3 5 CH4 6 CH5 7 CH6 8 CH7 9 VSS 15 AVSS 11 DIO0 12 CLK 13 START 16 REF 14 AVDD 10 VDD U3 SNAD02 46 VDDPP 48 VSSPP 44 VSSPP 1 TEST 4 RST 7 CVDD 3 CVSS 8 REGOUT 5 CKSEL 15 P00 16 P01 17 P02 18 P03 20 P04 21 P05 22 P06 23 P07 25 P0.8 26 P0.9 27 P0.10 28 P0.11 30 P0.12 31 P0.13 32 P0.14 33 P0.15 29 VSSIO0 19 VSSIO0 43 VSSIO1 2 VSSIO2 47 BN0 45 BP0 13 LXOUT 12 LXIN 11 XOUT 10 XIN 9 VSSA 14 VDDA 42 P17 41 P16 40 P15 39 P14 37 P13 36 P12 35 P11 34 P10 6 VDDIO2 38 VDDIO1 24 VDDIO0 U4 SNC729 TX-VDD TX-VSS COIL TAGIN RESET ENV RX-VD RX-VSS VDD CLK CMD VSS X-OUT X-IN D0 D1 D2 D3 U5 W55MID50 D1 1N4148 D2 1N4148 L1 4.7UH ANT C0 C7 250P C11 104 D3 1N4148 R11 100K C12 100 C13 750P X1 13.56MHZ R12 20K C14 104 C15 104 C16 104 C17 10P C18 10P C19 104 + C20 10UF 10V R13 510 Q2 8550D Q3 9014 R14 NC C21 104 R15 1K C22 333 R16 10K R17 100K R18 82K C23 104 + C24 47UF C25 104 C26 20P C27 20P C28 104 + C29 10UF 10V C31 104 + C32 47UF 10V R19 1M C33 104 MP3_JACK + C34 0.22UF + C35 0.22UF R20 10K 3 OSC 2 P1.0 7 P1.1 8 P1.2 9 P1.3 10 P2.0 11 P2.1 12 P2.2 13 P2.3 5 CGND 6 GNDIO 21 DACO 14 NC 20 NC 15 P30 16 P31 17 P32 18 P33 1 RES 19 VDDIO 4 CVDD U1 SNC26030A 1 2 TRY/PLAY C36 104 + C30 47UF C37 104 X2 32.768KHz Ferrite Ring L5 BEAN 100MHz 600ohm C39 NC C40 NC C41 NC C42 NC C43 1000pF C44 1000pF L3 Bead L4 Bead L6 BEAN 0ohm L7 2.2uH C45 3P VPP CLK CMD VPP DO P01 P02 DO CLK CMD TAGIN VPP VPP P00 P01 P02 MIC_ENABLE AD_DIO AD_CLK AD_START VPP VPP AD_DIO AD_CLK AD_START MIC_OUT MIC_OUT MIC_ENABLE P00 VPP VPP TAGIN GND GND

INTERTEK TESTING SERVICES Report No.: HK11040466-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 225 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11040466-1 First Act Inc. Application For Certification (Original Grant) (FCC ID: ZDMVCKRZ) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 12, 2011 INTERTEK TESTING SERVICES Report No.: HK11040466-1 FCC ID: ZDMVCKRZ i GENERAL INFORMATION FIRST ACT INC. MODEL: FI901 FCC ID: ZDMVCKRZ Grantee: First Act Inc. Grantee Address: 745 Boylston Street, Boston, MA 02116, Massachusetts, United States Contact Person: Paul Franzosa Tel: 617.226.7888 Fax: 617.226.7809 e-mail: [email protected] Manufacturer: First Act Enterainment Ltd. Manufacturer Address: Unit 2313, 23/F, BEA Tower, Millennium City 5, 418 Kwun Tong, Kowloon, Hong Kong Brand Name: First Act Model: FI901 Additional Model: FI902, FI903, FI904, FI905, FI906, FI916, FI926, FI907, FI917, FI927 Type of EUT: Transmitter Description of EUT: First Act Voice Rockrz Microphone Serial Number: N/A FCC : ZDMVCKRZ Date of Sample Submitted: April 08, 2011 Date of Test: April 15, 2011 Report No.: HK11040466-1 Report Date: May 12, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11040466-1 FCC ID: ZDMVCKRZ ii SUMMARY OF TEST RESULT FIRST ACT INC. MODEL: FI901 FCC ID: ZDMVCKRZ TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 13MHz) 15.225 / RSS-210 A2.6 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902-928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11040466-1 FCC ID: ZDMVCKRZ iii Table of Contents 1.0 General Description..................................................................................... ..1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ..............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11040466-1 FCC ID: ZDMVCKRZ Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: FI901 Radiated Emission Model: FI901 Job: HK11040466-1 INTERTEK TESTING SERVICE Report No: HK11040466-1 FCC ID: ZDMVCKRZ Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: FI901 Radiated Emission Model: FI901 Job: HK11040466-1
