ZDMVCKRZBFirst Act Voice Rockrz Microphone

Microphone 1. FX Button 2. MIC Button 3. On/Off Button 4. Speaker 5. MP3 Input 6. Target Zone 7. Demo/Play Switch 8. Battery Compartment FX MIC INSTRUCTION MANUAL Please read this guide carefully before you use the microphone. BEFORE YOU PLAY INSTALL BATTERIES Always ask an adult to install batteries. This product uses 3 size AAA (1.5 V) batteries (included). The battery compartment is located on the back of the product. Use a Phillips head screwdriver to open the compartment door. Install batteries according to image inside of compartment. Negative (–) and positive (+) ends of each battery must be installed correctly, or an electrical hazard and/or damage to the product could result. Close compartment door and tighten screw to secure. Note: If the batteries wear out, the product’s sound may deteriorate. If you are not going to play for a long time, remove the batteries from the product. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. ACTIVATE MICROPHONE IMPORTANT: Before normal use, you must take microphone out of DEMO mode. Move DEMO/PLAY switch on back of microphone to PLAY. (Note: Microphone will now be on. To turn off, press ON/OFF button.) 1 2 3 5 8 7 6 4 TM DEMOPLAY IMPORTANT SAFETY INSTRUCTIONS Please read this section carefully. • Do not use this device near water. • Clean only with a dry cloth. • Do not use near any heat sources such as radiators, heaters, stoves, or other heat producing machinery. • Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as when liquid has been spilled on it, it has been exposed to rain or moisture, it does not operate normally, or it has been dropped. • To reduce the risk of fire and electric shock, do not expose this apparatus to rain or moisture. Applies to Models: FI905, FI915 FCC ID: ZDMVCKRZB. Label can be found inside microphone battery compartment. Warnings Do not change the parts without professional instructions. Any change may cause malfunctions. Keep the wrapping bag out of the reach of children to avoid a choking hazard. Always move the product carefully to avoid damage to outer covering and inner components. The product should not come in contact with acid or alkali. It should not be operated where there is corrosive or excessively moist air around to avoid corrosion of the electrical contacts. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Colors and specifications depicted on this guide may vary slightly from your product. First Act, First Act Discovery, Voice Rockrz, and related logos are trademarks of First Act Inc. © 2011 First Act Inc. All Rights Reserved. FI9X5.M.01 CUSTOMER ASSISTANCE Email: [email protected] First Act Inc. 745 Boylston Street Boston, MA 02116 USA firstact.com No part of this publication may be reproduced in any form or by any means without the prior written permission of First Act Inc. * FI905: Flower ring, skull bracelet FI915: Skull ring, zipper bracelet TO PLAY NOTE: Sing or speak directly into the mic to sound your best! ON/OFF Press ON/OFF button to power mic on and off. FX BUTTON Press the FX button to hear a drum roll. Press again for cheers. Press button repeatedly to toggle between the two sound effects. HI-NOTE Tap top of flower/skull ring* to target zone and sing into the mic for HI-NOTE voice effect. ECHO-TASTIC Tap top of skull/zipper bracelet* to target zone and sing into the mic for ECHO-TASTIC voice effect. ROBOT-RIFFIC Tap one accessory to target zone, then tap another accessory to the target zone and sing into the mic for ROBOT-RIFFIC effect. You do not have to tap a second accessory immediately. As long as you don’t press MIC, or turn the mic off, the ROBOT-RIFFIC effect will start whenever you tap the second accessory. If you want to switch between effects without starting ROBOT- RIFFIC, be sure to press MIC in between. MIC BUTTON Press the MIC button to change back to normal voice boost mode. MP3 INPUT Plug your MP3 player into the MP3 INPUT and sing along to your favorite songs. Adjust the volume on your MP3 player to your liking. ZOMBIE-ZONE Tap top of rock ring to target zone and sing into the mic for ZOMBIE-ZONE voice effect. (Model FI905 only) HELIUM Tap top of bike chain bracelet -indicated by silver mark- to target zone and sing into the mic for HELIUM voice effect. (Model FI915 only) IMPORTANT SAFETY INSTRUCTIONS Please read this section carefully. • Do not use this device near water. • C…

Text truncated - open the document above for the full version.

I, a representative of First Act Inc., do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2006) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17 th day of March, 2011 Paul Franzosa Director of Engineering First Act Inc. 745 Boylston Street Boston, MA 02116 To Whom It May Concern: The purpose of this letter is to appoint Intertek Testing Services HK Ltd. to act as our agent, with scope of authority limited to testing equipment for conformance with Industry Canada Standards RSS-210, Issue 7. Intertek Testing Services HK Ltd. will assign a file number to the certification application and remit the fees for application review. This appointment is in force until notification to contrary. Signature Name / Title: Paul Franzosa, Director of Engineering Company : Seven45 Studios Phone: 627.3912745 Date: 4-August-2010!

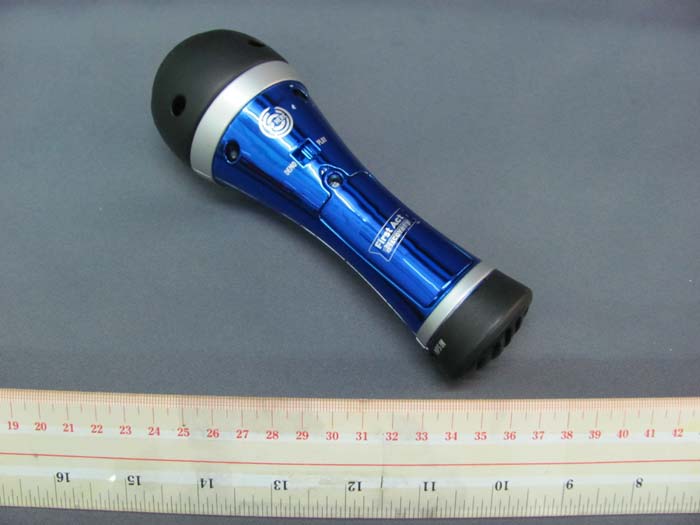

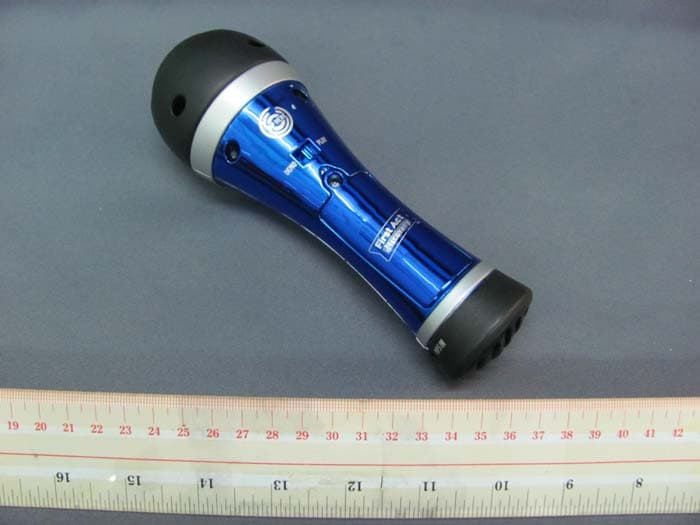

INTERTEK TESTING SERVICE Report No.: HK11060739-1 FCC ID: ZDMVCKRZB Equipment Photographs Model : FI915 (External)

APPENDIX B Label Location Voice Rockrz FCC Stickers-FIXXX.FCC.03 Proprietary and Condential – First Act Inc. © 2011 First Act Inc. All rights reserved. 30 mm 7 mm 30 mm 7 mm Model: FI915 - Voice Rockrz Mic FCC ID: ZDMVCKRZB FI915.FCC.03 Model: FI905 - Voice Rockrz Mic FCC ID: ZDMVCKRZB FI905.FCC.03 Model: FI906 - Voice Rockrz Mic FCC ID: ZDMVCKRZB Model: FI907 - Voice Rockrz Mic FCC ID: ZDMVCKRZB FI906.FCC.03FI907.FCC.03

INTERTEK TESTING SERVICE Report No.: HK11060739-1 FCC ID: ZDMVCKRZB Equipment Photographs Model : FI915 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060739-1 FCC ID: ZDMVCKRZB Equipment Photographs Model : FI915 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060739-1 FCC ID: ZDMVCKRZB Equipment Photographs Model : FI915 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060739-1 FCC ID: ZDMVCKRZB Equipment Photographs Model : FI915 (Internal)

FCC ID: ZDMVCKRZB Technical Description: The brief circuit description is listed as follows: - U1 W55MID50 acts as RFID Reader IC. - Y1 and associated circuit act as 13.56 MHz Oscillator. - Y2 acts as external Clock Frequency Oscillator. - U2 acts as MCU with speech controller. - U4 acts as Audio Driver. - U5 acts as A to D Converter. - U3 acts as voice Processor. - SW1~SW3 act as Control Keys. - TRY ME/PLAY acts as mode change switch. Antenna Used: A loop antenna has been used.

PT1893 MAIN AND TAG CIRCUIT DIAGRAM Jun.20,11 P 1 OF 1 REV. DATEDATE IC TYPE SHEET APPD DRN FILE NO. FILE NAME A + _ Tag Diagram MP3 JACK IN NC For not plated C38A//C39A:PT1893B=120pF +/-1%PT1893C=100pF +/-5%PT1893D=100pF+1pF +/-1%PT1893E=75pF+20pF +/-1% R25100K D1 1N4148 Q1 SS8550D SW1 SFX1/2 C1 0.1uF C8 10uF BT1 3*AAA ANT1 L1 4.7uH C2 270pF D2 1N4148 C3 100pF C4 750pF 18 TX_VDD 17 TX_VSS 16 COIL 15 TAGIN 14 RESET 13 ENV 11 RX_VDD 12 RX_VSS 10 VDD 9 CLK 8 CMD 7 VSS 6 XOUT 5 XIN 4 DATA0 3 DATA1 2 DATA2 1 DATA3 U1 W55MID50 3 OSC 2 P1.0 7 P1.1 8 P1.2 9 P1.3 10 P2.0 11 P2.1 12 P2.2 13 P2.3 5 GNDD 6 GNDIO 21 DACO 14 NC1 20 NC 18 P3.3 17 P3.2 16 P3.1 15 P3.0 1 RST 19 VDDIO 4 CVDD U2 SNC62030A Y1 13.56mHZ C5 10pF C6 10pF D3 1N4148 C7 0.1uF R120K C9 0.1uF C100.1uF C11 0.1uF R2 220K SW2 N.V.RESET SW3 TOGGLE ON/OFF SW4 TRYME/PLAY C12 0.1uF C13 0.1uF C14 100uF C15 100uF R3 510 C16 0.1uF C17 10uF 5 ACIN 4 INN 3 VSS 6 VREF 2 SPP 1 SPN 7 CE 8 VDD U4 GPY0030B R4 560 123 J1 C18 0.22uF C19 0.22uF R5 15K C20 0.1uF R6 10K R7 2.2M C21 0.1uF SP1 SPK 46 VDDPP 48 VSSPP 44 VSSPP1 1 TEST 4 RST 7 CVDD 3 CVSS 8 REGOUT 5 CKSEL 15 P0.0 16 P0.1 17 P0.2 18 P0.3 20 P0.4 21 P0.5 22 P0.6 23 P0.7 25 P0.8 26 P0.9 27 P0.10 28 P0.11 30 P0.12 31 P0.13 32 P0.14 33 P0.15 19 VSSIO0 29 VSSIO00 43 VSSIO1 2 VSSIO2 47 BN0 45 BP0 13 LXOUT 12 LXIN 11 XOUT 10 XIN 9 VSSA 14 VDDA 42 P1.7 41 P1.6 40 P1.5 39 P1.4 37 P1.3 36 P1.2 35 P1.1 34 P1.0 6 VDDIO2 38 VDDIO1 24 VDDIO0 U3 SNC729 C22 47uF R8 1M C23 0.1uF C2447uF C25 0.1uF C26 47uF C27 0.1uF Y2 32.768KHZ C28 20pF C29 20pF R11 3.3K C31 0.047uF 16 REF 13 START 12 CLK 11 DIO 15 AVSS 9 VSS 8 CH7 7 CH6 6 CH5 5 CH4 4 CH3 3 CH2 2 CH1 1 CH0 10 VDD 14 AVDD U5 WSNAD02 C32 0.1uF R13 1K R14 NC C33 0.1uF Q3 9014 R15 10K R16 120K R17 2.2K C34 0.1uF C35 0.47uF R18 6.8K R19 1K C36 47uF MIC -58dB Busy low C37 0.1uF 1 NC 2 RS4 3 RS3 4 RS2 5 RS1 6 RS0 7 VSS 8 COIL0 10 NC1 9 COIL1 11 VDD 12 OPTION U6 W55MID35 L3 3.5uH C38AC39A J2J3 TVDD L2 2.2uH C40 3pF B2 202B1 202 B3 152 B4 152 B5 152 T1T2T3T4 C41 NC C38 NC C16A NC VC1 47pF VC2 3pF For plated TVSS R9 2.2K R10 1.5K R12 1.5K CMD CLK VDD1 TAGIN D0 VDD P0.0P0.1P0.2 VDD1 VDD1 P0.0P0.1P0.2 MIC_EN AD_DIOAD_CLKAD_START VDD1 MIC_OUT AD_START AD_CLK AD_DIO MIC_EN VDD1 MIC_OUT VDD1 VDD1VDD1 P0.3 RST RST D0 TAGIN CLK CMD P2.3 P2.3 P0.3

INTERTEK TESTING SERVICES Report No.: HK11060739-1 Sample No.: 1/1 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 225 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11060739-1 First Act Inc. Application For Certification (Original Grant) (FCC ID: ZDMVCKRZB) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Engineer Chan Chi Hung, Terry Assistant Supervisor Date: July 21, 2011 INTERTEK TESTING SERVICES Report No.: HK11060739-1 FCC ID: ZDMVCKRZB i GENERAL INFORMATION FIRST ACT INC. MODEL: FI915 FCC ID: ZDMVCKRZB Grantee: First Act Inc. Grantee Address: 745 Boylston Street, Boston, MA 02116, Massachusetts, United States Contact Person: Paul Franzosa Tel: 617.226.7888 Fax: 617.226.7809 e-mail: [email protected] Manufacturer: First Act Entertainment Ltd. Manufacturer Address: Unit 2313, 23/F, BEA Tower, Millennium City 5, 418 Kwun Tong, Kowloon, Hong Kong Brand Name: First Act Model: FI915 Additional Model: FI905, FI906, FI907 Type of EUT: Transmitter Description of EUT: First Act Voice Rockrz Microphone Serial Number: N/A FCC : ZDMVCKRZB Date of Sample Submitted: June 13, 2011 Date of Test: June 15, 2011 Report No.: HK11060739-1 Report Date: July 21, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11060739-1 FCC ID: ZDMVCKRZB ii SUMMARY OF TEST RESULT FIRST ACT INC. MODEL: FI915 FCC ID: ZDMVCKRZB TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 13MHz) 15.225 / RSS-210 A2.6 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902-928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11060739-1 FCC ID: ZDMVCKRZB iii Table of Contents 1.0 General Description..................................................................................... ..1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ....…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11060739-1 FCC ID: ZDMVCKRZB Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : FI915 INTERTEK TESTING SERVICE Report No: HK11060739-1 FCC ID: ZDMVCKRZB Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : FI915
