ZDMBF4090BTWireless Music Receiver

® WIRELESS MUSIC RECEIVER Equipped with Bluetooth® Wireless Technology SYSTEM REQUIREMENTS Audio device with 1/8” (3.5 mm) audio jack (speakers, radios, etc.) Bluetooth® transmitting device (Bluetooth® enabled phones, MP3 players, etc.) GETTING STARTED The RECEIVER has a built-in rechargeable battery that will last for up to 6 hours when fully charged. Charge the battery fully with the provided micro-USB to USB cable before use: 1. Plug micro-USB into RECEIVER charging port. 2. Plug the other end of the cable into any USB A port. LED COLOR STATUS Red Light ON Charging Red Light OFF Finished Charging 3. It will take approximately 4 hours to charge the RECEIVER fully. LED MICRO USB 1/8” JACK ON/OFF (3.5mm) BLUETOOTH ® PAIR BUTTON POWER ON Press and hold the ON/OFF button for 3-5 seconds to power on, then release the button. The blue LED will flash for 1 second (you are in standby mode). POWER OFF Press and hold the ON/OFF button for 3-5 seconds to power off. The red LED will flash for 1 second. PAIRING A BLUETOOTH ® ENABLED DEVICE With RECEIVER power off, press and hold the ON/ OFF button for 6-7 seconds until red and blue LED flashes intermittently and two tones sound (you are in pairing mode). Note: Pairing mode will last 2 minutes. The RECEIVER will switch to standby mode if no devices are connected within 2 minutes. PAIRING WITH BLUETOOTH ® ENABLED DEVICES Refer to your phone user’s manual for further information. 1.Place the RECEIVER and device where they are no more than 1 meter apart. 2. Put the RECEIVER in pairing mode (see Pairing with a Bluetooth® Enabled Device above). 3. Activate your device’s Bluetooth® function. Set your device to search for Bluetooth® enabled devices, choose “BlueFlame“ from the list. 4. When prompted by your device to connect, select “Yes” (this will vary among devices). 5. When connected, the blue LED will flash twice every four seconds. LED STATUS Red + Blue Pairing Mode Blue every 2 seconds Standby Mode Not Connected with device Blue every 4 seconds Connected with Device Red every 20 seconds Low Power Need to recharge Notes: In standby mode, if no devices can be connected within 5 minutes, the RECEIVER will then turn off automatically to save power. After successful pairing, device and RECEIVER will “remember” each other, no need to re-pair. When RECEIVER is turned on, it will automatically connect to last connected device. If you want to pair it with other devices, turn off the Bluetooth® function of last connected device and pair RECEIVER with new device (see Pairing with Bluetooth® Enabled Devices above). When RECEIVER is in standby mode and doesn’t connect to any devices, press ON/OFF button twice, it will auto connect to last device. MUSIC PLAYBACK Connect the RECEIVER to a speaker and a Bluetooth® enabled music device at the same time to enjoy music wirelessly. Music Playback Controls: PLAY – Press ON/OFF button once PAUSE – Press ON/OFF button once Note: Music will automatically pause when you receive an incoming call. CARE AND MAINTENANCE Read the following recommendations before using the RECEIVER. Do not expose the receiver to liquid, moisture or humidity. Do not use abrasive cleaning solvents to clean the receiver. Do not expose the receiver to extremely high or low temperatures. Don’t dispose of the receiver in a fire, as it will result in an explosion. Don’t attempt to disassemble the receiver as it may get damaged. If you don’t plan to use the receiver for an extended period of time, store it in a dry, dust free place. (a) “CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product.” (b) “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.” This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B) FCC ID: ZDMBF4090BT IC: 9200A-BF4090BT Customer Assistance Phone: 866.710.8424 Email: [email protected] Colors and specifications depicted on this guide may vary slightly from your product. Ages 14+. This product is not a toy. Blueflame Technologies LLC. 745 Boylston Street. Boston, MA 02116 USA. Made In China. Blueflame and the Blueflame logo are trademarks of Blueflame Technologies LLC. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Blueflame Technologies LLC is under license. Other trademarks and trade names are those of their respective owners. © 2013 Blueflame Technologies LLC. All Rights Reserved. Limited Warranty: blueflamegear.com/warranty BF4090.M.EF.01 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ® SANS FIL POSTE RÉCEPTEUR Doté de la technolog…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/5/31 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ First Act Inc. ____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Wireless Music Receiver Trade Name： N/A Model Name： BF4090 Serial Model： N/A FCC ID : ZDMBF4090BT We affirm that between SIEMIC and ___ First Act Inc. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Name: Paul Franzosa Title: Sr. Director of Product Development Address: 745 Boylston Street, Boston, Massachusetts, United States 02116

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/5/31 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZDMBF4090BT We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Name: Paul Franzosa Title: Sr. Director of Product Development Address: 745 Boylston Street, Boston, Massachusetts, United States 02116

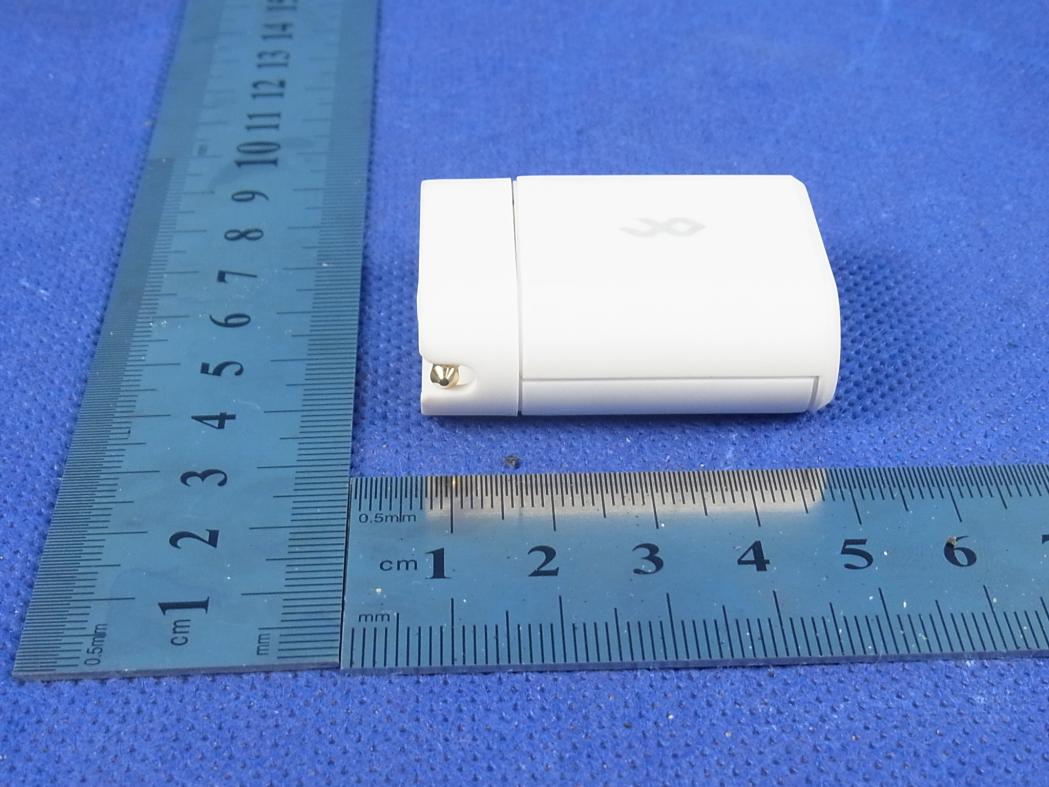

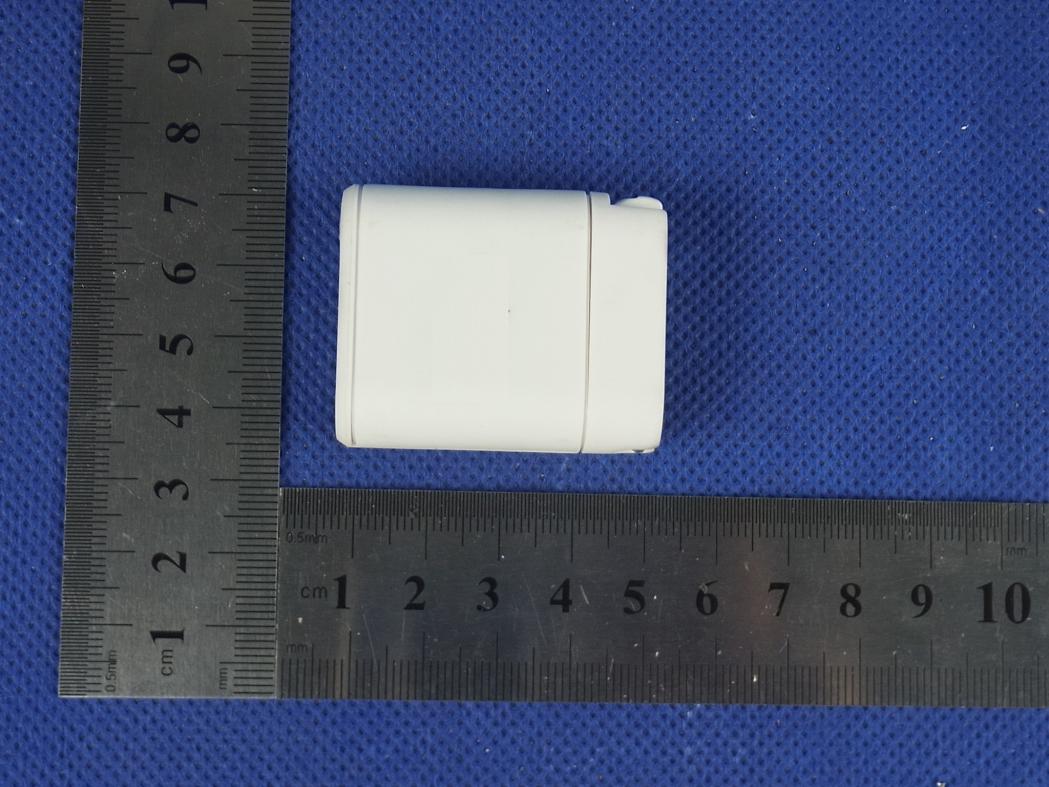

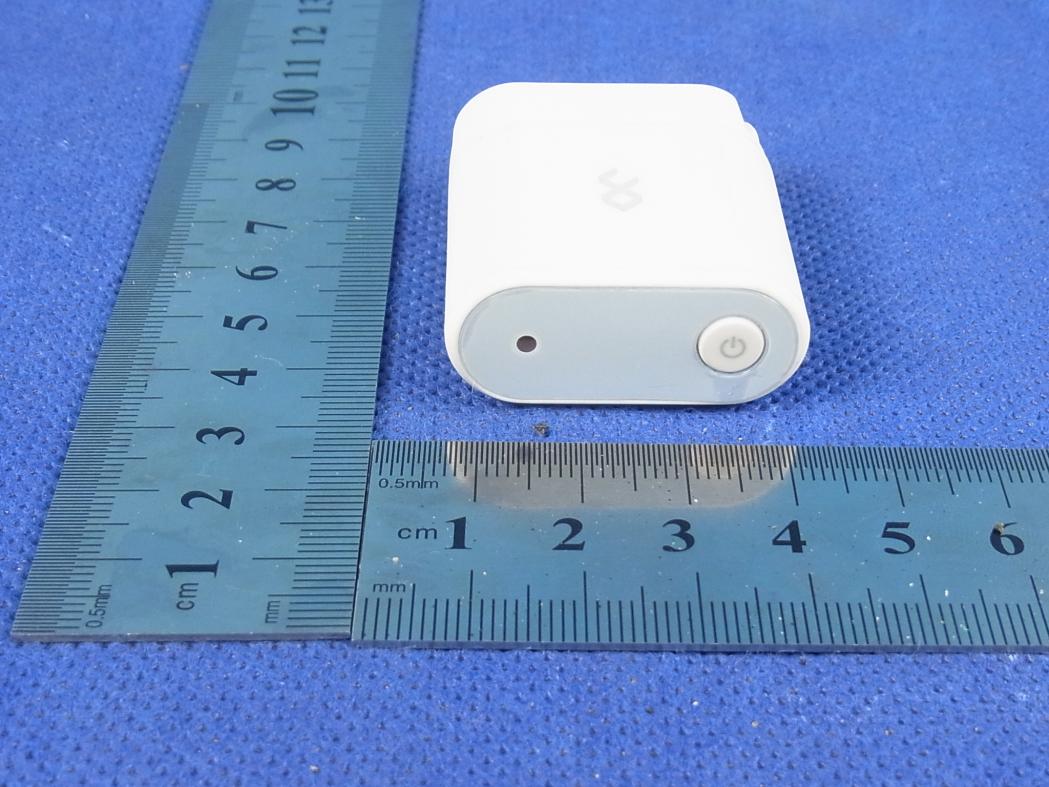

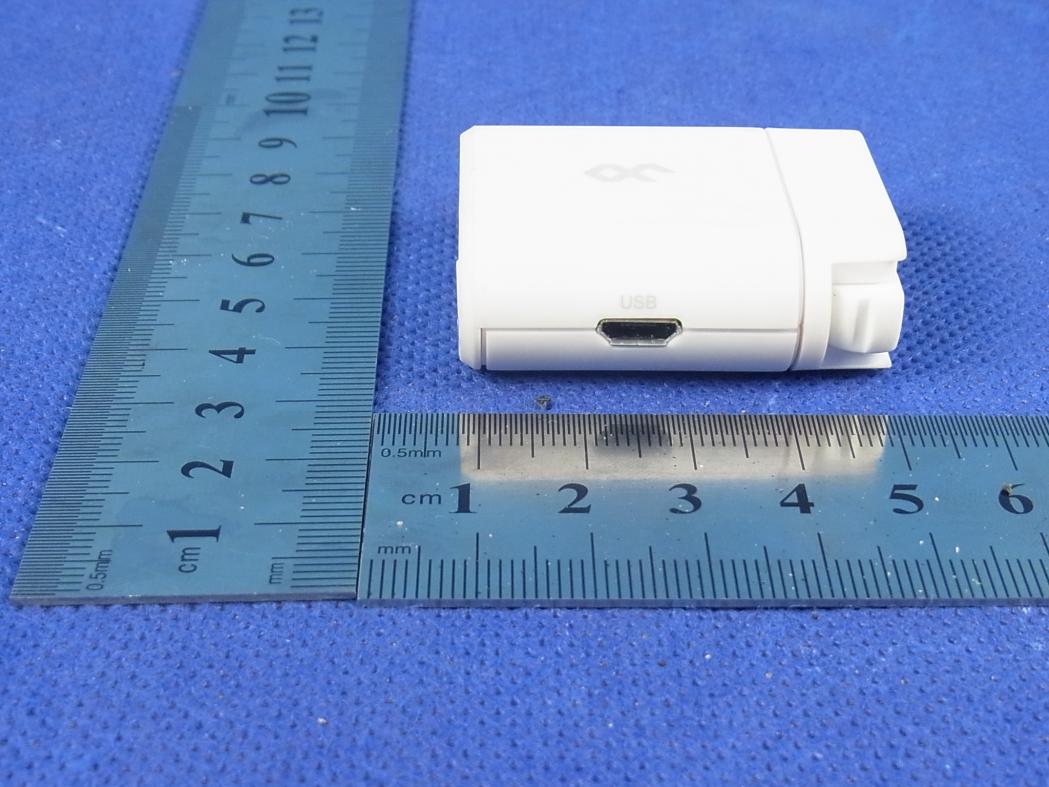

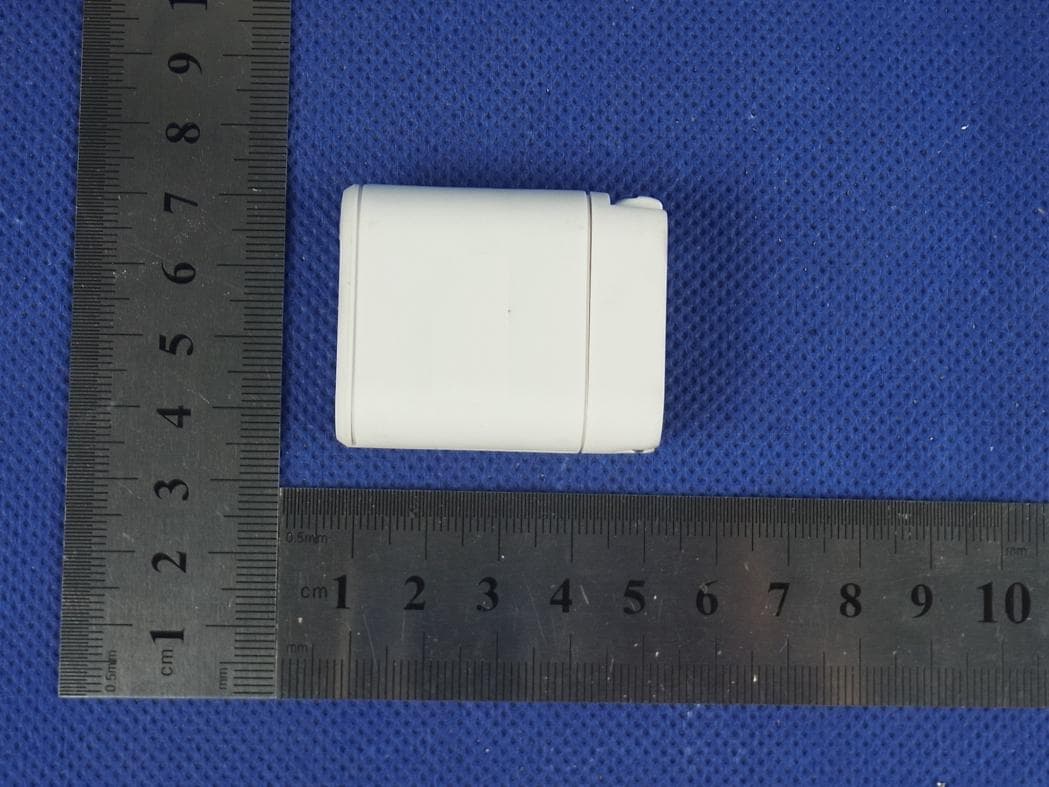

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

FCC ID: ZDMBF4090BT RF EXPOSURE TEST SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: ZDMBF4090BT Maximum measured transmitter power Output Power(Max Conducted): BT(1Mbps): -3.226dBm BT EDR(2Mbps): -4.38dBm BT EDR(3Mbps): -4.189dBm The max.output power E.I.R.P is -3.226dBm=0.48mW, Frequency is 2.402GHz So (0.48/5)* √2.402=0.149≤ 3.0 Conclusion: No SAR is required.

RADIO TEST REPORT FCC ID: ZDMBF4090BT IC: 9200A-BF4090BT Product： Wireless Music Receiver Trade Name： N/A Model Name： BF4090 Serial Model： N/A Report No.： NTEK- 2013NT0529107F Prepared for First Act Inc. 745 Boylston Street, Boston, Massachusetts, United States 02126 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 64 Report No.: NTEK- 2013NT0529107F TEST RESULT CERTIFICATION Applicant’s name ................. : First Act Inc. Address ................................. : 745 Boylston Street, Boston, Massachusetts, United States 02126 Manufacture's Name ............ : First Act Inc. Address ................................. : 745 Boylston Street, Boston, Massachusetts, United States 02126 Product description Product name............................ : Wireless Music Receiver Model and/or type reference : BF4090 Serial Model： N/A Standards ............................. : FCC Part15.247, RSS-210 Annex 8 Test procedure ............................... : ANSI C63.4-2003, RSS-Gen Issue 3 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 22 May 2013 ~28 May 2013 Date of Issue .......................................... : 28 May 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 64 Report No.: NTEK- 2013NT0529107F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS 21 4 . NUMBER OF HOPPING CHANNEL 26 4.1 APPLIED PROCEDURES / LIMIT 26 4.1.1 TEST PROCEDURE 26 4.1.2 DEVIATION FROM STANDARD 26 4.1.3 TEST SETUP 26 4.1.4 EUT OPERATION CONDITIONS 26 4.1.5 TEST RESULTS 27 5 . AVERAGE TIME OF OCCUPANCY 28 5.1 APPLIED PROCEDURES / LIMIT 28 5.1.1 TEST PROCEDURE 28 Page 4 of 64 Report No.: NTEK- 2013NT0529107F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 28 5.1.3 TEST SETUP 29 5.1.4 EUT OPERATION CONDITIONS 29 5.1.5 TEST RESULTS 30 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 36 6.1 APPLIED PROCEDURES / LIMIT 36 6.1.1 TEST PROCEDURE 36 6.1.2 DEVIATION FROM STANDARD 36 6.1.3 TEST SETUP 36 6.1.4 EUT OPERATION CONDITIONS 36 6.1.5 TEST RESULTS 37 7 . BANDWIDTH TEST 43 7.1 APPLIED PROCEDURES / LIMIT 43 7.1.1 TEST PROCEDURE 43 7.1.2 DEVIATION FROM STANDARD 43 7.1.3 TEST SETUP 43 7.1.4 EUT OPERATION CONDITIONS 43 7.1.5 TEST RESULTS 44 8 . PEAK OUTPUT POWER TEST 50 8.1 APPLIED PROCEDURES / LIMIT 50 8.1.1 TEST PROCEDURE 50 8.1.2 DEVIATION FROM STANDARD 50 8.1.3 TEST SETUP 50 8.1.4 EUT OPERATION CONDITIONS 50 8.1.5 TEST RESULTS 51 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 57 9.1 DEVIATION FROM STANDARD 57 9.2 TEST SETUP 57 9.3 EUT OPERATION CONDITIONS 57 9.4 TEST RESULTS 58 10 . ANTENNA REQUIREMENT 62 10.1 STANDARD REQUIREMENT 62 10.2 EUT ANTENNA 62 11 . EUT TEST PHOTO 63 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 64 Report No.: NTEK- 2013NT0529107F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS-210 Annex 8 Standard Section Test Item Judgment Remark 15.207&7.2.4 Conducted Emission PASS 15.247(a)(1)&A8.2 Hopping Channel Separation PASS 15.247(b)(1) & A8.4 Peak Output Power PASS 15.247(c) &A8.5 Radiated Spurious Emission PASS 15.247(a)(iii) &A8.1 Number of Hopping Frequency PASS 15.247(a)(iii) &A8.1 Dwell Time PASS 15.247(a)(1) &A8.1 Bandwidth PASS 15.205&A8.5 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 64 Report No.: NTEK- 2013NT0529107F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 64 Report No.: NTEK- 2013NT0529107F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Music Receiver Trade Name N/A Model Name BF4090 Serial Model N/A Model Difference N/A Product Description The EUT is a Wireless Music Receiver Operation Frequency: 2402~2480 MHz Modulation Typ…

Text truncated - open the document above for the full version.

Page 63 of 64 Report No.: NTEK- 2013NT0529107F 11. EUT TEST PHOTO Radiated Measurement Photos Page 64 of 64 Report No.: NTEK- 2013NT0529107F CONDUCTED EMISSION Photos
