User Manual Night Vision & Remote Operation Wireless/Wired Network Camera CM-I12316GY IPCAM User Manual For further help, please visit www.zmodo.com Thank you for buying our IP camera. This series of products is designed and equipped for network video surveillance, including wired IP bullet cameras, wireless IP bullet cameras, IP IR dome cameras, IP IR waterproof cameras etc. We have adopted high performance chips to ensure high quality media processing that includes video and audio collection, compression, and transmission. Standard MJPEG compression format ensures clear video streaming performance and enables users to view feeds via IE browser, centre management software and client software. AJ series products are applicable for small, medium and large enterprises as well as franchise stores, factories, and home usage. These systems are easy to install and operate and are perfect for anywhere remote network video transmission is needed. Before you begin installation, please check to make sure all products accessories are included in the package. Product Components and Features: Table of CONTENTS IP camera Bracketoptional Power adapter Warranty card CD 1 PC 1 PC 1 PC 1 PC 1 PC 1. General Introduction ................................................................................ 1.1. Product Specifications .......................................................................... 1.2. Applications ........................................................................................... 1.3. System Requirements .......................................................................... 2. Interface & Installation ............................................................................. 2.1. Interface ............................................................................................... 2.2. Installation ............................................................................................. 2.2.1. Installation in LAN .............................................................................. 2.2.2. PPPoE Installation ............................................................................. 2.2.3. IP Camera & PC connection .............................................................. 3. IE Browse to IP Camera........................................................................... 3.1. Use Search tool Software...................................................................... 2 3 3 3 4 4 5 5 6 6 7 7 1 IP cameras are a new generation product that combine analog and IP video technology. IP cameras can compress and encrypt video and audio signals then send it to remote terminals through the internet with its built-in processor and web server. With an IP address, users can use the standard Internet Explorer browser to view the camera real-time, monitor targets, manage and store video and audio, as well as control PTZ through the network. As a new generation of products in the security family, IP cameras share the same function as analog cameras such as auto white balance, auto shutter speed, AGC, auto backlight compensation etc. On the other hand, IP cameras also support remote access through the internet, and support multi-user viewing functions. Some IP cameras are even able to extend to both analog and digital signals. The core of F series IP cameras is 32Bit RSIC with standard MJPEG compression format, CMOS image sensors, auto white balance and backlight balance, Internet Explorer compatibility, smart phone accessibility, and centralized monitor interface management. In general, these cameras host a variety of functions that can serve a number of users depending on their usage requirements and conditions. Table of CONTENTS 3.1.1. Configure Network Parameter ............................................................. 3.2. Logging and Active X Installation............................................................. 3.3. Main Operation Interface......................................................................... 3.4. Manager Operation ................................................................................ 3.4.1. Multi-Device Settings........................................................................... 3.4.2. Basic Network Settings........................................................................ 3.4.3. Wireless Settings................................................................................. 3.4.4. ADSL Settings...................................................................................... 3.4.5. DDNS Settings.................................................................................... 3.4.6. E-mail and FTP Services Settings....................................................... 3.4.7. Alarm Services Settings ..................................................................... 3.4.8. Reset/Firmware Upgrade Settings...................................................... 3.4.9. Restore Factory Settings ................................................................... 3.4.10. Reboot Equipment Settings............................................................... 4. Others ....................................................................................................... 4.1. Port Forwarding Settings in Router......................................................... 4.2 Warranty ................................................................................................. 9 10 12 13 14 15 15 16 16 17 18 18 19 19 19 19 20 2 *Adopt high performance with strong functional media processors- 32Bit RSIC *CMOS image sensor *Uses high quality MJPEG compression to transmit video over low bandwidth internet speeds *Maximum support of 15 users viewing at the same time, no limit for users if using Forwarder Server function; *Built in Web Server: makes it easy for users to view real time monitoring and access setting administration through the use of standard internet browser (Internet Explorer); *Support WIFI: 802.…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 深圳市智美达科技有限公司 ZMODO Technology Corp. Ltd. 2012-03-02 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZMODO Technology Corp. Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: IP-CAM Model Name: CM-I12316GY FCC ID: ZK8-I12316GY We affirm that between SIEMIC and ZMODO Technology Corp. Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Aaron yang/R&D ZMODO Technology Corp. Ltd. 1201 Sangda Building High Technology Park Shenzhen, P.R.China

圳达 深 市智美 科技有限公司 ZMODO Technology Corp. Ltd. 2012-03-02 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZK8-I12316GY To Whom It May Concern: This letter is to ascertain that ZMODO Technology Corp. Ltd. Product IP-CAM has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Aaron yang/R&D ZMODO Technology Corp. Ltd. 1201Sangda Building High Technology Park Shenzhen, P.R.China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 深圳市智美达科技有限公司 ZMODO Technology Corp. Ltd. 2012-03-02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZK8-I12316GY We hereby request confidential treatment of information accompanying this application as outlined below: - Schematic - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Aaron yang/R&D ZMODO Technology Corp. Ltd. 1201 Sangda Building High Technology Park Shenzhen, P.R.China

2206 Ringwood Avenue, San Jose, CA 95131, USA Tel: +1(408) 526 1188, Fax: +1(408) 526 1088, Email: [email protected], URL: www.siemic.com March 06, 2012 To: FCC From: SIEMIC, INC. RE: Supercede of the Setup Photo –AC Line conducted and Setup Photo- Radiated Emission. Due to the typo on the description of the setup photo exhibit, we would like to supercede the Setup Photo –AC Line conducted and Setup Photo- Radiated Emission. Thank you, Choon Sian Ooi SIEMIC, INC. 2206 Ringwood Ave., San Jose, CA 95131 Tel: 408-526-1188 Ext 209 Fax: 408-526-1088

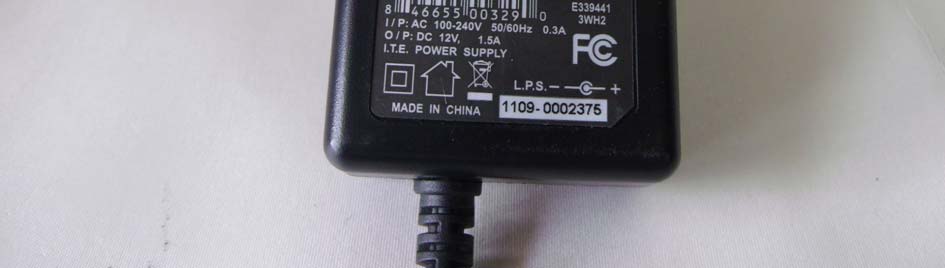

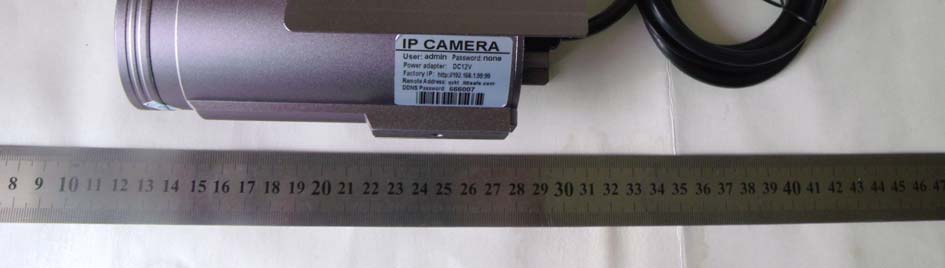

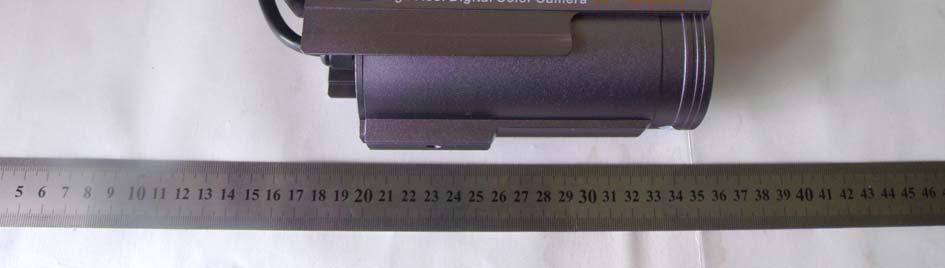

EUT- Right Side View EUT- Left Side View Antenna 1ocation EUT- Front View EUT-Rear View Adapter View Adapter Information View

FCC ID LABELING AND LOCATION FCC ID Labeling Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

FCC ID LABELING AND LOCATION FCC ID Labeling Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EUT- Cover off View EUT- Internal View 1 EUT- Internal View 2 EUT- Internal View 3 Main Board Top View Main Board Top WiFi Module Off View Main Board Bottom View Camera Board View Camera Board Top Lens off View Camera Board Bottom View LED Board Top View LED Board Bottom View WiFi Module Top View WiFi Module Top Shielding off View WiFi Module Bottom View Antenna View

1/4 RF EXPOSURE Report Number: BATT20120201E-RF Product Name: IP-CAM Model: CM-I12316GY Trade Name: Zmodo According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. 2/4 EUT Specification EUT IP-CAM Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 18.44 dBm (69.82 mW); 802.11g: 15.26dBm (33.57 mW) Antenna gain (Max) 2.5dBi (Numeric gain: 1.78) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 802.11b 18.44 dBm (69.82 mW) at 2462MHz; 802.11g 15.26 dBm (33.57 mW) at 2412MHz (with 1.78 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. 3/4 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×=282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields 20 10 282.0 20 )(GP d + ×= Equation 1 Where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 4/4 Maximum Permissible Exposure (2.4 GHz Band) S = PG/4πR² S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) = 20cm The maximum permissible exposure (MPE) for the general population is 1.00 mW/cm 2 . Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 802.11b 2462 2.5 1.78 18.4469.8220 0.0247 1.0 802.11g 2412 2.5 1.78 15.2633.5720 0.0119 1.0 The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT20120201E-RF Note: This report shall not be reproduced except in full ,without the written approval of by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD .This document may be altered or revised by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. personnel only, and shall be noted in the revision section of the document. Page 1 of 52 FCC 47 CFR PART 15 SUBPART C TEST REPORT Report Number: BATT20120201E-RF FCC ID: ZK8-I12316GY For IP-CAM Model: CM-I12316GY Trade Name: Zmodo Prepared for ZMODO Technology Corp. Ltd. 1201 Sangda Building High Technology Park Shenzhen, P.R.China Prepared by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. 11F,Bldg.B,Xinbaoyuan,XinanhuCommercialcity,Bao’an District, Shenzhen, Guangdong, China TEL: 86-755-27753991 FAX: 86-755-27754182 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT20120201E-RF Page 2 TABLE OF CONTENTS 1. TEST CERTIFICATION.....................................................................................................................3 2. TEST RESULT SUMMARY ...............................................................................................................4 3. EUT DESCRIPTION ...........................................................................................................................5 4. TEST METHODOLOGY ....................................................................................................................6 5. INSTRUMENT CALIBRATION........................................................................................................8 6. FACILITIES AND ACCREDITATIONS ..........................................................................................9 FACILITIES.............. ................................................................................................................................9 EQUIPMENT...............................................................................................................................................9 LABORATORY ACCREDITATIONS AND LISTING...........................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 8. FCC PART 15.247 REQUIREMENTS.............................................................................................11 6 DB BANDWIDTH.....................................................................................................................................11 PEAK POWER...... .....................................................................................................................................16 BAND EDGES MEASUREMENT..........................................................................................................24 PEAK POWER SPECTRAL DENSITY.............................................................................................................28 SPURIOUS EMISSIONS ........................................................................................................................33 POWERLINE CONDUCTED EMISSIONS.......................................................................................................46 9. ANTENNA REQUIREMENT ...........................................................................................................52 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT20120201E-RF Page 3 1. TEST CERTIFICATION Applicant: ZMODO Technology Corp. Ltd. 1201 Sangda Building High Technology Park Shenzhen, P.R.China Equipment Under Test: IP-CAM Trade Name: Zmodo Model: CM-I12316GY APPLICABLE STANDARDS Standard Test Type Standard Test Type §15.247(a)(2) 6dB Bandwidth Measurement §15.247(e) Peak Power Spectral Density §15.247(b)(3) §15.247(b)(4) Peak Power Measurement §15.247(d) §15.209(a) §15.205 Spurious Emissions z Conducted Measurement z Radiated Emissions §15.247(d) Band Edges Measurement §15.207(a) Power Line Conducted Emissions §15.203 Antenna Requirement §15.247 (i) §1.1307 (b)(1) §2.1091 Maximum Permissible exposure (MPE) Deviation from Applicable Standard None The above equipment was tested by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD .The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. Tested By: Date: 2012-03-02 ( Simon Mo) Check By: Date: 2012-03-02 (Mike Yong) Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT20120201E-RF Page 4 2. TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark §15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. §15.247(b)(3) §15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. §15.247(d) Band Edges Measurement Pass Meet the requirement of limit. §15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. §15.247(d) §15.209(a) §15.205 Spurious Emissions z Conducted Measurement z Radiated Emissions Pass Meet the requirement of limit. §15.207(a) Power line Conducted Emissions Pass Meet the requirement of limit. §15.203 Antenna Requirement Pass Meet the requirement of limit. §15.247(i) §1.1307 (b)(1) §2.1091 Maximum Permissible exposure (MPE) Pass Meet the requirement of limit. Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT20120201E-RF Page 5 3. EUT DESCRIPTION Product IP-CAM Trade Name Zmodo Model Number CM-I12316GY Model Difference N/A Power Supply DC 12V POWERED BY SWITCHING AC/DC POWER ADAPTER MODEL: GEO151UB-1215 I/P: AC 100-240V 50/60Hz 0.3A O/P: DC 12V, 1.5A Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11…
