ZK8-IXA05-WCIP-CAM

IP Camera User Manual For further help, please visit www.zmodo.com Preface Dear customer, thank you for choosing to purchase and use our IP camera products. This series of IP monitoring product is the integrated IP network camera which is researched for network video surveillance monitoring. The series includes network bullet camera, network IR bullet camera, and network dome camera, etc. High performance, monolithic SOC chip is utilized as media processor which integrates video capture, compress and transmission. Standard H.264 main profile encoding algorithm ensures more clear and smooth video transmission. Embedded web server allows user to view real-time footage and remote control via IE browser. This series of IP camera is well suited for home and small business, as well as any situation which needs to apply remote network transmission and remote network control. It's easy to install and operate. Declaration • The content in this manual may be different from the product version you are using. If you experience any issue that is not mentioned in this manual, please contact our tech-support or Zmodo Knowledge Base at kb.zmodo.com . • The content will be updated time to time. Our company reserves the right to update without notice. Target Reader This manual is primarily intended for the following users: • System planner • Onsite tech-support and maintenance personnel • Administrator for system installation • Users for business operation Terms in this manual IP Camera or IPC in this manual means network camera including network bullet camera, network dome camera, network PT camera, and network IR camera, etc. • Click: Refers to left-click with your mouse • Double click: Refers to left-double-click with your mouse • Right Click: Refers to right-click with your mouse • Square brackets "[ ]" indicates the window name, menu name and data sheet, such as [Download] 1 ® Contents 1. PRODUCT INTRODUCTION ...................................................................................................................2 1.1 BRIEF INTRODUCTION .....................................................................................................................2 1.2 MAIN FEATURES ..............................................................................................................................2 1.3 INSTALLATION STATEMENT ............................................................................................................2 1.4 NETWORK IP CAMERA CONNECTION ...........................................................................................3 2. LOG IN .....................................................................................................................................................3 3. PREVIEW ................................................................................................................................................5 4. SYSTEM SETTING ..................................................................................................................................6 4.1 LOCAL CONFIGURATION ..................................................................................................................6 4.2 REMOTE CONFIGURATION ..............................................................................................................7 4.2.1 Video Setting ...............................................................................................................................7 Video Coding ................................................................................................................................7 Video Block ..................................................................................................................................8 4.2.2 Network Parameter ......................................................................................................................9 Wired Setting ...............................................................................................................................9 Wi-Fi Setting ................................................................................................................................9 Listener Port (LPRT) ...................................................................................................................11 PPPOE .......................................................................................................................................11 UPnP (Auto Port Mapping) .........................................................................................................12 Email ...........................................................................................................................................13 FTP .............................................................................................................................................13 DDNS ..........................................................................................................................................14 4.2.3 Video Setting ..............................................................................................................................15 4.2.3.1 Video Loop .....................................................................................................................15 4.2.3.2 Video Plans ....................................................................................................................15 4.2.4 Alarm setting ...............................................................................................................................16 4.2.5 System Information .....................................................................................................................16 4.2.6 Advanced Setting ........................................................................................................................17 4.2.6.1 User Management ........................................…

Text truncated - open the document above for the full version.

DATE : April 18, 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Shenzhen BATT Testing Technology Co., Ltd. 11F, Bldg.B, Xinbaoyuan, Xinanhu Commercial city, Bao’an District, Shenzhen, Guangdong, China _, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with ZMODO Technology Corp. Ltd./ 17F, Finance Technology Building, 11 Keyuan Road, Hi-Tech Park, Nanshan District, Shenzhen, China Dated this April 18, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Aaron Yang Signature Printed Title: Manager On behalf of : ZMODO Technology Corp. Ltd. Telephone: 86-755-33926029

DATE : April 18, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZK8-IXA05-WC Product Name: IP-CAM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this April 18, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Aaron Yang Signature Printed Title: Manager On behalf of : ZMODO Technology Corp. Ltd. Telephone: 86-755-33926029

ZMODO Technology Corp. Ltd. 17F, Finance Technology Building, 11 Keyuan Road, Hi-Tech Park, Nanshan District, Shenzhen, P.R.China Statement We ZMODO Technology Corp. Ltd. Hereby that The product IP-CAM, Models no. ZH-IXA05-WC, ZH-IXB05-WC, ZHIXC05-WC,ZH-IXD05-WC,ZH-IXA15-WAC,ZH-IXB15-WAC, ZH-IXC15-WAC, ZH-IXD15-WAC are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: ZMODO Technology Corp. Ltd.

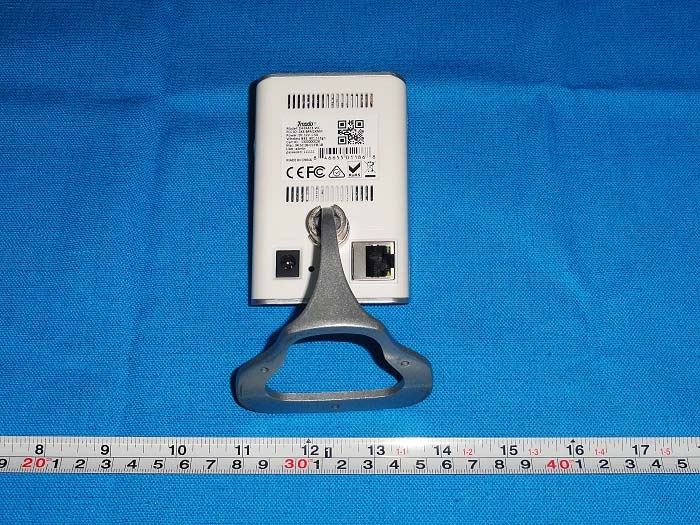

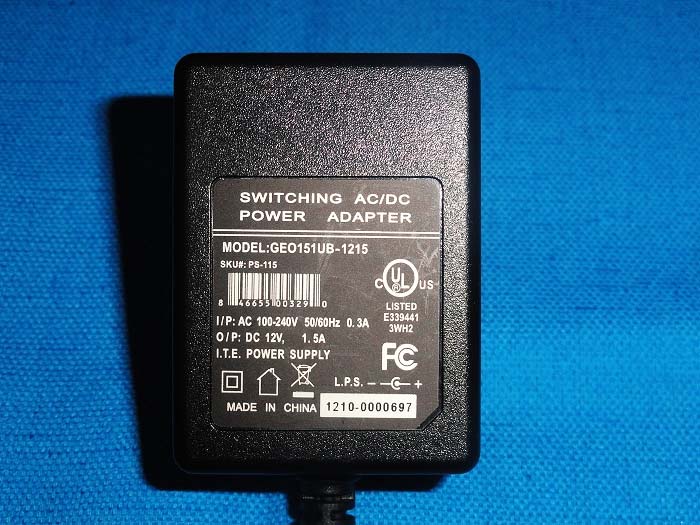

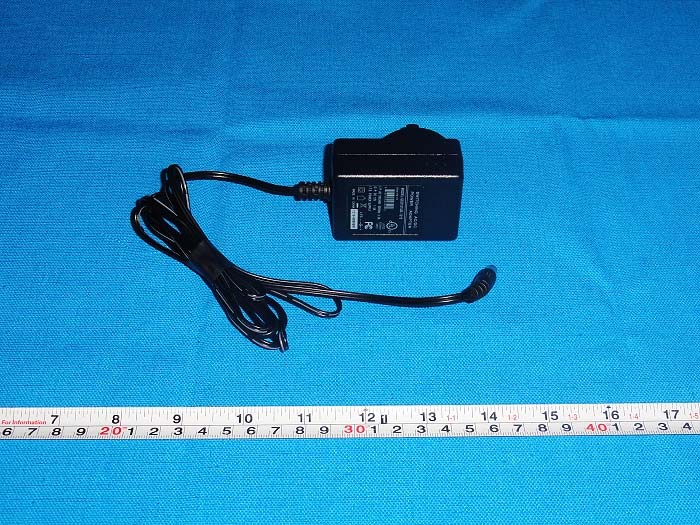

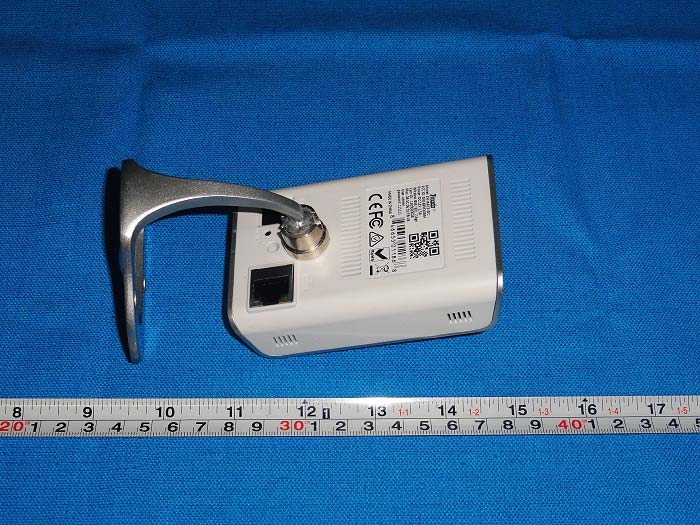

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Mark Location: FCC ID Label

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 Photo 25

Maximum Permissible Exposure Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain: 3.0dBi Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.995 20.54 113.24 0.045 1 Compiles Note: the worse case was recorded.

Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201303089FCC Page 1 of 112 FCC TEST REPORT Prepared For : ZMODO Technology Corp. Ltd. Product Name: IP-CAM Model : ZH-IXA05-WC, ZH-IXB05-WC, ZHIXC05-WC, ZH-IXD05-WC, ZH-IXA15-WAC,ZH-IXB15-WAC, ZH-IXC15-WAC, ZH-IXD15-WAC Prepared By : Shenzhen BATT Testing Technology Co., Ltd. 11F, Bldg.B, Xinbaoyuan, Xinanhu Commercial city, Bao’an D Shenzhen, Guangdong, China. Tel: 86-755-27753991 Fax: 86-755-27754182 Test Date: April 02 to April 12, 2013 Date of Report : April 13, 2013 Report No.: BATT201303089FCC Note: This report shall not be reproduced except in full, without the written approval of Shenzhen BATT Testing Technology Co., Ltd. This document may be altered or revised by Shenzhen BATT Testing Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201303089FCC Page 2 of 112 TABLE OF CONTENTS 1.0 TEST CERTIFICATION............................................................................... 3 2.0 Test Equipment......................................................................................... 5 3.0 Technical Details........................................................................................ 7 4.0 Test Lab Details......................................................................................... 7 5.0 Power Line Conducted Emission Test............................................................ 8 5.1 Schematics of the Test................................................................................ 8 5.2 Test Method and Test Procedure................................................................... 8 5.3 Configuration of the EUT............................................................................ 8 5.4 EUT Operating Condition............................................................................ 9 5.5 Conducted Emission Limit........................................................................... 9 5.6 Test Result................................................................................................ 9 6.0 Radiated Emission test................................................................................ 12 6.1 Test Method and Test Procedure................................................................... 12 6.2 Configuration of the EUT............................................................................. 13 6.3 EUT Operation Condition............................................................................ 13 6.4 Radiated Emission Limit.............................................................................. 13 7.0 6dB Bandwidth Measurement....................................................................... 41 8.0 Maximum Peak Output Power...................................................................... 59 9.0 Power Spectral Density Measurement........................................................... 64 10.0 Out of Band Measurement.......................................................................... 83 11.0 Antenna Requirement................................................................................ 94 12.0 RF Exposure............................................................................................ 95 13.0 FCC ID Label............................................................................................ 97 14.0 Photo of Test Setup and EUT View................................................................ 98 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201303089FCC Page 3 of 112 1 TEST CERTIFICATION Product: IP-CAM Model: ZH-IXA05-WC, ZH-IXB05-WC,ZHIXC05-WC,ZH-IXD05-WC,ZH-IXA15-WAC, ZH-IXB15-WAC,ZH-IXC15-WAC,ZH-IXD15-WAC Applicant: ZMODO Technology Corp. Ltd. 17F, Finance Technology Building, 11 Keyuan Road, Hi-Tech Park, Nanshan District, Shenzhen, P.R.China Factory: ZMODO Technology Corp. Ltd. 17F, Finance Technology Building, 11 Keyuan Road, Hi-Tech Park, Nanshan District, Shenzhen, P.R.China Trade Mark: N/A Tested: April 02, 2013 to April 13, 2013 Test Voltage: DC12V Powered by power supply Operational Frequency Range: EEE 802.11b/g, 802.11n HT20: 2412-2462MHz IEEE 802.11n HT40 : 2422MHz-2452MHz Modulation Type: IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16AQM, QPSK, BPSK) IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Channel Spacing IEEE 802.11b/g/n: 5MHz Air Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 150, 117 ,104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6 Mbps IEEE 802.11n HT40 : 150, 117 ,104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6 Mbps Frequency Selection By software Channel Number IEEE 802.11b/g ,802.11n HT20 : 11 Channels IEEE 802.11n HT40 : 7 Channels Antenna: PCB Antenna with Gain 3dBi Power Supply: Model:GEO151UB-1215;Input: AC100-240V~, 50-60Hz, 0.3A; Output: DC12V,1.5A FCC ID: ZK8-IXA05-WC Applicable Standards: FCC Part 15.247 The test report was prepared by Shenzhen BATT Testing Technology Co., Ltd.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201303089FCC Page 4 of 112 Prepared by : Hellen XiaoAssistant Reviewer : Mike Yong/Supervisor Approved & Authorized Signer : Jones Song/ Manager Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201303089FCC Page 5 of 112 2.0 Test Equipments Instrument Type Manufacturer Model Serial No. Date of Cal. Due Date ESPI Test Receiver ROHDE&SCHWA RZ ESPI 3 100379 2012-05-29 2013-05-28 EMI Test Receiver Rohde & Schwarz ESU 1302.6005.26 2012-05-29 2013-05-28 Impuls-Begre…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST RADIATED EMISSION TEST Conducted Emissions
