ZLZTDBTFEBluetooth Low Energy Module

1.1 General Decription Panlink module consists of a BT module, crystal and antenna connector. This module can change UART signal to wireless signal using Bluetooth low energy technology. This module uses external antenna via a Antenna connector. Panlink communication type is piconet, which means Panlink transfers data to another Panklink(one is master, the other one is salve). When transfering data from master to slave, data was given to master by UART. Then master panlink controls signal, frames, radiation power and transmits them via the antenna to slave panlink. Slave panlink get RF signal via the antenna and resolve it to data. When transfering data from slave to master, data was given to master by UART. Then slave panlink controls signal, frames, radiation power and transmits them via the antenna to master panlink. Master panlink get RF signal via the antenna and resolve it to data. 1.2 Block diagram 1.3 Interface and pin definition No. Pin name Type description 1 to 8 NC / No use 9 DC I Debug clock 10 DD O Debug data 11 SLEEP_OUT/P3_0 O Wakeup out 12 VDD Power Power in 13 GND Power ground 14 Reset RSTN Reset in 15 Wake/P0_3 I Wake up input 16 UART_RXD0 I Uart in, baud rate is 115200 17 UART_TXD0 O Uart out, baud rate is 115200 18 nCS1/CTSn1/P1_2 I/O Reserved 19 CLK1/RTSn1/P1_3 I/O Reserved 20 MOSI1/TXD1/P1_1 I/O Reserved 21 MISO1/RXD1/P1_0 I/O Reserved 22 CD O Module detect pin 23 RF Connector RF Connect to external antenna 1.4 Operation specification ABSOLUTE MAXIMUM RATINGS Over operating room temperature range (unless otherwise noted) Item VALUE UNIT Supply voltage range -0.3 to 3.9 V Voltage range to any of digital pins -0.3 to VDD + 0.3, <3.9 V Storage temperature range -40 to +85 °C RECOMMENDED OPERATING CONDITIONS Over operating room temperature range (unless otherwise noted) Item MIN NOM MAX UNIT Supply voltage 2.0 3.6 V range Operational temperature range -20 +70 °C 1.5 Wireless specifications Protocol：Bluetooth low energy 4.0 Modulation mode：GFSK Operating frequency：2402 ~ 2480MHz(40 channels) Channel spacing：2MHz Wireless baud rate(data rate)： 1Mbps Output power (transfer power)： ≤2.5mW Data security ： 128bit AES 1.6 Mechanical and package description Dimension is 9.6mm*12.9mm*2.3mm, and package type is SMT. This device and its antenna must not be located or operating in conjunction with any other antenna and transmitter. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Important announcement LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following" Contains FCC ID: ZLZTDBTFE ". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-only exposure condition must not exceed -1dBi. A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC RF exposure guidelines. The end product with an embedded Pan link Module may also need to pass the FCC Part 15 unintentional emission testing requirements and be properly authorized per FCC Part 15. a. The module is limited to OEM installation ONLY; b. The OEM integrators is responsible for ensuring that end-user has no manual instructions to remove or install module; c. The module is limited to installation in mobile or fixed application d. The separate approval is required for all other operating configurations, including portable configuration with respect to Part 2.1093 and different antenna configurations; e. The host manufacturer is responsible for ensuring that after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements.

Rev 11/20/07 Shenzhen Mindray Bio-Medical Electronics Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZLZTDBTFE. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram ZLZTDBTFE _Block Diagram.pdf Circuit Diagram ZLZTDBTFE _Schematics.pdf Operational Description ZLZTDBTFE _Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, leo Shao

Request for Modular Approval FCC ID: ZLZTDBTFE Item Requirements EUT 1 Have its own RF shielding this module has its own RF shielding， see external photo. 2 Have buffered modulation/data inputs (if such inputs are provided) The module has buffered modulation / data inputs. it is integrated in sub module BT module(CC2541 System-on-Chip Solution embedded from TI) 3 Have its own power supply regulation The module has its own power supply regulation. it is integrated in chip sub module BT module(CC2541 System-on-Chip Solution embedded from TI). 4 Meet the antenna requirements of section 15.203 and 15.204(c). The module meets the FCC antenna requirements. This device uses a unique antenna coupling to the device, which is designed by the responsible party based on the fillings you submitted. 5 Demonstrate compliance in a stand-alone configuration The module has been tested in stand-alone configuration. The EUT was tested in a stand-alone configuration via a USB extender. please see section photographys of test configuration in the test report , the EUT was plugged in this extender. 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID” The module is labeled with its own FCC ID. Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: ZLZTDBTFE 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions This module transmitter complies with applicable transmitter requirements. The required FCC rule has been fulfilled and all the instructions for maintain compliance has been clearly stated in to explain compliance requirements. the User Manual. 8 The module transmitter must comply with any applicable RF exposure requirements. The module transmitter complies with the applicable RF exposure requirements. Please refer to the exhibition RF Exposure for the requirements. Thank you for your attention to this matter. leo Shao Manager

\\192.168.6.111\任务\15-03556 迈瑞（Panlink）-蓝牙模块FCCID\签字表格\POA_Letter_140225.docx Shenzhen Mindray BIO-Medical electronics Co.,LTD. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-05-18 SUBJECT: FCC Application for (ZLZTDBTFE) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, leo Shao

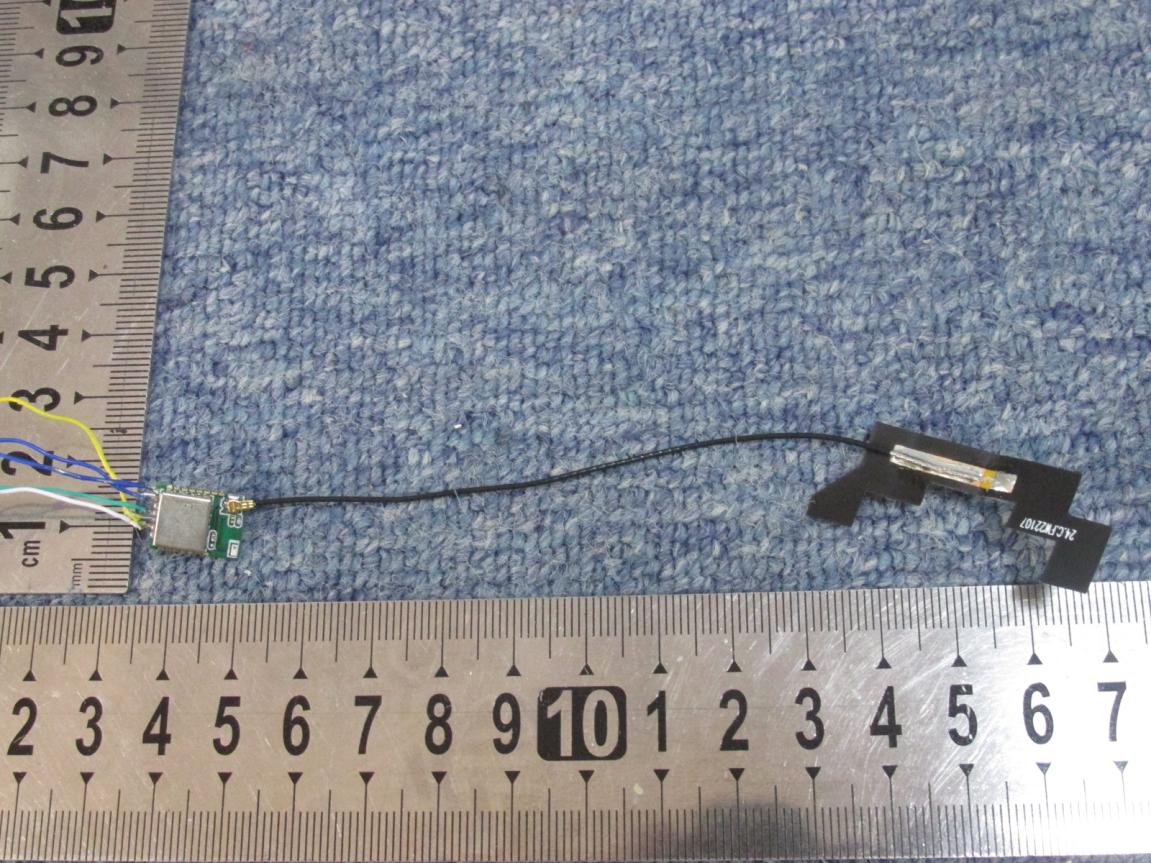

Internal Photos Tape antenna(short) Tape antenna(long)

size:6.2*6.9mm

Internal Photos Tape antenna(short) Tape antenna(long)

Report No.: SET2015-04054 CCIC-SET/T（00） Page 1 of 37 RF TEST REPORT Report No.: SET2015-04054 Product Name: Bluetooth Low Energy Module FCC ID: ZLZTDBTFE Model No. : Panlink Applicant: Shenzhen Mindray Bio-Medical Electronics Co.,Ltd. Address: Mindray Buiding,Keji 12th Road South,High-tech Industrial Park,Nanshan,Shenzhen,P.R.China Dates of Testing: 03/20/2015 — 03/30/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 37 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-04054 CCIC-SET/T（00） Page 2 of 37 Test Report Product Name ...................... : Bluetooth Low Energy Module Brand Name ......................... : Mindray Trade Name .......................... : Applicant .............................. : Shenzhen Mindray Bio-Medical Electronics Co.,Ltd. Applicant Address ............... : Mindray Buiding,Keji 12th Road South,High-tech Industrial Park,Nanshan,Shenzhen,P.R.China Manufacturer ........................ : Shenzhen Mindray Bio-Medical Electronics Co.,Ltd. Manufacturer Address ........ : Mindray Buiding,Keji 12th Road South,High-tech Industrial Park,Nanshan,Shenzhen,P.R.China Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10-2009：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v03r02 Test Result ........................... : PASS Tested by ............................ : 2015.03.30 Haigang He, Test Engineer Reviewed by ......................... : 2015.03.30 Zhu Qi, Senior Egineer Approved by ........................ : 2015.03.30 Wu Li’an, Manager Report No.: SET2015-04054 CCIC-SET/T（00） Page 3 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Facilities and Accreditations .................................................................................................. 6 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 7 2.1. Antenna requirement .............................................................................................................. 7 2.2. Peak Output Power................................................................................................................. 9 2.3. 6dB & 99%Bandwidth ......................................................................................................... 10 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 14 2.5. Power spectral density (PSD) .............................................................................................. 19 2.6. Radiated Band Edge and Spurious Emission ....................................................................... 22 2.7. Conducted Emission ............................................................................................................ 35 3. LIST OF MEASURING EQUIPMENT .............................................................................. 37 Change History Issue Date Reason for change 1.0 2015-03-30 First edition Report No.: SET2015-06456 Page 4 of 37 1. General Information 1.1. EUT Description EUT Type Bluetooth Low Energy Module Hardware Version 01-01-/ Software Version 1.0 EUT supports Radios application Bluetooth V4.0 BLE Frequency Range Bluetooth BLE 4.0 2402MHz~2480MHz Channel Number Bluetooth BLE 4.0 40 Bit Rate of Transmitter Bluetooth BLE 4.0 1Mbps Modulation Type Bluetooth BLE 4.0 GFSK Antenna Type Tape Antenna(short) Tape Antenna(long) Antenna Gain Tape Antenna(short): 1dBi Tape Antenna(long): 2dBi Note 1: The EUT is Bluetooth Low Energy Module, it contain Bluetooth 4.0 BLE Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth 4.0 BLE is F(MHz)=2402+2*n (0<=n<=39). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 20(2442MHz) and 39 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%.” Report No.: SET2015-06456 Page 5 of 37 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices 2 ANSI C63.10-2009 American National Standard for Testing Unlicensed Wireless Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Description Result 1 15.203 Antenna Requirement PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) Bandwidth PASS 4 15.247(d) Conducted Band Edges and Spurious Emission PASS 5 15.247(e) Power spectral density (PSD) PASS 6 15.207 Conducted Emission PASS 7 15.209 …
