ZP5BF-82Dual Band Two Way Radio

6 Indicator ~ HIGHT:UHF:4W/VHF:5W LOW:UHF/VHF:1W This device complies wit h part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Warning: Safety training Information Your radio generates RF electromagnetic energy during transmit mode. This radio is designed This radio has been tested and complies with the FCC RF exposure limits for " occupational 1. FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelin 2. American National Standards Institute ( C95.1-1992 ), IEEE Standard for Safety Levels with 3. American National Standards Institute ( C95.3-1992 ), IEEE Recommended Practice for the and classified as "occupational Use Only" meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the " eneral population "in an uncontrolled environment. Only" In addition, your FUJIAN NAN'AN BAOFENG ELECTRONICS CO.,LTD. radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: -es for Human Exposure to Radio Frequency Electromagnetic Fields. Measurement of Potentially Hazardous Electromagnetic Fields- RF and Microwave. Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 4. The following accessories are authorized for use with this product. Use of accessories other To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: 1. DO NOT operate the radio without a proper antenna attached, as this may damaged the 2. DO NOT transmits for more than 50% of total radio use time (“50% duty cycle”). Transmit 3. ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the BAOFENG belt-clip which is listed in instructions when attaching the radio than those ( listed in the instruction ) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure. radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. -ting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm ( 2 inches ) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as*sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference / Compatibility During transmissions, your BAOFENG radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Occupational/Controlled Use . The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure.

123456 A B C D 6 54321 D C B A MCU RF IC UHF RF AMP RF AMP （TX） RADIO IC LCD DISPLAY AF AMP MIC1 ANT UHF/VHF Q10 KEY U1 32.768KHZ 3 2 5 4 1J301 3 2 5 4 1J1 BEEP S6 SPEAKER RF AMP Q12 VHF RF AMP Q11 D20 HSC277 D17 HSC277 AF OUT RF IN RF OUT C T C D E T R D A 1 8 4 6 _ S E N R D A 1 8 4 6 _ S D A R D A 1 8 4 6 _ S C K MIC AMP VOX AMP VCC VOX_CHECK PTT KEY PF1 KEY MONI KEY 136~174 MHz 400~520 MHz

FUJIAN NAN'AN BAOFENG ELECTRONICS CO.,LTD. CHANGFU INDUSTRIAL ZONE, XIAMEI, NAN’AN, QUANZHOU, FUJIAN, CHINA Tel: 0595-86767889 Fax：0595-86753889 Date: 2013-7-4 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 Subject: FCC ID: ZP5BF-82 Justification Letter for Expanded Frequency Range 400-520 MHz/136-174MHz Dear Sir or Madam: You have asked FUJIAN NAN'AN BAOFENG ELECTRONICS CO.,LTD. for justification to have the Frequency range 400-520MHz /136-174MHz appears on the face of the FCC Grant of Certification for a Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) FUJIAN NAN'AN BAOFENG ELECTRONICS CO.,LTD.’s Marketing Department plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands 400-406.1MHz,454-456MHz,462.5375-462.7375MHz,467.5375-467.7375MHz,512-520MHz ,136-1 50.8MHz,156.2475-157.1875MHz,161.575-161.775MHz,161.9652-162.0375MHz,173.4-174MHz as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in 400-406.1 MHz, 454-456MHz,462.5375-462.7375MHz,467.5375-467.7375MHz,512-520MHz,136-150.8MHz,156.2 475-157.1875MHz,161.575-161.775MHz,161.9652-162.0375MHz,173.4-174MHz frequency range. Sincerely, Signature: Shaofeng Wang Manager

Federal Communications CommissionDA 13-431 Before the Federal Communications Commission Washington, D.C. 20554 In the Matter of Implementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended Promotion of Spectrum Efficient Technologies on Certain Part 90 Frequencies ) ) ) ) ) ) ) WT Docket No. 99-87 RM-9332 ORDER Adopted: March 15, 2013Released: March 18, 2013 By the Chief, Wireless Telecommunications Bureau, Chief, Public Safety and Homeland Security Bureau, and Chief, Office of Engineering and Technology: 1.Introduction.In this Order, we grant in part and deny in part a Petition to Delay Indefinitely Implementation of Section 90.203(j)(5) of the Commission’s Rules filed by Ritron, Inc. (Ritron) on September 21, 2012. 1 Pursuant to Section 90.203(j)(5) of the Commission’s rules, the Commission no longer accepts applications for certification of Part 90 private land mobile radio (PLMR) equipment in the 150-174 MHz and 450-512 MHz bands that cannot operate in a 6.25 kHz mode or with equivalent efficiency. 2 Ritron requests that implementation of this requirement be delayed indefinitely. We conclude that the requirement should be waived only until January 1, 2015. 2.Background.In 1995, the Commission adopted rule changes to promote the efficient use of the PLMR service and facilitate the introduction of advanced technologies. 3 To promote the transition to a more efficient narrowband channel plan, the Commission provided, inter alia, that “only increasingly efficient equipment” would be approved. 4 The Commissiondid not set a date after which it would no longer approve equipment with a wideband (25 kHz) mode, or after which such equipment could no longer be manufactured or used. 5 The Commission contemplated that, as systems reached the end of their service life and new radios were needed, users would migrate to the narrower bandwidth multi-mode radios in order to avoid the adjacent-channel interference that could occur from systems using the adjacent narrowband channels. 6 3.Subsequently, the Commission determined that the 1995 rules failed to provide adequate incentive to realize the Commission’s spectrum efficiency goals in these bands, and stronger measures 1 SeePetition to Delay Indefinitely Implementation Section 90.203(j)(5) of the Commission’s Rules (filed Sept. 21, 2012) (Petition). 2 See47 C.F.R. § 90.203(j)(5). 3 SeeReplacement of Part 90 by Part 88 to Revise the Private Land Mobile Radio Services and Modify the Policies Governing Them, Report and Order and Further Notice of Proposed Rule Making, PR Docket No. 92-235, 10 FCC Rcd 10076, 10077 ¶ 1 (1995). 4 Id.at 10081 ¶ 7. 5 Id.at 10100 ¶ 40. 6 Id. Federal Communications CommissionDA 13-431 2 would be required to bring about a timely transition to narrowband technology. 7 The Commission therefore amended the rules to provide that, by January 1, 2013, Industrial/Business and Public Safety Radio Pool licensees in the 150-174 MHz and 421-512 MHz bands must migrate to 12.5 kHz channel bandwidth or utilize a technology that achieves equivalent efficiency. 8 4.The Commission also adopted interim deadlines to facilitate this transition to narrowband technology. Among other rules, the Commission provided that, beginning January 1, 2011, it would no longer accept applications for certification of equipment that cannot operate in 6.25 kHz mode or with equivalent efficiency. 9 In 2010, the Commission temporarily waived this requirement until January 1, 2013, 10 but stated, “If 6.25 kHz standards still are not in place at that date, interested parties may request a further extension.” 11 5.Ritron, a manufacturer of wireless products, contends that standards for 6.25 kHz technology are not yet in place and that other issues exist that justify delaying implementation of mandatory 6.25 kHz certification by manufacturers.Ritron states that no one 6.25 kHz equipment standard exists and that, in the Industrial/Business sector of the market, two incompatible and proprietary technologies have emerged. 12 Italso argues that 6.25 kHz equipment is still unduly expensive. 13 Finally, Ritron asserts that using the equipment authorization process to facilitate the transition to narrowband technology has been largely unsuccessful. 14 Itconcludes that the implementation of Section 90.203(j)(5) should be delayed until (a) a real need has been established for additional PLMR frequencies beyond those created by the transition to 12.5 kHz channels; (b) the benefits of 6.25 kHz outweigh the associated research and development, manufacturing, and product costs; and (c) a standard has emergedfor a more cost-effective voice compressor/decompressor (vocoder). 15 6.The Wireless Telecommunications Bureau, Public Safety and Homeland Security Bureau and the Office of Engineering and Technology sought comment on Ritron’s request. 16 We asked commenters to address whether the public interest would be served by further delaying implementation of 7 See Implementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended,Second Report and Order and Second Further Notice of Proposed Rulemaking, WT Docket No. 99-87, 18 FCC Rcd 3034, 3038 ¶ 12 (2003). 8 See 47 C.F.R. § 90.209(b)(5). The January 1, 2013 deadline for converting to 12.5 kHz technology has been waived for licensees in the 470-512 MHz segment of the UHF band (the T-Band). SeeImplementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended, Order, WT Docket No. 99-87, 27 FCC Rcd 4213 (T-Band Order), on recon., Order on Reconsideration, 27 FCC Rcd 14770 (WTB/PSHSB/OET 2012). 9 See Implementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended,Third Report and Order, WT Docket No. 99-87, 22 FCC Rcd 6083, 6090 ¶ 16 (2007) (Third Report and Order). 10 See Implementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended, Order, WT Docket No. 99-87, 25 FCC Rcd 8861, 8866 ¶ 11 (2010) (Order). 11 Id.at 8866 n.41. 12 …

Text truncated - open the document above for the full version.

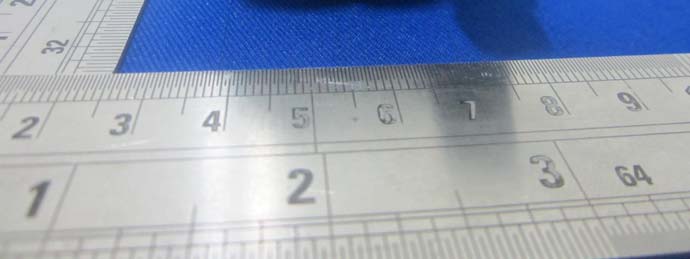

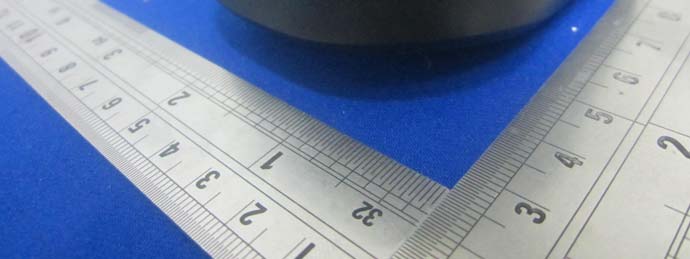

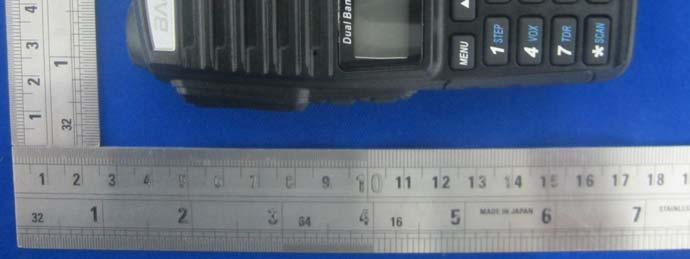

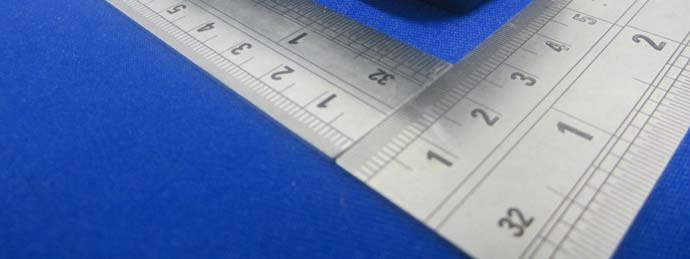

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Side View EUT – Side View EUT – Port View EUT – Port View EUT –Earphone View EUT –Base Top View EUT –Base Bottom View EUT –Base Side View EUT –Base Side View EUT –Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery Cover off View EUT –Uncover View EUT – Uncover View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Antenna View

UV-82 CIRCUIT DESCRIPTION UV-82 consists of RF IC, RF Receive Amplifier, RF Transmit Amplifier, AF Amplifier, FM Radio IC, MCU Circuit and LCD. 1. RF IC RF IC actually is a semiduplex FM transceiver which designed to operate in the frequency range: 136-174MHz and 400-520 MHz. The RF IC is of advanced digital signal processing ability, integrating PLL, ADC/DAC and all RF T/R path circuit. It can transmit and receive the signal with few components. 2.RF Receive Amplifier 1) Receive in the frequency range: 136-174MHz A coming signal from the antenna is applied to an RF amplifier (Q11) after passing through a transmit/receive switch circuit and LC band pass filter. After the signal is amplified, it enters RF IC. 2) Receive in the frequency range: 400-520MHz A coming signal from the antenna is applied to an RF amplifier (Q10) after passing through a transmit/receive switch circuit and LC band pass filter. After the signal is amplified, it enters RF IC. 3.RF Transmit Amplifier 1) Transmit in the frequency range: 136-174MHz The sound signal enters RF IC from MIC1, it would be filtered, amplified and direct modulated, then at the output port of the RF IC will obtain 136-174MHz RF signal. The signal will be input in the RF AMP (Q1) after amplified by RF AMP (Q3), then it is passed to antenna terminal through RF PA (Q5). 2) Transmit in the frequency range: 400-520MHz The sound signal enters RF IC from MIC1, it would be filtered, amplified and direct modulated, then at the output port of the RF IC will obtain 400-480MHz RF signal. The signal will be input in the RF AMP (Q1) after amplified by RF AMP (Q3), then it is passed to antenna terminal through RF PA (Q5). 4. AF Amplifier The RF signal is converted to the first intermediate frequency through the low noise amplifier within the RF IC, then amplified and D/A converted to the digital signal, then passed to the digital frequency discriminator for demodulation. The result signal is sent to the speaker through the audio AMP (U4). 5. FM Radio IC FM radio signal comes from the antenna, the signal amplified by the HF amplifier (Q12) and enters into the FM IC which demodulates output the AF signal. Then the result signal is sent to the speaker through the audio AMP. 6. MCU Circuit and LCD The 8 bit MCU (U6) controls the transmit/receive of whole circuit and all functions. And the LCD displays all relevant message.

UV‐82 tune up procedure 1. Adjust the frequency Turn the adjustableresistance“VR1”to make the frequency range within the nominal frequency ± 100Hz 2. Adjust the output power 2.1 High output power mode Turn the adjustable resistance “VR2” to make the power and current at a specified index. If the power and current is over specified index , you may use the tuning software to open the “edit parameters” inside the "tuner menu" and choose”TX power（High）”，which means emission high power. Then you can change the power parameters in the corresponding frequency. The following is interface of tuning software: VR1 VR2 2.2 Low output power mode The tuning procedure of low output power mode is almost same as 2.1.The only diffidence is “TX power（High）”, which means emission high power， should be replaced by “TX power（Low）”, which means emission low power.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) SAR EVALUATION REPORT For Fujian Nan’an Baofeng Electronics Co., Ltd. Changfu Industrial Zone, Xiamei, Nan’an, Quanzhou, Fujian, China FCC ID: ZP5BF-82 Report Type: Original Report Product Type: VHF/UHF Two Way Radio Prepared By: Ricky Wang Report Number: R1309097-FCC-SAR Report Date: 2013-09-16 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Fujian Nan’an Baofeng Electronics Co., Ltd. FCC ID: ZP5BF-82 Report Number: R1309097-FCC-SAR SAR Evaluation Report Page 2 of 62 Summary of Test Results Rule Part(s): CFR47 §2.1093 Test Procedure(s): IEEE 1528, KDB643545 Device Category: Exposure Category: Portable Radio Occupational/Controlled Exposure Device Type: Portable Device Modulation Type: FM (12.5 kHz) TX Frequency Range: VHF: 136-174 MHz UHF: 400-520 MHz Maximum Conducted Power Tested: VHF: 37.48 dBm UHF: 36 .35 dBm Antenna Type(s) Tested: External Antenna Body-Worn Accessories: Belt Clip and Remote Speaker Microphone Face-Head Accessories: None Battery Type (s) Tested: Li-Ion: 7.4V/1800mAh Max. SAR Level (s) Measured: Level (W/Kg) Position Operational Mode 0.398 Face Up FM 12.5 kHz Level (W/Kg) Position Operational Mode 0.9 Back Touch FM 12.5 kHz Note: This SAR report was present for VHF band only. Fujian Nan’an Baofeng Electronics Co., Ltd. FCC ID: ZP5BF-82 Report Number: R1309097-FCC-SAR SAR Evaluation Report Page 3 of 62 TABLE OF CONTENTS 1 RF OUTPUT POWER VERIFICATION ........................................................................................................... 5 1.1 TEST BLOCK DIAGRAM AND PROCEDURE ....................................................................................................... 5 1.2 CONDUCTED OUTPUT POWER ......................................................................................................................... 5 2 SAR MEASUREMENT RESULTS .................................................................................................................... 6 2.1 TEST ENVIRONMENTAL CONDITIONS .............................................................................................................. 6 3 GENERAL DESCRIPTION ................................................................................................................................ 7 3.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................... 7 3.2 EUT TECHNICAL SPECIFICATION .................................................................................................................... 7 4 TEST FACILITY .................................................................................................................................................. 8 5 REFERENCE, STANDARDS AND GUIDELINES .......................................................................................... 9 5.1 SAR LIMITS .................................................................................................................................................. 10 6 EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 11 6.1 EQUIPMENTS LIST & CALIBRATION INFO ...................................................................................................... 11 7 SAR MEASUREMENT SYSTEM VERIFICATION ..................................................................................... 12 7.1 SYSTEM ACCURACY VERIFICATION .............................................................................................................. 12 7.2 SYSTEM SETUP BLOCK DIAGRAM ................................................................................................................. 12 7.3 LIQUID AND SYSTEM VALIDATION ................................................................................................................ 12 8 EUT TEST STRATEGY AND METHODOLOGY ......................................................................................... 14 8.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ........................................................... 14 8.2 CHEEK/TOUCH POSITION .............................................................................................................................. 15 8.3 EAR/TILT POSITION....................................................................................................................................... 15 8.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................. 16 8.5 SAR EVALUATION PROCEDURE .................................................................................................................... 17 8.6 TEST METHODOLOGY ................................................................................................................................... 17 9 DASY4 SAR EVALUATION PROCEDURE .................................................................................................. 18 9.1 POWER REFERENCE MEASUREMENT ............................................................................................................. 18 9.2 AREA SCAN ................................................................................................................................................... 18 9.3 ZOOM SCAN ..............................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For FUJIAN NAN'AN BAOFENG ELECTRONICS CO., LTD. CHANGFU INDUSTRIAL ZONE, XIAMEI, NAN’AN, QUANZHOU, FUJIAN, CHINA FCC ID: ZP5BF-82 Report Type: Original Report Product Type: Two Way Radio Test Engineer: Sandy Wang Report Number: R2XM130510001-20 Report Date: 2013-7-26 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R2XM130510001-20 SAR Evaluation Report 2 of 58 Attestation of Test Results Company Name FUJIAN NAN'AN BAOFENG ELECTRONICS CO.,LTD. EUT Description Two Way Radio FCC ID ZP5BF-82 Model Number UV-82 EUT Information Test Date 2013-07-24 Mode Frequency (MHz) Max. SAR Level(s) Report Limit (W/Kg) Analog 400-520 12.5kHz Face up: 2.506 W/kg (50% duty cycle) Body-Back: 3.291 W/kg (50% duty cycle) 8 ANSI / IEEE C95.1 : 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3 : 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. OET BULLETIN 65 SUPPLEMENT C Evaluating Compliance with FCC Guidelines for Human Exposure To Radiofrequency Electromagnetic Fields Applicable Standards IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C, IEEE 1528-2003 and KDB643646. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R2XM130510001-20 SAR Evaluation Report 3 of 58 TABLE OF CONTENTS DOCUMENT REVISION HISTORY .........................................................................................................................4 EUT DESCRIPTION ....................................................................................................................................................5 TECHNICAL SPECIFICATION.........................................................................................................................................5 REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................6 SAR LIMITS.................................................................................................................................................................7 FACILITIES AND ACCREDITATION .....................................................................................................................8 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................9 EQUIPMENT LIST AND CALIBRATION .............................................................................................................16 EQUIPMENTS LIST & CALIBRATION INFORMATION....................................................................................................16 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................17 LIQUID VERIFICATION...............................................................................................................................................17 SYSTEM ACCURACY VERIFICATION...........................................................................................................................19 SAR SYSTEM VALIDATION DATA .....................................................................................................................20 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................24 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................24 CHEEK/TOUCH POSITION...........................................................................................................................................25 EAR/TILT POSITION...................................................................................................................................................25 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................26 SAR EVALUATION PROCEDURE.................................................................................................................................27 CONDUCTED OUTPUT POWER MEASUREMENT ...........................................................................................28 APPLICABLE PROVISION............................................................................................................................................28 TEST PROCEDURE......................................................................................................................................................28 MAXIMUM EIRP AMONG PRODUCTION UNITS............................................................................................................28 TEST RESULTS: ..........................................................…

Text truncated - open the document above for the full version.

12345678 A B C D 87654321 D C B A R 63 150K R 57 0 . 39R R 58 0 . 39R R 59 0 . 39R R 60 150K R61 150K C125 100P R62 150K R66 10K C 170 470P R 67 1M R68 2K2 Q14 DTC114EE C 14 102P D20 HSC277 L39 100NH/ CH C 86 22P R 80 100R L15 100NH/ CH D19 HS C277 D18 H SC 277 L36 47NH/CM D17 HSC277 R9 0R R35 3K3 R 34 10K C95 100P C 84 3P R 30 10K L35 10NH/ CH C85 15P R33 100R C83 4P C 91 NOP L34 22NH/CH C 82 NOP R29 100R C81 15P R 28 6K8 C 79 3P C 80 103P L33 22NH/CH C90 22P R 32 6K8 C 77 3P R 27 3K3 L32 5T1.5D*0.31 C 76 15P L25 3T1.1D*0.31 C 58 82P L26 3T1.5D*0.31 C 59 15P C60 102P C42 NOP C 41 104P Q7 DTC114EE C 40 470P D10 BA592 C39 NOP C 62 102P R25 150R C 61 470P L27 1UH/ CM D13 BA592 C 63 22P C64 102P C 65 18P C66 10P L28 4T1.5D*0.31 C 67 15P C68 10P L29 5T1.5D*0.31 C 69 18P C 71 8P C70 12P L30 6T1.5D*0.31 L31 8T1.5D*0.31 C72 47P C 75 102P L45 1UH/CI D14 KD S 114 Q9 DTC114EE R26 10K C73 10P C 32 470P L14 NOP D6 NOP D5 NOP C 31 NOP R18 150R L16 1UH/ CM D8 BA592 D7 BA592 C33 8P C34 100P C 35 NOP D9 BA592 C 37 102P R 19 150R C36 470P L17 100NH/ CM L18 4T1 . 5D*0 . 31 C 43 7P C44 470P C 45 5P C46 1P L19 4T1.5D*0.31 C 47 5P C48 NOP L20 4T1.5D*0.31 C 49 3P C 51 2P C50 1P L21 4T1.5D*0.31 C52 470P C 53 102P C54 102P Q8 DTC114EE R23 150R L22 100NH/ CM D11 BA592 D12 BA592 C 55 102P L23 1UH/ CM C56 470P C57 3P L24 2T1 . 5D*0 . 31 R24 3K3 A1 C 97 68P L37 100NH/CH C 88 NOP C87 22P R 31 3K3 L38 100NH/CH C 93 NOP C94 102P R 37 1K R54 10K C 89 103P C 27 NOP L10 8T1 . 5D*0 . 31 C 28 470P C 29 102P C 30 106P Q5 RQA0009 R 15 470R R 17 68K R 16 33KC 25 103P C24 102P C 23 10P R13 0R L9 100NH/ CH D4 H SC 277 D3H SC 277 L8 100NH/ CH Q4 DTC114EE R 14 330R C 20 102P C 22 102P L7 27NH/CH C 19 102P C 18 15P C17 470P Q3 2SK3078A L6 1UH/ CM C16 103P L5 CB 2012 - 100 C 15 105P R 10 100R R 12 100K R 11 47K C 13 102P C 12 5P C 11 NOP C 10 NOP C9 NOP C8 27P R50R C7 15P L2 18NH/ CH L1 270NH/ CH D2 KD S 114 C6 470P R4 10R C 26 103P D1 KD S 114 C4 470P C3 470P R3 220R C2 102P Q1 R24 R2 10K R1 NOP C1…

Text truncated - open the document above for the full version.
