ZPNTPM2012.4 GHz Ball Sensor

User Guide of 2.4 GHz Ball Sensor Model: TPM201 NCC 警語 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自 變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干 擾。 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Caution 1. This sensor can be used in truck and bus tubeless tires only (rim diameter ≧ 22.5”). 2. The vehicle speed must not exceed 120 km/h (75 mph). Installation For 2.4 GHz type 1. Dismount the tire from the rim. If applicable, take out any existing TPMS sensors. 2. Use the Cub Retrofit truck tool to program the correct wheel position ID to the sensor, then throw it into the corresponding tire. 3. Write the wheel position ID on the label (contained in the 20-pcs package box) and paste it on the outside of the rim, near the valve, as an indicator of the presence of a sensor in the wheel and of the wheel position ID. Warranty The driver must obey the speed limit and allowable load according to local regulations; if not, the TPMS sensor may malfunction and the product warranty will not be valid. CUB warrants that the TPMS sensor shall be free from defects in workmanship and material during warranty period. CUB does not assume any liability in case of faulty, incorrect installation of the product, or by using other products causing TPMS sensor malfunction on the part of customer or user. www.cubelec.com.tw

RF_160, Issue 04 Declaration of Authorization We Name: CUB ELECPARTS INC. Address: No. 6, Lane 546, Sec. 6, Changlu Road, City: Fuhsin Township, Changhua County, Country: Taiwan Declare that: Name Representative of agent: ............. (1) Agent Company name: International Standards Laboratory Corp. Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., City: Tao Yuan City 325 Country Taiwan. is authorized to apply for Certification of the following product(s): Product description: 2.4 GHz Ball Sensor Type designation: TPM201; B121-034XXX-XXX; VS-80A002XX-XX-X (Where X = any alpha character a – z, A – Z, or numeric character 0 – 9, or –, ( ) or blank, or combination of alpha and numeric characters for marking purpose, no technical difference.) Trademark: Cub Validity/ expiry date on our behalf. Date: 2021/05/21 City: Fuhsin Township, Changhua County Name: Wing Huang Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: CUB ELECPARTS INC. Address: No. 6, Lane 546, Sec. 6, Changlu Road, City: Fuhsin Township, Changhua County, Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: ZPNTPM201 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2021/05/21 Name and signature of applicant: Wing Huang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

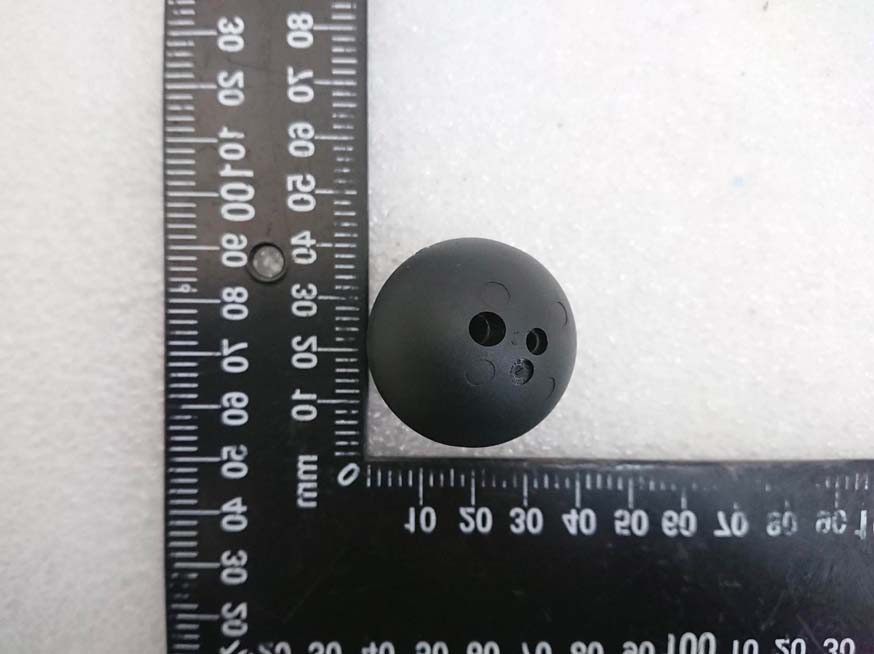

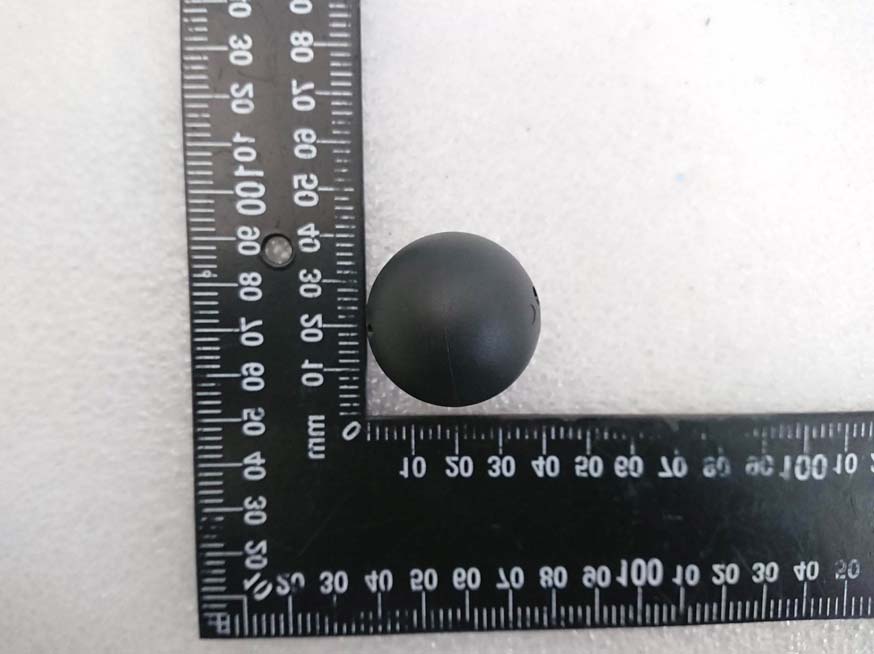

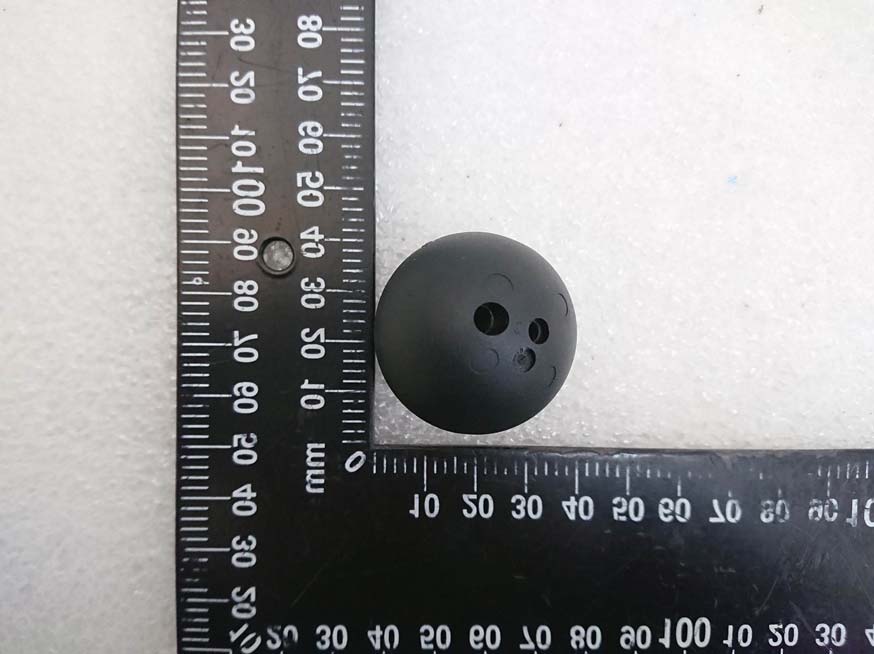

International Standards Laboratory Corp. Report Number: ISL-21LR099P Appendix Photographs of EUT of Product Name 2.4 GHz Ball Sensor Model TPM201; B121-034XXX-XXX; VS-80A002XX-XX-X (Where X = any alpha character a – z, A – Z, or numeric character 0 – 9, or –, ( ) or blank, or combination of alpha and numeric characters for marking purpose, no technical difference.) Brand Cub International Standards Laboratory Corp. Report Number: ISL-21LR099P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-21LR099P -2- EUT-3. EUT-4. International Standards Laboratory Corp. Report Number: ISL-21LR099P -3- EUT-5. EUT-6.

FCC ID LABEL FORMAT AND LOCATION Applicant: CUB ELECPARTS INC. FCC ID: ZPNTPM201

International Standards Laboratory Corp. Report Number: ISL-21LR099P -4- Appendix Photographs of EUT of Product Name 2.4 GHz Ball Sensor Model TPM201; B121-034XXX-XXX; VS-80A002XX-XX-X (Where X = any alpha character a – z, A – Z, or numeric character 0 – 9, or –, ( ) or blank, or combination of alpha and numeric characters for marking purpose, no technical difference.) Brand Cub International Standards Laboratory Corp. Report Number: ISL-21LR099P -5- EUT 1 EUT 2 International Standards Laboratory Corp. Report Number: ISL-21LR099P -6- EUT 4 module EUT 5 Ant. International Standards Laboratory Corp. Report Number: ISL-21LR099P -7- EUT 6

FCC ID: ZPNTPM201 International Standards Laboratory Corp. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: ZPNTPM201 International Standards Laboratory Corp. Maximum Permissible Exposure (MPE) Evaluation (2.4G) Frequency Band (MHz) Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (mW/cm 2 ) LIMIT (mW/cm 2 ) 2402 – 2480 1.886 2 1 4.886 0.001 1 Measurement Result: The predicted power density level at 20 cm is 0.001 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 . ~ End ~

Page: 1 of 40 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : 2.4 GHz Ball Sensor Brand: Cub Model: TPM201; B121-034XXX-XXX; VS-80A002XX-XX-X (Where X = any alpha character a z, A Z, or numeric character 0 9, or , ( ) or blank, or combination of alpha and numeric characters for marking pur- pose, no technical difference.) Model Difference: Different market FCC ID: ZPNTPM201 FCC Rule Part: §15.247, Cat: DTS Applicant: CUB ELECPARTS INC. Address: No. 6, Lane 546, Sec. 6, Changlu Road, Fuhsin Township, Changhua County, Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Tai- wan Report No.: ISL-21LR099FC Issue Date : 2021/04/16 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncer- tainty herein. The uncertainty of the measurement does not include in considera- tion of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 40- FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC VERIFICATION OF COMPLIANCE Applicant: CUB ELECPARTS INC. Product Description: 2.4 GHz Ball Sensor Brand Name: Cub Model No.: TPM201; B121-034XXX-XXX; VS-80A002XX-XX-X (Where X = any alpha character a z, A Z, or numeric character 0 9, or , ( ) or blank, or combination of alpha and numeric characters for marking purpose, no technical dif- ference.) Model Difference: Different market FCC ID: ZPNTPM201 Date of test: 2021/03/25 ~ 2021/04/15 Date of EUT Received: 2021/03/25 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date:2021/04/16 Barry Lee / Senior Engineer Prepared By: Date:2021/04/16 Gigi Yeh / Senior Engineer Approved By: Date:2021/04/16 Jerry Liu / Assistant Manager -3 of 40- FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC Version Version No. Date Description 00 2021/04/16 Initial creation of document Measurement Uncertainty (K=2) Description Of Test Uncertainty Conducted Emission (AC power line) 2.586 dB Field Strength of Spurious Radia- tion <=30MHz: 2.96dB 30-1GHz: 4.22 dB 1-40 GHz: 4.08 dB Conducted Power 2.412 GHz: 1.30 dB 5.805 GHz: 1.55 dB Power Density 2.412 GHz:1.30 dB 5.805 GHz: 1.67 dB Frequency 0.0032% -4 of 40- FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC Table of Contents 1 General Information ................................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 1.6 Reference ....................................................................................................................................... 7 2 System Test Configuration ......................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 Summary of Test Results .......................................................................................................... 10 4 Description of Test Modes ........................................................................................................ 10 5 Conduced Emission Test .......................................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 11 5.5 Measu…

Text truncated - open the document above for the full version.

FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC Photographs of Set Up FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC Radiated Emission Setup Photos (below 1G) FCC ID: ZPNTPM201 International Standards Laboratory Corp. Report Number: ISL-21LR099FC Radiated Emission Setup Photos (above 1G)
