UNI‐SENSOR Installation Instructions After you have programmed the Uni‐Sensor, follow installation procedures below. For Clamp‐In Metal Valve Sensors: 1. Insert valve stem grommet onto stem with largest diameter again valve stem body. 2. Place valve stem into sensor. Loosely screw into place so sensor drop angle can be adjusted. 3. Insert assembled sensor & valve stem into wheel. Hold in place by hand. 4. From outside wheel, put on white seal, then metal washer, then valve stem nut. While holding sensor down against wheel bottom, hand tighten nut. With torque wrench, tighten Valve Stem Nut to 4.5Nm. 5. Holding sensor down against wheel bottom, with torque wrench, tighten valve stem screw to 4.0Nm. 6. Double check all work. For Rubber Snap‐In Valve Sensors: Avoid wet and extreme temperatures. Never install a used screw or used Snap‐in Valve. 1. Apply tire soap or lube solution to rubber valve stem. 2. Line sensor up with rim hole and attach a standard TTV pull tool to the end of the valve. 3. Pull the valve stem straight through the valve hole. Refer to your TTV tool manual for proper installation. 4. Refer to your tire changing equipment manuals for proper instructions for mounting tire to rim when snap‐in TPMS sensors are used. 5. Prohibited use for racing and beyond 180 km/h (110mph). 6. Tighten the screw by 12 lbf‐in if necessary to reinstall the valve. Caution: It is recommended to seek the service of a qualified technician. Pay special attention and follow all instructions to all cautions and warnings included in the shop manual. Failure to do so could result in failure of the vehicle’s Tire Pressure Monitor System (TPMS) Sensors to function properly, or result in damage to the TPMS Sensor. The PUR‐sensor(Uni‐Sensor) is blank software inside, be sure to program the sensor by CUB’s sensor‐AID or compatible tool for your specific motor vehicle make, model and year before installation. Only install programmed TPMS sensors to the application listed in the tool. Improper TPMS installation or the use of unauthorized TPMS Sensors will cause the failure of TPM system. Upon completion of installation, test the TPMS System following the original manufacturer’s service guide to confirm proper installation. Check all installation procedures to ensure proper installation and retest. If the System continues to fail consult with CUB support or an authorized motor vehicle dealership. These TPMS sensor assemblies are designed and manufactured to be operated in Original Equipment wheels and tires only. While using non‐OE wheels/tires, the vehicle owner has responsibility to ensure that the TPMS is working correctly. Failure to ensure that the TPMS is working correctly can result in severe injury or death. Warranty: CUB warrants that the TPMS sensor shall be free from defects in workmanship and material during warranty period. CUB does not assume any liability in case of faulty, incorrect installation of the product, or by using other products causing TPMS sensor malfunction on the part of customer or user. Always check our website for detail installation procedures, safety information and warranty policy. http://www.cubautoparts.com/tpms‐download4‐en.php Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

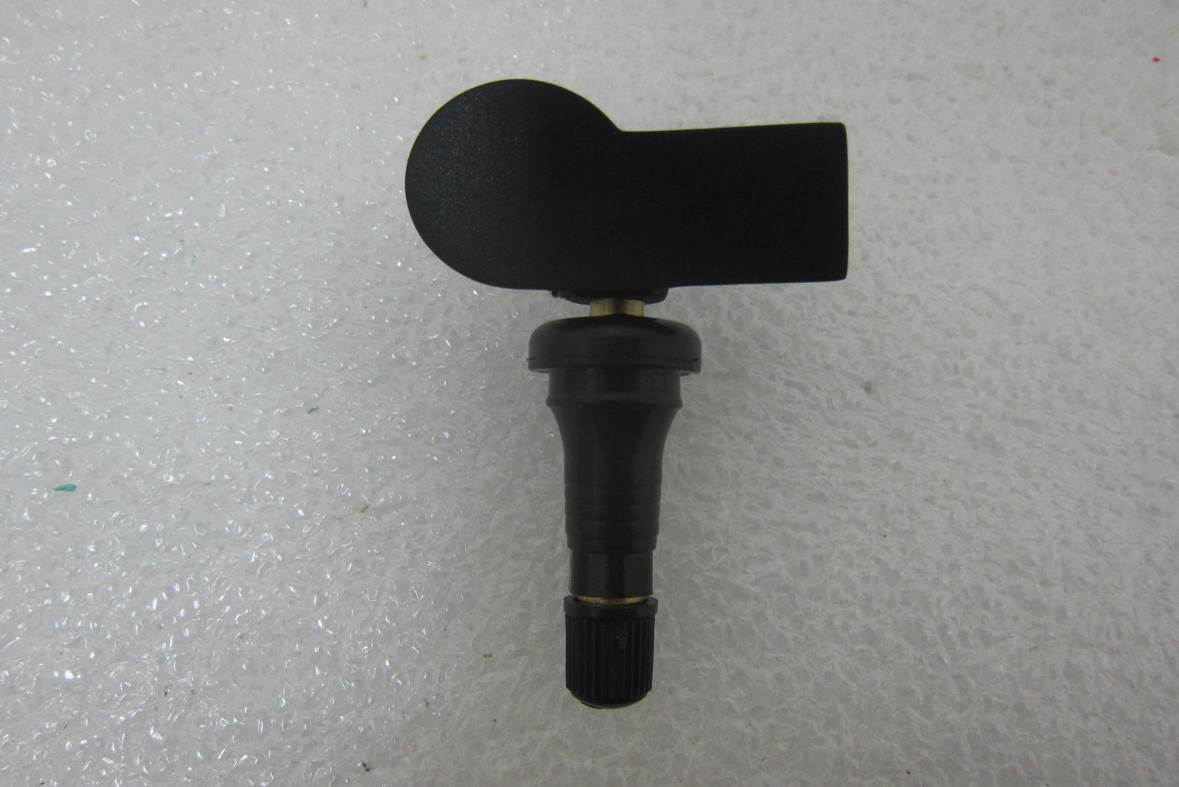

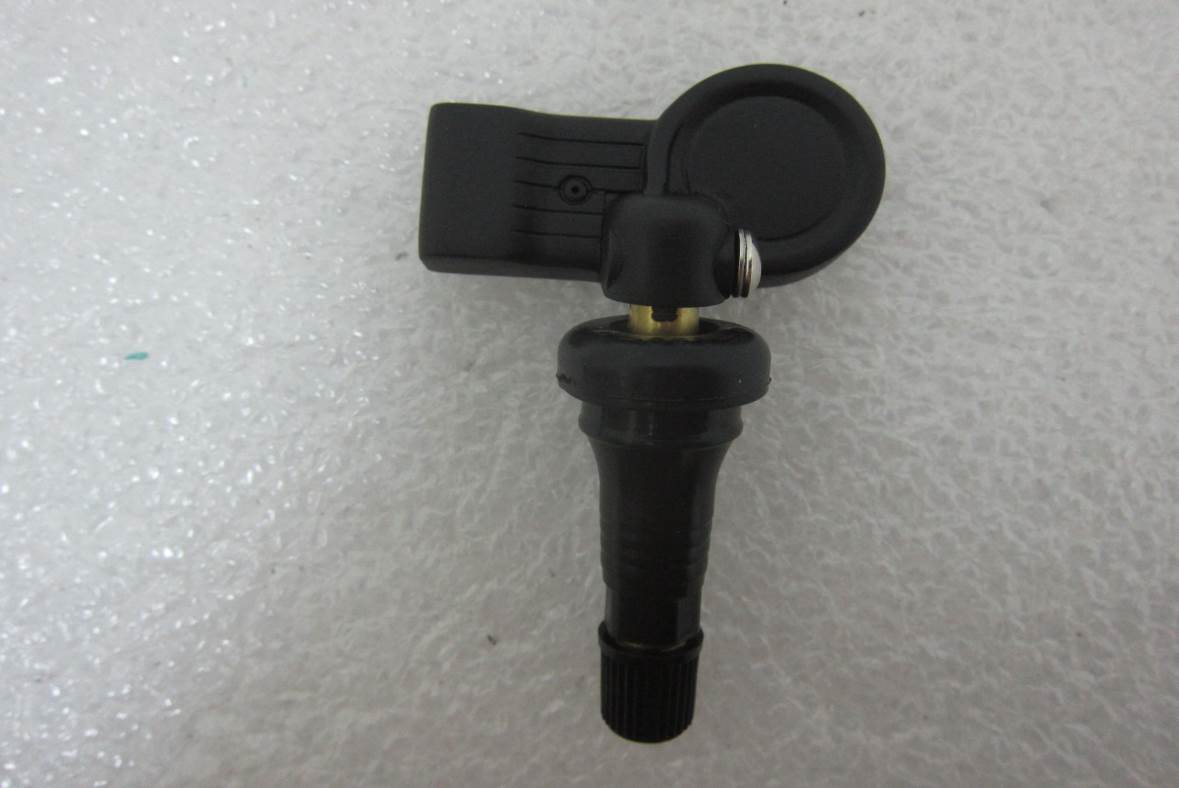

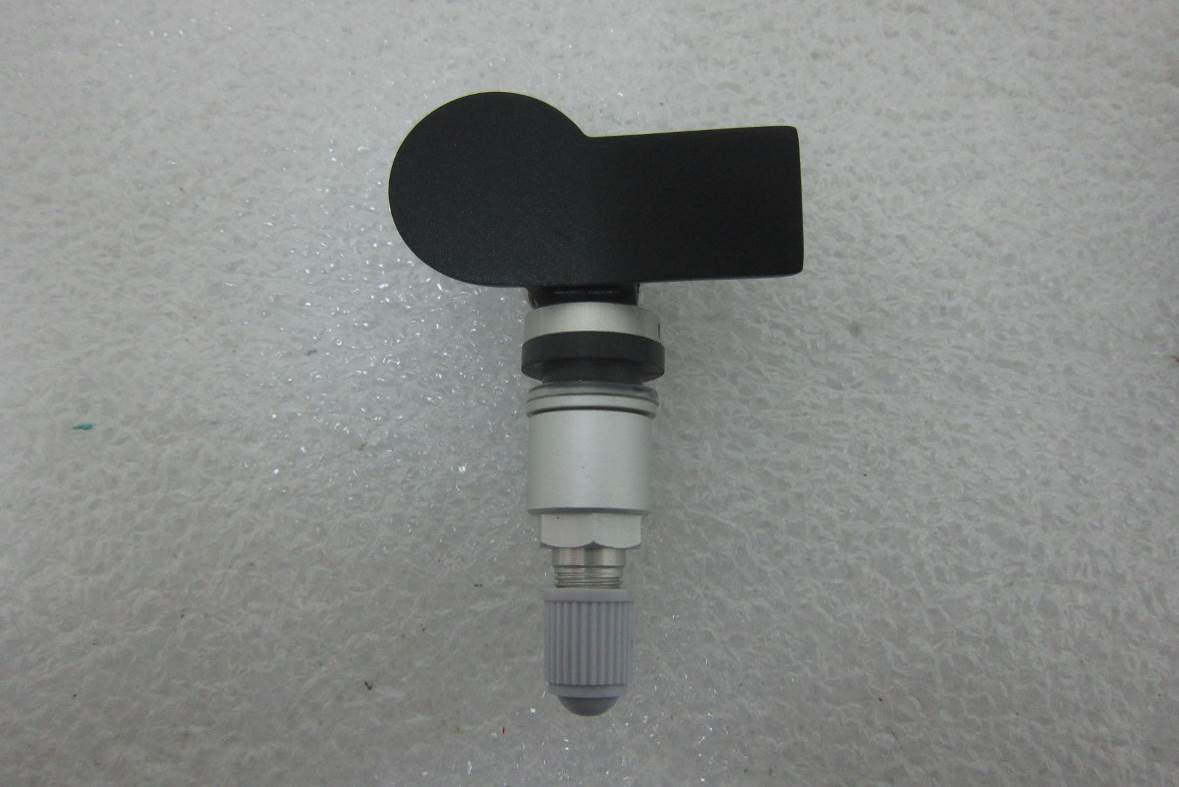

FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC EXTERNAL PHOTOGRPHS OF EUT FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC EUT 1 Rubber Snap-In Valve EUT 2 Rubber Snap-In Valve FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC EUT 3 Clamp-in Metal Valve EUT 4 Clamp-in Metal Valve

NOTES: 1.MATERIAL.FINISH.AND APPEARANCE A. AIR VALVE MATERIAL :EPDM / AL6061 B. SENSOR HOUSING: MATERIAL : PA6+15%GF APPEARANCE OF COLOR: BLACK C. SCREW : MATERIAL : AISI1022 / ZINC APPEARANCE OF COLOR: WHITE 2.OPERATINGFREQUENCY:433.92MHz TYPICAL 3.PRESSURE MONITORING RANGE:0~130(MAX)PSI 4.M3 SCREW INSTALL TORQUE:1N-m 5.PLEASE FOLLOWING CUB USER MANUAL 6.REFER TO THE S/N PRINCIPLE NOTES: 1.MATERIAL.FINISH.AND APPEARANCE A. AIR VALVE MATERIAL :EPDM / AL6061 B. SENSOR HOUSING: MATERIAL : PA6+15%GF APPEARANCE OF COLOR: BLACK C. SCREW : MATERIAL : AISI1022 / ZINC APPEARANCE OF COLOR: WHITE 2.OPERATINGFREQUENCY:433.92MHz TYPICAL 3.PRESSURE MONITORING RANGE:0~130(MAX)PSI 4.M3 SCREW INSTALL TORQUE:6kg/cm 5.PLEASE FOLLOWING CUB USER MANUAL 6.REFER TO THE S/N PRINCIPLE

FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC INTERNAL PHOTOGRPHS OF EUT FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC EUT 1 EUT 2 FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC EUT 3 RF Antenna

Page: 1 of 31 TEST REPORT of FCC Part 15 Subpart C AND CANADA RSS-210 New Application; Class I PC; Class II PC Product : TIRE PRESSURE MONITOR SENSOR- C(433MHZ) Brand: Cub Model: UNI-SENSOR Model Difference: N/A FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR FCC Rule Part: §15.231 (e) IC Rule Part: RSS-210 issue 8:Dec. 2010, Annex 1.1 Applicant: CUB ELECPARTS INC. Address: No.6, Lane 546, Sec.6, Changlu Road, Fuhsin Township Changhua County, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, Hsin Ho Rd. Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-15LR339FC Issue Date : 2015/12/23 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 31- FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC VERIFICATION OF COMPLIANCE Applicant: CUB ELECPARTS INC. Product Description: TIRE PRESSURE MONITOR SENSOR- C(433MHZ) Brand Name: Cub FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR FCC Rule Part: §15.231 (e) IC Rule Part: RSS-210 issue 8:2010, Annex 1.1 Model No.: UNI-SENSOR Model Difference: N/A Date of test: 2015/12/09 ~ 2015/12/11 Date of EUT Received: 2015/12/09 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2015/12/23 Dion Chang / Engineer Prepared By: Date: 2015/12/23 Eva Kao / Technical Supervisor Approved By: Date: 2015/12/23 Vincent Su / Technical Manager -3 of 31- FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC Version Version No. Date Description 00 2015/12/23 Initial creation of document -4 of 31- FCC ID: ZPNUNI-SENSOR IC: 9959A-UNISENSOR International Standards Laboratory Report Number: ISL-15LR339FC Table of Contents 1. GENERAL INFORMATION ............................................................................................ 6 1.1 PRODUCT DESCRIPTION ................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 7 1.3 TEST METHODOLOGY ....................................................................................................................... 7 1.4 TEST FACILITY ................................................................................................................................. 7 1.5 SPECIAL ACCESSORIES ..................................................................................................................... 7 1.6 EQUIPMENT MODIFICATIONS ........................................................................................................... 7 2. SYSTEM TEST CONFIGURATION ............................................................................... 8 2.1 EUT CONFIGURATION ...................................................................................................................... 8 2.2 EUT EXERCISE ................................................................................................................................. 8 2.3 TEST PROCEDURE ............................................................................................................................. 8 2.4 LIMITATION ...................................................................................................................................... 9 2.5 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 11 3. SUMMARY OF TEST RESULTS .................................................................................. 12 4. DESCRIPTION OF TEST MODES .............................................................................. 12 5. AC CONDUCTED EMISSIONS TEST .......................................................................... 13 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 13 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 13 5.4 MEASUREMENT RESULT: ............................................................................................................... 13 6. RADIATED EMISSION TEST ....................................................................................... 14 6.1 MEASUREMENT PROCEDURE.......................................................................................................... 14 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 15 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 16 6.4 FIELD STRENGTH CALCULATION .......................................................................…
