ZPNVS62U003Programmable Tire Pressure Monitor System

INSTALLATION INSTRUCTIONS Programmable Tire Pressure Monitor System( ”P‐TPMS”) Sensor Assemblies VS‐62U003(433.92MHz) WARNING Read all instructions and warnings, and review all illustrations before installing. For reasons of safety and for optimal function, Shanghai Vei Sheng Auto Parts Manufacturing Co.,ltd (“Cub”) recommends that any maintenance and repair work is carried out by trained experts only and according to the guidelines of the vehicle manufacturer. The valves are safety‐relevant parts which are intended for professional installation only. These Programmable Tire Pressure Monitoring System(”P‐TPMS”) sensor assemblies are replacement or maintenance parts for motor vehicles that have a factory installed Tire Pressure Monitoring System(”TPMS”) only. Failure to follow installation instructions may result in the failure of the motor vehicle P‐TPMS sensor to operate properly. Cub does not assume any liability in case of the faulty or incorrect installation of the product. CAUTION Each P‐TPMS sensor is designed and manufactured to operate in blank at initial status which using the proper frequencies to communicate with the motor vehicle TPM system. The original P‐TPMS is blank software inside, be sure to program the sensor by Cub Gen.3 tool for your specific motor vehicle make, model and year before installation. Only install programmed P‐TPMS sensors to the application listed in the tool. Improper TPMS installation or the use of unauthorized TPMS Sensors cause the motor vehicle TPM System to fail to operate properly. Do not install programmed P‐TPMS sensors in damaged wheels. Upon completion of installation, test the motor vehicle TPMS System using procedures described in the original manufacturer’s service guide to confirm proper installation. If the TPM System fails to operate properly, check all installation procedures to ensure proper installation and retest. If the TPMS System continues to fail to operate, immediately consult with Cub support or an authorized motor vehicle dealership. These P‐TPMS sensor assemblies are designed and manufactured to operate in Original Equipment wheels and tires only. If Original Equipment wheels and/or tires are not used, the TPM system and the low tire inflation warning threshold of your vehicle’s TPM system may not function or may function correctly. If the Original Equipment wheels and/or tires are not sued, it is the responsibility of the vehicle owner to ensure that the TPMS is working correctly. Refer to the Original Equipment manufacturer’s vehicle service guide for instruction including the warning threshold reset procedure and seek the assistance of an authorized vehicle dealership to ensure the TPM system, including system compatibility with the non‐Original Equipment wheels and/or tires, is working properly. The vehicle owner expressly assumes sole and complete Failure to ensure that the TPMS is working correctly can result in severe injury or death. WARRANTY Cub warrants that the P‐TPMS sensor complies with Cub’s product specifications and shall be free from defects in workmanship and material for a period of twelve (12) months after the sale of product to customer. In the event that within the above mentioned warranty period, Cub confirms that a product is defective; Cub will replace the product at no cost to customer. If it is determined that the product has been subject to accident, misuse or abuse this warranty and the limited obligations hereunder will be void. THIS IS THE SOLE AND EXCLUSIVE WARRANTY AND LIABILITY TO CUSTOMER. CUB EXPRESSLY DISCLAIMS AND OTHER WARRANTY INLUDING THE WARRANTIES OF MERCHANTIABILITY, FITNESS FOR PURPOSE OF OTHER IMPLIED OR EXPRESS WARRANTIES. UNDER NO CIRCUMSTANCES SHALL CUB BE LIABLE TO CUSTOMER FOR ANIY OTHE AMOUNTS INCLUDING LABOR CHARGES FOR INSTALLATION OR REINSTALLATION OF PRODUCTS NOR SHALL CUB LIABLE UNDER ANY THEORY FOR ANY OTHER DAMAGES INCLUDING BUT NOT LIMITED TO DIRECTLY, INDIRECT, SPECIAL, CONSEQUENTIAL AND INCIDENTAL DAMAGES. IMPORTANT WARRANTY INFORMATION Professional installer: When replacing an entire P‐TPMS sensor assembly, please complete the following P‐TPMS sensor warranty information giving one copy to the customer and send the duplicate copy to the indicated address. WARNING: FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS OR THE USE OF IMPROPER TPMS SENSORS MAY RESULT IN THE MOTOR VEHICLE TPM SYSTEM FAILURE CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. CUSTOMER TPMS P‐SENSOR Multi‐Application Sensor Information Card (Please keep in motor vehicle glove box) Professional Installer: Name: Place of Repair: Address: Phone: Vehicle Owner: Name: Address: Motor Vehicle: Make: Model: Year: VIN Number: P‐TPMS sensor date of installation: (M) /(D) /(Y) P‐TPMS sensor date code. Take date code from P‐TPMS sensor housing: (8 digits) 1. Clear valve stem hole in rim of any corrosion or dirt. Ensure there is a clean smooth surface for the mating of the P‐TPMS sensor screw (fig.1), rubber washer and valve core assembly (fig.3), P‐TPMS washer (fig. 4), and P‐TPMS nut (fig.5) to the rim. 2. Remove P‐TPMS sensor screw (fig.1),washers(fig.4) and nut(fig.5) from P‐TPMS sensor valve stem assembly (fig.3) 3. While holding P‐TPMS sensor body(fig.2), the grey(plastic) side of P‐TPMS sensor facing the tire, push P‐TPMS sensor valve stem(fig.3) through rim by hand until P‐TPMS rubber washer(fig.3) meets inside edge of rim. 4. Lock the P‐TPMS sensor(fig.2) and P‐TPMS sensor valve stem assembly together by screw(fig.1) 5. Hold P‐TPMS sensor body (fig.2) down against the rim drop center and thread/tighten P‐TPMS sensor washer(fig.4) and nut(fig.5) to 35 inch‐pounds， and tighten P‐TPMS sensor screw and valve assembly(fig.3) to 9.7inch‐pounds. No. Part 1 P‐TPMS sensor screw 2 P‐TPMS sensor (mounted inside wheel) 3 P‐TPMS sensor valve stem, rubber washer and valve core assembly 4 P‐TPMS washer(mounted outside wheel) 5 P‐TPMS sensor nut(mounted outside wheel) 6 P‐TPMS sensor cap Each time a tire is serviced …

Text truncated - open the document above for the full version.

CUB ELECPARTS INC. No.6,Lane 546, Sec. 6, Changlu Road, Fuhsin Township, Changhua County,Taiwan 506 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: July 04, 2011 Subject: Request for Confidentiality FCC ID: ZPNVS62U003 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: Schematic Diagram Block Diagram Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Best Regards Sincerely yours, Name/Title: YU, SAN-CHUAN C.E.O./ President Company Name: CUB ELECPARTS INC. Address: No.6,Lane 546, Sec. 6, Changlu Road, Fuhsin Township, Changhua County,Taiwan 506 TEL: +886-4-778-2010 FAX: +886-4-778-2009 Email: [email protected]

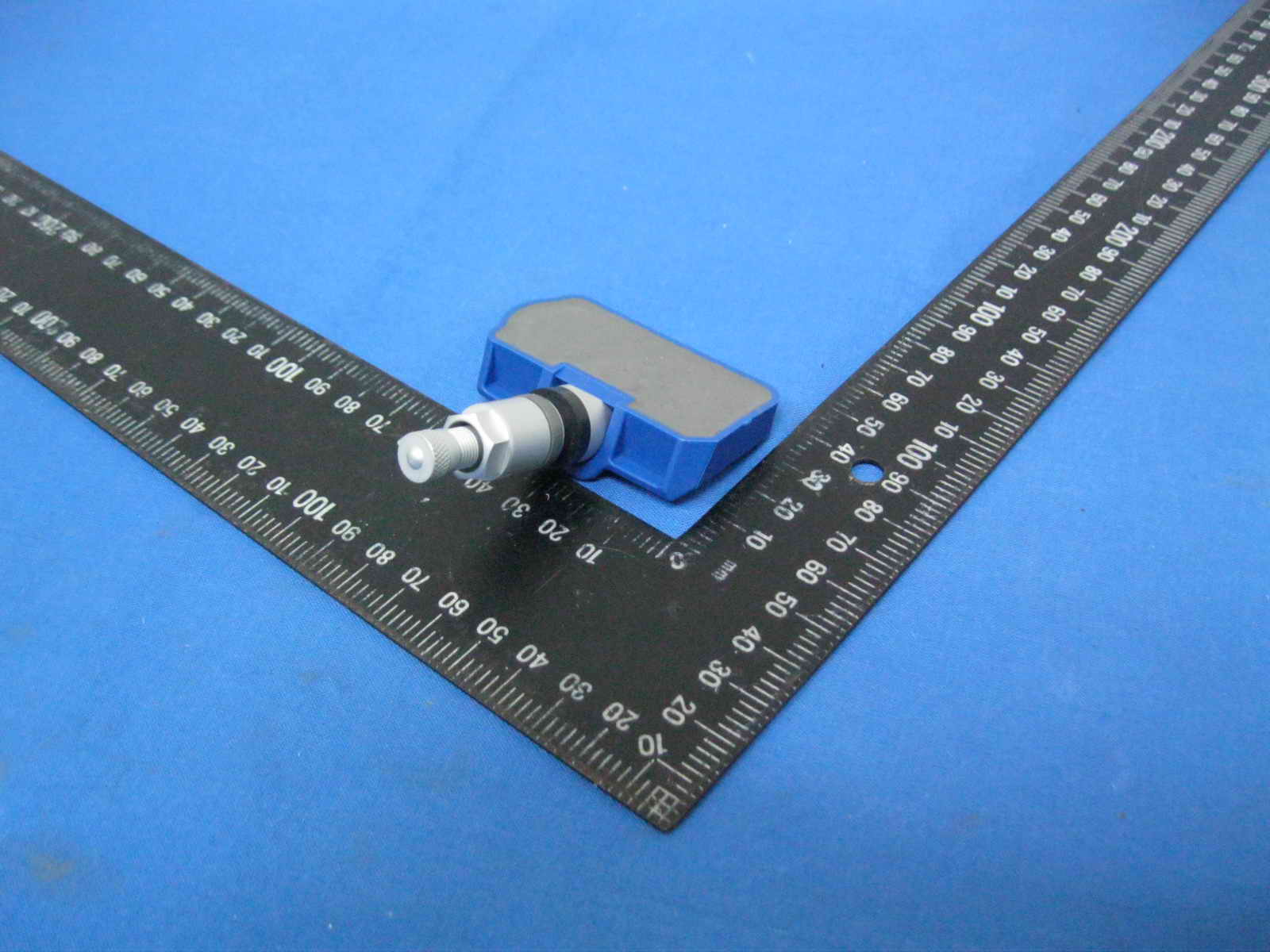

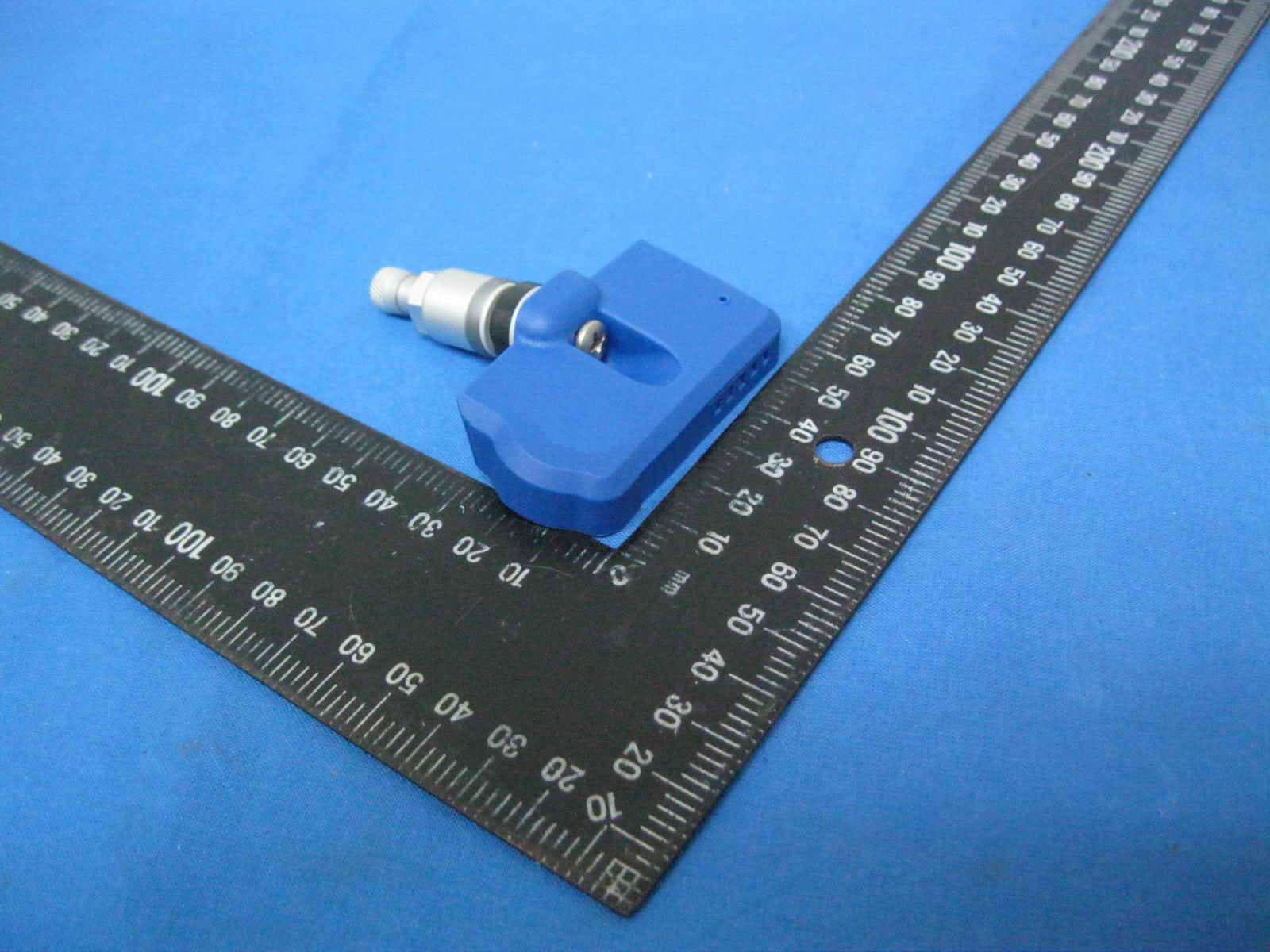

Report No.：T110513301-1 Page 1 of 2 External Photo

Report No.：T110513301-1 Page 2 of 2 Internal Photo

FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 1 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Programmable Tire Pressure Monitor System Model : VS-62U003 Trade Name : Cub Issued for Cub Elecparts Inc. No.6,Lane 546, Sec. 6, Changlu Road, Fuhsin Township, Changhua County,Taiwan 506 Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: May 27, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 2 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 05/27/2011 Initial Issue All Page 33 Winnie Chen FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 3 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.231 REQUIREMENTS.......................................................................... 10 7.1 20dB BANDWIDTH ................................................................................................ 10-11 7.2 LIMIT OF TRANSMISSION TIME .......................................................................... 12-17 7.3 DUTY CYCLE CORRECTION FACTOR................................................................ 18-20 7.4 RADIATED EMISSION........................................................................................... 21-28 7.5 CONDUCTED EMISSION ...................................................................................... 29-31 APPENDIX SETUP PHOTOS .......................................................................................... 32-33 FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 4 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Cub Elecparts Inc. Address No.6,Lane 546, Sec. 6, Changlu Road, Fuhsin Township, Changhua County,Taiwan 506 Equipment Under Test Programmable Tire Pressure Monitor System Model VS-62U003 Trade Name Cub Tested Date May 13 ~ 27, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 5 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Programmable Tire Pressure Monitor System Model Number VS-62U003 Identify Number T110513301 Received Date May 13, 2011 Frequency Range 433.92 MHz Transmit Power 81.37 dBμV/m Channel Number 1 Channels Type of Modulation ASK, FSK Antenna Type PCB Antenna, Antenna Gain -3.6 dBi Power Source 3Vdc (From Battery) Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: ZPNVS62U003 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. FCC IDZPNVS62U003 Report No.T110513301-RP1-1 Page 6 / 33 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 3. DESCRIPTION OF TEST MODES Radiated Emission (Below 1 GHz) Test: 1. The following test modes were scanned during the preliminary test: No. Pre-Test Mode 1 Normal Operating / ASK Mode 2 Normal Operating / FSK Mode 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Final Test Mode Normal Operating / ASK Mode Normal Operating / F…

Text truncated - open the document above for the full version.
