ZQWGIT000003RFID module

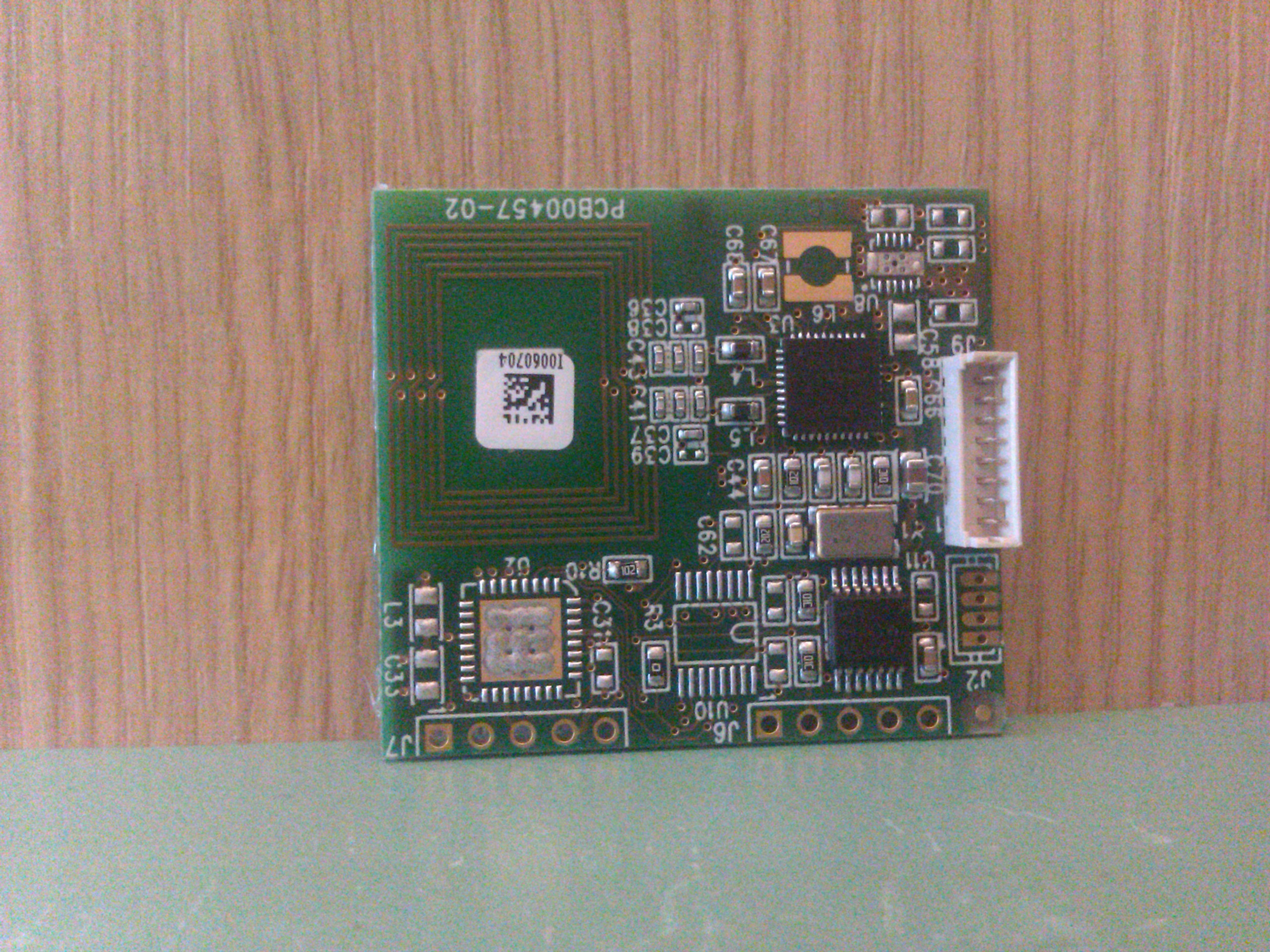

TGS User Manual.doc Pag. 1 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 Technogym ® Mifare 3v3 Reader 0wq00485AA User/Integration manual TGS User Manual.doc Pag. 2 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 Table of contents 1 General overview ................................................................................................... 3 2 Description ............................................................................................................ 3 3 Communication and connector ............................................................................... 4 4 Operationg mode ................................................................................................... 5 5 Installation ............................................................................................................ 6 6 FCC Statements ..................................................................................................... 6 TGS User Manual.doc Pag. 3 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 1 General overview Mifare Reader with Technogym code 0wq00485AA is an accessory of Technogym Equipments that let them to identify, read and write an RFID transponder, named Technogym Wellness System Keys, in a contactless way. Technogym Wellness System Keys are Mifare transponders customized with a private password to access data inside it. By means of the system made by “TGS Mifare Reader” + “Technogym Wellness System Keys” each equipment may identify the user, propose its specific training and save a log of the training executed on the equipment. 2 Description Mifare Reader is made by a board inside a plastic housing that may change depending of the Technogym equipment where the device must be mounted on. Technogym equipment can be enabled to read and write RFID devices connecting first a Technogym NFC reader 0WQ00484AB (adding NFC read/write data exchange capabilities) and second this Mifare reader 0WQ00485AA (adding Mifare Classic read/write data exchange capabilities). This connection must be “in chain” mode, as follow: Picture 1 – System block diagram NFC reader and Mifare reader never work at the same tame. Technogym equipment (host) NFC reader (first) Mifare reader (second) TGS User Manual.doc Pag. 4 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 This block diagram can be better understood in the next picture, overlayed with the real equipment: The connection to the host is made by means of a cable that allows: - Device powering; - Data communication (the host SW manage a serial port switch to enable once the NFC reader and once the Mifare reader, working in time slots). The module antenna is embedded on the board. 3 Communication and connector Connector of Mifare Reader has the following signals and pinout: Picoblade Molex on the device (on board) Description 1 +3.3Vdc 2 TX out 3 RX in 4 N.C. Technogym equipment (host) NFC reader (first) Mifare reader (second TGS User Manual.doc Pag. 5 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 5 N.C. 6 N.C. 7 N.C. 8 GND Data communication is standard RS232 with next parameters: • Baud rate: 115200 bps; • Data bits: 8; • Parity: None; • Stop Bit: 1; Over this serial communication Technogym has developed a proprietary communication protocol implemented on every host that may be connected to this device. The SW driver for the Mifare Reader is developed by Technogym an integrated into Operating System of the host. 4 Operationg mode The Technogym equipment host switches continuously between NFC and Mifare reader, looking for a compatible device present in the RF field. Mifare reader will recognize only the Technogym Wellness System Keys with a Mifare Classic chip inside: TGS User Manual.doc Pag. 6 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 After the Technogym Wellness System Keys is read and the end user recognized, the access to the unit is granted: 5 Installation Each equipment has a specific upgrade kit to upgrade it with TGS Mifare Reader 0wq00485, please refer to the specific equipment service manual to get the right part number with the right housing and the right installation procedure. 6 FCC Statements FCC § 15.19 Labelling requirements This device complies with part 15 of the FCC Rules subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TGS User Manual.doc Pag. 7 di 7 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Data di stampa: 27/06/13 When integrating the module into end products, the end product label shall be marked in the following way: Contains FCC ID: ZQWGIT000003 FCC § 15.21 Information to user Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Label location TGS.doc Pag. 1 di 2 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Printed on: 18/07/13 Technogym ® Mifare 3v3 Reader 0wq00485AA Label location Label location TGS.doc Pag. 2 di 2 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.1 Author: Alessandro Cevoli Printed on: 18/07/13 1 Label location Label will be placed on the board as in the follow picture: Using a permanently affixed label, the modular transmitter is labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: ZQWGIT000003” or “Contains FCC ID: ZQWGIT000003” Any similar wording that expresses the same meaning may be used.

2.1 EUT Photo Small configuration Antenna Wi-Fi (WLAN) Type: Pulse W3525B Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Section 2: Equipment under test, continued 2.2 EUT Photo Big configuration Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module

447498 23 D01 General RF Exposure Guidance v05 7.2. Transmitters used in mobile exposure conditions for simultaneous transmission operations All transmitters and antennas in the grantee’s own physical exercise machines qualify for standalone MPE test exclusion of 2.1091(c). The minimum test separation distance for each simultaneous transmitting antenna installed in the host device is greater than or equal to that approved for standalone transmission. When simultaneous transmission MPE test exclusion applies, transmitter modules may be incorporated in host devices according to Class I permissive change requirements to document the test exclusion conditions. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. FCC ID Frequency Peak Field Strength Power Ant Gain EIRP Power* Density 20cm Power Density Limit Power Density / Limit MHz dBuV/m @ 3m mW dBi mW mW/cm^2 mW/cm^2 QOQBT111 2500 8 0.5 8.98 0.00179 1 0.00179 YWTWFXM05 2500 197 2 312 0.0621 1 0.0621 ZQWGIT000003 13.56 58.4 0.000208 4.129E-08 0.979 4.218E-08 ZQWGIT000004 13.56 73.5 0.00672 1.336E-06 0.979 1.365E-06 Σ= 0.06390 *calculated from EIRP / (4π20 2 )

©Technogym 2011 – Private / Confidential Ver. 1 - 25/07/2013 VISIO EXCITE SMALL con UNITY Distances shown on this document are the closest physical antenna separation distances The VISIO EXCITE SMALL UNITY will be labeled with following text (on accessible position): Contains FCC ID: QOQBT111, YWTWFXM05, ZQWGIT000003, ZQWGIT000004 Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B ©Technogym 2011 – Private / Confidential Ver. 1 - 25/07/2013 VISIO EXCITE BIG con UNITY Distances shown on this document are the closest physical antenna separation distances The VISIO EXCITE BIG UNITY will be labeled with following text (on accessible position): Contains FCC ID: QOQBT111, YWTWFXM05, ZQWGIT000003, ZQWGIT000004 Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B

FCC 15.225 13.56 MHz.docx - Date: May 2013 www.nemko.com Compliance test report ID 236204TRFWL Date of issue June 19, 2013 FCC 47 CFR Part 15 Subpart C, §15.225 Operation within the band 13.110–14.010 MHz Applicant Technogym SPA Product TGS RFID Model Mifare 3V3 Reader Model variant none FCC ID ZQWGIT000003 Report reference ID: 236204TRFWL Page 2of37 Test location Nemko Spa a Socio Unico Via del Carroccio, 4 20853 Biassono (MB) Italy -- -- FCC test site registration number: 481407 (10 m Semi anechoic chamber) Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Toll free -- Website www.Nemko.com/it Tested by Daniele Guarnone Reviewed by Gabriele Curioni May 30, 2013 Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Italy’s ISO/IEC 17025 accreditation. Copyright notification Nemko Italy SpA. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Italy SpA. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 236204TRFWL Page 3of37 Table of contents Table of contents ..................................................................................................................................................................................................................... 3 Section 1. Report summary ........................................................................................................................................................................................... 4 1.1 Applicant and manufacturer ................................................................................................................................................................................................ 4 1.2 Test specifications ................................................................................................................................................................................................................. 4 1.3 Statement of compliance ..................................................................................................................................................................................................... 4 1.4 Exclusions............................................................................................................................................................................................................................... 4 1.5 Test report revision history .................................................................................................................................................................................................. 4 Section 2. Summary of test results ................................................................................................................................................................................ 5 2.1 FCC Part 15 Subpart C, general requirements test results ................................................................................................................................................. 5 2.2 FCC Part 15 Subpart C, intentional radiatorstest results .................................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ............................................................................................................................................................. 6 3.1 Sample information .............................................................................................................................................................................................................. 6 3.2 EUT information .................................................................................................................................................................................................................... 6 3.3 Technical information ........................................................................................................................................................................................................... 6 3.4 Product description and theory of operation ..................................................................................................................................................................... 7 3.5 EUT exercise details .............................................................................................................................................................................................................. 7 3.6 EUT setup diagram ................................................................................................................................................................................................................ 9 3.7 EUT sub assemblies ............................................................................................................................................................................................................... 9 Section 4. Engineering considerations......................................................................................................................................................................... 10 4.1 Modifications incorporated in the EUT ...........................................................…

Text truncated - open the document above for the full version.

Clause FCC 15.207 (Conducted Emissions) Set up photo Small Configuration Big Configuration Clause FCC15.225 (Field Strength) Small Configuration Loop antenna (9 kHz ÷ 30 MHz) measurement distance: 3 m Clause FCC15.225 (Field Strength, continued Set up photo Small Configuration Log periodic antenna (30 MHz ÷ 1000 MHz) measurement distance: 3 m Clause FCC15.225 (Field Strength, continued Big Configuration Loop antenna (9 kHz ÷ 30 MHz) measurement distance: 3 m Clause FCC15.225(Field Strength, continued Set up photo Big Configuration Log periodic antenna (30 MHz ÷ 1000 MHz) measurement distance: 3 m Clause FCC15.225(e) Frequency tolerance of the carrier signal Set up photo Small Configuration Big Configuration
