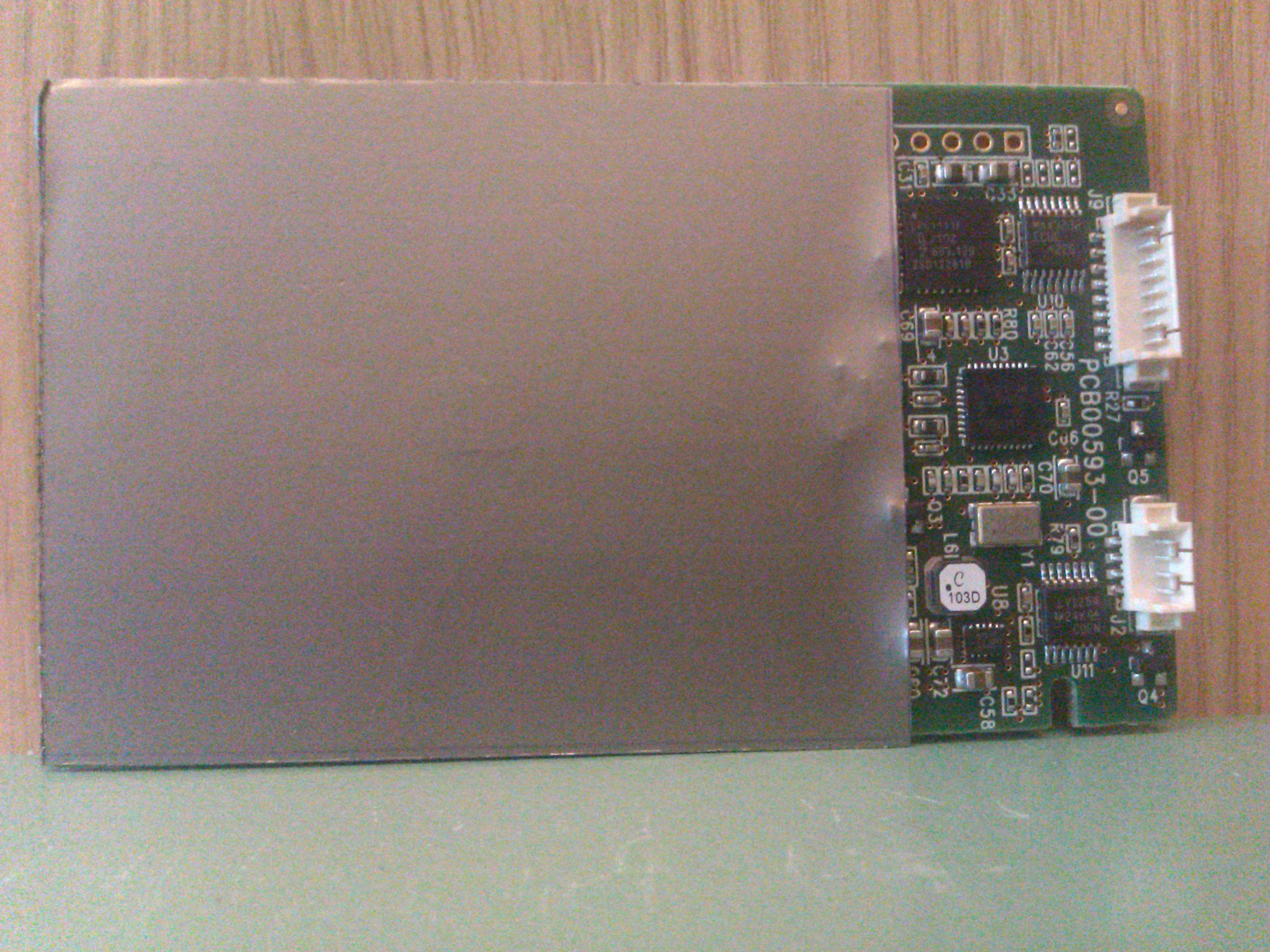

ZQWGIT000004RFID module

NFC User Manual.doc Pag. 1 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 Technogym ® NFC 12V Reader 0wq00484AB User/Integration manual NFC User Manual.doc Pag. 2 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 Table of contents 1 General overview ................................................................................................... 3 2 Description ............................................................................................................ 3 3 Communication and connector ............................................................................... 5 4 Operating mode .................................................................................................... 5 5 NFC compatibility ................................................................................................... 7 6 Mechanical dimensions........................................................................................... 7 7 Installation ............................................................................................................ 8 8 FCC Statements ..................................................................................................... 8 NFC User Manual.doc Pag. 3 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 1 General overview NFC 12V Reader with Technogym code 0wq00484AB is an accessory of Technogym Equipment that let them communicate with Technogym MyWellness app running on NFC enabled mobile phones, in a contactless way. Once a NFC phone is approached to the NFC 12V reader it automatically launches Technogym MyWellness app on the phone and exchange user specific training data to the equipment. In this way the equipment unequivocally identifies the user and configures itself with a GUI, workout and training time specifically for this user. 2 Description NFC 12V Reader is made by a board inside a plastic housing that may change depending of the Technogym equipment where the device must be mounted on. Technogym equipment can be enabled to interact with NFC mobile phones connecting NFC reader 0WQ00484AB and with Technogym Mifare Classic tags connecting Mifare reader 0WQ00485AA “in chain mode” to NFC reader, as follow: Picture 1 – System block diagram NFC reader and Mifare reader never work at the same tame. Technogym equipment (host) NFC reader (first) Mifare reader (second) Optional accessory NFC User Manual.doc Pag. 4 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 This block diagram can be better understood in the next picture, overlayed with the real equipment: Picture 2 – Equipment with overlayed block diagram The connection to the host is made by means of a cable that allows: - Device powering; - Data communication (the host SW manage a serial port switch to enable once the NFC reader and once the Mifare reader, working in time slots). The module antenna is embedded on the board and its positioning on the equipment is shown with a specific indication: Picture 3 – NFC and Mifare indications. Technogym equipment (host) NFC reader (first) Mifare reader (second Mifare reader indicator NFC antenna indicator NFC User Manual.doc Pag. 5 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 3 Communication and connector Connector of NFC 12V Reader has the following signals and pinout: Picoblade Molex on the device (on board) Description 1 +12Vdc 2 TX out 3 RX in 4 N.C. 5 N.C. 6 N.C. 7 N.C. 8 GND Data communication is standard RS232 with next parameters: • Baud rate: 115200 bps; • Data bits: 8; • Parity: None; • Stop Bit: 1; Over this serial communication Technogym has developed a proprietary communication protocol implemented on every host that may be connected to this device. The SW driver for the NFC Reader is developed by Technogym an integrated into Operating System of the host. 4 Operating mode The Technogym equipment host switches continuously between NFC and Mifare reader, looking for a compatible device present in the RF field. NFC reader will communicate to NFC mobile phones once the phone is located in the RF field. After that mobile phone with preinstalled Technogym MyWellness application will manage the communication to the equipment, that will be able to unequivocally will identify the user and its training data. Use case is shown in the following pictures: NFC User Manual.doc Pag. 6 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 Picture 4 – User places NFC mobile phone in front of NFC indicator Picture 5 – User identified from the equipment through NFC link NFC User Manual.doc Pag. 7 di 8 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Data di stampa: 27/06/13 5 NFC compatibility The NFC module will be compatible with the following handsets: • Google NEXUS S • Samsung GALAXY NEXUS GT-i9250 • Samsung MINI 2 S6500 NFC • Sony Xperia P LT22i • LG 4X This list may be subject to future changes according to new devices released on the market in the coming months. For a complete list of devices which integrate NFC please refer to: http://www.nfcworld.com/nfc-phones-list/ http://www.paywithisis.com/ http://www.nfc.cc/nfc-phones/ New mobile phone compatibility will be obtained through a software update. 6 Mechanical dimensions The NFC 12V reader has the following mechanical dimensions: Reference MAX dimens…

Text truncated - open the document above for the full version.

Label location NFC.doc Pag. 1 di 2 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Printed on: 18/07/13 Technogym ® NFC 12V Reader 0wq00484AB Label location Label location NFC.doc Pag. 2 di 2 TECHNOGYM S.p.A. Via G. Perticari, 20 - 47035 Gambettola (FC) - Italia Tel.: +39 (0) 547- 56047 Rev. 1.0 Author: Alessandro Cevoli Printed on: 18/07/13 1 Label location Label will be placed on the board as in the follow picture: Using a permanently affixed label, the modular transmitter is labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: ZQWGIT000004” or “Contains FCC ID: ZQWGIT000004” Any similar wording that expresses the same meaning may be used.

2.1 EUT Photo Small configuration Antenna Wi-Fi (WLAN) Type: Pulse W3525B Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Section 2: Equipment under test, continued 2.2 EUT Photo Big configuration Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module

447498 23 D01 General RF Exposure Guidance v05 7.2. Transmitters used in mobile exposure conditions for simultaneous transmission operations All transmitters and antennas in the grantee’s own physical exercise machines qualify for standalone MPE test exclusion of 2.1091(c). The minimum test separation distance for each simultaneous transmitting antenna installed in the host device is greater than or equal to that approved for standalone transmission. When simultaneous transmission MPE test exclusion applies, transmitter modules may be incorporated in host devices according to Class I permissive change requirements to document the test exclusion conditions. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. FCC ID Frequency Peak Field Strength Power Ant Gain EIRP Power* Density 20cm Power Density Limit Power Density / Limit MHz dBuV/m @ 3m mW dBi mW mW/cm^2 mW/cm^2 QOQBT111 2500 8 0.5 8.98 0.00179 1 0.00179 YWTWFXM05 2500 197 2 312 0.0621 1 0.0621 ZQWGIT000003 13.56 58.4 0.000208 4.129E-08 0.979 4.218E-08 ZQWGIT000004 13.56 73.5 0.00672 1.336E-06 0.979 1.365E-06 Σ= 0.06390 *calculated from EIRP / (4π20 2 )

©Technogym 2011 – Private / Confidential Ver. 1 - 25/07/2013 VISIO EXCITE SMALL con UNITY Distances shown on this document are the closest physical antenna separation distances The VISIO EXCITE SMALL UNITY will be labeled with following text (on accessible position): Contains FCC ID: QOQBT111, YWTWFXM05, ZQWGIT000003, ZQWGIT000004 Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B ©Technogym 2011 – Private / Confidential Ver. 1 - 25/07/2013 VISIO EXCITE BIG con UNITY Distances shown on this document are the closest physical antenna separation distances The VISIO EXCITE BIG UNITY will be labeled with following text (on accessible position): Contains FCC ID: QOQBT111, YWTWFXM05, ZQWGIT000003, ZQWGIT000004 Module: NFC (RFID 13,56Mz) FCC ID: ZQWGIT000004 Typo: Limited Single-Modular Transmitter Antenna: on the module Module: TGS (RFID 13,56Mz) FCC ID: ZQWGIT000003 Type: Limited Single-Modular Antenna: on the module Module: Bluetooth (2,4Ghz) FCC ID: QOQBT111 Type: Single-Modular Transmitter Antenna: on the module Module: Wi-Fi (WLAN) (2,4Ghz) FCC ID: YWTWFXM05 Tipo: Single-Modular Transmitter Antenna: External Type: W3525B Antenna Wi-Fi (WLAN) Type: Pulse W3525B

FCC 15.225 13.56 MHz.docx - Date: May 2013 www.nemko.com Compliance test report ID 236226TRFWL Date of issue June 19, 2013 FCC 47 CFR Part 15 Subpart C, §15.225 Operation within the band 13.110–14.010 MHz Applicant Technogym Spa Product NFC RFID Model NFC 12V Reader Model variant none FCC ID ZQWGIT000004 Report reference ID: 236226TRFWL Page 2of37 Test location Nemko Spa a Socio Unico Via del Carroccio, 4 20853 Biassono (MB) Italy -- -- FCC test site registration number: xxxxx ( xxx m semi anechoic chamber) Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Toll free -- Website www.Nemko.com/it Tested by Daniele Guarnone Reviewed by Gabriele Curioni June 19, 2013 Date Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Italy’s ISO/IEC 17025 accreditation. Copyright notification Nemko Italy SpA. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Italy SpA. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 236226TRFWL Page 3of37 Table of contents Table of contents ..................................................................................................................................................................................................................... 3 Section 1. Report summary ........................................................................................................................................................................................... 4 1.1 Applicant and manufacturer ................................................................................................................................................................................................ 4 1.2 Test specifications ................................................................................................................................................................................................................. 4 1.3 Statement of compliance ..................................................................................................................................................................................................... 4 1.4 Exclusions............................................................................................................................................................................................................................... 4 1.5 Test report revision history .................................................................................................................................................................................................. 4 Section 2. Summary of test results ................................................................................................................................................................................ 5 2.1 FCC Part 15 Subpart C, general requirements test results ................................................................................................................................................. 5 2.2 FCC Part 15 Subpart C, intentional radiatorstest results .................................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ............................................................................................................................................................. 6 3.1 Sample information .............................................................................................................................................................................................................. 6 3.2 EUT information .................................................................................................................................................................................................................... 6 3.3 Technical information ........................................................................................................................................................................................................... 6 3.4 Product description and theory of operation ..................................................................................................................................................................... 7 3.5 EUT exercise details .............................................................................................................................................................................................................. 8 3.6 EUT setup diagram ................................................................................................................................................................................................................ 9 3.7 EUT sub assemblies ............................................................................................................................................................................................................. 10 Section 4. Engineering considerations......................................................................................................................................................................... 11 4.1 Modifications incorporated in the EUT ........................................................…

Text truncated - open the document above for the full version.

Clause FCC 15.207 (Conducted Emissions) Set up photo Small Configuration Big Configuration Clause FCC15.225 (Field Strength) Small Configuration Loop antenna (9 kHz ÷ 30 MHz) measurement distance: 3 m Clause FCC15.225 (Field Strength, continued Set up photo Small Configuration Log periodic antenna (30 MHz ÷ 1000 MHz) measurement distance: 3 m Clause FCC15.225 (Field Strength, continued Big Configuration Loop antenna (9 kHz ÷ 30 MHz) measurement distance: 3 m Clause FCC15.225(Field Strength, continued Set up photo Big Configuration Log periodic antenna (30 MHz ÷ 1000 MHz) measurement distance: 3 m Clause FCC15.225(e) Frequency tolerance of the carrier signal Set up photo Small Configuration Big Configuration
