Activity Tracker Instruction Manual 1. APP Installation 1) use Apple iphone（IOS version7.0 or above）,please download MAX software client‐site at APP store, install it on phone. If use Android phone, please download MAX software client‐site at google play. If install incorrectly , please re‐download then install. Support model： iPhone4S/5/5S/5C,iPod touch5，iPad 4，iPad Mini，iPad Mini with Retina display，iPad Air。 Samsung S3/S4/S5，Note 2，Note 3，ZTE U9180。 （Android phone need 4.3 above version, hardware version support bluetooth 4.0） 2. Sync（before using bracelet, pls sync with APP） 1) Sync via bluetooth a. press button two time rapidly, set bracelet to choose connect mode, choose Bluetooth connect. b. click Bluetooth connect symbol on phone interface to connect Bluetooth, display show Bluetooth connecting......，app will scan 30 seconds. c. Bluetooth connect successfully, phone show Bluetooth connection is successful，bracelet show Bluetooth symbol，data auto sync to APP。 d. click APP Bluetooth connecting symbol to disconnect or after 5 seconds disconnect automatically，phone show Bluetooth disconnected，then can review data on bracelet. To choose Bluetooth connect and quit to other interface need press button and wait Bluetooth syncs send 30 seconds. At this time, click Bluetooth connecting symbol on APP interface can also sync data. 2) 3.5mm Connect a. press button two times shortly, set bracelet to choose connect mode, choose 3.5mm connect. b. use 3.5mm tieline to connect bracelet, then insert in 3.5mm port of phone. This moment, bracelet connect APP, sync data automatically. c.After sync successfully，pull out 3.5mm tieline. After connecting ,quit to other interface,just use 3.5mm tieline and phone APP can sync data. 3.Calculate steps 1) Under connect choose mode, press button two time shortly, convert to activity mode, bracelet vibrate and show step symbol. 2) Under activity mode, press button shortly, can review six types of parameters, that’s：current time（month， date，time，electronic quantity）；step；distance；calorie；target percentage. calculate step： xxxxx distance： xx.xxKM calorie ： xxxx goal： xx% battery level： ， full charge：， no power： 3)After sync to APP,you can review intraday activity situation, you can also review history activity, per one day, one week ,one month, one year. remark： through APP to set target setting，click step target and sync, then valid. 4.Sleep monitoring 1) Under activity mode，press button two time shortly, this moment enter sleep mode, bracelet vibrate and show sleep symbol. 2) Under sleep mode, press button shortly also can review current time（month,date,time,electronic quantity）. 3)Wake up in morning, bracelet can detect user’s activity situation intelligently，will convert from sleep mode to activity mode automatically. 4) After sync to APP, you can review sleep detected situation last night, you also can review previous sleep situation ,per one day, one week,one month, one year. 5. ON/OFF management Under standby mode, press button long as 5 seconds, bracelet show“Power OFF” and shut down. Under power off mode, press button long as 5 seconds, bracelet show “Power ON” and start up. 6.Power management This device use built‐in（can’t disassemble）battery to supply power. If it’s first time to use bracelet, need charge power for bracelet, then sync with phone. When charge power, show“Power ON”，screen on bracelet show charging symbol and charge one grid by one. At this moment, it’s unvalid to press button on bracelet . Charge 2‐3hours is enough, can use 5‐7days 7.Main functional parameter Device type： wear on upper limb，bracelet Compatible device：support Bluetooth 4.0 transmission and smart phone voice frequency oral transmission， is suitable for IOS7.0 or above version and Android 4.3 or above version. Waterproof： can’t soak Mode：have daily exercise and sleep mode in night； Smart remind：when user set remind interval time, after transmit to bracelet, if user have no obvious activity， bracelet will show a running small person and vibrate twice to remind user to do exercise and keep healthy； smart alarm clock：after user set alarm clock time and transmit to bracelet, at setting time, bracelet will vibrate and wake up user； Sleep monitor：can monitor user sleep situation every night so that user can review and analysis. Activity mode：record user’s activity situation during 24 hours, use mileage, step and calorie as unit. 8. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

DATE : 18 Aug., 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab __1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Jack.kang, (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Adition Audio Science & Technology CO., LTD. Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Dated this 18 Aug., 2014 Agency agreement expiration date: 18 Aug., 2015 By: Zhengxin Miao Signature Printed Title: General Manager On behalf of : Shenzhen Adition Audio Science & Technology CO., LTD. Telephone: (86) 755-27405088

DATE: 18 Aug., 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ ZRR-IR126B ______ Product Name:_ Activity Tracker__________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 18 Aug., 2014 By: Zhengxin Miao Signature Printed Title: General Manager On behalf of : Shenzhen Adition Audio Science & Technology CO., LTD. Telephone: (86) 755-27405088

Statement We need adding models for certificate approval is IR126B, WB11 The basic Model NO.: EVWTR011  :(+(5(%<67$7(7+$77+(6(02'(/6$5(,'(17,&$/,1,17(5,256758&785( (/(&75,&$/&,5&8,76$1'&20321 (176$1'-86702'(/1$0(6$5(',))(5(17)257+( 0$5.(7,1*5(48,5(0(17   Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2014/08/20 General Manager r Company Name: Shenzhen Adition Audio Science & Technology CO., LTD. Address: Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China (Zhengxin Miao

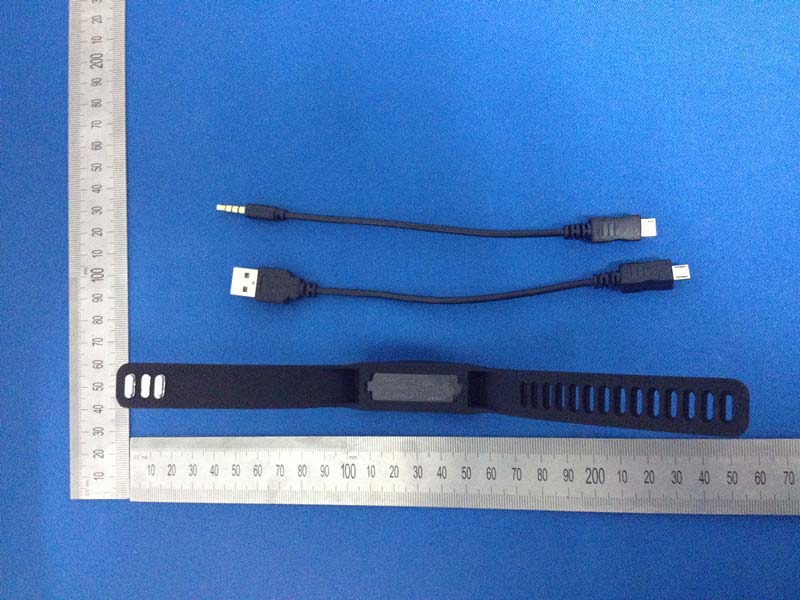

External photo

LABEL ARTWORK AND LOCATION FCC ID Location

1 Internal photo 2 3

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -5.56dBm（0.28mW） output power] (0.28mW /5mm) •[√2.402 (GHz)]= 0.087 <3.0 for 1-g SAR Then SAR evaluation is not required

FCC ID TEST REPORT for Activity Tracker Model: EVWTR011 FCC ID: ZRR-IR126B Prepared for: Shenzhen Adition Audio Science & Technology CO., LTD. Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT140808E008F2-1 Date of Test： Aug. 08-Aug. 14, 2014 Date of Report： Aug. 15, 2014 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology FCC ID: ZRR-IR126B Report Number: TCT140808E008 Page 2 of 33 Table of Contents 1.0 General Details................................................................................................................................................... 3 1.1 Test Lab Details ........................................................................................................................................... 3 1.2 Applicant Details ......................................................................................................................................... 3 1.3 Description of EUT...................................................................................................................................... 4 1.4 Channel description ..................................................................................................................................... 4 1.5 Statement ..................................................................................................................................................... 5 1.6 Test Engineer ............................................................................................................................................... 5 2.0 Test equipments and Associated Equipment used during the test................................................................. 6 2.1 Test Equipments........................................................................................................................................... 6 2.2 AE used during the test ................................................................................................................................ 6 3.0 Technical Details................................................................................................................................................ 7 3.1 Summary of test results ............................................................................................................................... 7 3.2 Test Standards .............................................................................................................................................. 7 4.0 EUT Modification.............................................................................................................................................. 7 5.0 Measurement Uncertainty（95% confidence levels, k=2)............................................................................. 7 6.0 Power Line Conducted Emission Test.............................................................................................................. 8 7.0 Maximum Peak Output Power....................................................................................................................... 12 8.0 6dB Bandwidth Measurement........................................................................................................................ 13 9.0 Power Spectral Density Measurement........................................................................................................... 16 10.0 Band age Measurement................................................................................................................................. 19 11.0 Spurious Emission Test.................................................................................................................................. 21 12.0 Antenna Requirement................................................................................................................................... 33 FCC ID: ZRR-IR126B Report Number: TCT140808E008 Page 3 of 33 1.0 General Details 1.1 Test Lab Details Name : Shenzhen Tongce Testing Lab Address: 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Telephone: 13410377511 Fax: -- The test facility is recognized, certified, or accredited by the following organizations: FCC Registration Number: 572331 Shenzhen TCT Testing Technology Co., Ltd., Shenzhen EMC Laboratory: Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 572331 Industry Canada (IC) The 3m Semi-anechoic chamber of Shenzhen TCT Testing Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing Registration Number IC: 10668A-1 1.2 Applicant Details Applicant: Shenzhen Adition Audio Science & Technology CO., LTD. Address: Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Telephone: (86) 755-27405088 Fax: (86) 755-27409830 Manufacturer: Shenzhen Adition Audio Science & Technology CO., LTD. Address: Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Telephone: (86) 755-27405088 Fax: (86) 755-27409830 FCC ID: ZRR-IR126B Report Number: TCT140808E008 Page 4 of 33 1.3 Description of EUT Product: Activity Tracker Model No.: EVWTR011 Additional Model No.: IR126B, WB11 Brand Name EVERLAST / Adition Power supply: DC 3.7V (…

Text truncated - open the document above for the full version.

Setup photo Radiated Emission Test Conducted Emission Test
